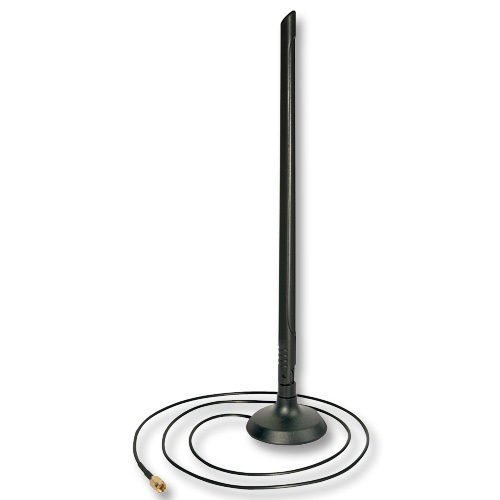

52109 network antenna Omni-directional antenna RP-SMA 7 dBi
Model 52109EAN 4002888521093
17 specifications
- ColourBlack
- Antenna gain level (max)7 dBi
- Antenna typeOmni-directional antenna
- Operating temperature (T-T)-10 - 55 °C
- Width12 mm
Overview
- Colour
- Black
- Antenna gain level (max)
- 7 dBi
- Antenna type
- Omni-directional antenna
- Operating temperature (T-T)
- -10 - 55 °C
- Width
- 12 mm
- Brand
- Lindy
- Category
- Network Antenna
- Model
- 52109
- Part number
- 52109
- EAN / UPC
- 4002888521093, 5054533364899
- Also known as
- Lindy 52109 network antenna Omni-directional antenna RP-SMA 7 dBi
Specifications
17 specifications in 4 groups
Performance
| Specification | Value |
|---|---|
| Antenna gain level (max) | 7 dBi |
| Frequency band | 2.4 GHz |
| Networking standards | IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Impedance | 50 Ω |
| Horizontal beam width (2.4 GHz) | 360° |
| Vertical beam width (2.4 GHz) | 40° |
Features
| Specification | Value |
|---|---|
| Antenna type | Omni-directional antenna |
| Antenna connector type | RP-SMA |
| Polarization | Vertical polarization |
| Voltage Standing Wave Ratio (VSWR) | 2.0 |
| Product colour | Black |
| Cable length | 1 m |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -10 - 55 °C |
| Operating relative humidity (H-H) | 5 - 95% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 12 mm |
| Depth | 12 mm |
| Height | 300 mm |
