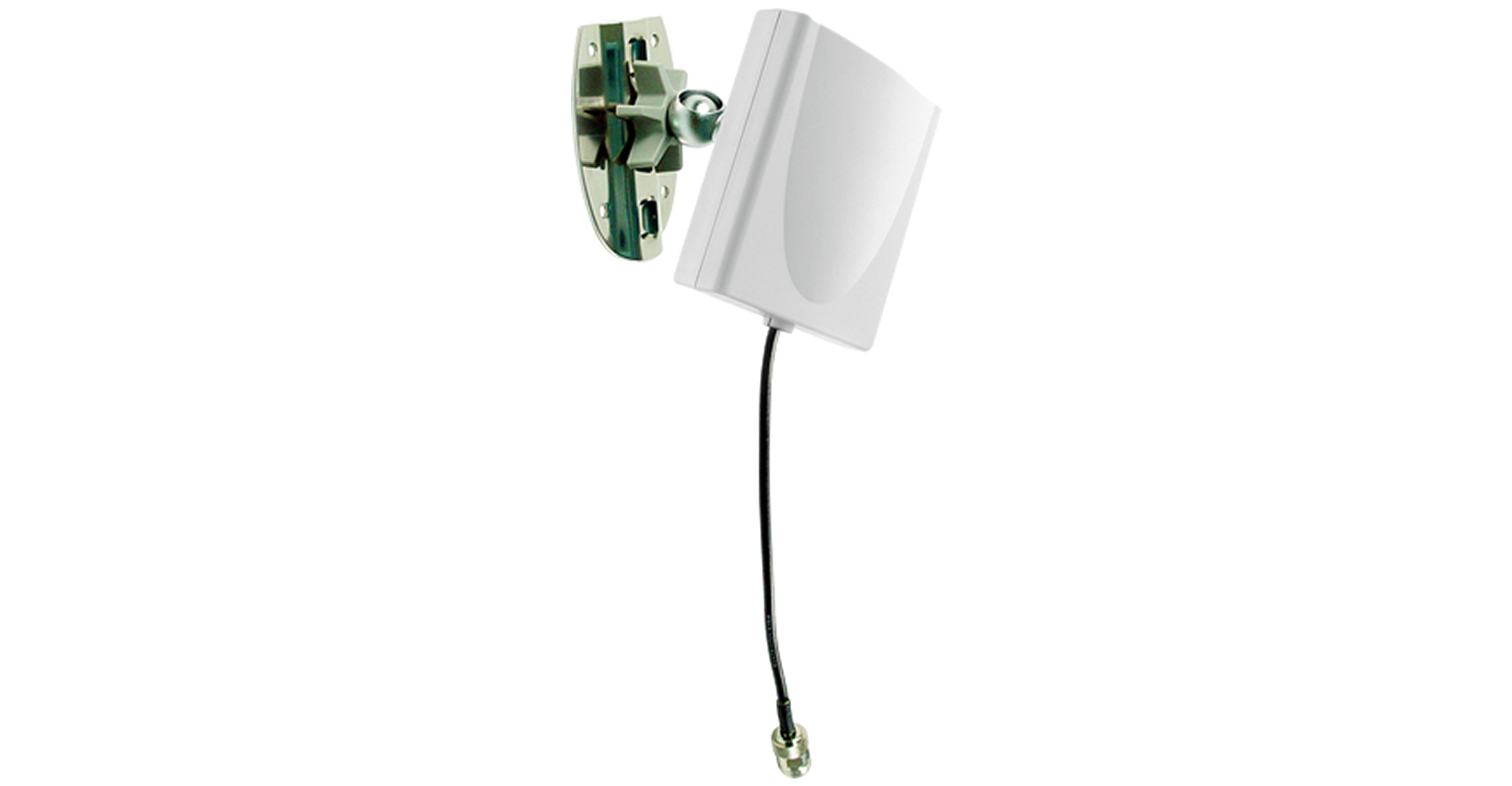

ANT70-1000 network antenna N-type 10 dBi
Model ANT70-1000EAN 790069287213
24 specifications
- Weight120 g
- ColourBlack, White
- Antenna gain level (max)10 dBi
- Antenna connector typeN-type
- Operating temperature (T-T)-40 - 80 °C
- Width124 mm
Overview
- Weight
- 120 g
- Colour
- Black, White
- Antenna gain level (max)
- 10 dBi
- Antenna connector type
- N-type
- Operating temperature (T-T)
- -40 - 80 °C
- Width
- 124 mm
- Brand
- D-Link
- Category
- Network Antenna
- Model
- ANT70-1000
- Part number
- ANT70-1000
- EAN / UPC
- 790069287213, 5051749523454, 7900692872134
- Also known as
- D-Link ANT70-1000 network antenna N-type 10 dBi
Specifications
24 specifications in 4 groups
Performance
| Specification | Value |
|---|---|
| Antenna gain level (max) | 10 dBi |
| Frequency band | 2.4/5 GHz |
| Networking standards | IEEE 802.11a, IEEE 802.11b, IEEE 802.11g |
| Gain | 8 / 10 dBi |
| Antenna gain (2.4 GHz) | 8 dBi |
| Antenna gain (5 GHz) | 10 dBi |
| Impedance | 50 Ω |
| Horizontal beam width (2.4 GHz) | 58° |
| Vertical beam width (2.4 GHz) | 55° |
| Horizontal beam width (5 GHz) | 45° |
| Vertical beam width (5 GHz) | 45° |
Features
| Specification | Value |
|---|---|
| Antenna connector type | N-type |
| Connector gender | Female |
| Polarization | Vertical polarization |
| Product colour | Black, White |
| Mounting | Wall |
| Power handling | 5 W |
| Purpose | Indoor & outdoor |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -40 - 80 °C |
| Operating relative humidity (H-H) | 5 - 95% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 124 mm |
| Depth | 114 mm |
| Height | 40 mm |
| Weight | 120 g |
