Product comparison · 2 network antennas

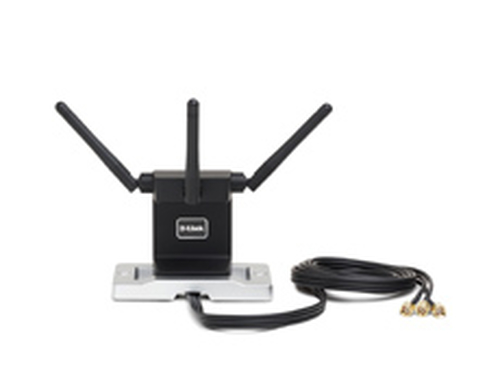

D-Link ANT24-0230 network antenna RP-SMA vs D-Link ANT70-1000 network antenna N-type 10 dBi

5specifications compared
3differ
2identical
22known for one product only

Key differences

Frequency band
- ANT24-0230 network antenna RP-SMA:2.4 GHz
- ANT70-1000 network antenna N-type 10 dBi:2.4/5 GHz
Antenna connector type
- ANT24-0230 network antenna RP-SMA:RP-SMA
- ANT70-1000 network antenna N-type 10 dBi:N-type
Operating temperature (T-T)
- ANT24-0230 network antenna RP-SMA:-20 - 65 °C
- ANT70-1000 network antenna N-type 10 dBi:-40 - 80 °C

Side by side

Differences highlightedShow differences only

Comparison of ANT24-0230, ANT70-1000
27 specifications	A D-Link ANT24-0230 network antenna RP-SMA Model ANT24-0230 View product	B D-Link ANT70-1000 network antenna N-type 10 dBi Model ANT70-1000 View product
Performance1 differ
Antenna gain level (max)Known for one	Unknown — not stated by the source	10 dBi
Frequency bandDiffers	2.4 GHz	2.4/5 GHz
Networking standardsKnown for one	Unknown — not stated by the source	IEEE 802.11a, IEEE 802.11b, IEEE 802.11g
GainKnown for one	Unknown — not stated by the source	8 / 10 dBi
Antenna gain (2.4 GHz)Known for one	Unknown — not stated by the source	8 dBi
Antenna gain (5 GHz)Known for one	Unknown — not stated by the source	10 dBi
Impedance	50 Ω	50 Ω
Horizontal beam width (2.4 GHz)Known for one	Unknown — not stated by the source	58°
Vertical beam width (2.4 GHz)Known for one	Unknown — not stated by the source	55°
Horizontal beam width (5 GHz)Known for one	Unknown — not stated by the source	45°
Vertical beam width (5 GHz)Known for one	Unknown — not stated by the source	45°
Features1 differ
Antenna connector typeDiffers	RP-SMA	N-type
Connector genderKnown for one	Unknown — not stated by the source	Female
Polarization	Vertical polarization	Vertical polarization
Product colourKnown for one	Unknown — not stated by the source	Black, White
MountingKnown for one	Unknown — not stated by the source	Wall
Power handlingKnown for one	Unknown — not stated by the source	5 W
PurposeKnown for one	Unknown — not stated by the source	Indoor & outdoor
Voltage Standing Wave Ratio (VSWR)Known for one	1:92	Unknown — not stated by the source
Cable lengthKnown for one	1.16 m	Unknown — not stated by the source
Operational conditions1 differ
Operating temperature (T-T)Differs	-20 - 65 °C	-40 - 80 °C
Operating relative humidity (H-H)Known for one	Unknown — not stated by the source	5 - 95%
Storage temperature (T-T)Known for one	-30 - 75 °C	Unknown — not stated by the source
Weight & dimensionsidentical
WidthKnown for one	Unknown — not stated by the source	124 mm
DepthKnown for one	Unknown — not stated by the source	114 mm
HeightKnown for one	Unknown — not stated by the source	40 mm
WeightKnown for one	Unknown — not stated by the source	120 g

A dash means the value is not stated by the source. Unknown values are never counted for or against a product, and there is no overall score.
