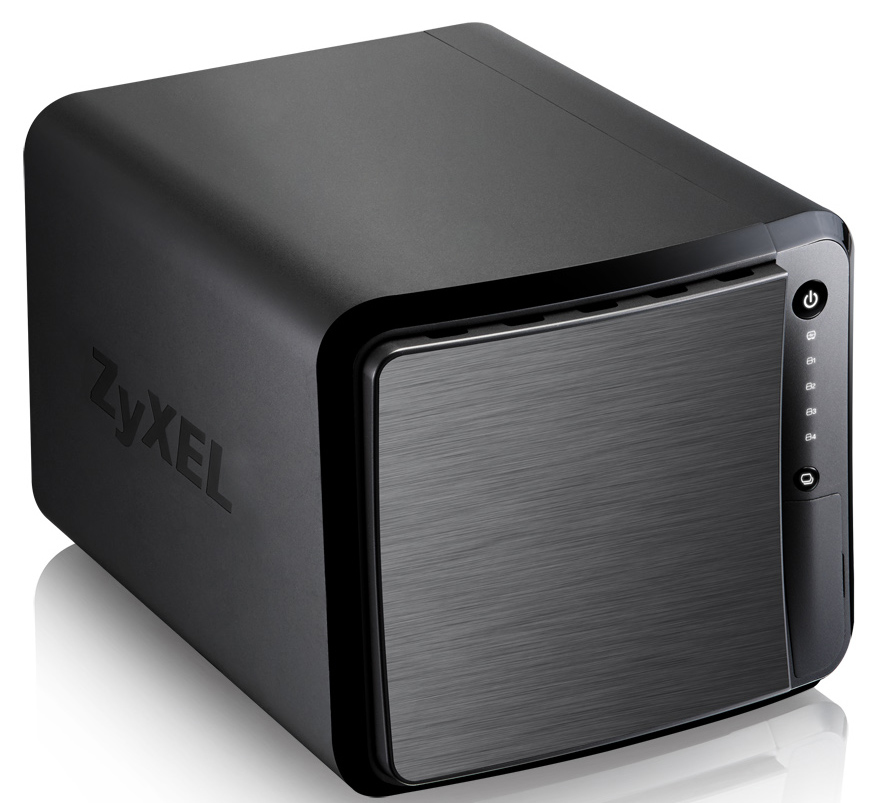

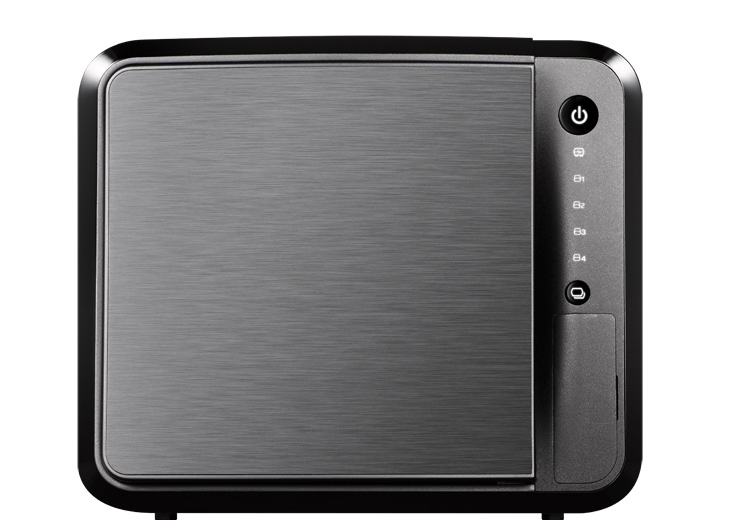

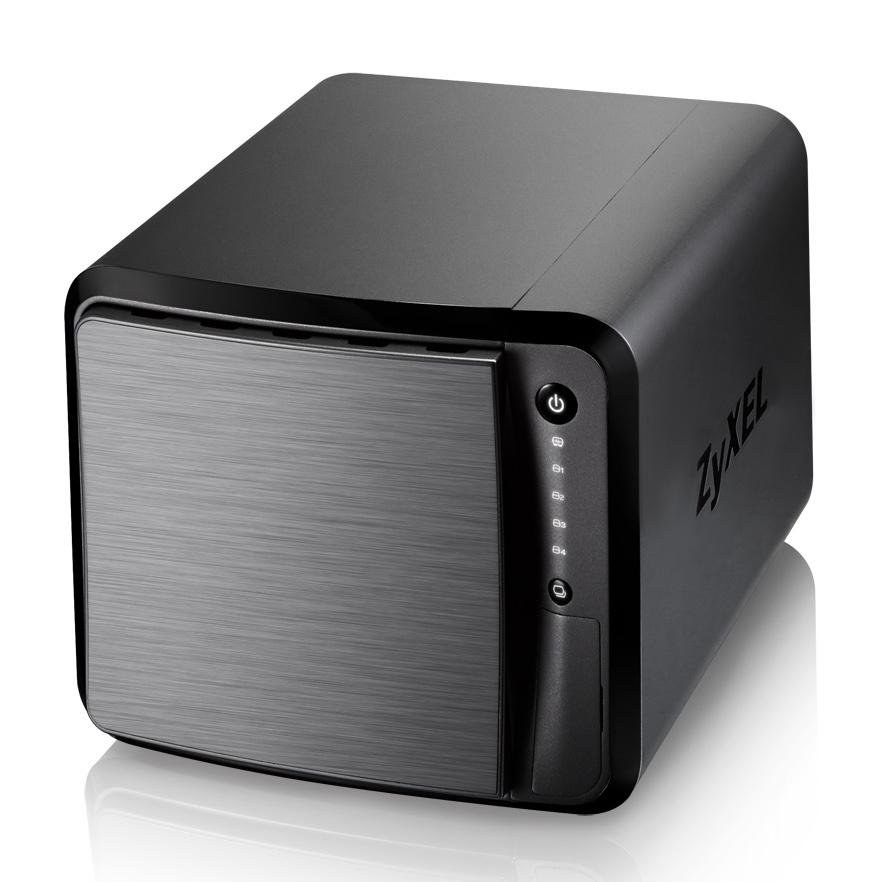

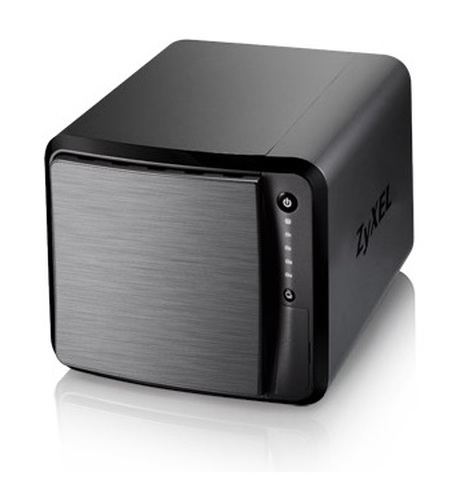

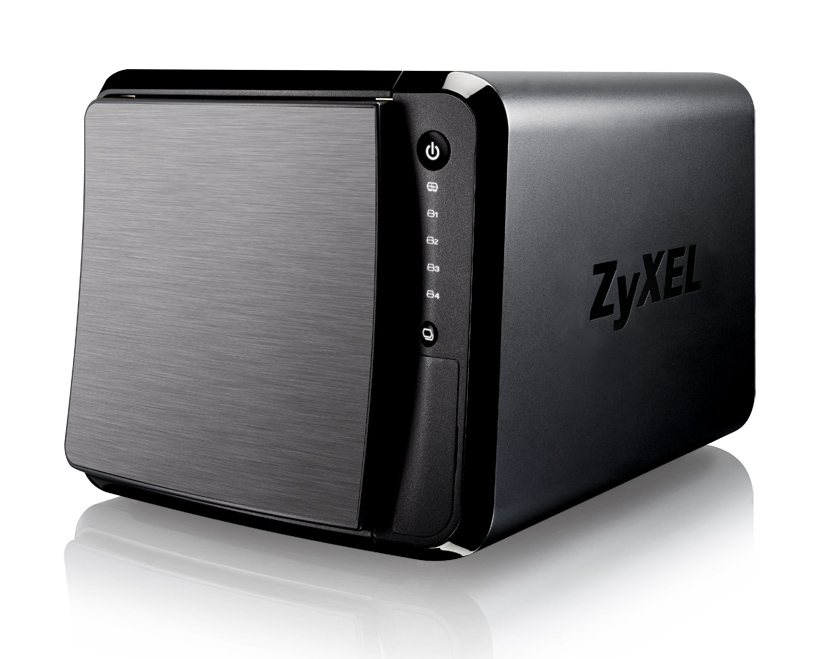

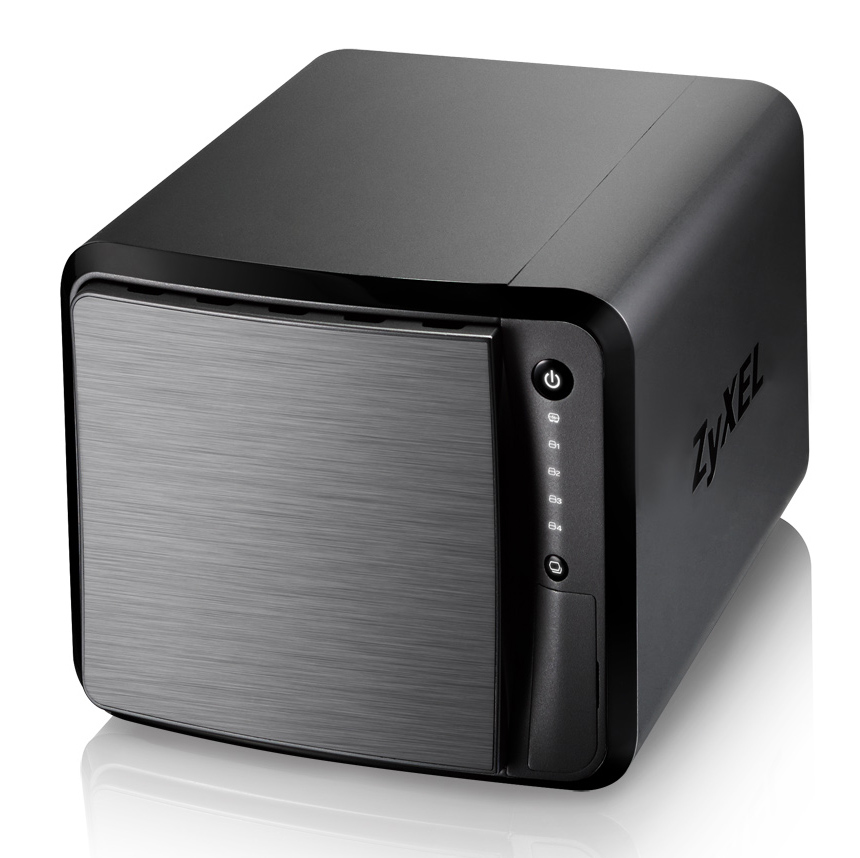

Zyxel NAS540 NAS Desktop Freescale FS1024

Zyxel NAS540 NAS Desktop Freescale FS1024

1 TB DDR3 0 TB HDD Black

Model NAS540Part no. NAS540-EU0101FEAN 5054629660041

70 specifications
  • ProcessorFreescale
  • Memory1 TB
  • TypeNAS
  • Weight2 kg
  • ColourBlack
  • Storage drives installedNo
See all specifications

Overview

Processor
Freescale
Memory
1 TB
Type
NAS
Weight
2 kg
Colour
Black
Storage drives installed
No
Brand
Zyxel
Model
NAS540
Part numbers
NAS540-EU0101F, 3576
EAN / UPC
5054629660041
Also known as
Zyxel NAS540 NAS Desktop Freescale FS1024 1 TB DDR3 0 TB HDD Black

Specifications

70 specifications in 12 groups

Storage

Storage drives installedNo
Total installed storage capacity0 TB
Number of storage drives installed0
Number of storage drives supported4
Installed storage drive typeHDD
Supported storage drive typesHDD
Storage drive capacity0 GB
Storage drive interfaceSerial ATA II
Storage drive size2.5/3.5"
Maximum supported storage capacity24 TB
RAID supportYes
RAID levels0, 1, 5, 6, 10, JBOD

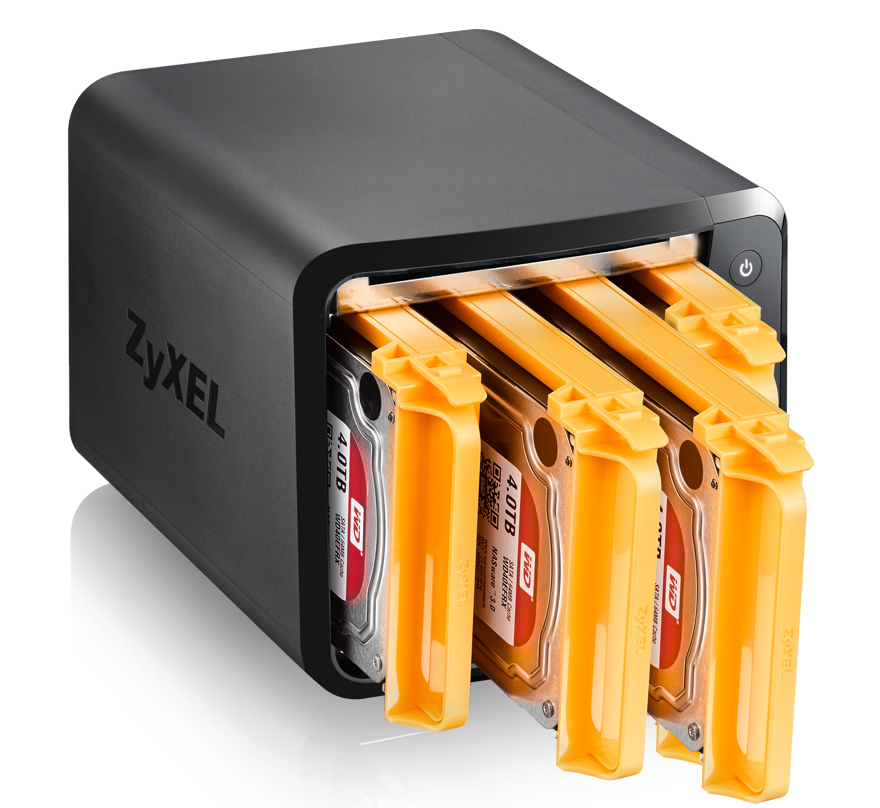

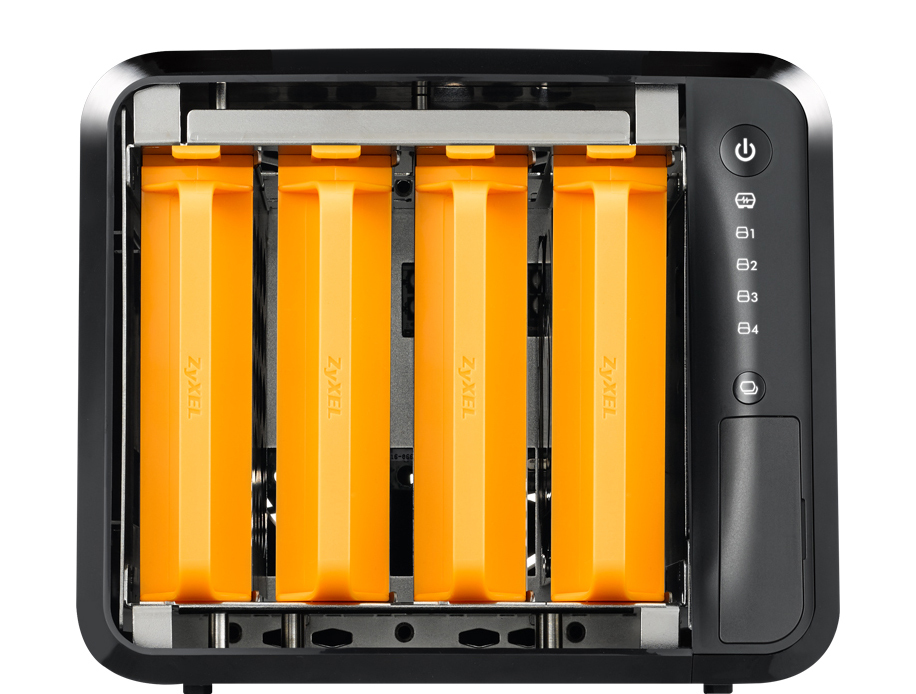

Hot-swap drive baysYes
Supported file systemsexFAT, ext2, ext3, ext4, FAT32, HFS+, NTFS

Processor

Processor familyFreescale
Processor modelFS1024
Processor frequency1.2 GHz
Processor cores2

Memory

Internal memory1 TB
Internal memory typeDDR3

Network

Ethernet LANYes
Ethernet LAN data rates10,100,1000 Mbit/s
Wi-FiNo
DHCP clientYes
iSCSI supportYes
Wake-on-LAN readyYes
Supported network protocolsCIFS/SMB, NFS, PPPoE, NTP

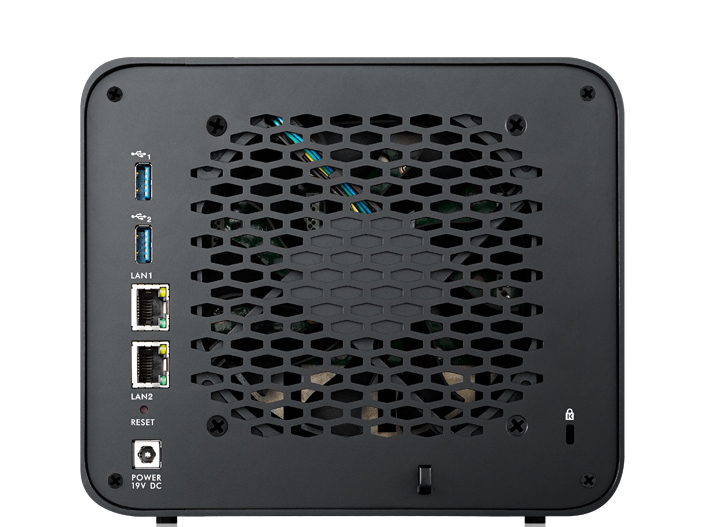

Ports & interfaces

Ethernet LAN (RJ-45) ports2
USB 2.0 ports quantity0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity3
Fiber ports quantity0

Design

Chassis typeDesktop
Cooling typeActive
Product colourBlack
Number of fans1 fan(s)
Fan diameter12 cm
LED indicatorsYes
Cable lock slotYes
Cable lock slot typeKensington

Performance

TypeNAS
Device classHome & Home Office
Backup functionYes
Card reader integratedYes
Compatible memory cardsSDXC
Maximum memory card size128 GB
On/off switchYes
Reset buttonYes

Power

Power consumption (max)36.5 W
Power consumption (typical)14.8 W
AC input voltage100-240 V
AC input frequency50 - 60 Hz
Output current4.74 A
Output voltage19 V

Weight & dimensions

Width190 mm
Depth225 mm
Height160 mm
Weight2 kg
Package width316 mm
Package depth269 mm
Package height286 mm
Package weight3.8 kg

Packaging content

External power adapterYes
Cables includedLAN (RJ-45)
Quick start guideYes

Operational conditions

Operating temperature (T-T)0 - 40 °C
Operating relative humidity (H-H)10 - 90%
Storage relative humidity (H-H)10 - 95%
Storage temperature (T-T)-30 - 70 °C

Other features

Digital Living Network Alliance (DLNA) certifiedYes
CertificationCE LVD, BSMI CE, FCC class B, C-Tick, BSMI
