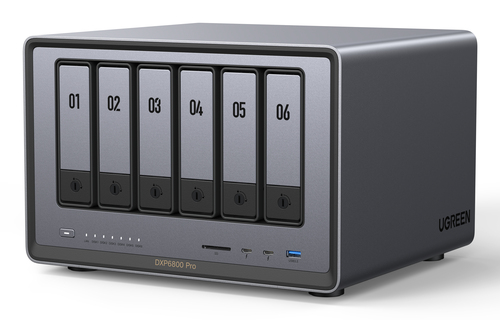

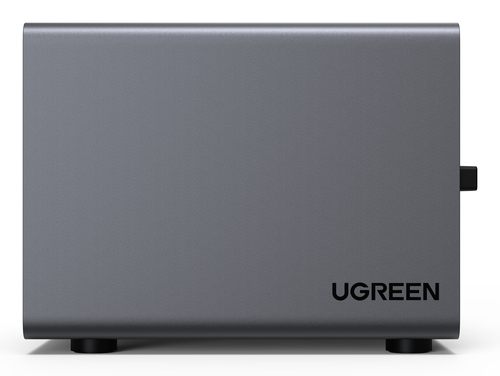

NASync DXP6800Pro
Model NASync DXP6800ProPart no. 25897BEAN 6941876267521
60 specifications
- ProcessorIntel® Core™ i5
- Memory8 GB
- TypeNAS
- OSUGOS Pro
- ColourBlack, Grey
- Storage drives installedNo
Overview
- Processor
- Intel® Core™ i5
- Memory
- 8 GB
- Type
- NAS
- OS
- UGOS Pro
- Colour
- Black, Grey
- Storage drives installed
- No
- Brand
- Ugreen
- Category
- NAS & Storage Servers
- Model
- NASync DXP6800Pro
- Part number
- 25897B
- EAN / UPC
- 6941876267521
- Also known as
- Ugreen NASync DXP6800Pro NAS Desktop Intel® Core™ i5 i5-1235U 8 GB DDR5 UGOS Pro Black, Grey
Specifications
60 specifications in 12 groups
Storage
| Specification | Value |
|---|---|
| Storage drives installed | No |
| Storage drive sizes supported | 2.5,3.5,M.2 |
| Maximum supported storage capacity | 196 TB |
| Total installed system drives capacity | 128 GB |
| System drive type | SSD |
| Number of M.2 (M & B) slots | 2 |
| RAID support | Yes |
| RAID levels | 0, 1, 5, 6, 10, JBOD |
| Online RAID migration | Yes |
| Online RAID expansion | Yes |
| RAID rebuild | Yes |
| Supported file systems | BTRFS, FAT32, HFS+, NTFS, exFAT, ext4 |
| Auto-rebuild | Yes |
| Bad block scan | Yes |
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel® Core™ i5 |
| Processor model | i5-1235U |
| Processor frequency | 4.4 GHz |
| Processor cores | 10 |
| Processor threads | 12 |
Memory
| Specification | Value |
|---|---|
| Internal memory | 8 GB |
| Internal memory type | DDR5 |
| Maximum RAM supported | 64 GB |
| Memory form factor | SO-DIMM |
| Memory slots | 2 |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10000 Mbit/s |
| Jumbo frames support | Yes |
| iSCSI support | Yes |

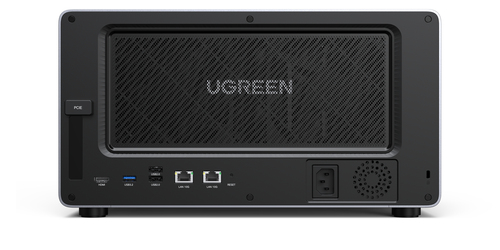

Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 2 |
| USB port | Yes |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
| HDMI ports quantity | 1 |
| Thunderbolt 4 ports quantity | 1 |
Design
| Specification | Value |
|---|---|
| Chassis type | Desktop |
| Product colour | Black, Grey |
Performance
| Specification | Value |
|---|---|
| Type | NAS |
| Device class | Small & Medium Business |
| Backup function | Yes |
| Backup features | Cloud, USB drive, iSCSI LUN |
| Buzzer | Yes |
| Multilingual support | Yes |
| Third-party support | Yes |
| Card reader integrated | Yes |
| Snapshot | Yes |
| Share folder access right management | Yes |
| Web-based management | Yes |
| Built-in FTP server | Yes |
| Disk scan | Yes |
| Network Time Protocol (NTP) client | Yes |
| On/off switch | Yes |
| Password authentication | Yes |
| Remotely operated | Yes |
| S.M.A.R.T. support | Yes |
| System log | Yes |
Software
| Specification | Value |
|---|---|
| Operating system installed | UGOS Pro |
Power
| Specification | Value |
|---|---|
| Power supply location | Built-in |
Packaging content
| Specification | Value |
|---|---|
| External power adapter | Yes |
Logistics data
| Specification | Value |
|---|---|
| Country of origin | China |
Other features
| Specification | Value |
|---|---|
| Warranty period | 3 year(s) |
