NASync DXP6800 Pro
Model NASync DXP6800 ProPart no. 25898EAN 6941876228997
47 specifications
- ProcessorIntel® Core™ i5
- Memory8 GB
- TypeNAS
- OSUGOS Pro
- Weight6.02 kg
- ColourBlack
Overview
- Processor
- Intel® Core™ i5
- Memory
- 8 GB
- Type
- NAS
- OS
- UGOS Pro
- Weight
- 6.02 kg
- Colour
- Black
- Brand
- Ugreen
- Category
- NAS & Storage Servers
- Model
- NASync DXP6800 Pro
- Part numbers
- 25898, 25899
- EAN / UPC
- 6941876228997
- Also known as
- Ugreen NASync DXP6800 Pro NAS Compact Intel® Core™ i5 i5-1235U 8 GB DDR5 UGOS Pro Black
Specifications
47 specifications in 11 groups
Storage
| Specification | Value |
|---|---|
| Storage drives installed | No |
| Number of storage drives supported | 6 |
| Installed storage drive type | No |
| Supported storage drive types | HDD & SSD |
| Storage drive interface | M.2, Serial ATA |

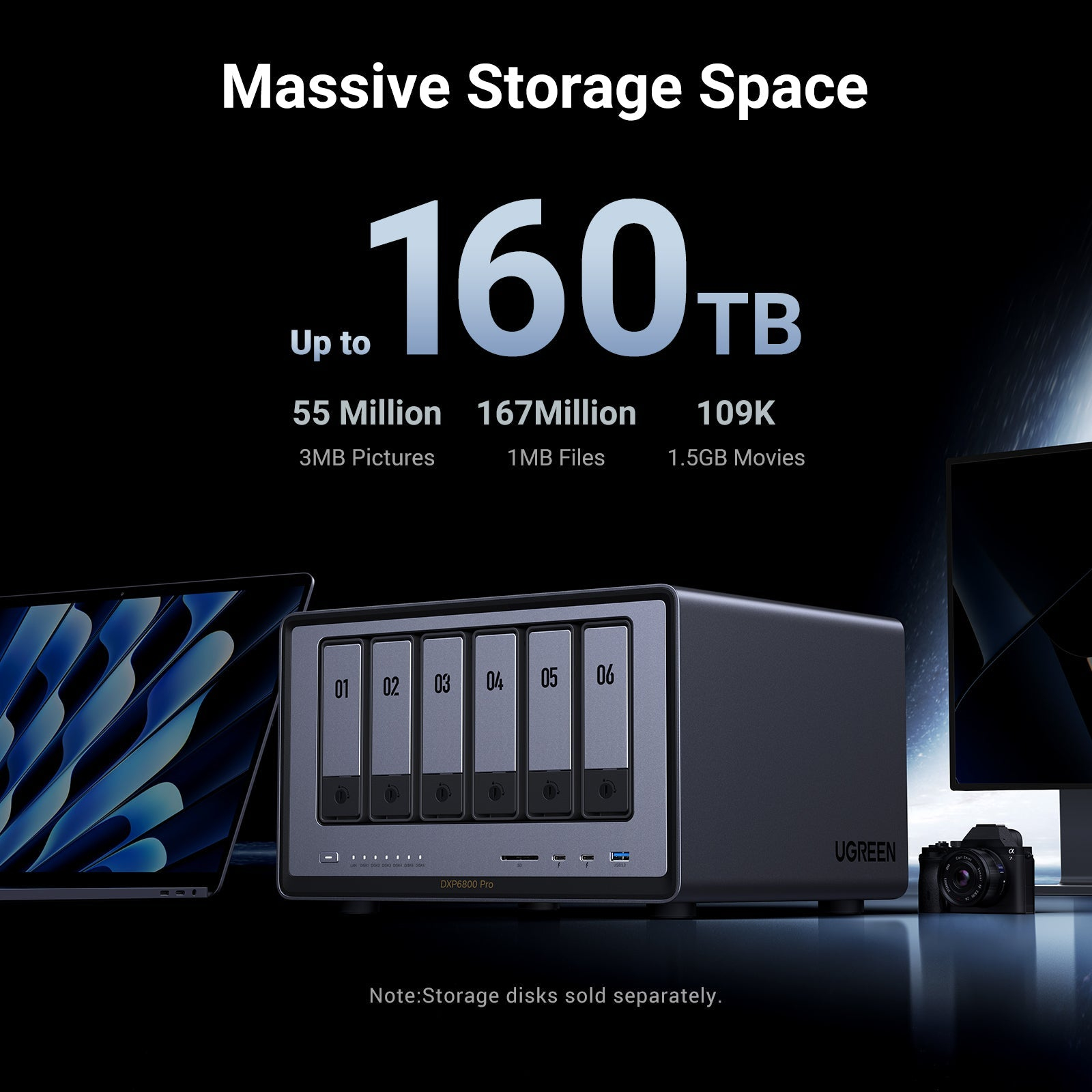

| Maximum supported storage capacity | 160 TB |
| Number of M.2 (M & B) slots | 2 |
| RAID support | Yes |
| RAID levels | 0, 1, 5, 6, 10, JBOD |
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel® Core™ i5 |
| Processor model | i5-1235U |
| Processor boost frequency | 4.4 GHz |
| Processor cores | 10 |
| Processor threads | 12 |
| Processor cache | 12 MB |
Memory
| Specification | Value |
|---|---|
| Internal memory | 8 GB |
| Internal memory type | DDR5 |
| Memory clock speed | 4800 MHz |
| Maximum RAM supported | 64 GB |
| Flash memory | 32000 MB |
Network
| Specification | Value |
|---|---|

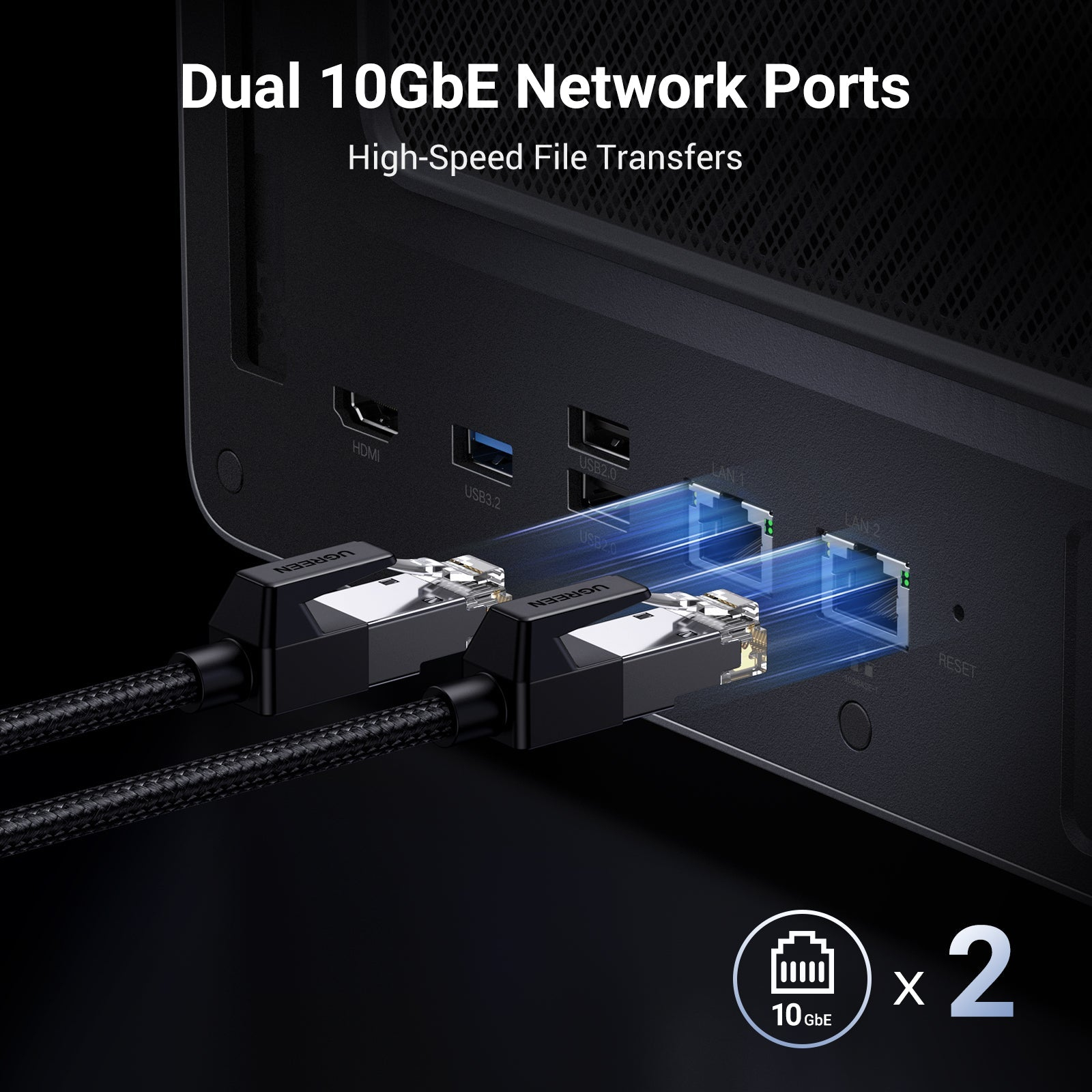

| Ethernet LAN | Yes |
| Ethernet LAN data rates | 2500 Mbit/s |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 2 |
| USB port | Yes |
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| HDMI ports quantity | 1 |

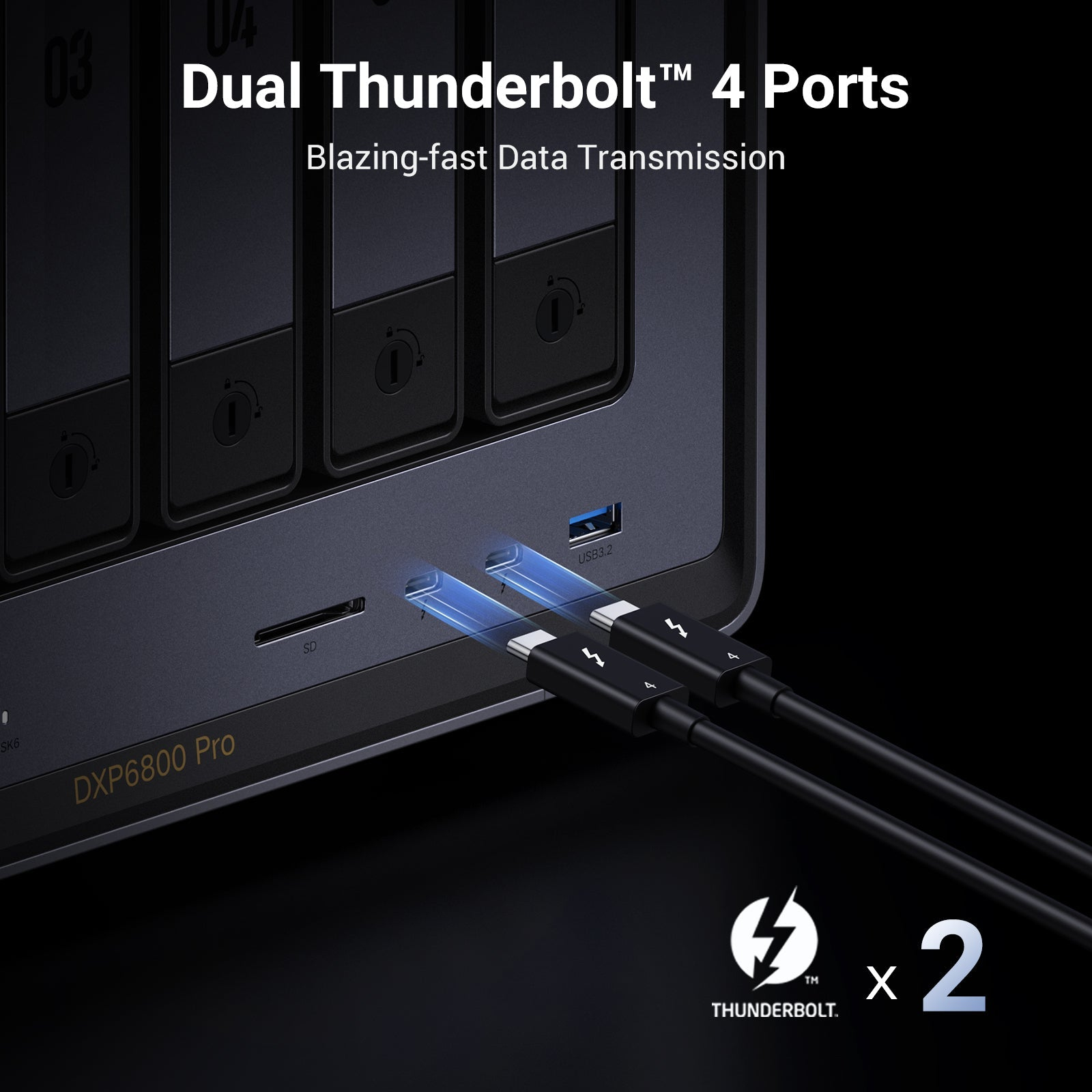

| Thunderbolt 4 ports quantity | 2 |
Design
| Specification | Value |
|---|---|
| Chassis type | Compact |
| Product colour | Black |
| LED indicators | Yes |
Performance
| Specification | Value |
|---|---|
| Type | NAS |
| Device class | Home & Home Office |
| Card reader integrated | Yes |
| Compatible memory cards | SD |
Software
| Specification | Value |
|---|---|
| Operating system installed | UGOS Pro |
| Windows operating systems supported | Yes |
| Mac operating systems supported | Yes |
| Other operating systems supported | Android, iOS |
Power
| Specification | Value |
|---|---|
| AC input voltage | 100 - 240 V |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 178 mm |
| Depth | 257.5 mm |
| Height | 178 mm |
| Weight | 6.02 kg |
Other features
| Specification | Value |
|---|---|
| Warranty period | 2 year(s) |
