NASync DXP480T Plus
Model NASync DXP480T PlusPart no. DXP480TPLUSEAN 6941876228928
45 specifications
- ProcessorIntel® Core™ i5
- Memory8 GB
- TypeNAS
- OSUGOS Pro
- ColourGrey
- Storage drives installedNo
Overview
- Processor
- Intel® Core™ i5
- Memory
- 8 GB
- Type
- NAS
- OS
- UGOS Pro
- Colour
- Grey
- Storage drives installed
- No
- Brand
- Ugreen
- Category
- NAS & Storage Servers
- Model
- NASync DXP480T Plus
- Part numbers
- DXP480TPLUS, 25891
- EAN / UPC
- 6941876228928
- Also known as
- Ugreen NASync DXP480T Plus NAS Compact Intel® Core™ i5 i5-1235U 8 GB DDR5 UGOS Pro Grey
Specifications
45 specifications in 10 groups
Storage
| Specification | Value |
|---|---|
| Storage drives installed | No |
| Number of storage drives supported | 4 |
| Installed storage drive type | No |

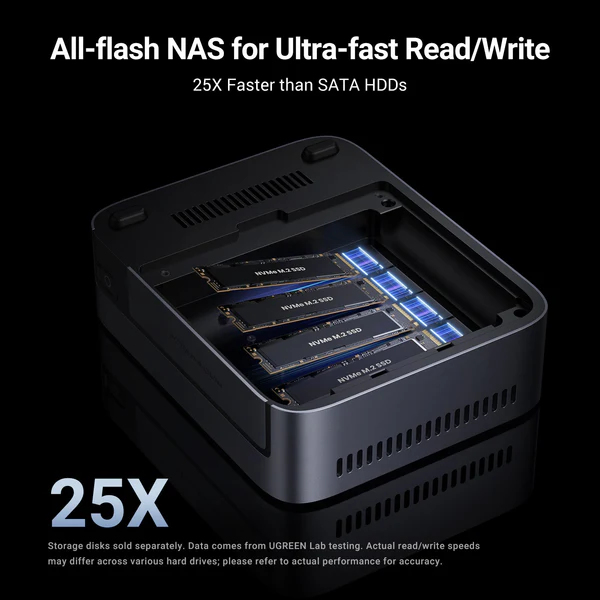

| Supported storage drive types | SSD |
| Storage drive interface | M.2 |
| Supported storage drive interfaces | M.2 |
| Storage drive size | M.2 |
| Maximum supported storage capacity | 32 TB |
| Total installed system drives capacity | 128 GB |
| System drive type | SSD |
| System drive capacity | 128 GB |
| Number of M.2 (M & B) slots | 4 |
| RAID support | Yes |
| RAID levels | 0, 1, 5, 6, 10, JBOD |
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel® Core™ i5 |
| Processor generation | 12th gen Intel® Core™ i5 |
| Processor model | i5-1235U |
| Processor boost frequency | 4.4 GHz |
| Processor cores | 10 |
| Processor threads | 12 |
| Processor cache | 12 MB |
| On-board graphics card model | Intel® UHD Graphics |
Memory
| Specification | Value |
|---|---|
| Internal memory | 8 GB |
| Internal memory type | DDR5 |
| Maximum RAM supported | 64 GB |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |

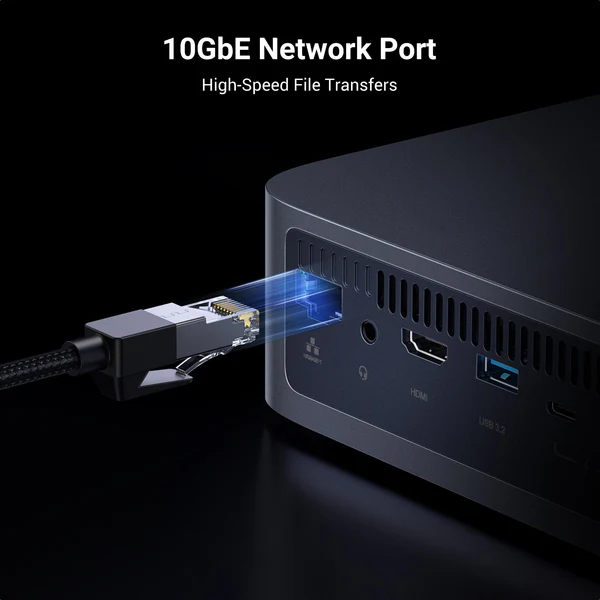

| Ethernet LAN data rates | 10,100,1000,10000 Mbit/s |
| Ethernet LAN data rate supported (max) | 10000 Mbit/s |
| Wi-Fi | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 1 |
| USB port | Yes |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 1 |
| HDMI ports quantity | 1 |

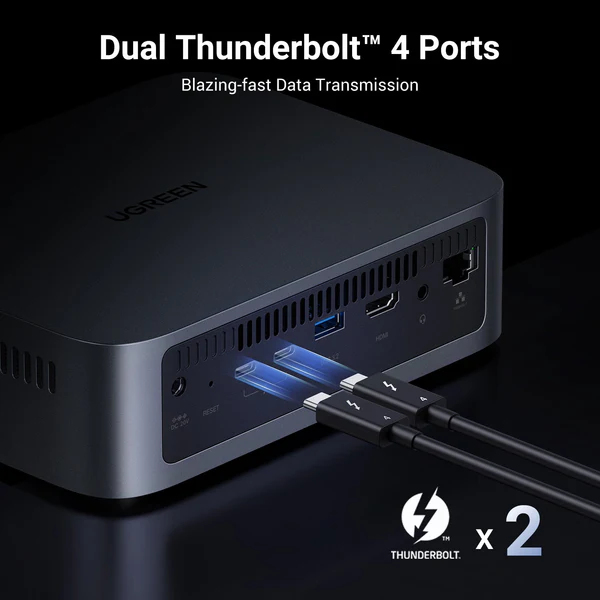

| Thunderbolt 4 ports quantity | 2 |
Design
| Specification | Value |
|---|---|
| Chassis type | Compact |
| Product colour | Grey |
Performance
| Specification | Value |
|---|---|
| Type | NAS |
| Device class | Home & Home Office |
| On/off switch | Yes |
Software
| Specification | Value |
|---|---|
| Operating system installed | UGOS Pro |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 142 mm |
| Depth | 179.1 mm |
| Height | 52.1 mm |
Other features
| Specification | Value |
|---|---|
| Warranty period | 2 year(s) |
