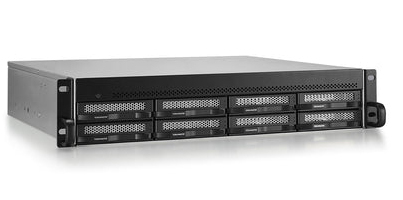

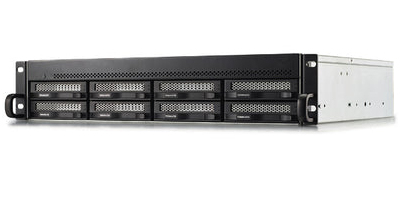

U8-500 PLUS
Model U8-500 PLUSEAN 6939236146005
76 specifications
- ProcessorIntel® Core™ i7
- Memory16 GB
- TypeNAS
- Weight6.9 kg
- ColourBlack
- Storage drives installedNo
Overview
- Processor
- Intel® Core™ i7
- Memory
- 16 GB
- Type
- NAS
- Weight
- 6.9 kg
- Colour
- Black
- Storage drives installed
- No
- Brand
- TerraMaster
- Category
- NAS & Storage Servers
- Model
- U8-500 PLUS
- Part number
- U8-500 PLUS
- EAN / UPC
- 6939236146005
- Also known as
- TerraMaster U8-500 PLUS NAS/storage server Rack (2U) Intel® Core™ i7 16 GB DDR5 0 TB Black
Specifications
76 specifications in 11 groups
Storage
| Specification | Value |
|---|---|
| Storage drives installed | No |
| Total installed storage capacity | 0 TB |
| Number of storage drives installed | 0 |
| Number of storage drives supported | 8 |
| Installed storage drive type | No |
| Supported storage drive types | HDD & SSD |
| Storage drive capacity | 0 GB |
| Supported storage drive interfaces | Serial ATA |
| Storage drive sizes supported | 2.5,3.5" |
| Maximum supported storage capacity | 192 TB |
| Number of M.2 (M & B) slots | 2 |
| RAID support | Yes |
| RAID levels | 0, 5, 6, 10, JBOD |
| Online RAID migration | Yes |
| Online RAID expansion | Yes |
| Hot-swap drive bays | Yes |
| Supported file systems | BTRFS, FAT32, HFS+, NTFS, ext3, ext4 |
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel® Core™ i7 |
| Processor boost frequency | 4.7 GHz |
| Processor cores | 10 |
| Processor threads | 12 |
| PCI Express configurations | 1x8+2x4, 1x16, 2x8 |
| On-board graphics card model | Intel Iris Xe Graphics |
Memory
| Specification | Value |
|---|---|
| Internal memory | 16 GB |
| Internal memory type | DDR5 |
| Maximum RAM supported | 64 GB |
| Memory slots | 4 |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| DHCP server | Yes |
| iSCSI support | Yes |
| Dynamic DNS (DDNS) | Yes |
| Link aggregation | Yes |
| Supported network protocols | CIFS/SAMBA, NFS, FTP, TFTP, HTTPS, SSH, iSCSI, SMTP |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 2 |
| USB port | Yes |
| USB 2.0 ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| Fiber ports quantity | 0 |
| VGA (D-Sub) ports quantity | 1 |
| HDMI ports quantity | 1 |
| Serial ports quantity | 1 |
| PCI Express x8 (Gen 3.x) slots | 3 |
Design
| Specification | Value |
|---|---|
| Chassis type | Rack (2U) |
| Cooling type | Active |
| Product colour | Black |
| LED indicators | HDD, LAN, Power |
Performance
| Specification | Value |
|---|---|
| Type | NAS |
| Device class | Large Enterprise Business |
| Backup function | Yes |
| Backup features | Cloud, USB drive, iSCSI LUN |
| Third-party support | Yes |
| Snapshot | Yes |
| Management protocols | SNMP |
| Share folder access right management | Yes |
| Access Control List (ACL) | Yes |
| Browser supported | Google Chrome 48, Microsoft Internet Explorer 9, Mozilla Firefox 30, Apple Safari 4.5 + |
| Hot spare | Yes |
| On/off switch | Yes |
| Reset button | Yes |
| S.M.A.R.T. support | Yes |
| Security algorithms | AES |
| Share folder | 512 |
| System log | Yes |
| Universal Plug and Play (UPnP) | Yes |
Software
| Specification | Value |
|---|---|
| Windows operating systems supported | Yes |
| Linux operating systems supported | Yes |
| Mac operating systems supported | Yes |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 440 mm |
| Depth | 384 mm |
| Height | 88 mm |
| Weight | 6.9 kg |
Packaging content
| Specification | Value |
|---|---|
| Cables included | AC, LAN (RJ-45) |
Other features
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
| Certification | FCC, CE, CCC, KC, WEEE |
