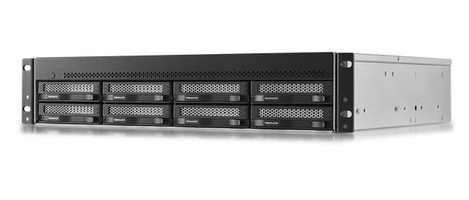

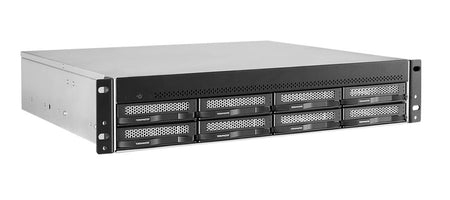

U8-450 NAS/storage server Rack (2U) Intel Atom®
8 GB DDR4 0 TB Grey
Model U8-450EAN 6939236143714
85 specifications
- ProcessorIntel Atom®
- Memory8 GB
- Noise32.5 dB
- TypeNAS
- Weight6.9 kg
- ColourGrey
Overview
- Processor
- Intel Atom®
- Memory
- 8 GB
- Noise
- 32.5 dB
- Type
- NAS
- Weight
- 6.9 kg
- Colour
- Grey
- Brand
- TerraMaster
- Category
- NAS & Storage Servers
- Model
- U8-450
- Part number
- U8-450
- EAN / UPC
- 6939236143714
- Also known as
- TerraMaster U8-450 NAS/storage server Rack (2U) Intel Atom® 8 GB DDR4 0 TB Grey
Specifications
85 specifications in 13 groups
Storage
| Specification | Value |
|---|---|
| Storage drives installed | No |
| Total installed storage capacity | 0 TB |
| Number of storage drives installed | 0 |
| Number of storage drives supported | 8 |
| Installed storage drive type | No |
| Supported storage drive types | HDD & SSD |
| Storage drive capacity | 0 GB |
| Supported storage drive interfaces | Serial ATA |
| Storage drive sizes supported | 2.5,3.5" |
| Maximum supported storage capacity | 160 TB |
| RAID support | Yes |
| RAID levels | 0, 1, 6, 10, JBOD |
| Online RAID migration | Yes |
| Hot-swap drive bays | Yes |
| Supported file systems | BTRFS, FAT32, HFS+, NTFS, ext3, ext4 |
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel Atom® |
| Processor frequency | 2.4 GHz |
| Processor cores | 4 |
| Processor threads | 4 |
| Processor cache | 8 MB |
| Number of processors supported | 1 |
Memory
| Specification | Value |
|---|---|
| Internal memory | 8 GB |
| Internal memory type | DDR4 |
| Maximum RAM supported | 32 GB |
| ECC | No |
| Memory form factor | SO-DIMM |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |

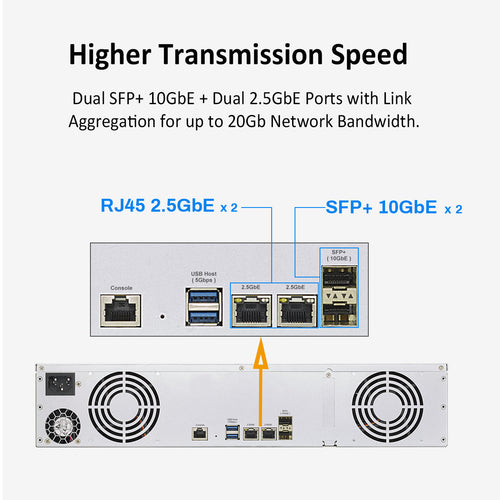

| Ethernet LAN data rates | 2500 Mbit/s |
| iSCSI support | Yes |
| Dynamic DNS (DDNS) | Yes |
| Supported network protocols | CIFS/SAMBA, NFS, FTP, TFTP, HTTPS, SSH, iSCSI, SNMP, SMTP |
Ports & interfaces
| Specification | Value |
|---|---|

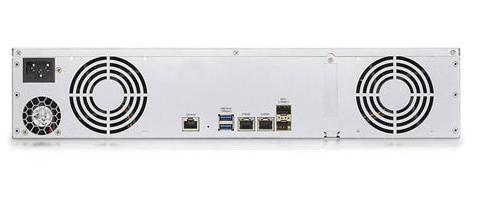

| Ethernet LAN (RJ-45) ports | 2 |
| USB port | Yes |
| USB 2.0 ports quantity | 0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
Design
| Specification | Value |
|---|---|
| Chassis type | Rack (2U) |
| Cooling type | Active |
| Product colour | Grey |
| Number of fans | 2 fan(s) |
| Fan diameter | 8 cm |
| LED indicators | HDD, LAN, Power |
| Built-in display | No |
Performance
| Specification | Value |
|---|---|
| Type | NAS |
| Device class | Home & Home Office |
| Backup function | Yes |
| Backup features | Cloud, USB drive |
| Multilingual support | Yes |
| Number of users | 2048 user(s) |
| Noise level | 32.5 dB |
| Snapshot | Yes |
| Management protocols | SNMP |
| Web-based management | Yes |
| Access Control List (ACL) | Yes |
| Browser supported | Google Chrome, Mozilla Firefox, Apple Safari, Microsoft Edge |
| Hot spare | Yes |
| On/off switch | Yes |
| S.M.A.R.T. support | Yes |
| Security algorithms | AES, HTTPS, SNMP, SSH |
| Share folder | 512 |
| System log | Yes |
| Universal Plug and Play (UPnP) | Yes |
Software
| Specification | Value |
|---|---|
| Windows operating systems supported | Yes |
| Linux operating systems supported | Yes |
| Mac operating systems supported | Yes |
Power
| Specification | Value |
|---|---|
| Power supply location | Built-in |
| Power supply unit (PSU) capacity | 250 W |
| Number of power supply units | 1 |
| Power consumption (max) | 68 W |
| Power consumption (HDD standby) | 29 W |
| AC input voltage | 100-240 V |
| AC input frequency | 50 / 60 Hz |
Weight & dimensions
| Specification | Value |
|---|---|

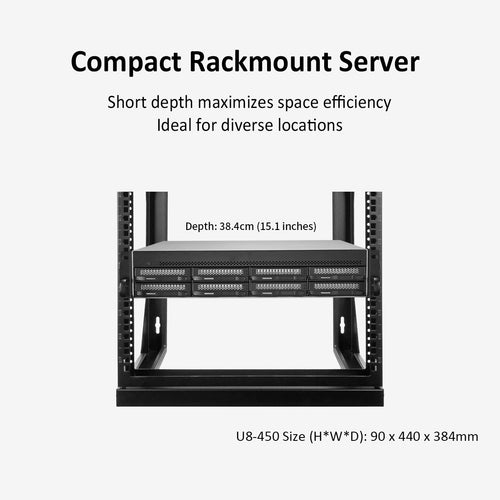

| Width | 440 mm |
| Depth | 384 mm |
| Height | 88 mm |
| Weight | 6.9 kg |
| Package width | 550 mm |
| Package depth | 473 mm |
| Package height | 175 mm |
Packaging content
| Specification | Value |
|---|---|
| External power adapter | Yes |
| Cables included | AC, LAN (RJ-45) |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 5 - 40 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Storage temperature (T-T) | -20 - 60 °C |
Other features
| Specification | Value |
|---|---|
| Compliance certificates | CE, China Compulsory Certification (CCC), Federal Communications Commission (FCC), KC, RoHS, WEEE |
