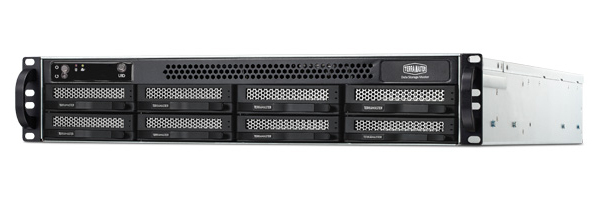

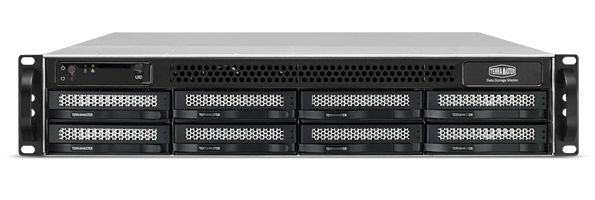

U8-423 NAS/storage server Intel® Celeron® N5095
4 GB DDR4 Black
Model U8-423EAN 6939236142496
69 specifications
- ProcessorIntel® Celeron®
- Memory4 GB
- Noise32.5 dB
- TypeStorage server
- Weight14 kg
- ColourBlack
Overview
- Processor
- Intel® Celeron®
- Memory
- 4 GB
- Noise
- 32.5 dB
- Type
- Storage server
- Weight
- 14 kg
- Colour
- Black
- Brand
- TerraMaster
- Category
- NAS & Storage Servers
- Model
- U8-423
- Part number
- U8-423
- EAN / UPC
- 6939236142496, 6939236142526
- Also known as
- TerraMaster U8-423 NAS/storage server Intel® Celeron® N5095 4 GB DDR4 Black
Specifications
69 specifications in 11 groups
Storage
| Specification | Value |
|---|---|
| Storage drives installed | Yes |
| Number of storage drives supported | 8 |
| Supported storage drive types | HDD & SSD |
| Storage drive interface | Serial ATA |
| Supported storage drive interfaces | Serial ATA |
| Storage drive size | 2.5/3.5" |
| Storage drive sizes supported | 2.5,3.5" |
| RAID support | Yes |
| RAID levels | 0, 1, 5, 10, JBOD |
| Online RAID migration | Yes |
| Online RAID expansion | Yes |
| Hot-swap drive bays | Yes |
| Supported file systems | BTRFS, FAT32, HFS+, NTFS, ext3, ext4 |
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel® Celeron® |
| Processor model | N5095 |
| Processor frequency | 2 GHz |
| Processor boost frequency | 2.9 GHz |
| Processor cores | 4 |
Memory
| Specification | Value |
|---|---|
| Internal memory | 4 GB |
| Internal memory type | DDR4 |
| Maximum RAM supported | 32 GB |
| ECC | No |
| Memory form factor | SO-DIMM |
| Memory slots | 2 |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 2500 Mbit/s |
| iSCSI support | Yes |
| Wake-on-LAN ready | Yes |
| Supported network protocols | CIFS/SMB, NFS, FTP, SFTP, HTTPS, SSH, iSCSI, SNMP |

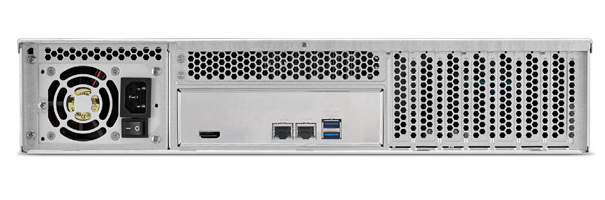

Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 2 |
| USB port | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| HDMI ports quantity | 1 |
| HDMI version | 2.0 |
Design
| Specification | Value |
|---|---|
| Cooling type | Active |
| Product colour | Black |
| Number of fans | 1 fan(s) |
| Fan diameter | 8 cm |
Performance
| Specification | Value |
|---|---|
| Type | Storage server |
| Device class | Small & Medium Business |
| Backup function | Yes |
| Backup features | Cloud, USB drive, iSCSI LUN |
| Multilingual support | Yes |
| Number of users | 2048 user(s) |
| Noise level | 32.5 dB |
| Snapshot | Yes |
| Built-in BitTorrent client | Yes |
| On/off switch | Yes |
| S.M.A.R.T. support | Yes |
| Security algorithms | 2048-bit RSA, SSL/TLS |
| System log | Yes |
Software
| Specification | Value |
|---|---|
| Windows operating systems supported | Yes |
| Linux operating systems supported | Yes |
| Mac operating systems supported | Yes |
| Other operating systems supported | Android, iOS |
Power
| Specification | Value |
|---|---|
| Power consumption (max) | 65 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 440 mm |
| Depth | 384 mm |
| Height | 88 mm |
| Weight | 14 kg |
| Package width | 575 mm |
| Package depth | 200 mm |
| Package height | 795 mm |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Storage temperature (T-T) | -20 - 60 °C |
