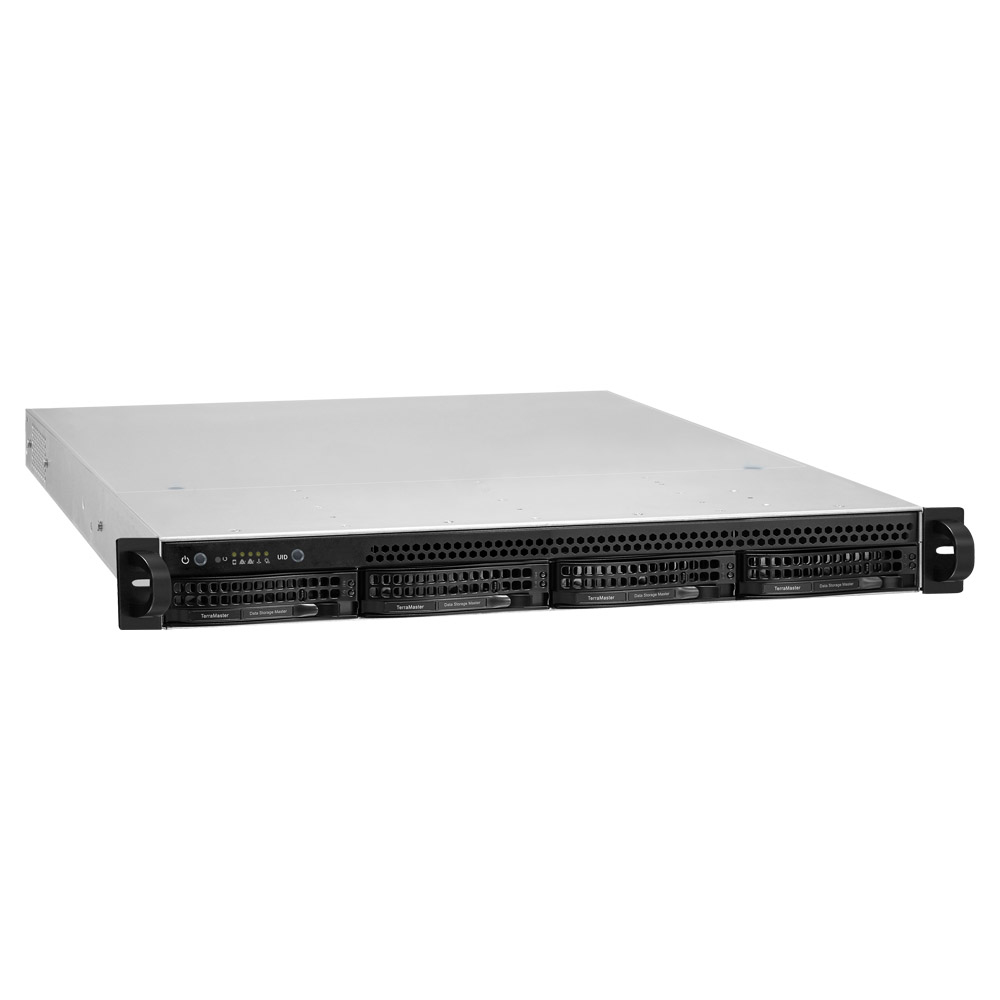

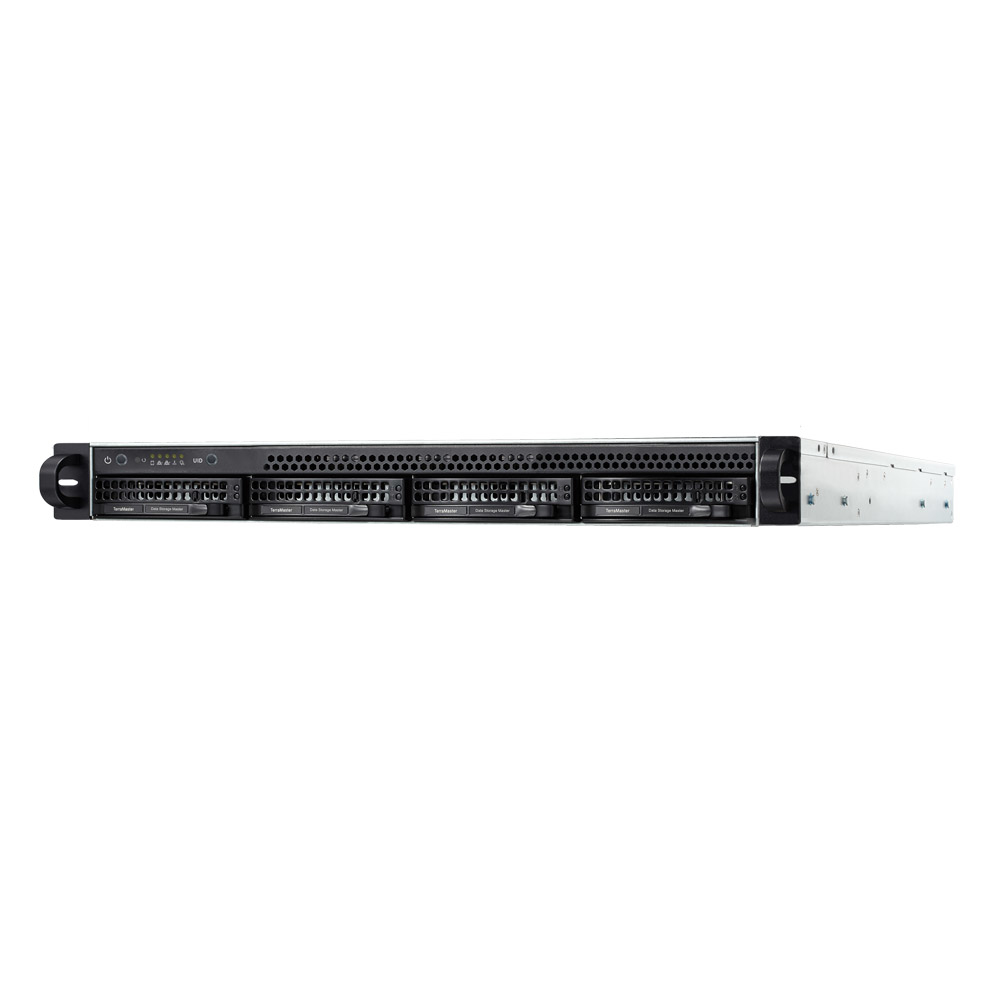

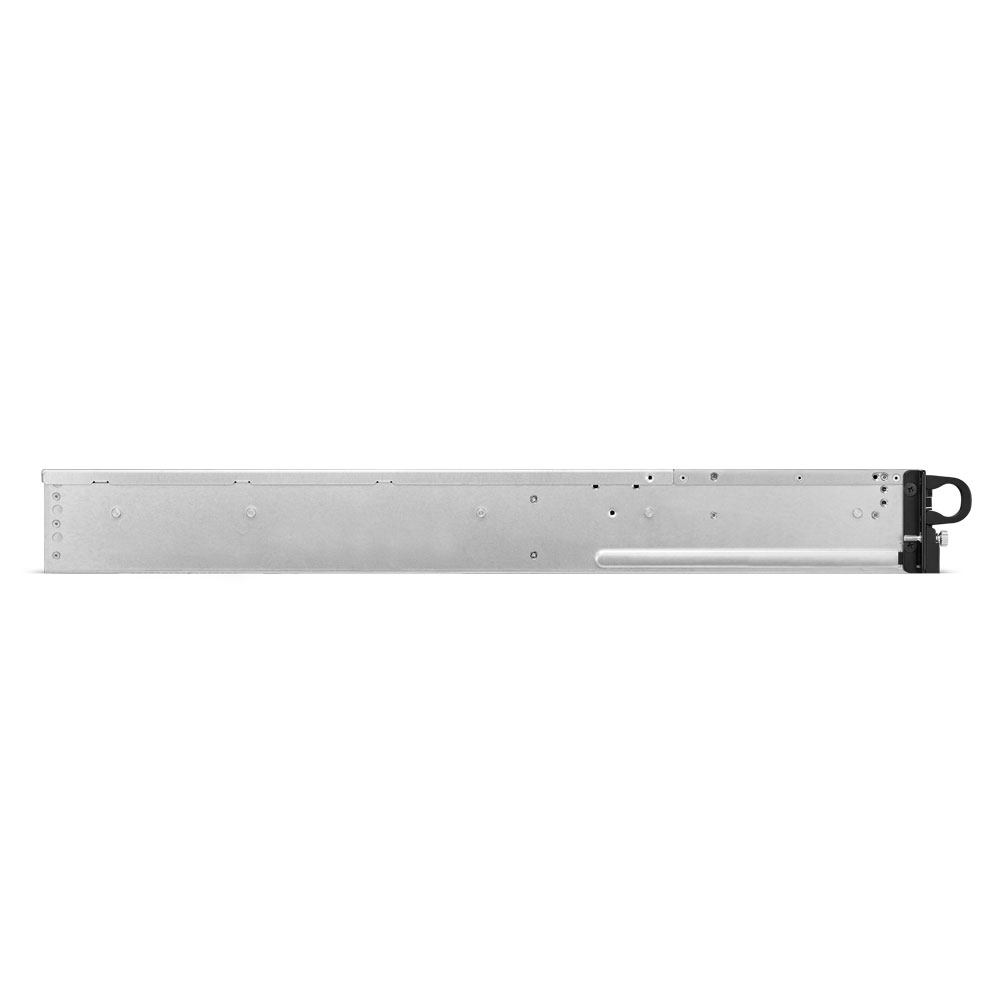

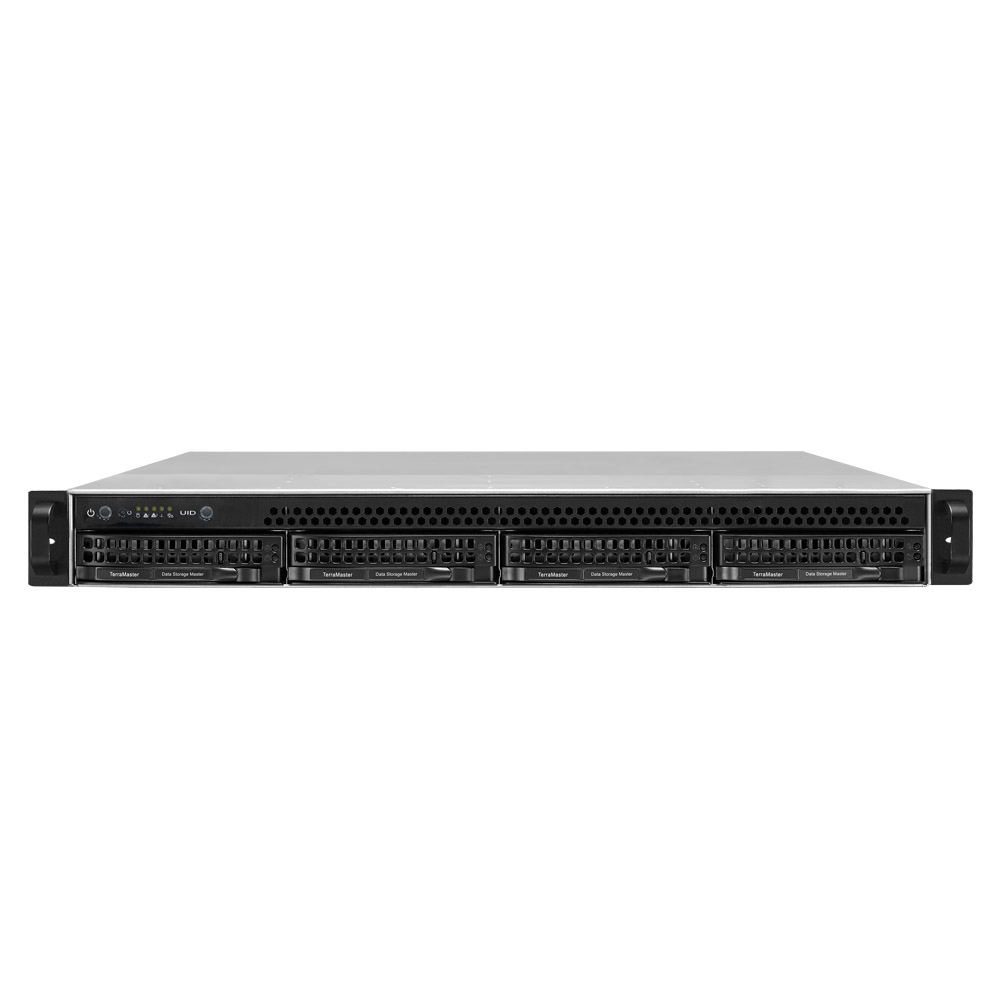

U4-211 NAS/storage server Intel Atom® C3538
4 GB DDR4L 0 TB Black, Grey
Model U4-211EAN 6939236140317
117 specifications
- ProcessorIntel Atom®
- Memory4 GB
- TypeNAS
- ColourBlack, Grey
- Storage drives installedNo
- Processor manufacturerIntel
Overview
- Processor
- Intel Atom®
- Memory
- 4 GB
- Type
- NAS
- Colour
- Black, Grey
- Storage drives installed
- No
- Processor manufacturer
- Intel
- Brand
- TerraMaster
- Category
- NAS & Storage Servers
- Model
- U4-211
- Part number
- U4-211
- EAN / UPC
- 6939236140317
- Also known as
- TerraMaster U4-211 NAS/storage server Intel Atom® C3538 4 GB DDR4L 0 TB Black, Grey
Specifications
117 specifications in 14 groups
Storage
| Specification | Value |
|---|---|
| Storage drives installed | No |
| Total installed storage capacity | 0 TB |
| Number of storage drives installed | 0 |
| Number of storage drives supported | 4 |
| Installed storage drive type | No |
| Supported storage drive types | HDD & SSD |
| Storage drive capacity | 0 GB |
| Supported storage drive interfaces | Serial ATA |
| Storage drive sizes supported | 2.5,3.5" |
| Maximum supported storage capacity | 56 TB |
| RAID support | Yes |
| RAID levels | 0, 1, 5, 6, 10 |
| Online RAID migration | Yes |
| Hot-swap drive bays | Yes |
| Supported file systems | BTRFS, FAT32, HFS+, ext3, ext4 |
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel Atom® |
| Processor model | C3538 |
| Processor frequency | 2.1 GHz |
| Processor boost frequency | 2.1 GHz |
| Processor cores | 4 |
| Processor threads | 4 |
| Processor cache | 8 MB |
| CPU configuration (max) | 1 |
| PCI Express slots version | 3.0 |
| Processor cache type | Smart Cache |
| Processor code | SR3L7 |
| Processor codename | Denverton |
| Processor lithography | 14 nm |
| Processor operating modes | 64-bit |
| Processor package size | 34 x 28 mm |
| Processor socket | BGA 1310 |
| Stepping | B1 |
| Tcase | 87 °C |
| Thermal Design Power (TDP) | 15 W |
| Tjunction | 100 °C |
| Maximum internal memory supported by processor | 256 GB |
| Conflict-Free processor | Yes |
Memory
| Specification | Value |
|---|---|
| Internal memory | 4 GB |
| Internal memory type | DDR4L |
| Maximum RAM supported | 16 GB |
| Memory slots | 2 |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 1000 Mbit/s |
| iSCSI support | Yes |
| Dynamic DNS (DDNS) | Yes |
| Link aggregation | Yes |
| Supported network protocols | CIFS/SAMBA, NFS, FTP, TFTP, HTTPS, SSH, iSCSI, SNMP, SMTP |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 2 |
| USB port | Yes |
| USB 2.0 ports quantity | 0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| Fiber ports quantity | 0 |
| Serial ports quantity | 1 |
Design
| Specification | Value |
|---|---|
| Cooling type | Active |
| Product colour | Black, Grey |
| Number of fans | 3 fan(s) |
| Fan diameter | 4 cm |
| LED indicators | Yes |
| Built-in display | No |
Performance
| Specification | Value |
|---|---|
| Type | NAS |
| Device class | Large Enterprise Business |
| Backup function | Yes |
| Backup features | Cloud, USB drive, iSCSI LUN |
| Multilingual support | Yes |
| Number of users | 2048 user(s) |
| Third-party support | Yes |
| Snapshot | Yes |
| Management protocols | SNMP |
| Access Control List (ACL) | Yes |
| Browser supported | Google Chrome 48, Microsoft Internet Explorer 9, Mozilla Firefox 30,Apple Safari 4.5 |
| Hot spare | Yes |
| S.M.A.R.T. support | Yes |
| Security algorithms | AES, HTTPS, SNMP, SSH |
| Share folder | 512 |
| System log | Yes |
| Universal Plug and Play (UPnP) | Yes |
Software
| Specification | Value |
|---|---|
| Windows operating systems supported | Yes |
| Linux operating systems supported | Yes |
| Mac operating systems supported | Yes |
Power
| Specification | Value |
|---|---|
| Power supply location | Built-in |
| Power supply unit (PSU) capacity | 250 W |
| Number of power supply units | 1 |
| Power consumption (typical) | 50.6 W |
| AC input voltage | 100-240 V |
| AC input frequency | 50 - 60 Hz |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 664 mm |
| Depth | 45 mm |
| Height | 440 mm |
| Package width | 575 mm |
| Package depth | 185 mm |
| Package height | 795 mm |
Packaging content
| Specification | Value |
|---|---|
| Cables included | AC, LAN (RJ-45) |
Processor special features
| Specification | Value |
|---|---|
| Embedded options available | Yes |
| Execute Disable Bit | Yes |
| Intel QuickAssist Technology | Yes |
| Intel Secure Boot | Yes |
| Intel Secure Boot Technology version | 1.00 |
| Intel Secure Key Technology version | 1.00 |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Intel® Hyper Threading Technology (Intel® HT Technology) | No |
| Intel® OS Guard | Yes |
| Intel® Secure Key | Yes |
| Intel® Turbo Boost Technology | No |
| Maximum number of PCI Express lanes | 12 |
| Number of QPI links | 0 |
| Memory types supported by processor | DDR4-SDRAM |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 5 - 40 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Storage temperature (T-T) | -20 - 60 °C |
Other features
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
| Digital Living Network Alliance (DLNA) certified | Yes |
| Certification | FCC, CE, CCC, KC |
| Processor ARK ID | 97929 |
