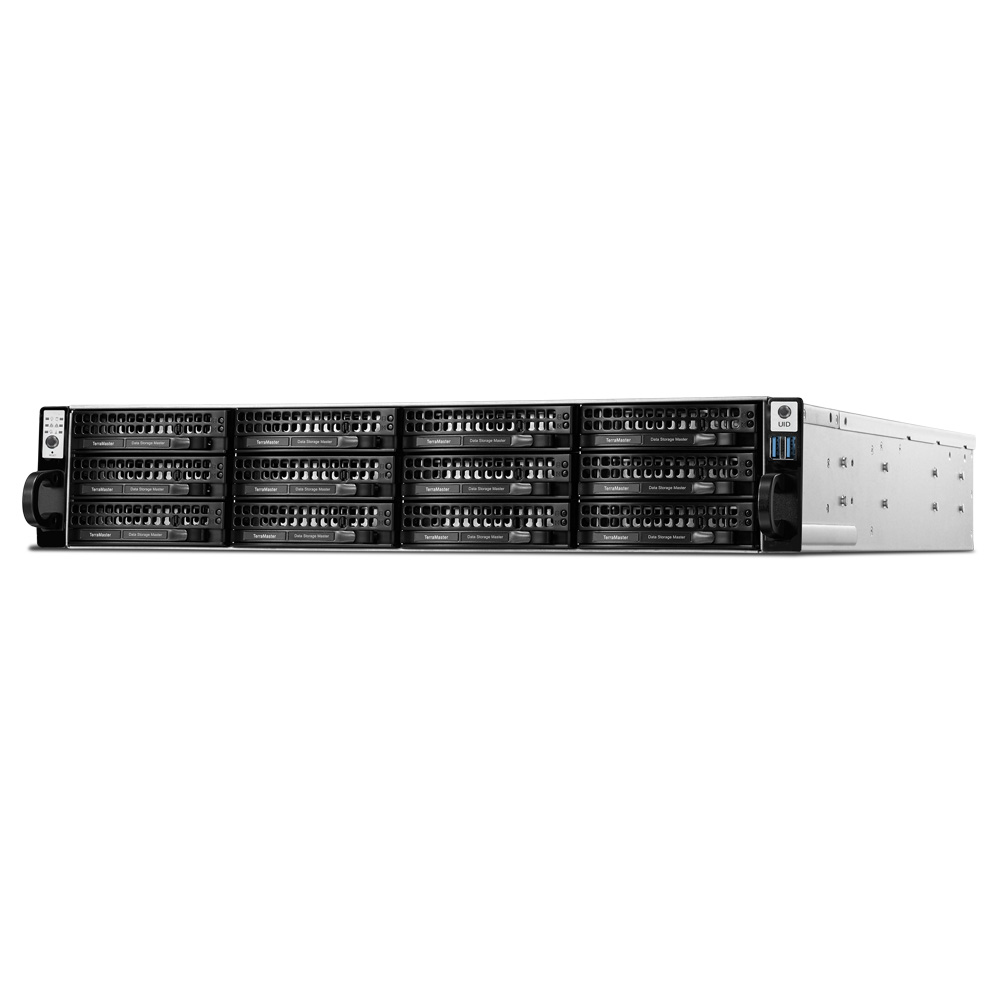

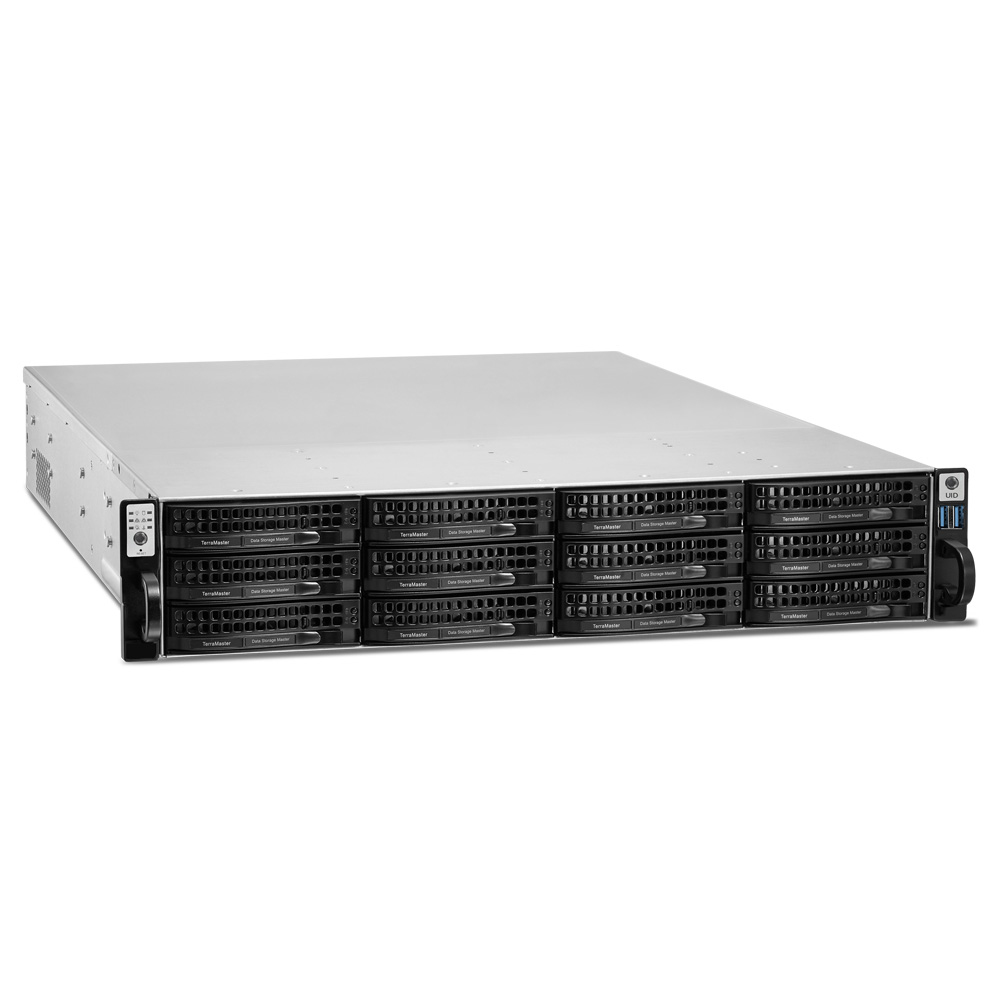

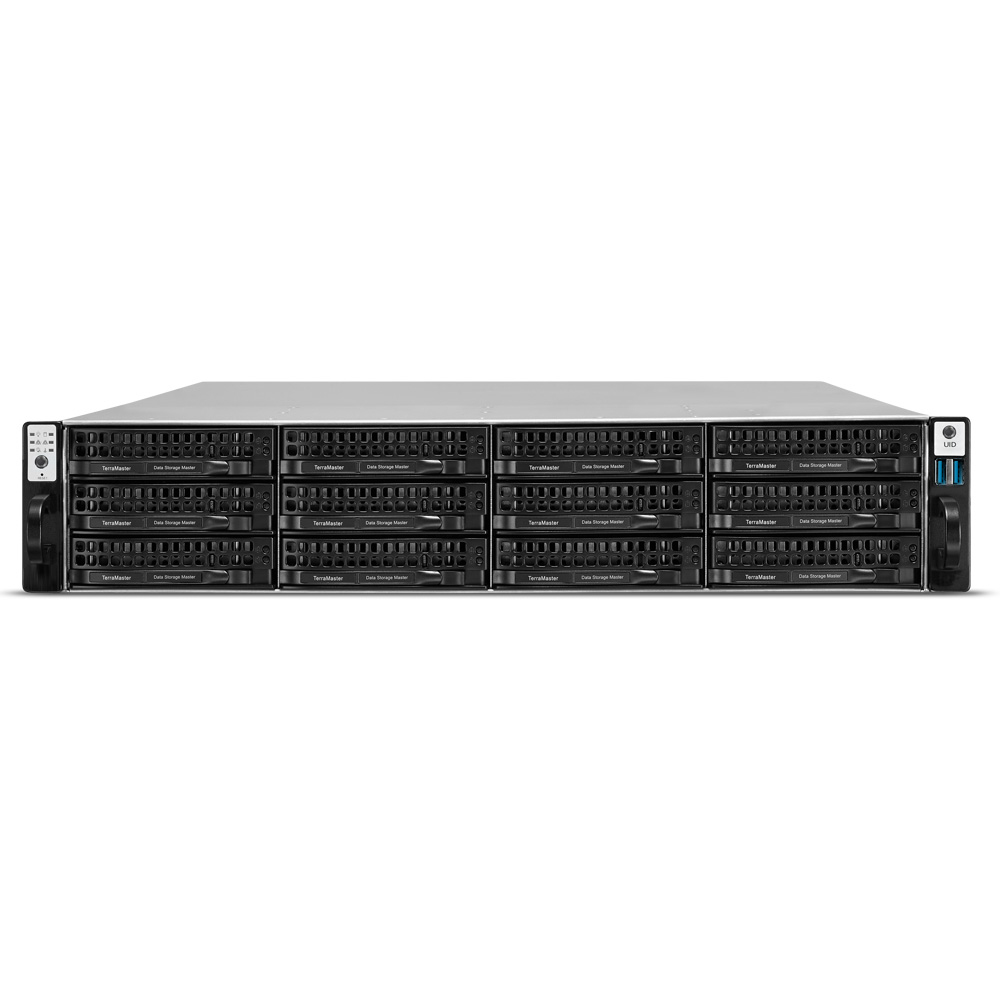

TerraMaster U12-612 NAS/storage server Rack (2U) Intel® Xeon® E3 v5 E3-1225V5
TerraMaster

U12-612 NAS/storage server Rack (2U) Intel® Xeon® E3 v5 E3-1225V5

8 GB DDR4L 0 TB HDD Black, Metallic

Model U12-612EAN 6939236140362

140 specifications
  • ProcessorIntel® Xeon® E3 v5
  • Memory8 GB
  • TypeNAS
  • ColourBlack, Metallic
  • Storage drives installedYes
  • Processor manufacturerIntel
See all specifications

Overview

Processor
Intel® Xeon® E3 v5
Memory
8 GB
Type
NAS
Colour
Black, Metallic
Storage drives installed
Yes
Processor manufacturer
Intel
Brand
TerraMaster
Model
U12-612
Part number
U12-612
EAN / UPC
6939236140362
Also known as
TerraMaster U12-612 NAS/storage server Rack (2U) Intel® Xeon® E3 v5 E3-1225V5 8 GB DDR4L 0 TB HDD Black, Metallic

Specifications

140 specifications in 15 groups

Storage

Storage drives installedYes
Total installed storage capacity0 TB
Number of storage drives installed0
Number of storage drives supported12
Installed storage drive typeHDD
Supported storage drive typesHDD & SSD
Storage drive capacity0 GB
Supported storage drive interfacesSerial ATA
Storage drive sizes supported2.5,3.5"
RAID supportYes
RAID levels1, 5, 6, 10
Online RAID migrationYes
Hot-swap drive baysYes
Supported file systemsFAT32, HFS+, NTFS, ext3, ext4

Processor

Processor manufacturerIntel
Processor familyIntel® Xeon® E3 v5
Processor modelE3-1225V5
Processor frequency3.3 GHz
Processor boost frequency3.7 GHz
Processor cores4
Processor threads4
Processor cache8 MB
Bus typeDMI3
CPU configuration (max)1
PCI Express configurations1x16, 1x8+2x4, 2x8
PCI Express slots version3.0
Processor cache typeSmart Cache
Processor codenameSkylake
Processor lithography14 nm
Processor operating modes64-bit
Processor package size37.5 x 37.5 mm
Processor seriesIntel Xeon E3-1200 v5
Processor socketLGA 1151 (Socket H4)
Scalability1S
System bus rate8 GT/s
Thermal Design Power (TDP)80 W
On-board graphics card modelIntel® HD Graphics P530
Maximum internal memory supported by processor64 GB
Memory bandwidth supported by processor (max)34.1 GB/s
Conflict-Free processorYes

Memory

Internal memory8 GB
Internal memory typeDDR4L
Maximum RAM supported64 GB
Memory slots4

Network

Ethernet LANYes
Ethernet LAN data rates10,100,1000 Mbit/s
iSCSI supportYes
Dynamic DNS (DDNS)Yes
Link aggregationYes
Supported network protocolsCIFS/SAMBA, NFS, FTP, TFTP, HTTPS, SSH, iSCSI, SNMP, SMTP

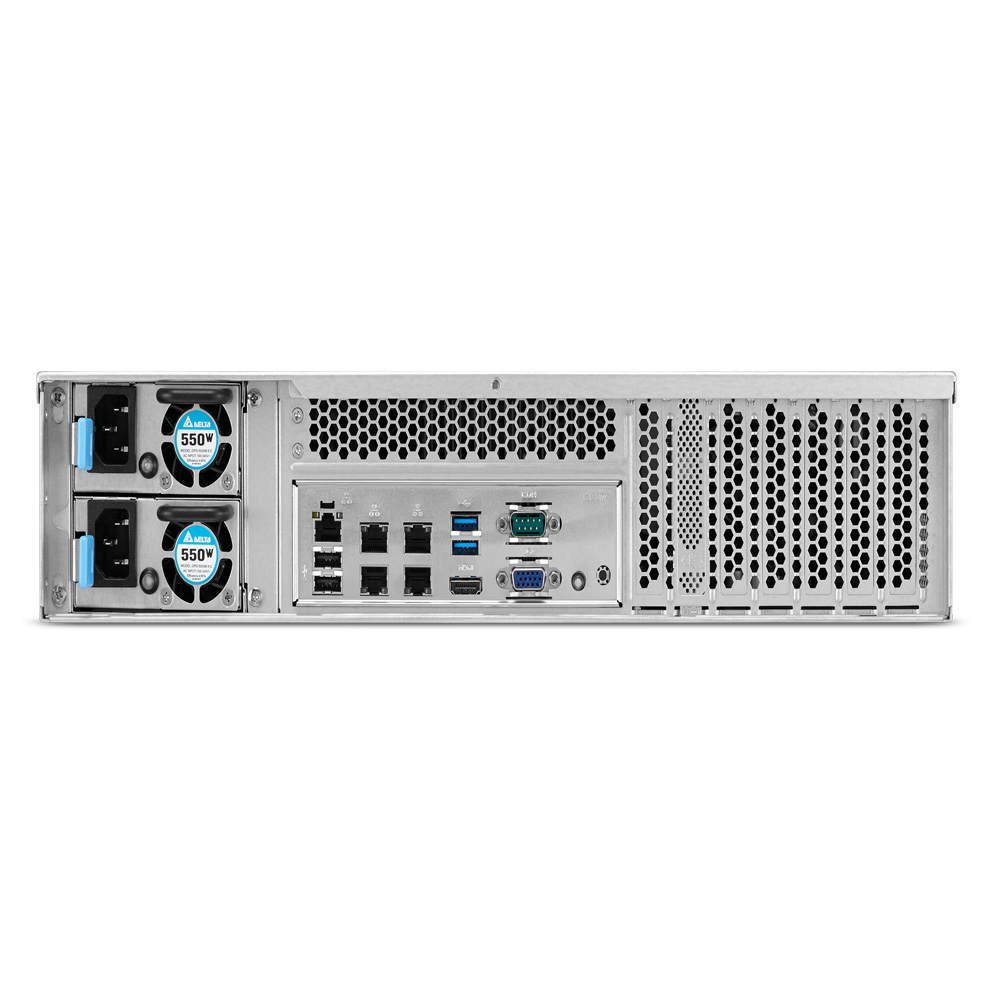

Ports & interfaces

Ethernet LAN (RJ-45) ports4
USB portYes
USB 2.0 ports quantity4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity2
VGA (D-Sub) ports quantity1
HDMI ports quantity1
Serial ports quantity1
PCI Express x8 (Gen 3.x) slots1

Graphics

On-board graphics card DirectX version12.0
On-board graphics card ID0x191D
On-board graphics card OpenGL version4.4
On-board graphics card base frequency400 MHz
On-board graphics card dynamic frequency (max)1150 MHz
Maximum on-board graphics card memory1.7 GB
Number of displays supported (on-board graphics)3

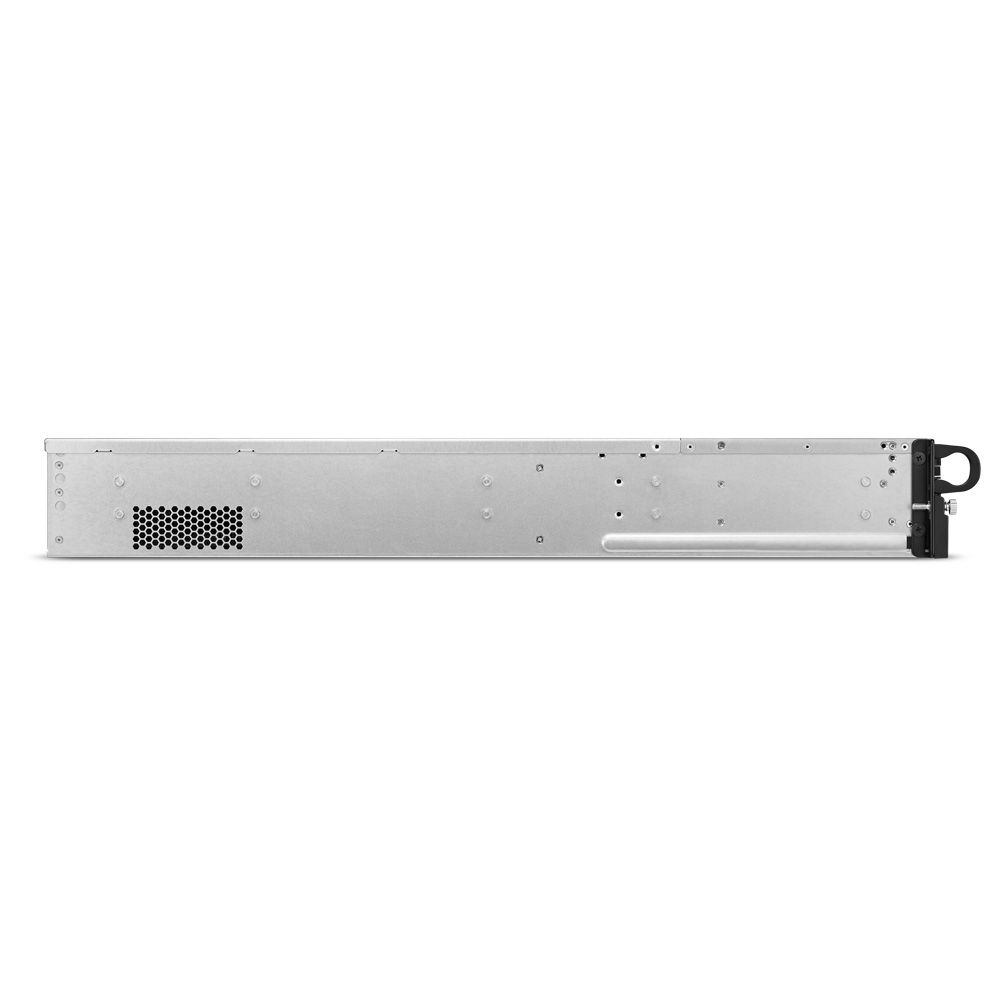

Design

Chassis typeRack (2U)
Cooling typeActive
Product colourBlack, Metallic
Number of fans3 fan(s)
Fan diameter8.3 cm
Fan diameter 28.3 cm
LED indicatorsYes
Built-in displayNo

Performance

TypeNAS
Device classLarge Enterprise Business
Backup functionYes
Multilingual supportYes
Number of users16000 user(s)
Third-party supportYes
SnapshotYes
Management protocolsSNMP
Access Control List (ACL)Yes
Browser supportedGoogle Chrome 48, Microsoft Internet Explorer 9, Mozilla Firefox 30,Apple Safari 4.5 or later version
Hot spareYes
S.M.A.R.T. supportYes
Security algorithmsAES, HTTPS, SSH
Share folder512
System logYes
Universal Plug and Play (UPnP)Yes

Software

Windows operating systems supportedYes
Linux operating systems supportedYes
Mac operating systems supportedYes

Power

Power supply locationBuilt-in
Power supply unit (PSU) capacity550 W
Power consumption (typical)180 W
AC input voltage100 - 240 V
AC input frequency50 - 60 Hz

Weight & dimensions

Width664 mm
Depth88 mm
Height440 mm

Packaging content

Cables includedAC, LAN (RJ-45)
Quick installation guideYes

Processor special features

Embedded options availableYes
Enhanced Intel SpeedStep TechnologyYes
Execute Disable BitYes
Graphics & IMC lithography14 nm
Idle StatesYes
Intel 64Yes
Intel Clear Video TechnologyYes
Intel Enhanced Halt StateYes
Intel Secure Key Technology version1.00
Intel TSX-NIYes
Intel TSX-NI version1.00
Intel Trusted Execution TechnologyYes
Intel VT-x with Extended Page Tables (EPT)Yes
Intel Virtualization Technology (VT-x)Yes
Intel Virtualization Technology for Directed I/O (VT-d)Yes
Intel® AES New Instructions (Intel® AES-NI)Yes
Intel® Clear Video HD Technology (Intel® CVT HD)Yes
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)Yes
Intel® Hyper Threading Technology (Intel® HT Technology)No
Intel® InTru™ 3D TechnologyYes
Intel® Insider™Yes
Intel® OS GuardYes
Intel® Quick Sync Video TechnologyYes
Intel® Secure KeyYes
Intel® Smart CacheYes
Intel® Turbo Boost Technology2.0
Intel® Wireless Display (Intel® WiDi)Yes
Maximum number of PCI Express lanes16
Thermal Monitoring TechnologiesYes
Memory types supported by processorDDR3L-SDRAM, DDR4-SDRAM
Memory voltage supported by processor1.35 V

Operational conditions

Operating temperature (T-T)5 - 40 °C
Operating relative humidity (H-H)5 - 95%
Storage temperature (T-T)-20 - 60 °C

Other features

Compliance certificatesRoHS
Digital Living Network Alliance (DLNA) certifiedYes
CertificationFCC, CE, CCC, KC
Processor ARK ID88168
