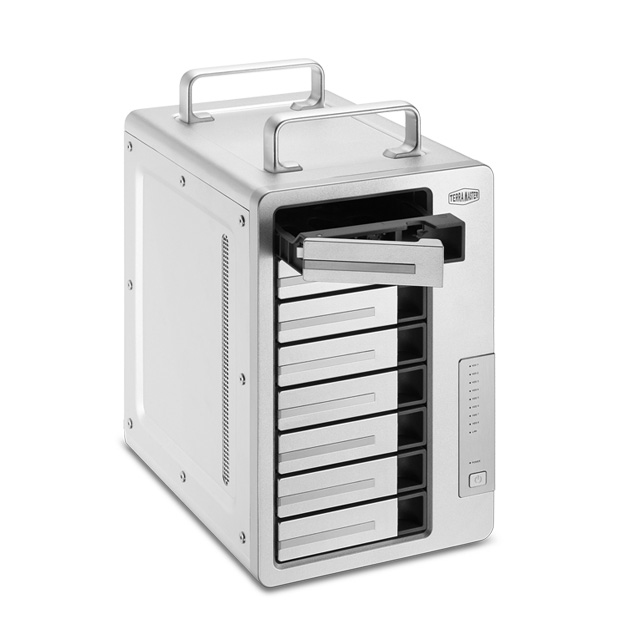

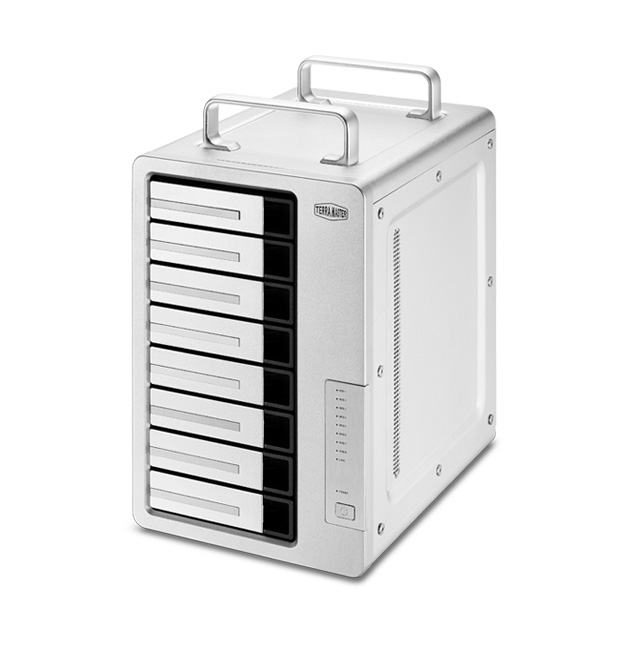

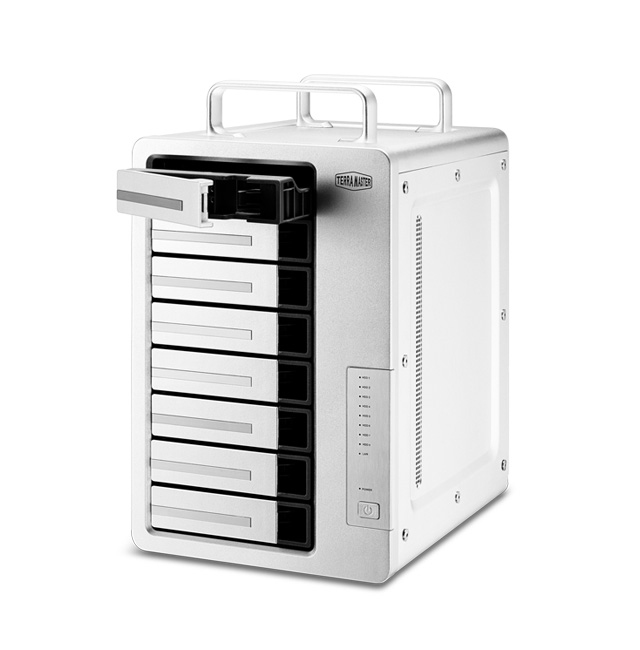

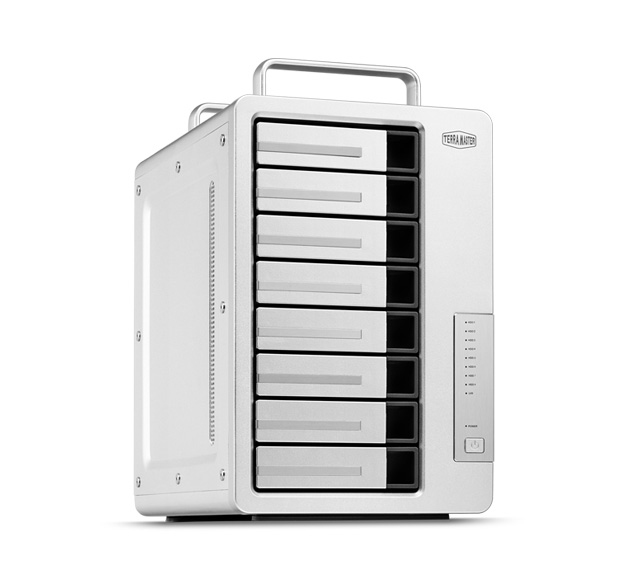

F8-421 NAS Desktop Intel® Celeron® J3455

8 GB 32 TB HDD Aluminium

Model F8-421Part no. F8-421/32TB-EXOSEAN 6939236139670

152 specifications

ProcessorIntel® Celeron®
Memory8 GB
Noise24 dB
TypeNAS
ColourAluminium
Storage drives installedYes

See all specifications

Overview

Processor: Intel® Celeron®
Memory: 8 GB
Noise: 24 dB
Type: NAS
Colour: Aluminium
Storage drives installed: Yes

Brand: TerraMaster
Category: NAS & Storage Servers
Model: F8-421
Part numbers: F8-421/32TB-EXOS, F8-421/48TB-EXOS, F8-421/16TB-IWP, F8-421/32TB-IWP, F8-421/24TB-IW, F8-421/64TB-IW +19 more
EAN / UPC: 6939236139670
Also known as: TerraMaster F8-421 NAS Desktop Intel® Celeron® J3455 8 GB 32 TB HDD Aluminium

Specifications

152 specifications in 15 groups

Storage

Specification	Value
Storage drives installed	Yes
Total installed storage capacity	32 TB
Number of storage drives installed	8
Number of storage drives supported	8
Installed storage drive type	HDD
Supported storage drive types	HDD & SSD
Storage drive capacity	4 TB
Storage drive interface	Serial ATA
Supported storage drive interfaces	Serial ATA
Storage drive sizes supported	2.5,3.5"
Maximum supported storage capacity	108 TB
RAID support	Yes
RAID levels	0, 1, 5, 6, 10, JBOD
Online RAID migration	Yes
Online RAID expansion	Yes
Hot-swap drive bays	Yes
Supported file systems	BTRFS, FAT32, HFS+, NTFS, ext3, ext4

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Celeron®
Processor model	J3455
Processor frequency	1.5 GHz
Processor boost frequency	2.3 GHz
Processor cores	4
Processor threads	4
Processor cache	2 MB
CPU configuration (max)	1
PCI Express configurations	1x2+2x1, 4x1
PCI Express slots version	2.0
Processor cache type	Smart Cache
Processor code	SR2Z9
Processor codename	Apollo Lake
Processor lithography	14 nm
Processor operating modes	64-bit
Processor package size	24 x 31 mm
Processor socket	BGA 1296
Stepping	B1
Thermal Design Power (TDP)	10 W
Tjunction	105 °C
On-board graphics card model	Intel® HD Graphics 500
Maximum internal memory supported by processor	8 GB
Conflict-Free processor	Yes

Memory

Specification	Value
Internal memory	8 GB
Maximum RAM supported	8 GB

Network

Specification	Value
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Wi-Fi	No
iSCSI support	Yes
Dynamic DNS (DDNS)	Yes
Link aggregation	Yes
Supported network protocols	CIFS/SAMBA, NFS, FTP, TFTP, HTTPS, SSH, iSCSI, SNMP, SMTP

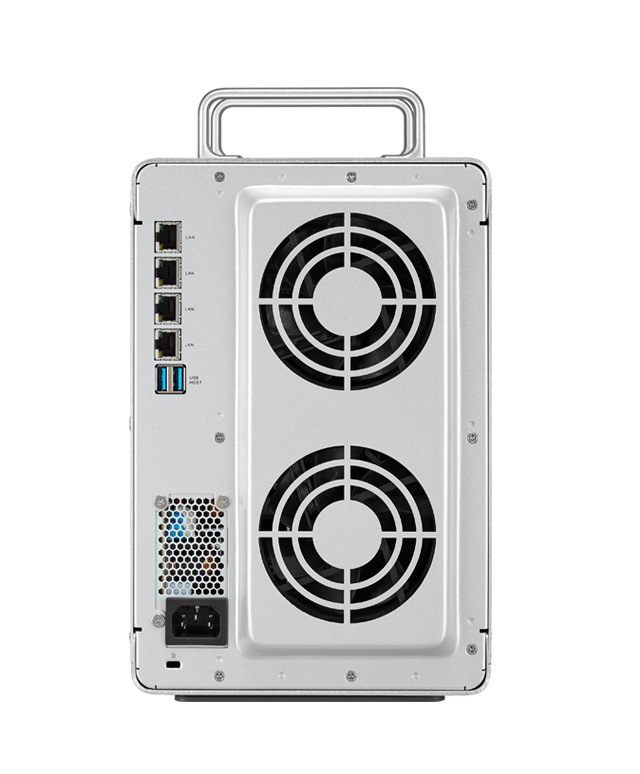

Ports & interfaces

Specification	Value
Ethernet LAN (RJ-45) ports	4
USB port	Yes
USB 2.0 ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
Fiber ports quantity	0

Graphics

Specification	Value
On-board graphics card base frequency	250 MHz
On-board graphics card burst frequency	750 MHz
On-board graphics card dynamic frequency (max)	750 MHz
Maximum on-board graphics card memory	8 GB
Number of displays supported (on-board graphics)	3

Design

Specification	Value
Chassis type	Desktop
Cooling type	Active
Product colour	Aluminium
Number of fans	2 fan(s)
Fan diameter	9 cm
LED indicators	HDD, Power, SSD

Performance

Specification	Value
Type	NAS
Device class	Large Enterprise Business
Backup function	Yes
Backup features	Cloud, USB drive, iSCSI LUN
Number of users	2048 user(s)
Noise level	24 dB
Third-party support	Yes
Snapshot	Yes
Management protocols	SNMP
Share folder access right management	Yes
Access Control List (ACL)	Yes
Browser supported	Google Chrome 48, Microsoft Internet Explorer 9, Mozilla Firefox 30, Apple Safari 4.5 +
Hot spare	Yes
Intel inside	Yes
On/off switch	Yes
S.M.A.R.T. support	Yes
Security algorithms	AES
Share folder	512
System log	Yes
Universal Plug and Play (UPnP)	Yes

Software

Specification	Value
Windows operating systems supported	Yes
Linux operating systems supported	Yes
Mac operating systems supported	Yes
Mobile operating systems supported	Android 5.0, iOS 8.2

Power

Specification	Value
Power supply location	Built-in
Power supply unit (PSU) capacity	300 W
Number of power supply units	1
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz

Weight & dimensions

Specification	Value
Width	184 mm
Depth	315 mm
Height	266 mm
Package width	320 mm
Package depth	397 mm
Package height	381 mm

Packaging content

Specification	Value
Cables included	AC, LAN (RJ-45)
Quick installation guide	Yes

Processor special features

Specification	Value
Embedded options available	Yes
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Idle States	Yes
Intel 64	Yes
Intel Clear Video Technology	Yes
Intel Enhanced Halt State	Yes
Intel Identity Protection Technology version	1.00
Intel Rapid Storage Technology	No
Intel Secure Boot	Yes
Intel Secure Boot Technology version	1.00
Intel Secure Key Technology version	1.00
Intel Small Business Advantage (SBA) version	0.00
Intel Smart Connect Technology	No
Intel Smart Connect Technology version	0.00
Intel Smart Response Technology version	0.00
Intel Stable Image Platform Program (SIPP)	No
Intel Stable Image Platform Program (SIPP) version	0.00
Intel Trusted Execution Technology	No
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel® AES New Instructions (Intel® AES-NI)	Yes
Intel® Anti-Theft Technology (Intel® AT)	No
Intel® Clear Video HD Technology (Intel® CVT HD)	Yes
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	Yes
Intel® High Definition Audio (Intel® HD Audio)	Yes
Intel® Hyper Threading Technology (Intel® HT Technology)	No
Intel® Identity Protection Technology (Intel® IPT)	Yes
Intel® InTru™ 3D Technology	No
Intel® Insider™	No
Intel® OS Guard	No
Intel® Quick Sync Video Technology	Yes
Intel® Secure Key	Yes
Intel® Small Business Advantage (Intel® SBA)	No
Intel® Smart Response Technology	No
Intel® Turbo Boost Technology	No
Intel® Wireless Display (Intel® WiDi)	No
Maximum number of PCI Express lanes	6
Number of execution units	12
Thermal Monitoring Technologies	Yes
UART	Yes
Memory types supported by processor	DDR3L, LPDDR3-SDRAM, LPDDR4-SDRAM

Operational conditions

Specification	Value
Operating temperature (T-T)	5 - 40 °C
Operating relative humidity (H-H)	5 - 95%
Storage temperature (T-T)	-20 - 60 °C

Other features

Specification	Value
Compliance certificates	RoHS
Certification	FCC, CE, CCC, KC, WEEE
Processor ARK ID	95594
