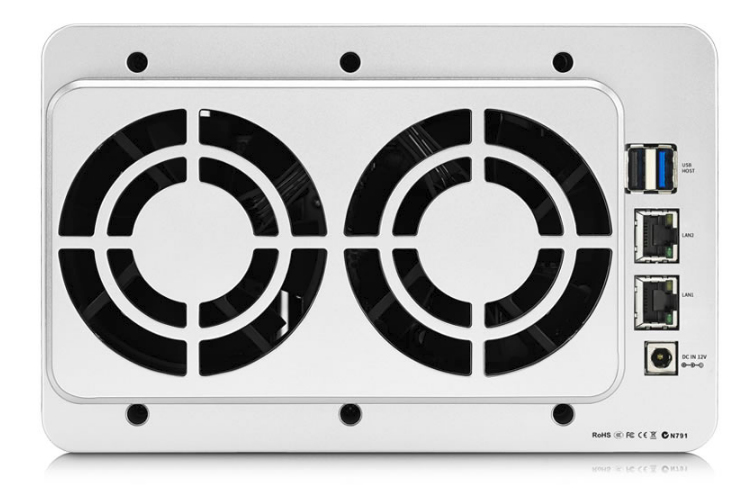

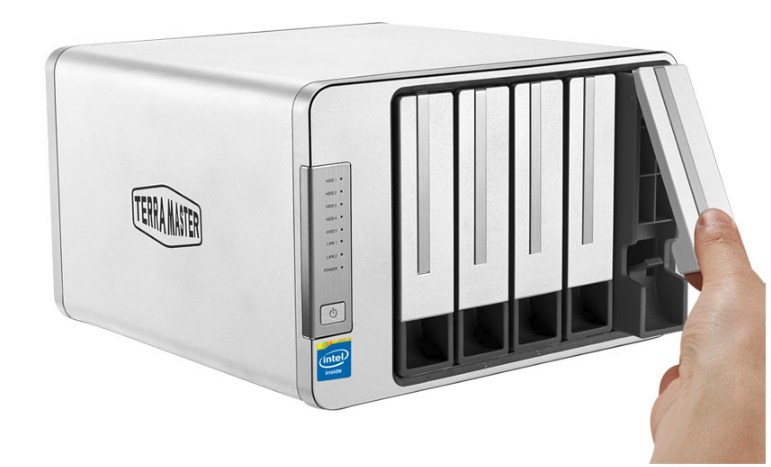

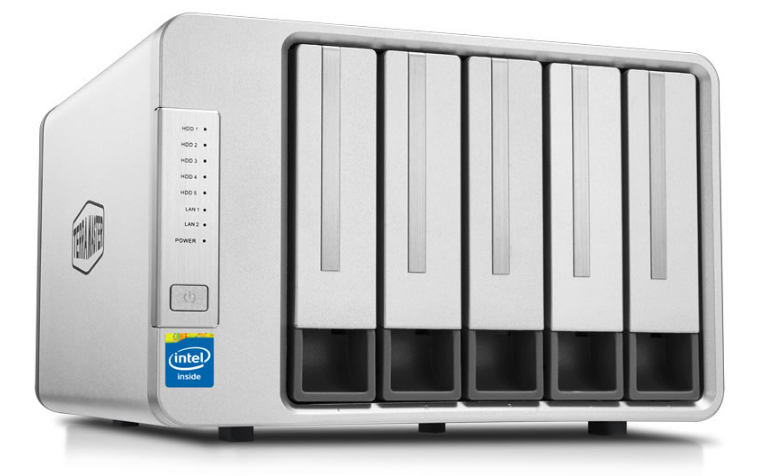

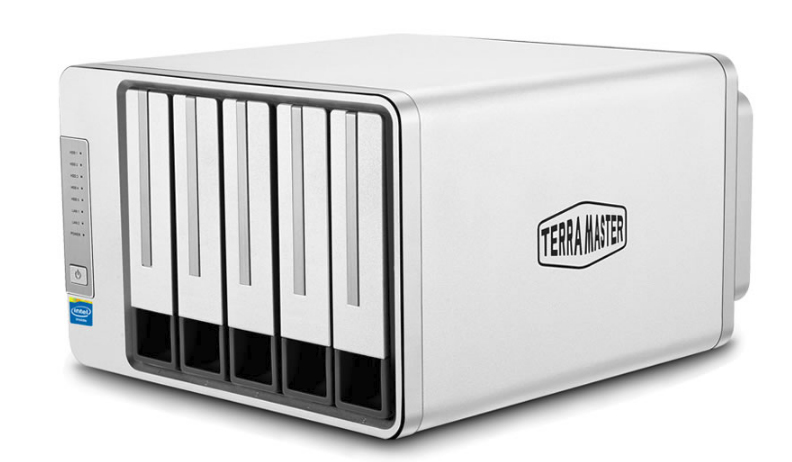

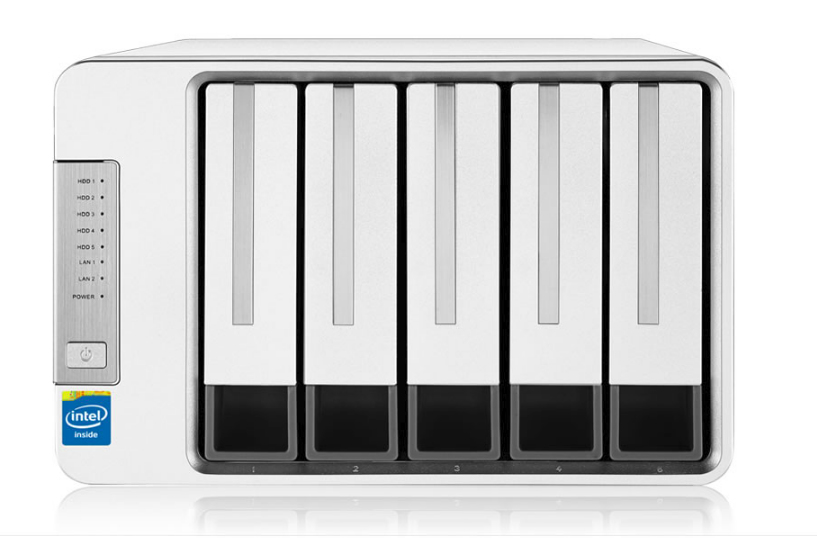

TerraMaster F5-420-4GB NAS/storage server Compact Intel® Celeron® J1900 White
TerraMaster

F5-420-4GB NAS/storage server Compact Intel® Celeron® J1900 White

Model F5-420-4GBEAN 6939236139106

97 specifications
  • ProcessorIntel® Celeron®
  • Memory4 GB
  • TypeStorage server
  • Weight2.33 kg
  • ColourWhite
  • Storage drives installedNo
See all specifications

Overview

Processor
Intel® Celeron®
Memory
4 GB
Type
Storage server
Weight
2.33 kg
Colour
White
Storage drives installed
No
Brand
TerraMaster
Model
F5-420-4GB
Part number
F5-420-4GB
EAN / UPC
6939236139106
Also known as
TerraMaster F5-420-4GB NAS/storage server Compact Intel® Celeron® J1900 White

Specifications

97 specifications in 14 groups

Storage

Storage drives installedNo
Number of storage drives supported5
Installed storage drive typeNo
Supported storage drive typesHDD & SSD
Storage drive sizes supported2.5,3.5"
Maximum supported storage capacity60 TB
RAID supportYes
RAID levels0, 1, 5, 6, 10, JBOD
Supported file systemsFAT32, HFS+, NTFS, exFAT

Processor

Processor manufacturerIntel
Processor familyIntel® Celeron®
Processor modelJ1900
Processor frequency2 GHz
Processor boost frequency2.42 GHz
Processor cores4
Processor threads4
Processor cache2 MB
CPU configuration (max)1
ECC supported by processorNo
PCI Express configurations1x4
PCI Express slots version2.0
Physical Address Extension (PAE)36 bit
Processor cache typeL2
Processor codeSR1SC
Processor codenameBay Trail
Processor lithography22 nm
Processor operating modes32-bit, 64-bit
Processor package size25 X 27 mm
Processor seriesIntel Celeron Processor J1000 series for Desktop
Processor socketBGA 1170
SteppingB3
Thermal Design Power (TDP)10 W
Tjunction105 °C
On-board graphics card modelIntel® HD Graphics
Maximum internal memory supported by processor8 GB
Conflict-Free processorYes

Memory

Internal memory4 GB
Maximum RAM supported8 GB
Memory slots1

Network

Ethernet LANYes
Supported network protocolsCIFS、AFP、NFS、FTP. WebDAV. iSCSI. Telnet, SSH, SNMP

Ports & interfaces

Ethernet LAN (RJ-45) ports2
USB portYes
USB 2.0 ports quantity1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity1

Graphics

On-board graphics card base frequency688 MHz
On-board graphics card dynamic frequency (max)854 MHz
Number of displays supported (on-board graphics)2

Design

Chassis typeCompact
Cooling typeActive
Product colourWhite

Performance

TypeStorage server
Device classSmall & Medium Business
Number of users2048 user(s)
Access Control List (ACL)Yes
Browser supportedChrome48; Firefox30, Internet Explorer 9,Safari(mac):4.5

Software

Windows operating systems supportedWindows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic
Linux operating systems supportedYes
Mac operating systems supportedMac OS X 10.10 Yosemite, Mac OS X 10.14 Mojave, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks
Mobile operating systems supportedAndroid 4.4

Weight & dimensions

Width227 mm
Depth225 mm
Height136 mm
Weight2.33 kg
Package weight3.57 kg

Packaging content

External power adapterYes
Quick start guideYes

Processor special features

Embedded options availableYes
Enhanced Intel SpeedStep TechnologyYes
Execute Disable BitYes
Graphics & IMC lithography22 nm
Intel 64Yes
Intel FDI TechnologyNo
Intel Identity Protection Technology version0.00
Intel Rapid Storage TechnologyNo
Intel Small Business Advantage (SBA) version0.00
Intel Stable Image Platform Program (SIPP)No
Intel Stable Image Platform Program (SIPP) version0.00
Intel Virtualization Technology (VT-x)Yes
Intel Virtualization Technology for Directed I/O (VT-d)No
Intel® AES New Instructions (Intel® AES-NI)No
Intel® Anti-Theft Technology (Intel® AT)No
Intel® Hyper Threading Technology (Intel® HT Technology)No
Intel® Identity Protection Technology (Intel® IPT)No
Intel® InTru™ 3D TechnologyNo
Intel® Insider™No
Intel® Quick Sync Video TechnologyYes
Intel® Turbo Boost TechnologyNo
Intel® Wireless Display (Intel® WiDi)No
Maximum number of PCI Express lanes4
Memory channels supported by processorDual
Memory types supported by processorDDR3L-SDRAM

Operational conditions

Operating temperature (T-T)5 - 40 °C
Operating relative humidity (H-H)5 - 95%
Storage temperature (T-T)-20 - 60 °C

Other features

Compliance certificatesRoHS
Processor ARK ID78867
