F2-425 PLUS
Model F2-425 PLUSEAN 6939236147477
54 specifications
- ProcessorIntel® N
- Memory8 GB
- TypeNAS
- Weight2.2 kg
- ColourWhite, Black
- Storage drives installedNo
Overview
- Processor
- Intel® N
- Memory
- 8 GB
- Type
- NAS
- Weight
- 2.2 kg
- Colour
- White, Black
- Storage drives installed
- No
- Brand
- TerraMaster
- Category
- NAS & Storage Servers
- Model
- F2-425 PLUS
- Part number
- F2-425 PLUS
- EAN / UPC
- 6939236147477
- Also known as
- TerraMaster F2-425 PLUS NAS/storage server Desktop Intel® N N150 8 GB DDR5 0 TB HDD+SSD White, Black
Specifications
54 specifications in 9 groups
Storage
| Specification | Value |
|---|---|
| Storage drives installed | No |
| Total installed storage capacity | 0 TB |
| Number of storage drives installed | 0 |
| Number of storage drives supported | 2 |
| Installed storage drive type | HDD+SSD |
| Supported storage drive types | HDD & SSD |
| Storage drive capacity | 0 GB |
| Storage drive interface | Serial ATA III |

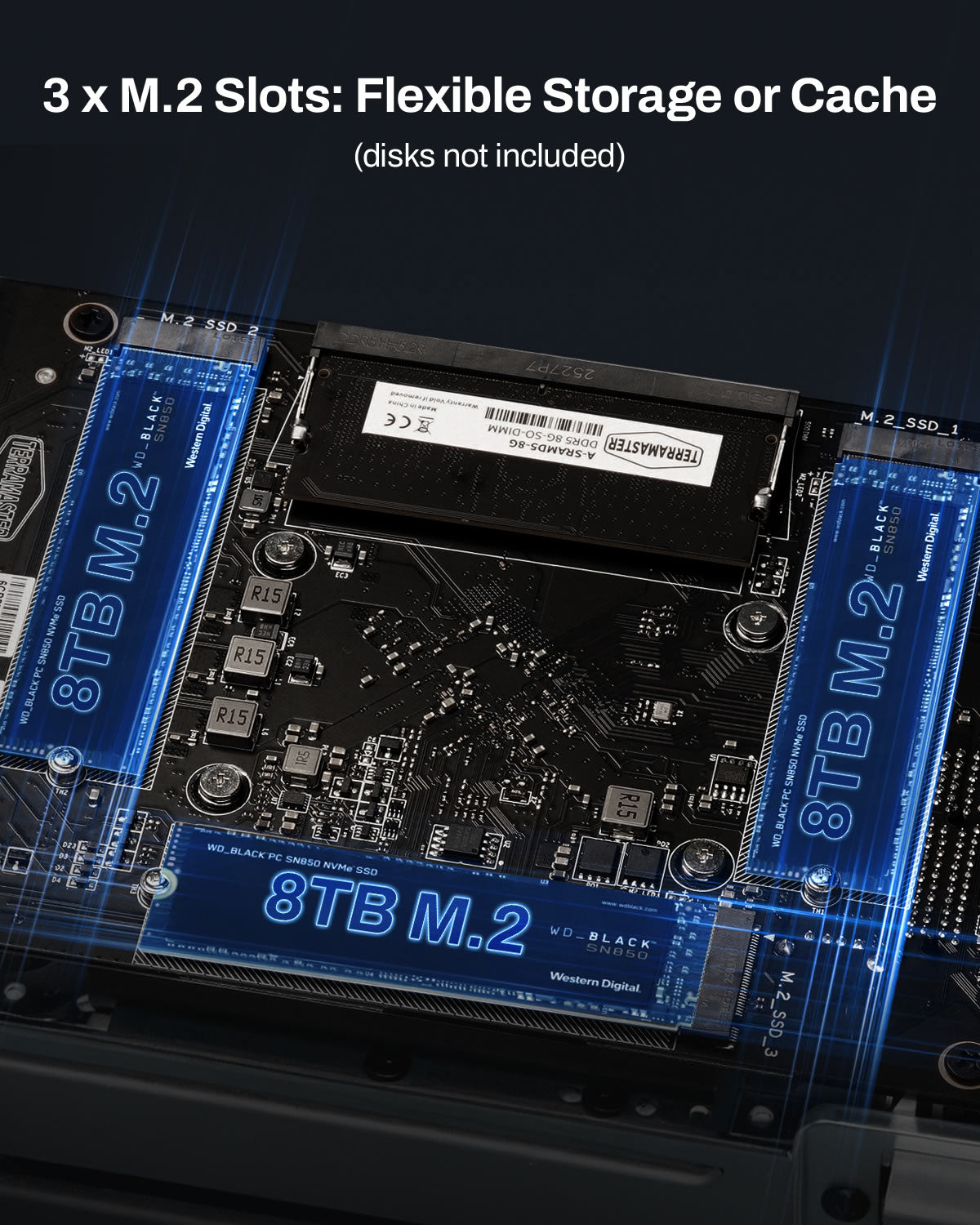

| Storage drive sizes supported | 2.5,3.5,M.2 |
| Maximum supported storage capacity | 60 TB |
| RAID support | Yes |
| Hot-swap drive bays | Yes |
| Supported file systems | ext3, ext4, NTFS, FAT32, HFS+, BTRFS |
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel® N |
| Processor model | N150 |
| Processor boost frequency | 3.6 GHz |
| Processor cores | 4 |
| Processor cache | 6 MB |
Memory
| Specification | Value |
|---|---|
| Internal memory | 8 GB |
| Internal memory type | DDR5 |
| Maximum RAM supported | 32 GB |
| ECC | No |
| Memory form factor | SO-DIMM |
| Memory slots | 2 |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 5000 Mbit/s |
| iSCSI support | Yes |
| Dynamic DNS (DDNS) | Yes |
| Link aggregation | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 2 |
| USB port | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| HDMI ports quantity | 1 |
Design
| Specification | Value |
|---|---|
| Chassis type | Desktop |
| Cooling type | Active |
| Product colour | White, Black |
| Number of fans | 1 fan(s) |
| Fan diameter | 8 cm |
Performance
| Specification | Value |
|---|---|
| Type | NAS |
| Device class | Home & Home Office |
| Backup function | Yes |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 48 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 122 mm |
| Depth | 219 mm |
| Height | 150 mm |
| Weight | 2.2 kg |
| Package width | 217 mm |
| Package depth | 277 mm |
| Package height | 186 mm |
| Package weight | 3.1 kg |
