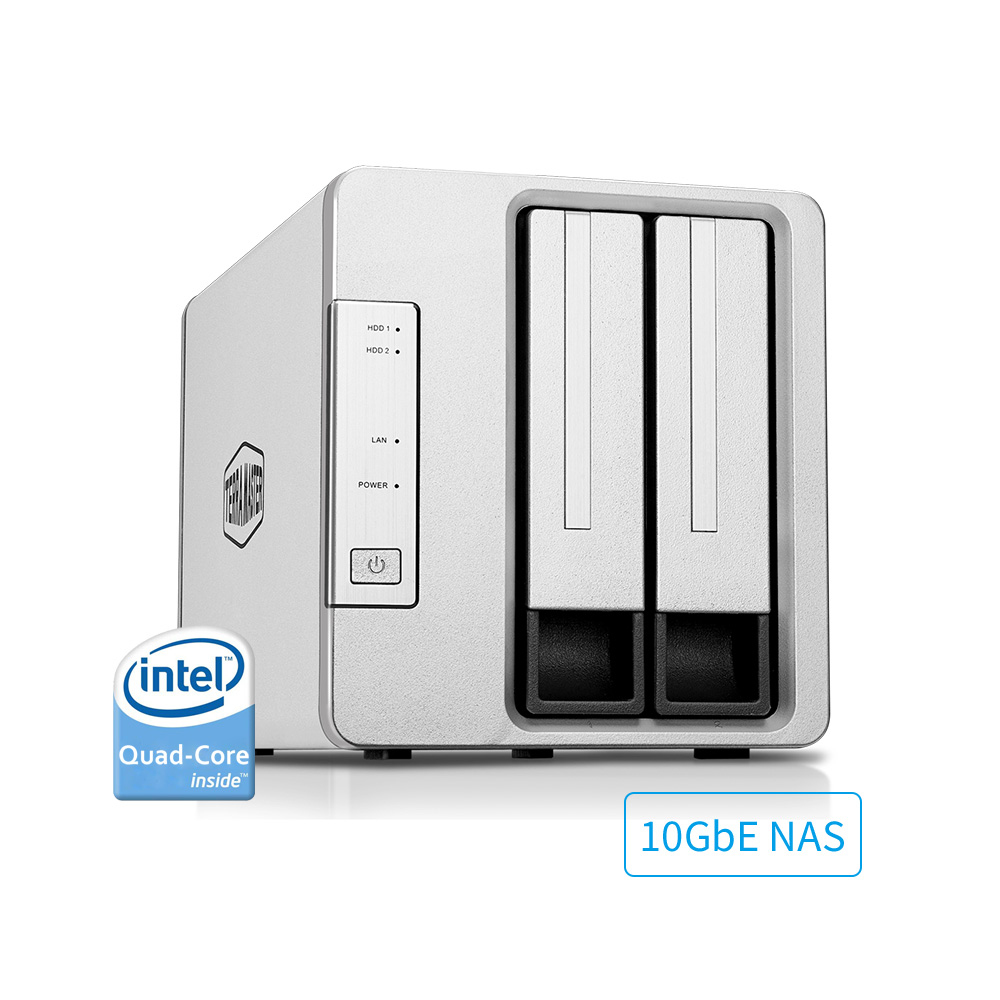

TerraMaster F2-422 NAS/storage server Desktop Intel® Celeron® J3455
TerraMaster

F2-422 NAS/storage server Desktop Intel® Celeron® J3455

4 GB 0 TB HDD+SSD White

Model F2-422EAN 6939236140775

145 specifications
  • ProcessorIntel® Celeron®
  • Memory4 GB
  • Noise18.6 dB
  • TypeNAS
  • Weight1.5 kg
  • ColourWhite
See all specifications

Overview

Processor
Intel® Celeron®
Memory
4 GB
Noise
18.6 dB
Type
NAS
Weight
1.5 kg
Colour
White
Brand
TerraMaster
Model
F2-422
Part number
F2-422
EAN / UPC
6939236140775
Also known as
TerraMaster F2-422 NAS/storage server Desktop Intel® Celeron® J3455 4 GB 0 TB HDD+SSD White

Specifications

145 specifications in 15 groups

Storage

Storage drives installedNo
Total installed storage capacity0 TB
Number of storage drives installed0
Number of storage drives supported2
Installed storage drive typeHDD+SSD
Supported storage drive typesHDD & SSD
Storage drive capacity0 GB
Supported storage drive interfacesSerial ATA III
Storage drive sizes supported2.5,3.5"
RAID supportYes
RAID levels0, 1, JBOD
Online RAID migrationYes
Hot-swap drive baysYes
Supported file systemsBTRFS, ext4

Processor

Processor manufacturerIntel
Processor familyIntel® Celeron®
Processor modelJ3455
Processor frequency1.5 GHz
Processor boost frequency2.3 GHz
Processor cores4
Processor threads4
Processor cache2 MB
CPU configuration (max)1
PCI Express configurations1x2+2x1, 4x1
PCI Express slots version2.0
Processor cache typeSmart Cache
Processor codeSR2Z9
Processor codenameApollo Lake
Processor lithography14 nm
Processor operating modes64-bit
Processor package size24 x 31 mm
Processor socketBGA 1296
SteppingB1
Thermal Design Power (TDP)10 W
Tjunction105 °C
On-board graphics card modelIntel® HD Graphics 500
Maximum internal memory supported by processor8 GB
Conflict-Free processorYes

Memory

Internal memory4 GB
Maximum RAM supported8 GB
Memory slots1

Network

Ethernet LANYes
Ethernet LAN data rates1000,10000 Mbit/s
Ethernet LAN data rate supported (max)10000 Mbit/s
iSCSI supportYes
Dynamic DNS (DDNS)Yes
Link aggregationYes
Supported network protocolsCIFS/SAMBA, NFS, FTP, TFTP, HTTPS, SSH, iSCSI, SNMP, SMTP

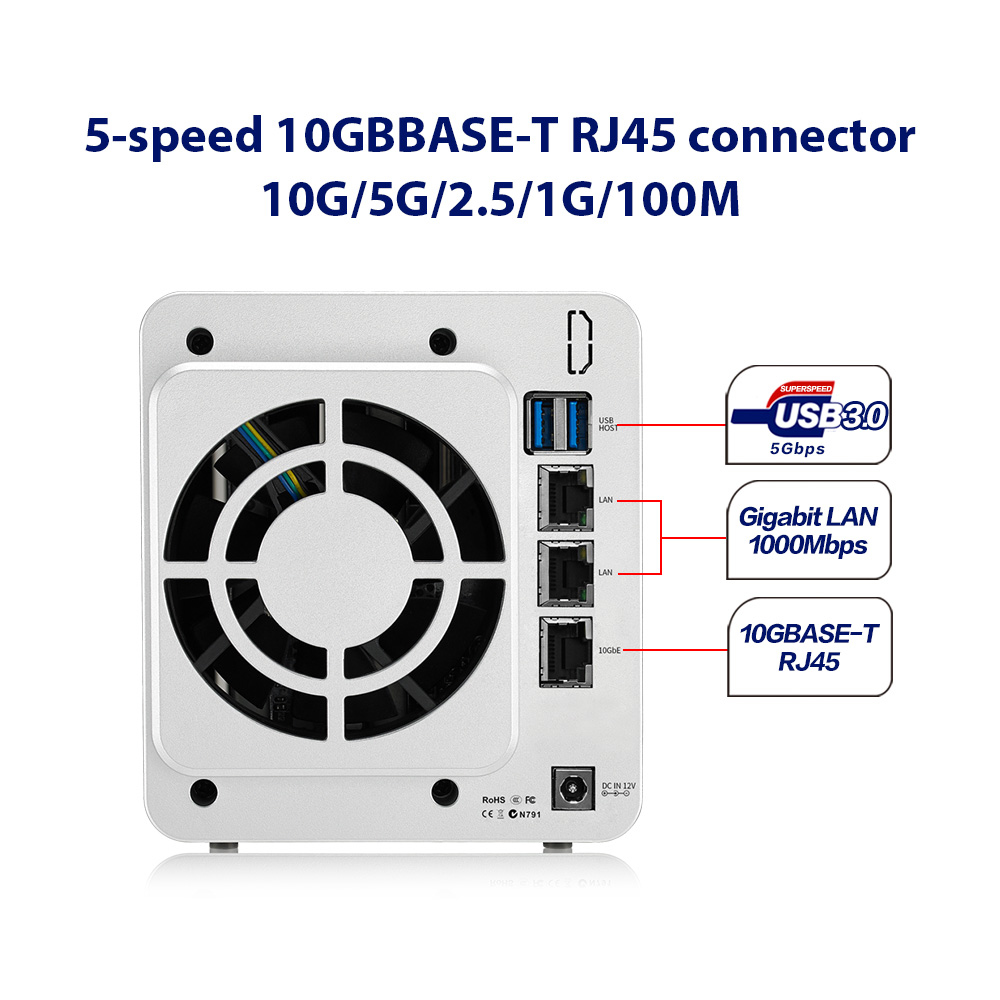

Ports & interfaces

Ethernet LAN (RJ-45) ports3
USB portYes
USB 2.0 ports quantity0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity2
Fiber ports quantity0

Graphics

On-board graphics card base frequency250 MHz
On-board graphics card burst frequency750 MHz
On-board graphics card dynamic frequency (max)750 MHz
Maximum on-board graphics card memory8 GB
Number of displays supported (on-board graphics)3

Design

Chassis typeDesktop
Cooling typeActive
Product colourWhite
Number of fans1 fan(s)
Fan diameter8 cm
LED indicatorsYes

Performance

TypeNAS
Device classSmall & Medium Business
Backup functionYes
Backup featuresCloud
Multilingual supportYes
Number of users2048 user(s)
Noise level18.6 dB
SnapshotYes
Access Control List (ACL)Yes
Browser supportedGoogle Chrome 48, Microsoft Internet Explorer 9, Mozilla Firefox 30,Apple Safari 4.5
On/off switchYes
S.M.A.R.T. supportYes
Share folder512
Universal Plug and Play (UPnP)Yes

Software

Windows operating systems supportedYes
Linux operating systems supportedYes
Mac operating systems supportedYes
Other operating systems supportedAndroid, iOS

Power

Power supply unit (PSU) capacity40 W
Power consumption (typical)25.6 W
AC input voltage100-240 V
AC input frequency50 - 60 Hz

Weight & dimensions

Width119 mm
Depth133 mm
Height227 mm
Weight1.5 kg
Package width220 mm
Package depth170 mm
Package height258 mm
Package weight2.36 kg

Packaging content

External power adapterYes
Cables includedAC

Processor special features

Embedded options availableYes
Enhanced Intel SpeedStep TechnologyYes
Execute Disable BitYes
Idle StatesYes
Intel 64Yes
Intel Clear Video TechnologyYes
Intel Enhanced Halt StateYes
Intel Identity Protection Technology version1.00
Intel Rapid Storage TechnologyNo
Intel Secure BootYes
Intel Secure Boot Technology version1.00
Intel Secure Key Technology version1.00
Intel Small Business Advantage (SBA) version0.00
Intel Smart Connect TechnologyNo
Intel Smart Connect Technology version0.00
Intel Smart Response Technology version0.00
Intel Stable Image Platform Program (SIPP)No
Intel Stable Image Platform Program (SIPP) version0.00
Intel Trusted Execution TechnologyNo
Intel VT-x with Extended Page Tables (EPT)Yes
Intel Virtualization Technology (VT-x)Yes
Intel Virtualization Technology for Directed I/O (VT-d)Yes
Intel® AES New Instructions (Intel® AES-NI)Yes
Intel® Anti-Theft Technology (Intel® AT)No
Intel® Clear Video HD Technology (Intel® CVT HD)Yes
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)Yes
Intel® High Definition Audio (Intel® HD Audio)Yes
Intel® Hyper Threading Technology (Intel® HT Technology)No
Intel® Identity Protection Technology (Intel® IPT)Yes
Intel® InTru™ 3D TechnologyNo
Intel® Insider™No
Intel® OS GuardNo
Intel® Quick Sync Video TechnologyYes
Intel® Secure KeyYes
Intel® Small Business Advantage (Intel® SBA)No
Intel® Smart Response TechnologyNo
Intel® Turbo Boost TechnologyNo
Intel® Wireless Display (Intel® WiDi)No
Maximum number of PCI Express lanes6
Number of execution units12
Thermal Monitoring TechnologiesYes
UARTYes
Memory types supported by processorDDR3L, LPDDR3-SDRAM, LPDDR4-SDRAM

Operational conditions

Operating temperature (T-T)5 - 40 °C
Operating relative humidity (H-H)5 - 95%
Storage temperature (T-T)-20 - 60 °C

Other features

Compliance certificatesRoHS
CertificationFCC, CE, CCC, KC
Processor ARK ID95594
