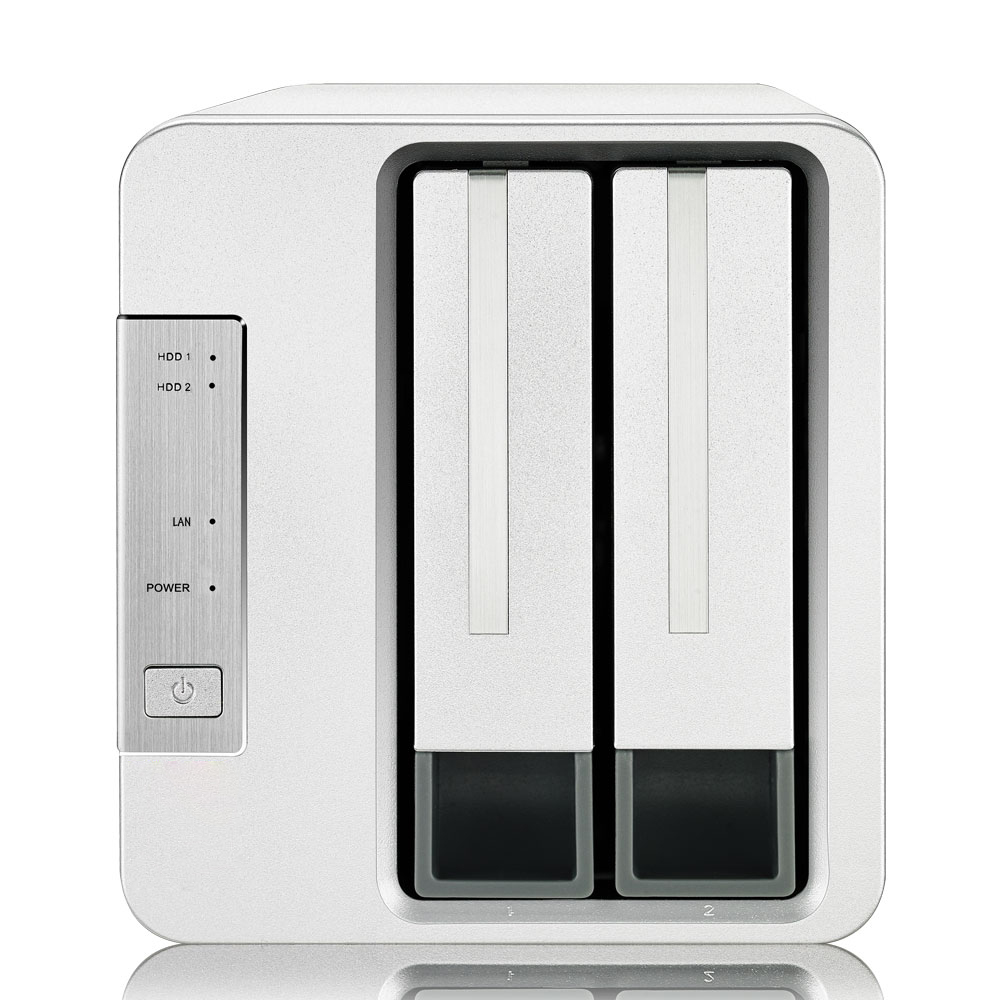

TerraMaster F2-221 NAS/storage server Desktop Intel® Celeron® J3355
TerraMaster

F2-221 NAS/storage server Desktop Intel® Celeron® J3355

2 GB 0 TB Grey

Model F2-221EAN 6939236139649

154 specifications
  • ProcessorIntel® Celeron®
  • Memory2 GB
  • Noise18.6 dB
  • TypeNAS
  • Weight1.47 kg
  • ColourGrey
See all specifications

Overview

Processor
Intel® Celeron®
Memory
2 GB
Noise
18.6 dB
Type
NAS
Weight
1.47 kg
Colour
Grey
Brand
TerraMaster
Model
F2-221
Part number
F2-221
EAN / UPC
6939236139649
Also known as
TerraMaster F2-221 NAS/storage server Desktop Intel® Celeron® J3355 2 GB 0 TB Grey

Specifications

154 specifications in 15 groups

Storage

Storage drives installedNo
Total installed storage capacity0 TB
Number of storage drives installed0
Number of storage drives supported2
Installed storage drive typeNo
Supported storage drive typesHDD & SSD
Storage drive capacity0 GB
Supported storage drive interfacesSerial ATA
Storage drive sizes supported2.5,3.5"
Maximum supported storage capacity32 TB
RAID supportYes
RAID levels0, 1, JBOD
Online RAID migrationYes
Hot-swap drive baysYes
Supported file systemsBTRFS, FAT32, HFS+, ext3, ext4

Processor

Processor manufacturerIntel
Processor familyIntel® Celeron®
Processor modelJ3355
Processor frequency2 GHz
Processor boost frequency2.5 GHz
Processor cores2
Processor threads2
Processor cache2 MB
CPU configuration (max)1
PCI Express configurations1x2+2x1, 4x1
PCI Express slots version2.0
Processor cache typeSmart Cache
Processor codeSR2Z8
Processor codenameApollo Lake
Processor lithography14 nm
Processor operating modes64-bit
Processor package size24 x 31 mm
Processor socketBGA 1296
SteppingB1
System bus rate5 GT/s
Thermal Design Power (TDP)10 W
Tjunction105 °C
On-board graphics card modelIntel® HD Graphics 500
Maximum internal memory supported by processor8 GB
Conflict-Free processorYes

Memory

Internal memory2 GB
Maximum RAM supported10 GB

Network

Ethernet LANYes
Ethernet LAN data rates1000 Mbit/s
iSCSI supportYes
Dynamic DNS (DDNS)Yes
Supported network protocolsCIFS/SAMBA, NFS, FTP, TFTP, HTTPS, SSH, iSCSI, SNMP, SMTP

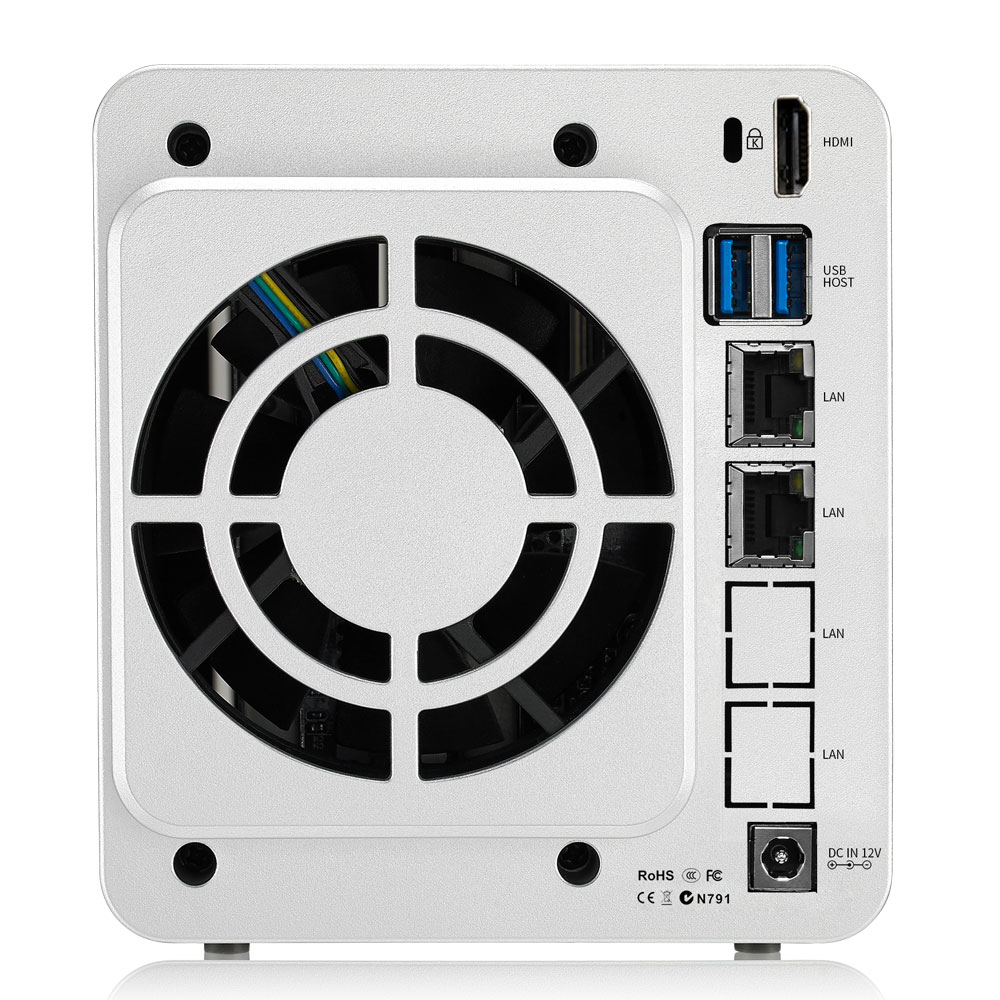

Ports & interfaces

Ethernet LAN (RJ-45) ports2
USB portYes
USB 2.0 ports quantity0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity2
Fiber ports quantity0
HDMI ports quantity1

Graphics

On-board graphics card base frequency250 MHz
On-board graphics card burst frequency700 MHz
Maximum on-board graphics card memory8 GB
Number of displays supported (on-board graphics)3

Design

Chassis typeDesktop
Cooling typeActive
Product colourGrey
Number of fans1 fan(s)
Fan diameter8 cm
LED indicatorsHDD, LAN, Power
Built-in displayNo

Performance

TypeNAS
Device classHome & Home Office
Backup functionYes
Backup featuresCloud, USB drive
Multilingual supportYes
Number of users512 user(s)
Noise level18.6 dB
Third-party supportYes
SnapshotYes
Management protocolsSNMP
Web-based managementYes
Access Control List (ACL)Yes
Browser supportedGoogle Chrome 48, Microsoft Internet Explorer 9, Mozilla Firefox 30,Apple Safari 4.5
Hot spareYes
On/off switchYes
S.M.A.R.T. supportYes
Security algorithmsAES, HTTPS, SNMP, SSH
Share folder256
System logYes
Universal Plug and Play (UPnP)Yes

Software

Windows operating systems supportedYes
Linux operating systems supportedYes
Mac operating systems supportedYes

Power

Power supply locationExternal
Power supply unit (PSU) capacity40 W
Number of power supply units1
Power consumption (typical)25.6 W
AC input voltage100-240 V
AC input frequency50 - 60 Hz
Output voltage12 V

Weight & dimensions

Width119 mm
Depth133 mm
Height227 mm
Weight1.47 kg
Package width220 mm
Package depth170 mm
Package height258 mm
Package weight2.32 kg

Packaging content

External power adapterYes
Cables includedAC, LAN (RJ-45)

Processor special features

Embedded options availableYes
Enhanced Intel SpeedStep TechnologyYes
Execute Disable BitYes
Idle StatesYes
Intel 64Yes
Intel Clear Video TechnologyYes
Intel Enhanced Halt StateYes
Intel Identity Protection Technology version1.00
Intel Rapid Storage TechnologyNo
Intel Secure BootYes
Intel Secure Boot Technology version1.00
Intel Secure Key Technology version1.00
Intel Small Business Advantage (SBA) version0.00
Intel Smart Connect TechnologyNo
Intel Smart Connect Technology version0.00
Intel Smart Response Technology version0.00
Intel Stable Image Platform Program (SIPP)No
Intel Stable Image Platform Program (SIPP) version0.00
Intel Trusted Execution TechnologyNo
Intel VT-x with Extended Page Tables (EPT)Yes
Intel Virtualization Technology (VT-x)Yes
Intel Virtualization Technology for Directed I/O (VT-d)Yes
Intel® AES New Instructions (Intel® AES-NI)Yes
Intel® Anti-Theft Technology (Intel® AT)No
Intel® Clear Video HD Technology (Intel® CVT HD)Yes
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)Yes
Intel® High Definition Audio (Intel® HD Audio)Yes
Intel® Hyper Threading Technology (Intel® HT Technology)No
Intel® Identity Protection Technology (Intel® IPT)Yes
Intel® InTru™ 3D TechnologyNo
Intel® Insider™No
Intel® OS GuardNo
Intel® Quick Sync Video TechnologyYes
Intel® Secure KeyYes
Intel® Small Business Advantage (Intel® SBA)No
Intel® Smart Response TechnologyNo
Intel® Turbo Boost TechnologyNo
Intel® Wireless Display (Intel® WiDi)No
Maximum number of PCI Express lanes6
Number of execution units12
Thermal Monitoring TechnologiesYes
UARTYes
Memory types supported by processorDDR3L, LPDDR3-SDRAM, LPDDR4-SDRAM

Operational conditions

Operating temperature (T-T)5 - 40 °C
Operating relative humidity (H-H)5 - 95%
Storage temperature (T-T)-20 - 60 °C

Other features

Compliance certificatesRoHS
Digital Living Network Alliance (DLNA) certifiedYes
CertificationFCC, CE, CCC, KC
Processor ARK ID95597
