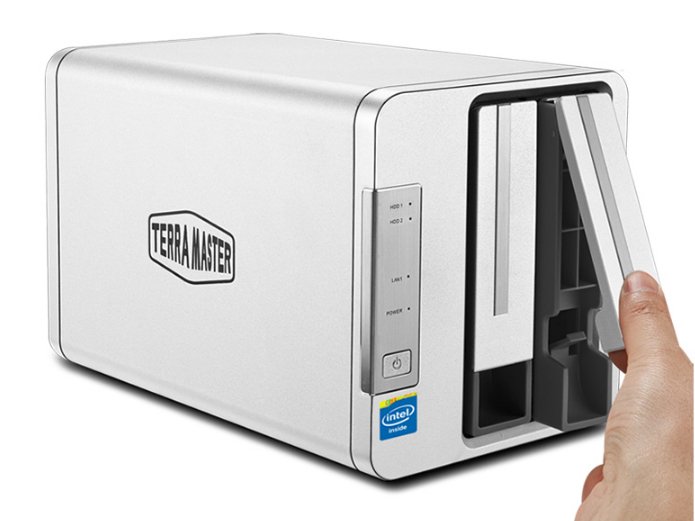

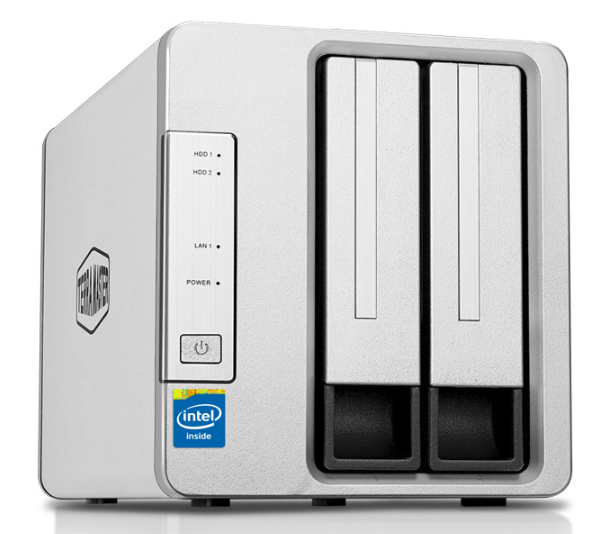

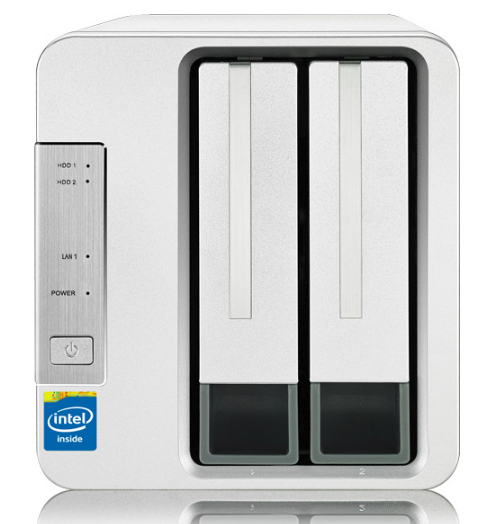

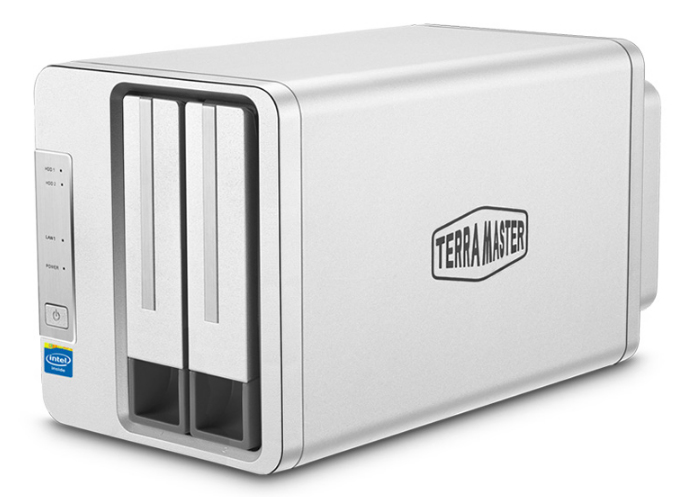

TerraMaster F2-220-2GB NAS/storage server Compact Intel® Celeron® J1800 White
TerraMaster

F2-220-2GB NAS/storage server Compact Intel® Celeron® J1800 White

Model F2-220-2GBEAN 6939236139052

92 specifications
  • ProcessorIntel® Celeron®
  • Memory2 GB
  • TypeStorage server
  • Weight1.45 kg
  • ColourWhite
  • Storage drives installedNo
See all specifications

Overview

Processor
Intel® Celeron®
Memory
2 GB
Type
Storage server
Weight
1.45 kg
Colour
White
Storage drives installed
No
Brand
TerraMaster
Model
F2-220-2GB
Part number
F2-220-2GB
EAN / UPC
6939236139052
Also known as
TerraMaster F2-220-2GB NAS/storage server Compact Intel® Celeron® J1800 White

Specifications

92 specifications in 14 groups

Storage

Storage drives installedNo
Number of storage drives supported2
Installed storage drive typeNo
Supported storage drive typesHDD & SSD
Maximum supported storage capacity24 TB
RAID supportYes
RAID levels0, 1, JBOD
Hot-swap drive baysYes

Processor

Processor manufacturerIntel
Processor familyIntel® Celeron®
Processor modelJ1800
Processor frequency2.41 GHz
Processor boost frequency2.58 GHz
Processor cores2
Processor threads2
Processor cache1 MB
CPU configuration (max)1
ECC supported by processorNo
PCI Express configurations1x4
PCI Express slots version2.0
Physical Address Extension (PAE)36 bit
Processor cache typeL2
Processor codeSR1SD
Processor codenameBay Trail
Processor lithography22 nm
Processor operating modes32-bit, 64-bit
Processor package size25 X 27 mm
Processor seriesIntel Celeron Processor J1000 series for Desktop
Processor socketBGA 1170
SteppingB3
Thermal Design Power (TDP)10 W
Tjunction105 °C
On-board graphics card modelIntel® HD Graphics
Maximum internal memory supported by processor8 GB
Conflict-Free processorYes

Memory

Internal memory2 GB

Network

Ethernet LANYes
Ethernet LAN data rates1000 Mbit/s
Supported network protocolsCIFS、AFP、NFS、FTP. WebDAV. iSCSI. Telnet, SSH, SNMP

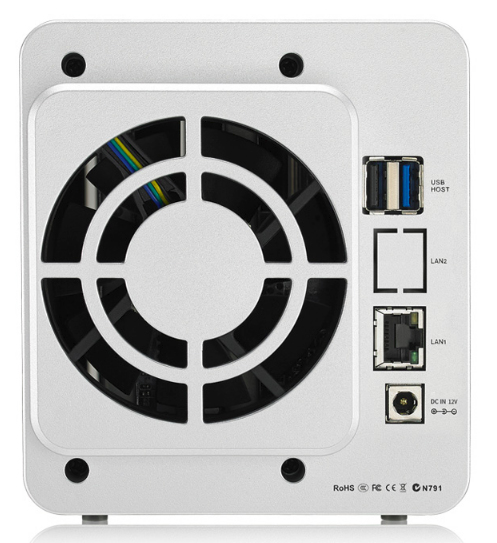

Ports & interfaces

Ethernet LAN (RJ-45) ports2
USB portYes
USB 2.0 ports quantity1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity1

Graphics

On-board graphics card base frequency688 MHz
On-board graphics card dynamic frequency (max)792 MHz
Number of displays supported (on-board graphics)2

Design

Chassis typeCompact
Cooling typeActive
Product colourWhite

Performance

TypeStorage server
Device classSmall & Medium Business
Number of users2048 user(s)
Access Control List (ACL)Yes
Browser supportedChrome48; Firefox30, Internet Explorer 9,Safari(mac):4.5

Software

Windows operating systems supportedWindows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic
Linux operating systems supportedYes
Mac operating systems supportedMac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks
Mobile operating systems supportedAndroid 4.4, iOS 8.2

Weight & dimensions

Width227 mm
Depth119 mm
Height133 mm
Weight1.45 kg
Package weight2.57 kg

Packaging content

Quick start guideYes

Processor special features

Embedded options availableNo
Enhanced Intel SpeedStep TechnologyYes
Execute Disable BitYes
Intel 64Yes
Intel FDI TechnologyNo
Intel Identity Protection Technology version0.00
Intel Rapid Storage TechnologyNo
Intel Small Business Advantage (SBA) version0.00
Intel Stable Image Platform Program (SIPP)No
Intel Stable Image Platform Program (SIPP) version0.00
Intel Virtualization Technology (VT-x)Yes
Intel Virtualization Technology for Directed I/O (VT-d)No
Intel® AES New Instructions (Intel® AES-NI)No
Intel® Anti-Theft Technology (Intel® AT)No
Intel® Hyper Threading Technology (Intel® HT Technology)No
Intel® Identity Protection Technology (Intel® IPT)No
Intel® InTru™ 3D TechnologyNo
Intel® Insider™No
Intel® Quick Sync Video TechnologyYes
Intel® Turbo Boost TechnologyNo
Maximum number of PCI Express lanes4
Memory channels supported by processorDual
Memory types supported by processorDDR3L-SDRAM

Operational conditions

Operating temperature (T-T)5 - 40 °C
Operating relative humidity (H-H)5 - 95%
Storage temperature (T-T)-20 - 60 °C

Other features

Compliance certificatesRoHS
Processor ARK ID78866
