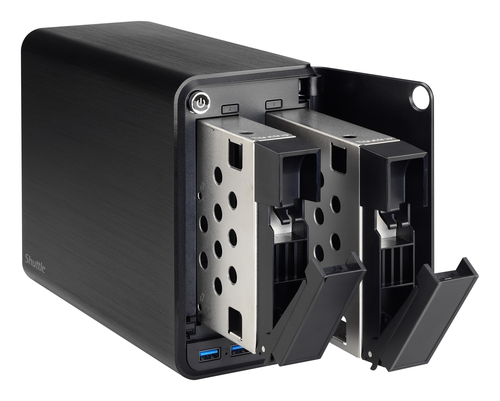

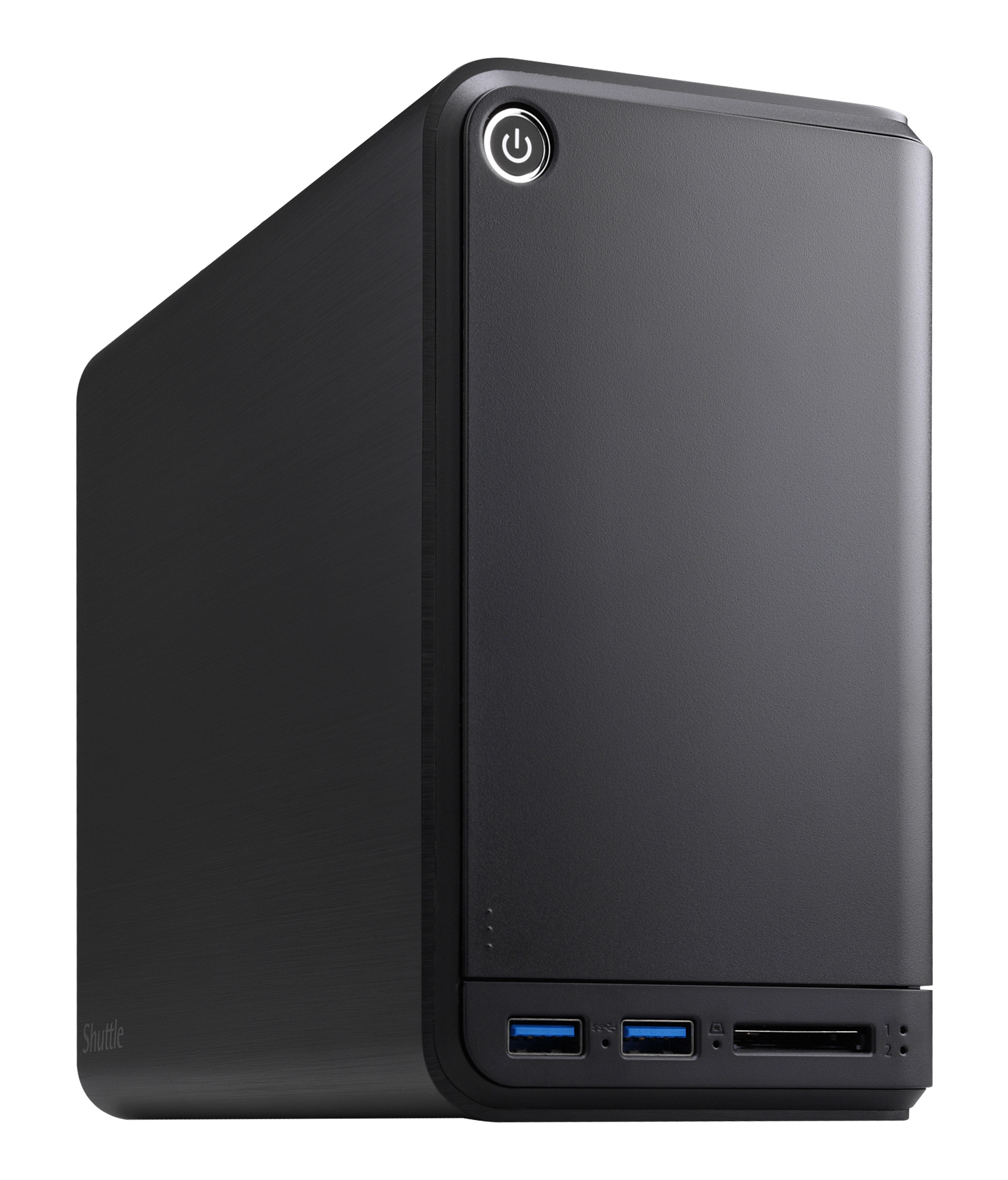

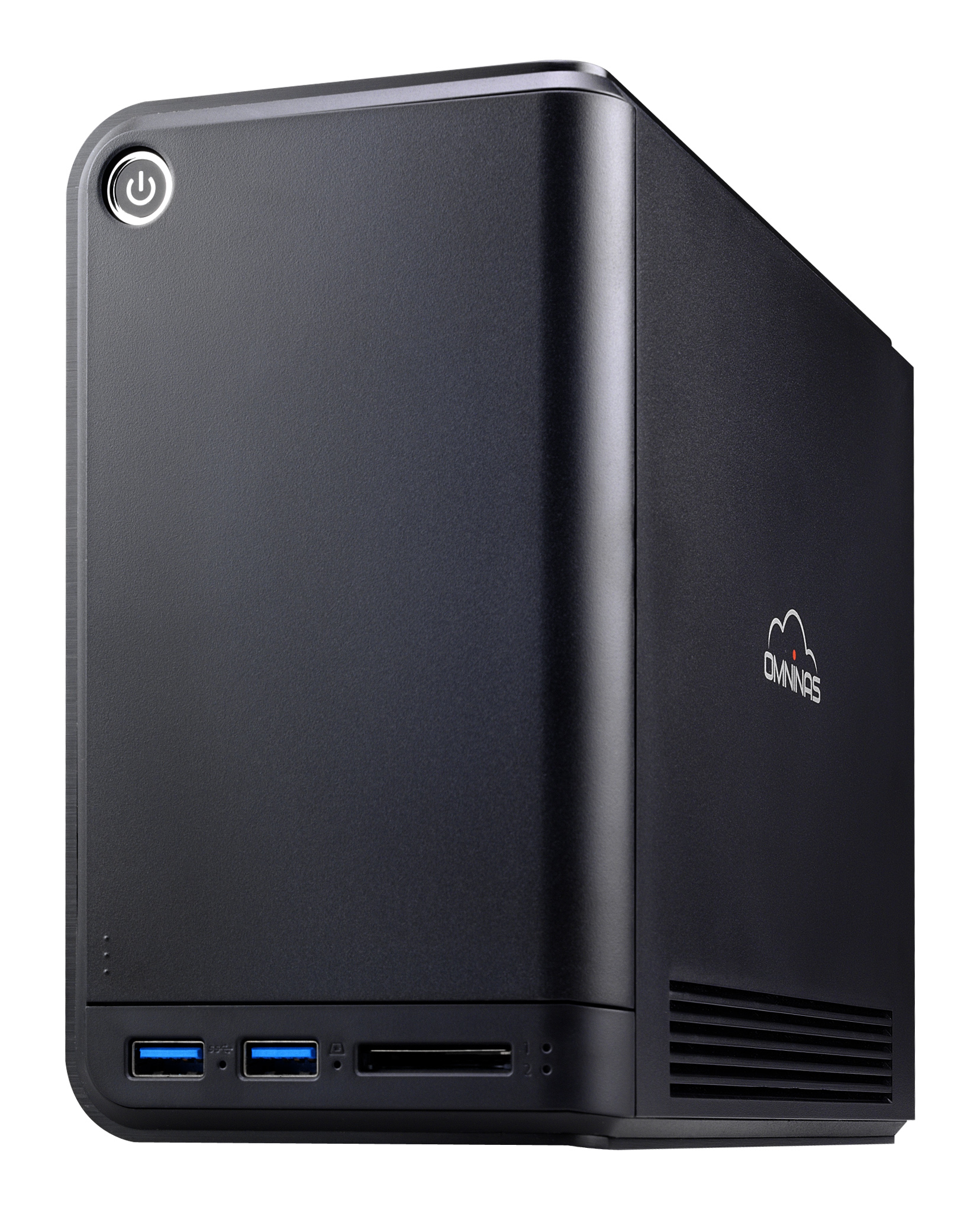

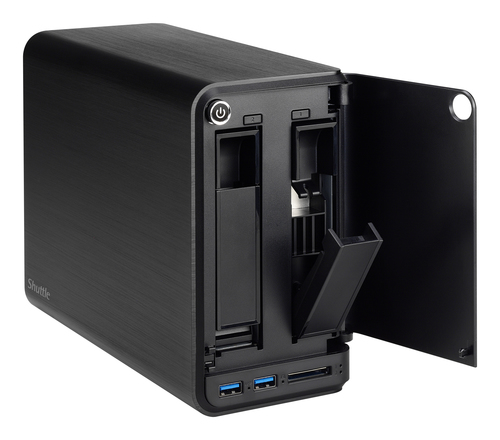

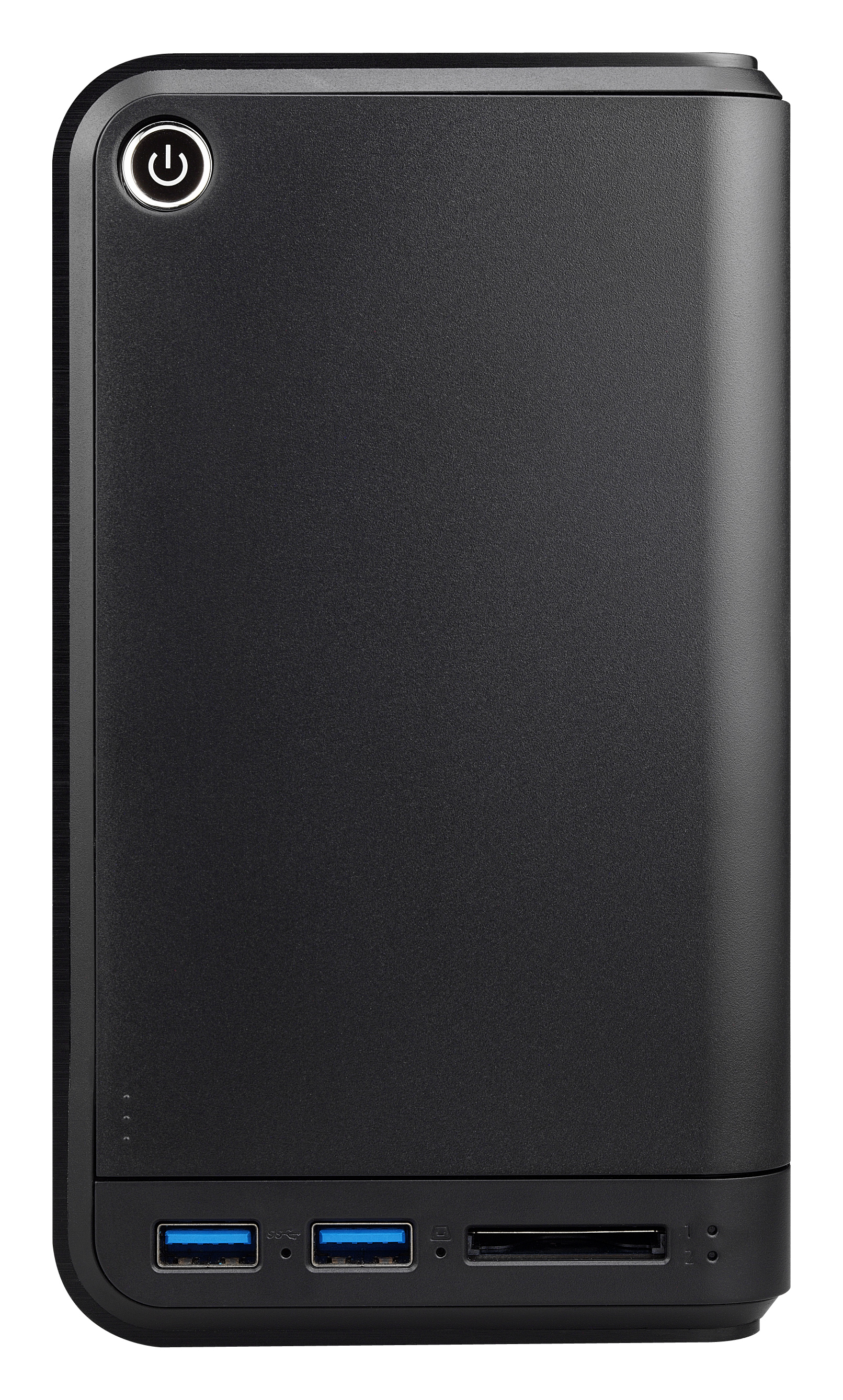

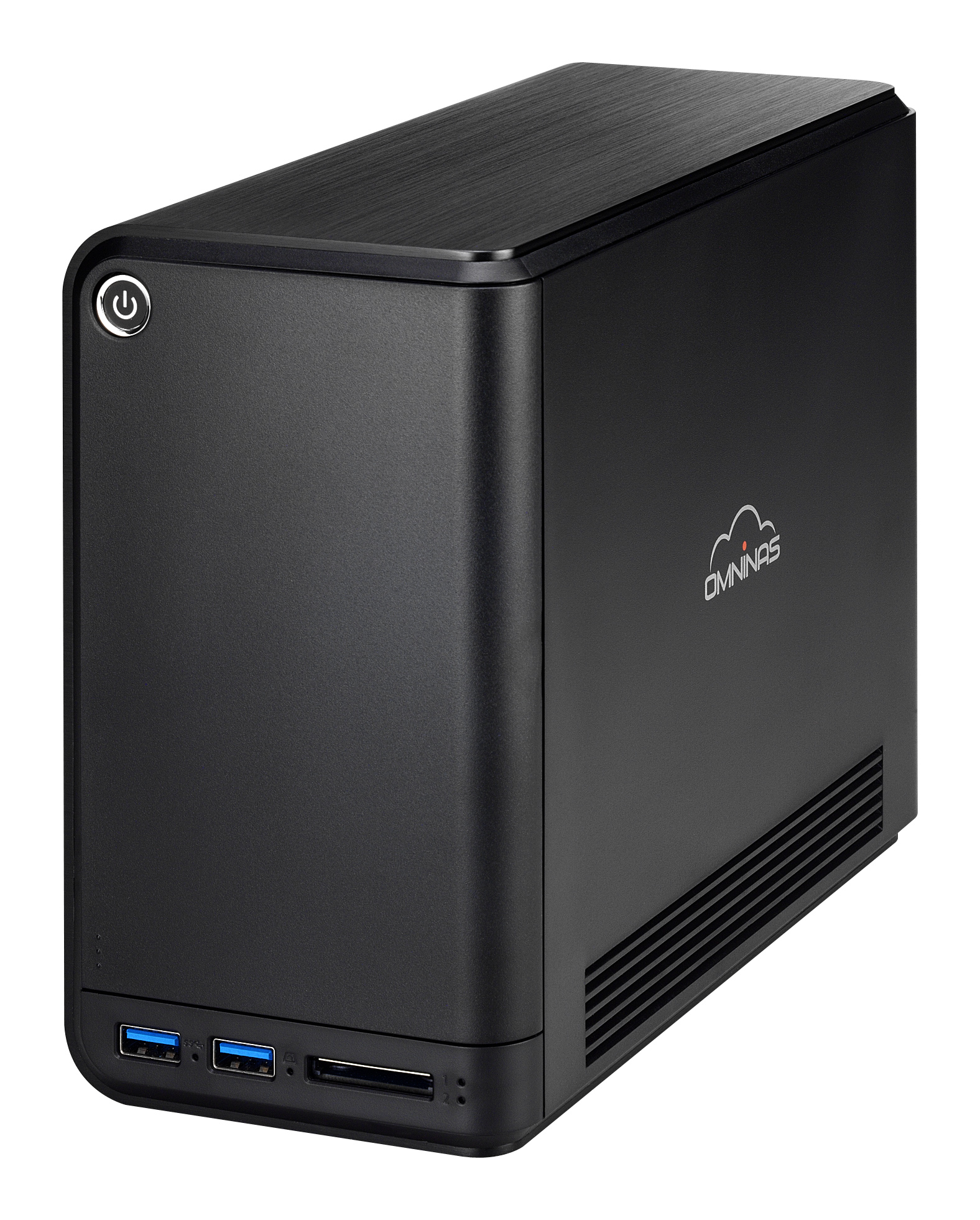

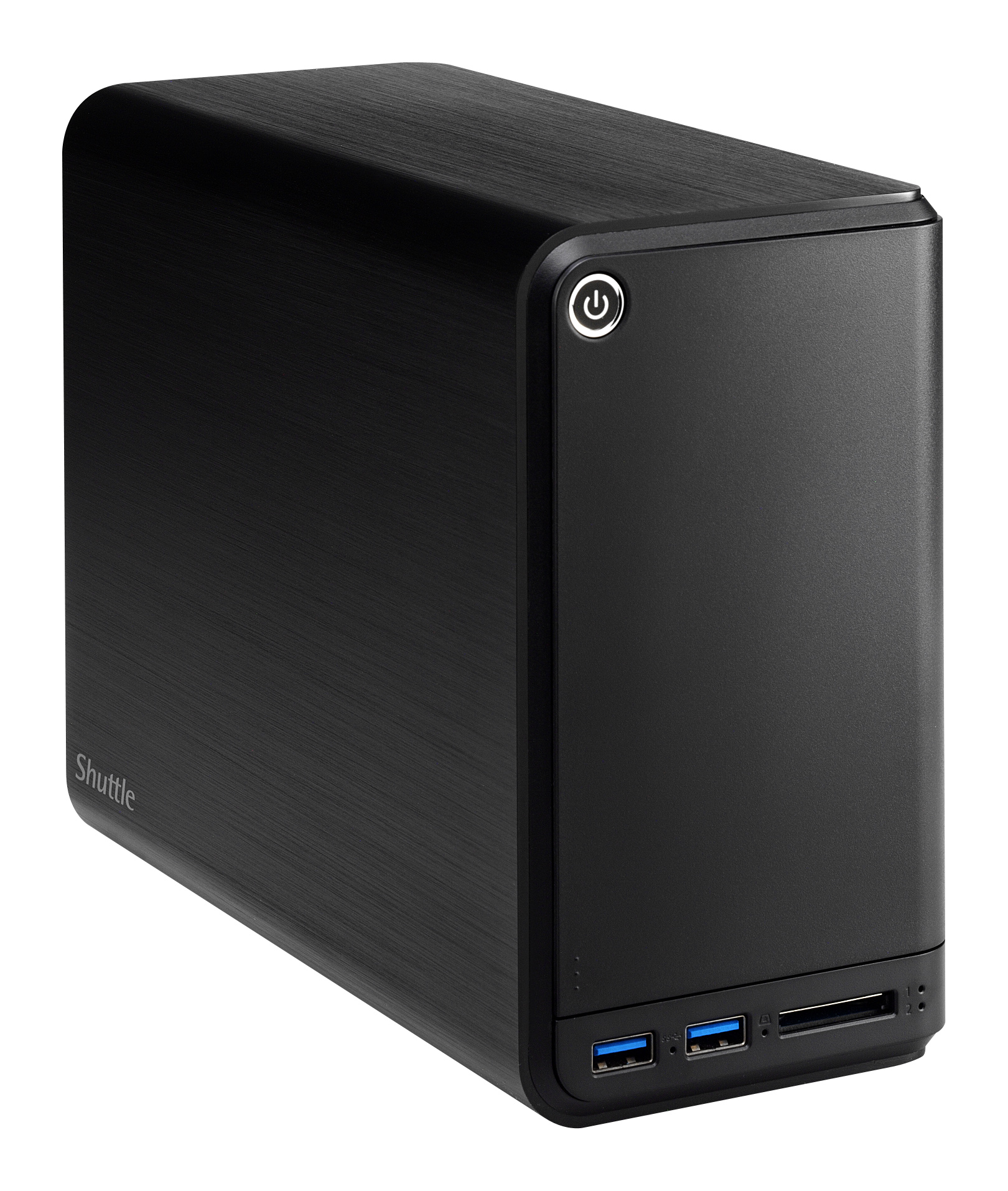

Shuttle KD22 NAS/storage server Marvell 88F6707

Shuttle KD22 NAS/storage server Marvell 88F6707

0.5 GB DDR3 0 TB HDD Linux Black

Model KD22EAN 811686006312

65 specifications
  • ProcessorMarvell
  • Memory0.5 GB
  • TypeNAS
  • OSLinux
  • Weight2.72 kg
  • ColourBlack
See all specifications

Overview

Processor
Marvell
Memory
0.5 GB
Type
NAS
OS
Linux
Weight
2.72 kg
Colour
Black
Brand
Shuttle
Model
KD22
Part number
KD22
EAN / UPC
811686006312, 5052184012381
Also known as
Shuttle KD22 NAS/storage server Marvell 88F6707 0.5 GB DDR3 0 TB HDD Linux Black

Specifications

65 specifications in 13 groups

Storage

Storage drives installedNo
Total installed storage capacity0 TB
Number of storage drives installed0
Number of storage drives supported2
Installed storage drive typeHDD
Supported storage drive typesHDD & SSD
Storage drive capacity0 GB
Storage drive interfaceSerial ATA
Storage drive size2.5/3.5"
RAID supportYes
RAID levels0, 1, JBOD

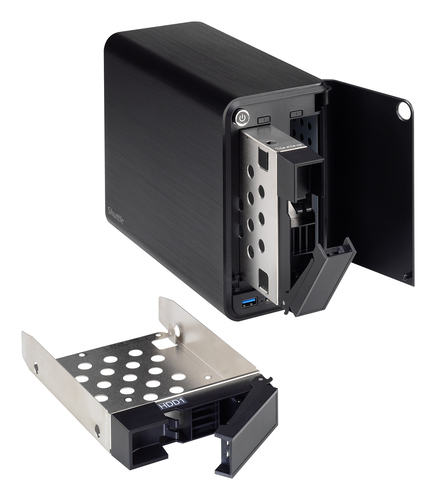

Hot-swap drive baysYes
Supported file systemsext2, ext3, ext4, FAT32, NTFS, XFS

Processor

Processor familyMarvell
Processor model88F6707
Processor frequency1.2 GHz

Memory

Internal memory0.5 GB
Internal memory typeDDR3

Network

Ethernet LANYes
Ethernet LAN data rates10,100,1000 Mbit/s
Wi-FiYes
Wi-Fi standardsWi-Fi 4 (802.11n)
DHCP serverYes
Wake-on-LAN readyYes

Ports & interfaces

Ethernet LAN (RJ-45) ports1
USB 2.0 ports quantity1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity2
Fiber ports quantity0

Design

Cooling typeActive
Product colourBlack
Housing materialAluminium

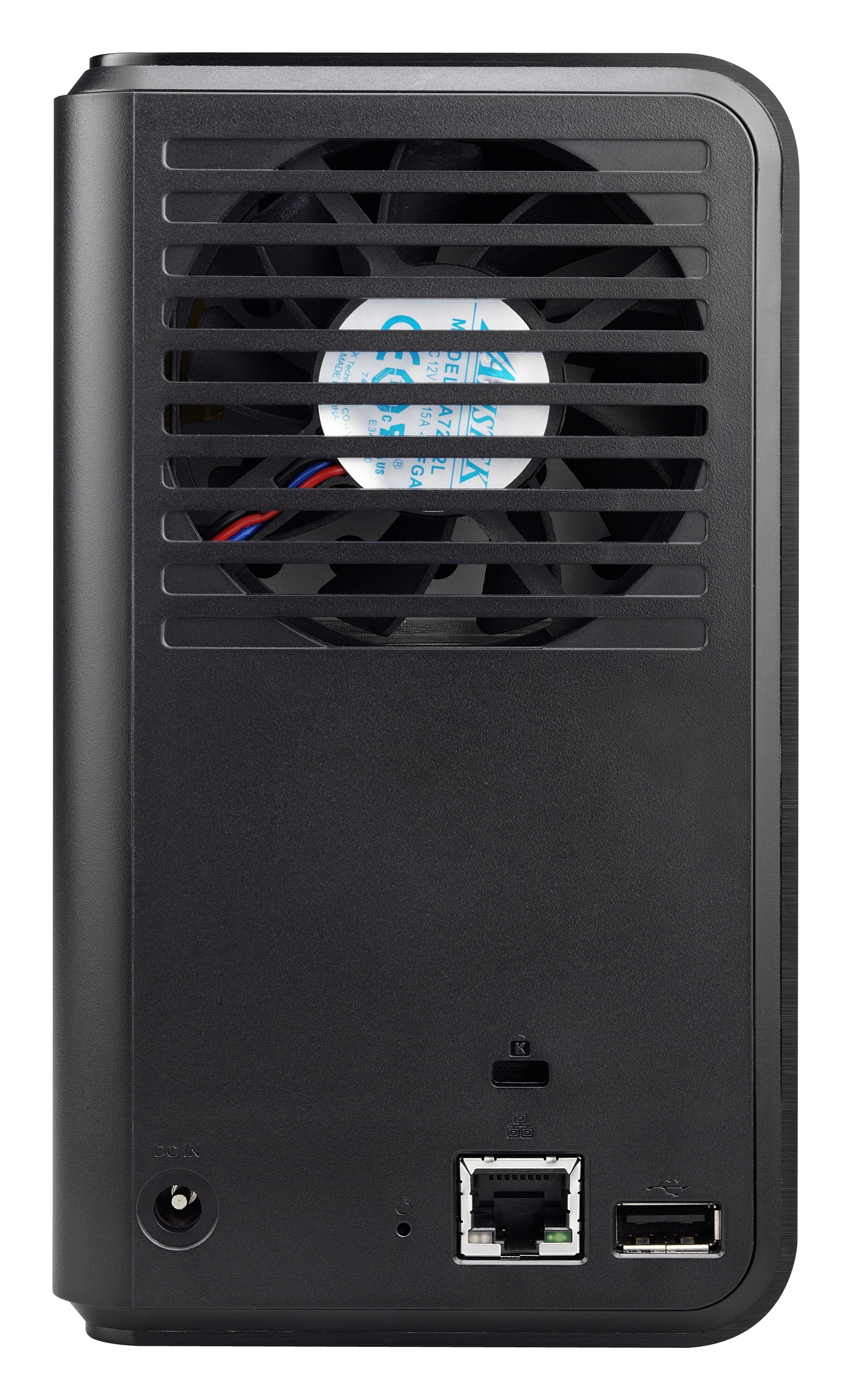

Number of fans1 fan(s)
Fan diameter7 cm
LED indicatorsActivity, HDD, LAN, Status, USB
Built-in displayNo
Cable lock slotYes
Cable lock slot typeKensington

Performance

TypeNAS
Device classHome & Home Office
Backup functionYes
Number of users256 user(s)
Built-in optical driveNo
Card reader integratedYes
Compatible memory cardsSD, SDHC, SDXC
Reset buttonYes

Software

Operating system installedLinux

Power

Power supply locationExternal
Number of power supply units1
Power consumption (typical)19 W
Power consumption (sleep)9.6 W
Power consumption (off)0.35 W
AC input voltage100-240 V
AC input frequency50 - 60 Hz

Weight & dimensions

Width90 mm
Depth225 mm
Height170 mm
Weight2.72 kg

Packaging content

External power adapterYes
Cables includedAC, LAN (RJ-45)
Quick installation guideYes

Operational conditions

Operating temperature (T-T)5 - 40 °C
Operating relative humidity (H-H)10 - 90%

Other features

Compliance certificatesRoHS
Number of adapters included1 pc(s)
CertificationEMC, LVD, ErP Lot6, WEEE, CB, FCC
