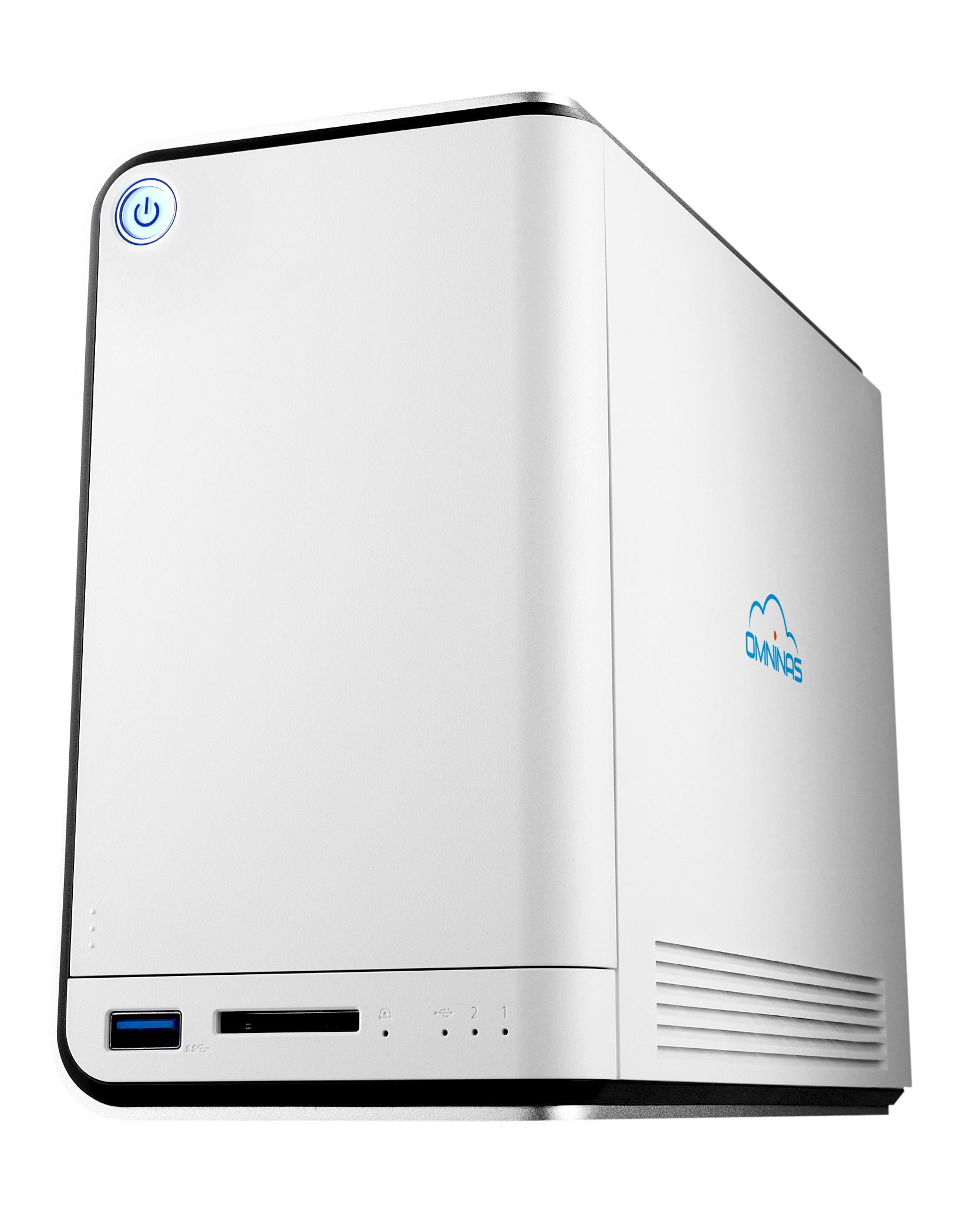

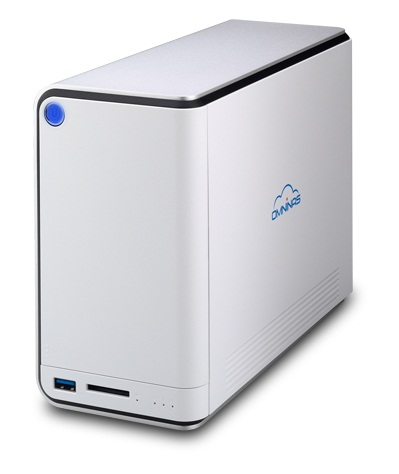

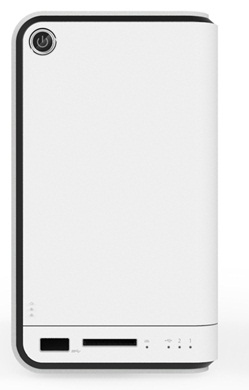

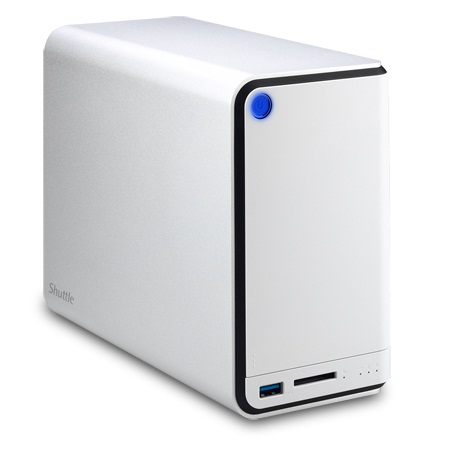

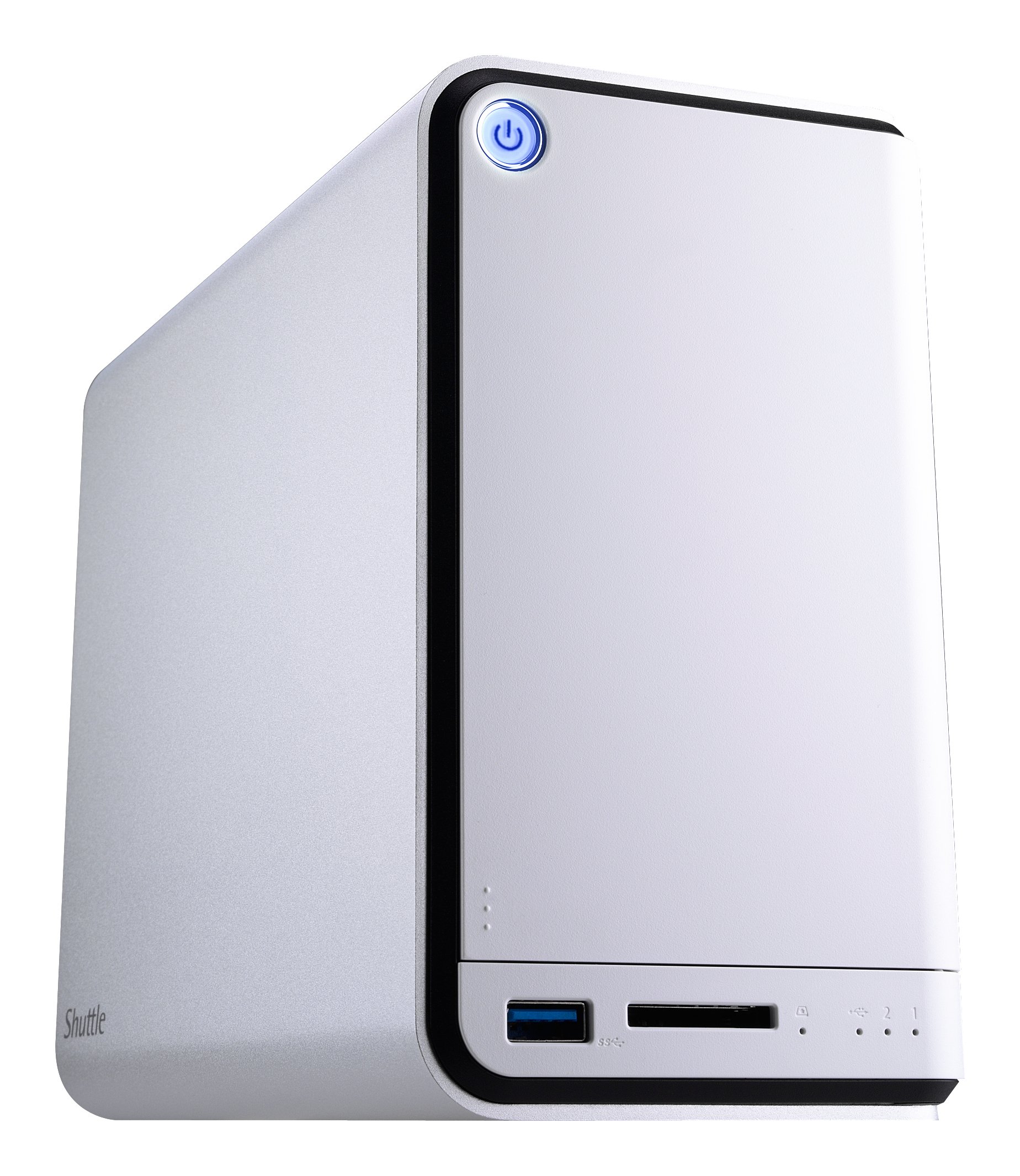

Shuttle KD20 NAS/storage server

Shuttle KD20 NAS/storage server

0.25 GB DDR2 0 TB Linux White

Model KD20EAN 8116860039608

63 specifications
  • Memory0.25 GB
  • TypeNAS
  • OSLinux
  • Weight2.2 kg
  • ColourWhite
  • Storage drives installedNo
See all specifications

Overview

Memory
0.25 GB
Type
NAS
OS
Linux
Weight
2.2 kg
Colour
White
Storage drives installed
No
Brand
Shuttle
Model
KD20
Part number
KD20
EAN / UPC
8116860039608, 163120425570, 811686003960, 811686004257 +2 more
Also known as
Shuttle KD20 NAS/storage server 0.25 GB DDR2 0 TB Linux White

Specifications

63 specifications in 13 groups

Storage

Storage drives installedNo
Total installed storage capacity0 TB
Number of storage drives installed0
Number of storage drives supported2
Supported storage drive typesHDD & SSD
Storage drive capacity0 GB
Storage drive interfaceSerial ATA
Storage drive size2.5/3.5"
Maximum supported storage capacity8 TB
RAID supportYes
RAID levels0, 1, JBOD

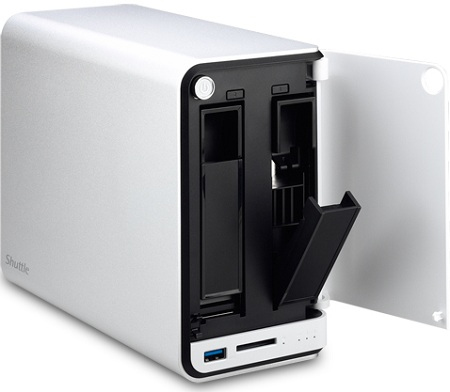

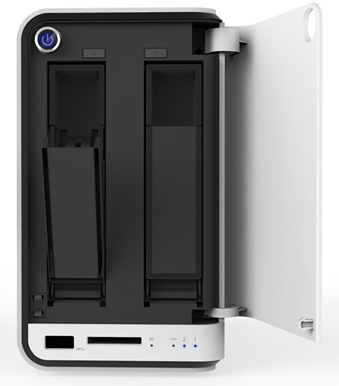

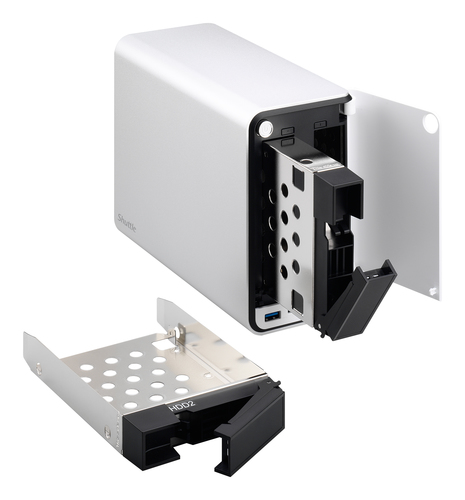

Hot-swap drive baysYes

Processor

Processor frequency0.7 GHz
Processor cores2
Number of processors installed1

Memory

Internal memory0.25 GB
Internal memory typeDDR2

Network

Ethernet LANYes
Ethernet LAN data rates10,100,1000 Mbit/s
Wi-FiNo
DHCP serverYes

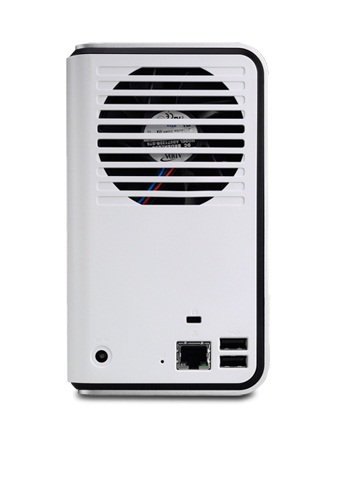

Ports & interfaces

Ethernet LAN (RJ-45) ports1
USB 2.0 ports quantity2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity1
Fiber ports quantity0

Design

Cooling typeActive
Product colourWhite
Housing materialAluminium
Number of fans1 fan(s)
Fan diameter7 cm
LED indicatorsHDD, Progress, Status, USB
Built-in displayNo
Cable lock slotYes
Cable lock slot typeKensington

Performance

TypeNAS
Device classHome & Home Office
Backup functionYes
Card reader integratedYes
Compatible memory cardsMemory Stick (MS), MMC, SD
On/off switchYes
Reset buttonYes

Software

Operating system installedLinux
Windows operating systems supportedWindows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64

Power

Power supply locationExternal
Power supply unit (PSU) capacity65 W
Number of power supply units1
Power consumption (typical)15.5 W
Power consumption (sleep)9 W
AC input voltage100-240 V
AC input frequency50 - 60 Hz

Weight & dimensions

Width90 mm
Depth225 mm
Height170 mm
Weight2.2 kg

Packaging content

External power adapterYes
Cables includedAC, LAN (RJ-45)
Quick installation guideYes

Operational conditions

Operating temperature (T-T)5 - 35 °C
Operating relative humidity (H-H)10 - 90%

Other features

Compliance certificatesRoHS
Number of adapters included1 pc(s)
Power LEDYes
CertificationCE, FCC, C-TICK, BSMI
