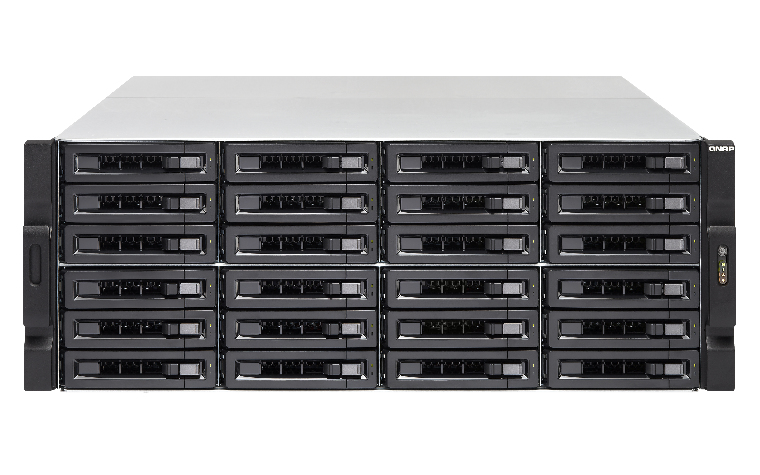

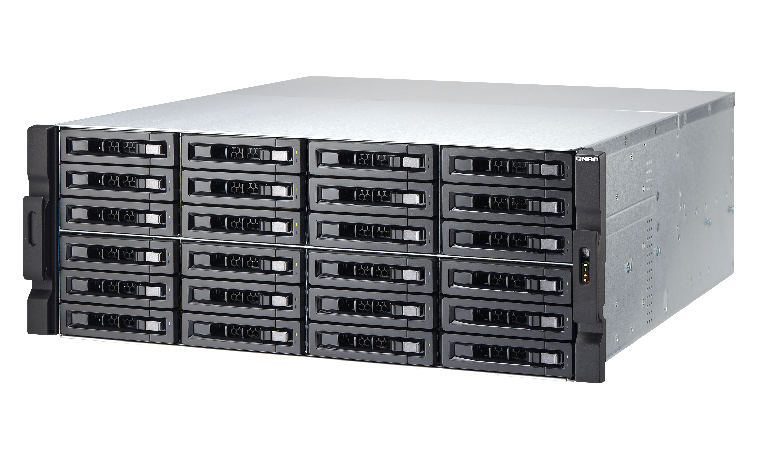

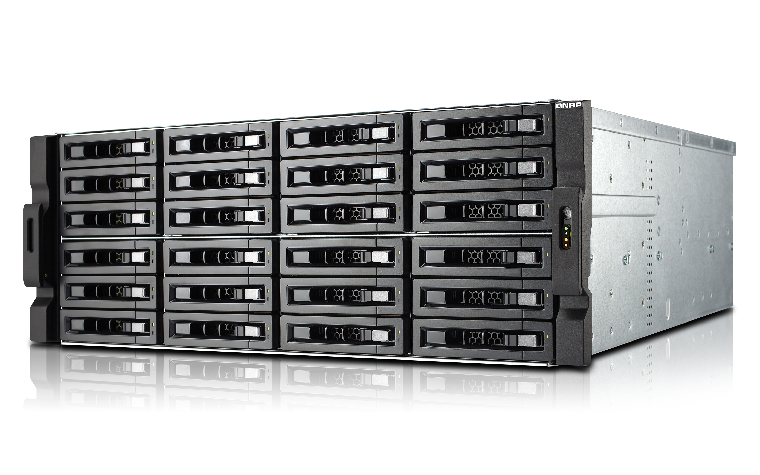

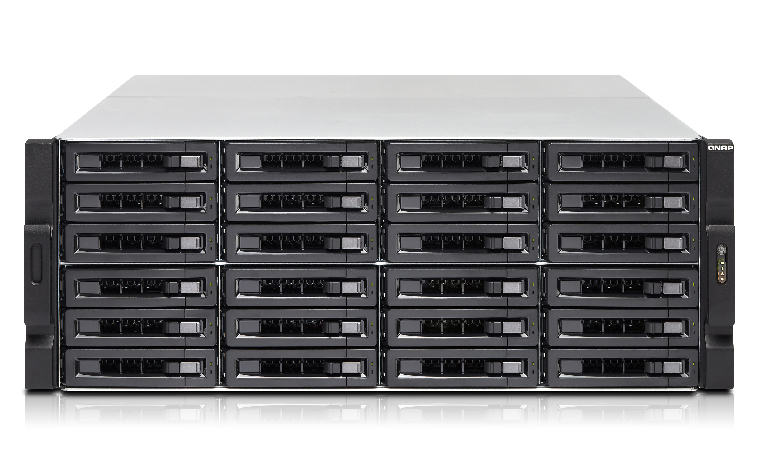

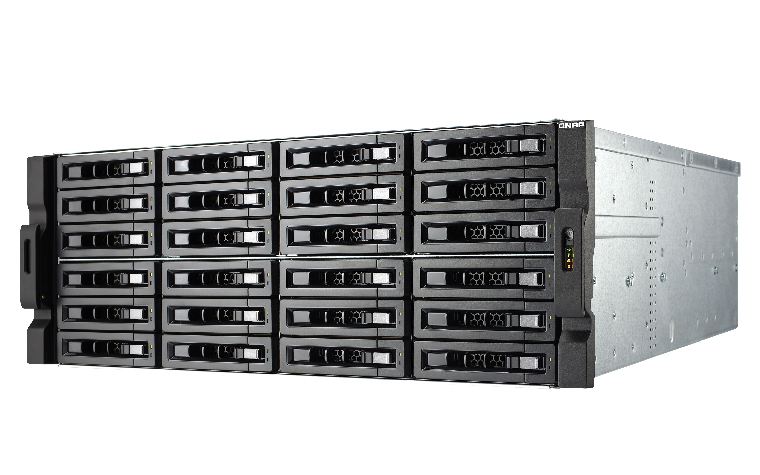

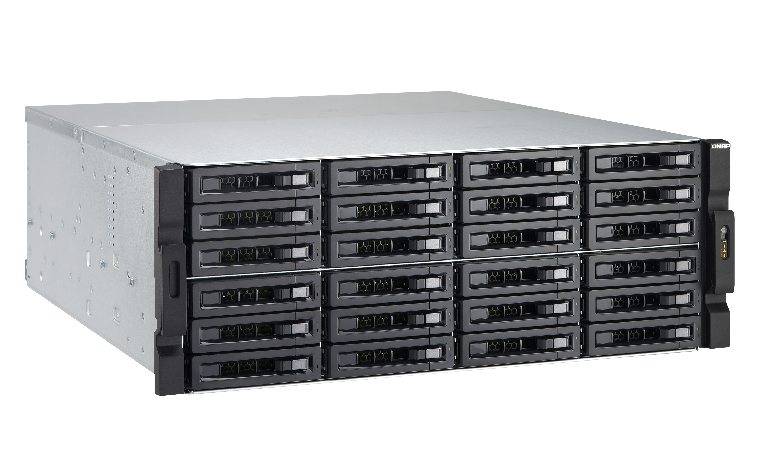

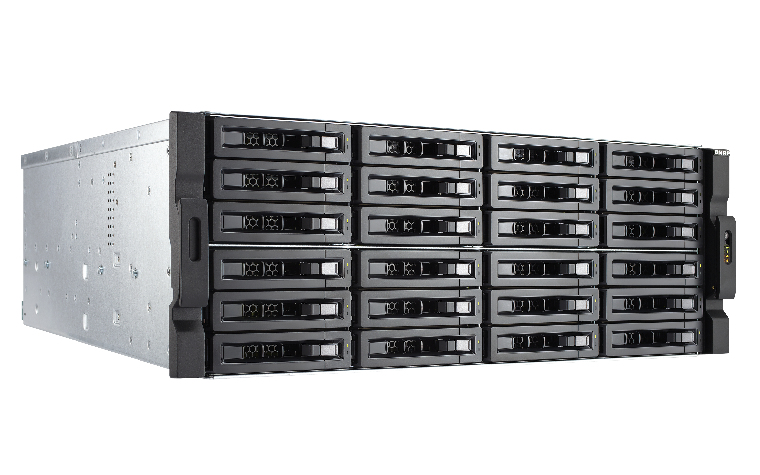

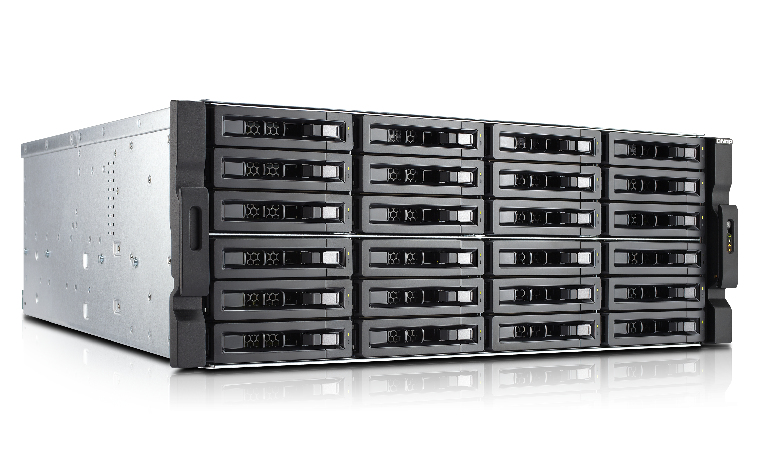

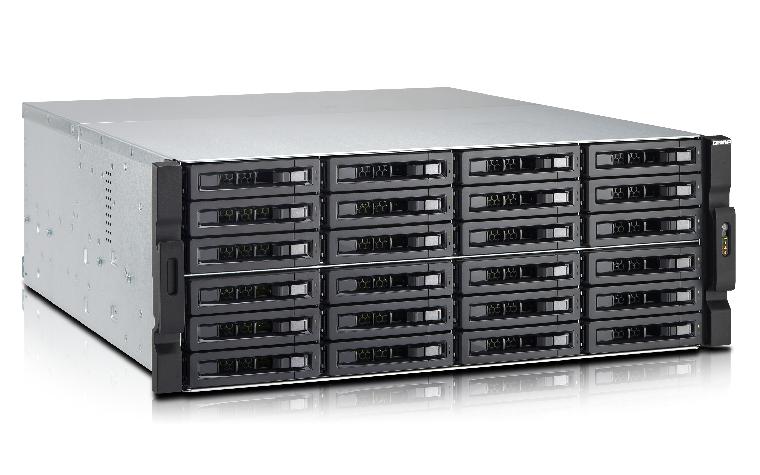

Seagate TVS-EC2480U-SAS-RP R2

Model TVS-EC2480U-SAS-RP R2Part no. TVS-EC2480U-SAS-RP-8GE-R2 + 24X ST6000VN

150 specifications

Overview

Brand: Seagate
Category: NAS & Storage Servers
Model: TVS-EC2480U-SAS-RP R2
Part number: TVS-EC2480U-SAS-RP-8GE-R2 + 24X ST6000VN
Also known as: Seagate TVS-EC2480U-SAS-RP R2 NAS Rack (4U) Intel® Xeon® E3 V3 Family E3-1246V3 8 GB DDR3 144 TB HDD QNAP Turbo System Black, Grey

150 specifications in 15 groups

Specification	Value
Storage drives installed	Yes
Total installed storage capacity	144 TB
Number of storage drives installed	24
Number of storage drives supported	24
Installed storage drive type	HDD
Supported storage drive types	HDD & SSD
Storage drive capacity	6 TB
Storage drive interface	Serial ATA II, Serial ATA III, mSATA
Storage drive size	2.5/3.5"
RAID support	Yes
RAID levels	0, 1, 5, 6, 10, JBOD
Hot-swap drive bays	Yes
Supported file systems	FAT32, HFS+, NTFS, ext3, ext4

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Xeon® E3 V3 Family
Processor model	E3-1246V3
Processor frequency	3.5 GHz
Processor boost frequency	3.9 GHz
Processor cores	4
Processor threads	8
Processor cache	8 MB
L3 cache	8 MB
Bus type	DMI2
CPU configuration (max)	1
ECC supported by processor	Yes
PCI Express configurations	1x16, 2x8, 1x8+2x4
PCI Express slots version	3.0
Processor cache type	Smart Cache
Processor codename	Haswell
Processor lithography	22 nm
Processor operating modes	32-bit, 64-bit
Processor package size	37.5 x 37.5 mm
Processor series	Intel Xeon E3-1200 v3
Processor socket	LGA 1150 (Socket H3)
Scalability	1S
Stepping	C0
System bus rate	5 GT/s
Thermal Design Power (TDP)	84 W
On-board graphics card model	Intel® HD Graphics P4600
Maximum internal memory supported by processor	32 GB
Memory bandwidth supported by processor (max)	25.6 GB/s
Conflict-Free processor	No

Specification	Value
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000,10000 Mbit/s
Wi-Fi	No
DHCP client	Yes
DHCP server	Yes
Jumbo frames support	Yes
iSCSI support	Yes
Wake-on-LAN ready	Yes
Link aggregation	Yes
Supported network protocols	CIFS/SMB, AFP (v3.3), NFS(v3), FTP, FTPS, SFTP, TFTP, HTTP(S), Telnet, SSH, iSCSI, SNMP, SMTP, SMSC

Specification	Value
Ethernet LAN (RJ-45) ports	4
USB 2.0 ports quantity	4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	4
Fiber ports quantity	2
Fiber optic connector	SFP+
HDMI ports quantity	2
External mini-SAS ports	1

Specification	Value
On-board graphics card DirectX version	11.2
On-board graphics card base frequency	350 MHz
On-board graphics card dynamic frequency (max)	1200 MHz
Maximum on-board graphics card memory	1.74 GB
Number of displays supported (on-board graphics)	3

Specification	Value
Type	NAS
Device class	Large Enterprise Business
Backup function	Yes
Backup features	Cloud, iSCSI LUN
Buzzer	Yes
Multilingual support	Yes
Web-based management	Yes
Access Control List (ACL)	Yes
Built-in FTP server	Yes
On/off switch	Yes
Reset button	Yes
Security algorithms	256-bit AES, FIPS 140-2, FTPES, HTTPS, SSH, SSL/TLS

Specification	Value
Operating system installed	QNAP Turbo System
Operating system version	4.2
Linux operating systems supported	Yes
Mac operating systems supported	Yes
Server operating systems supported	Windows Server 2003

Specification	Value
Power supply location	Built-in
Power supply unit (PSU) capacity	650 W
Number of power supply units	2
Redundant power supply (RPS) support	Yes
AC input voltage	90-264 V
AC input frequency	50 - 60 Hz

Specification	Value
Embedded options available	No
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Graphics & IMC lithography	22 nm
Idle States	Yes
Intel 64	Yes
Intel Enhanced Halt State	Yes
Intel FDI Technology	Yes
Intel Fast Memory Access	Yes
Intel Flex Memory Access	Yes
Intel I/O Acceleration Technology	Yes
Intel Identity Protection Technology version	1.00
Intel Secure Key Technology version	1.00
Intel Stable Image Platform Program (SIPP)	Yes
Intel Stable Image Platform Program (SIPP) version	1.00
Intel TSX-NI	Yes
Intel TSX-NI version	1.00
Intel Trusted Execution Technology	Yes
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel® AES New Instructions (Intel® AES-NI)	Yes
Intel® Anti-Theft Technology (Intel® AT)	Yes
Intel® Clear Video HD Technology (Intel® CVT HD)	Yes
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel® Identity Protection Technology (Intel® IPT)	Yes
Intel® InTru™ 3D Technology	Yes
Intel® Insider™	Yes
Intel® My WiFi Technology (Intel® MWT)	No
Intel® OS Guard	Yes
Intel® Quick Sync Video Technology	Yes
Intel® Secure Key	Yes
Intel® Smart Cache	Yes
Intel® Turbo Boost Technology	2.0
Intel® Wireless Display (Intel® WiDi)	Yes
Maximum number of PCI Express lanes	16
Number of QPI links	0
Number of execution units	20
Thermal Monitoring Technologies	Yes
Thermal solution specification	PCG 2013D
Memory channels supported by processor	Dual
Memory types supported by processor	DDR3-SDRAM

Specification	Value
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	5 - 95%

Specification	Value
Processor ARK ID	80916
