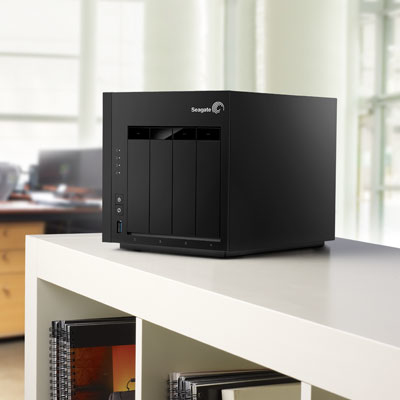

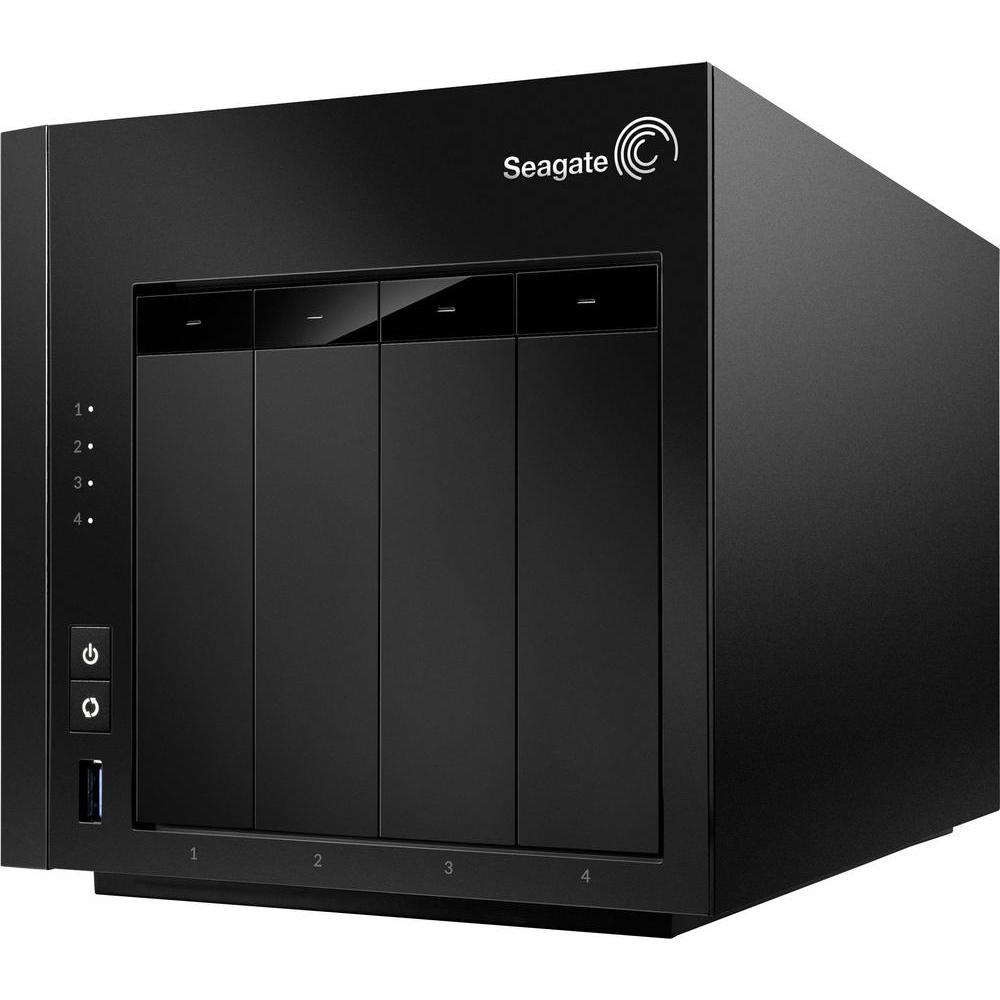

Seagate STCU4000200-RFB NAS/storage server Desktop ARM

0.5 GB DDR3 4 TB HDD Seagate NAS OS Black

Model STCU4000200-RFBEAN 5711783203957

66 specifications

Overview

Brand: Seagate
Category: NAS & Storage Servers
Model: STCU4000200-RFB
Part number: STCU4000200-RFB
EAN / UPC: 5711783203957
Also known as: Seagate STCU4000200-RFB NAS/storage server Desktop ARM 0.5 GB DDR3 4 TB HDD Seagate NAS OS Black

66 specifications in 13 groups

Specification	Value
Storage drives installed	Yes
Total installed storage capacity	4 TB
Number of storage drives installed	2
Number of storage drives supported	4
Installed storage drive type	HDD
Supported storage drive types	HDD
Storage drive capacity	2 TB
Storage drive interface	Serial ATA II
Storage drive size	2.5/3.5"
Maximum supported storage capacity	20 TB
RAID support	Yes
RAID levels	0, 1, 5, 6, 10, JBOD
Hot-swap drive bays	Yes
Supported file systems	ext2, ext3, ext4, FAT32, HFS+, NTFS

Specification	Value
Processor family	ARM
Processor frequency	1.2 GHz

Specification	Value
Internal memory	0.5 GB
Internal memory type	DDR3

Specification	Value
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Wi-Fi	No
DHCP client	Yes
Jumbo frames support	Yes
iSCSI support	Yes
Wake-on-LAN ready	Yes
Supported network protocols	IPv4, IPv6, CIFS/SMB, NFS v3, AFP, HTTP, FTP / sFTP, SNMP, SMTP, NTP, UPnP, Bonjour, WebDAV, DFS-N

Specification	Value
Ethernet LAN (RJ-45) ports	2
USB 2.0 ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
Fiber ports quantity	0

Specification	Value
Operating system installed	Seagate NAS OS
Operating system version	4
Windows operating systems supported	Windows 7 Home Basic, Windows 7 Home Premium, Windows 7 Professional, Windows 7 Starter, Windows 7 Ultimate, Windows 8, Windows 8 Enterprise, Windows 8 Pro, Windows Vista Business, Windows Vista Enterprise, Windows Vista Home Basic, Windows Vista Home Premium, Windows Vista Ultimate, Windows XP Home
Linux operating systems supported	Yes
Mac operating systems supported	Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks
Server operating systems supported	Windows Server 2003, Windows Server 2008 R2, Windows Server 2012

Specification	Value
Power supply unit (PSU) capacity	90 W
AC input voltage	100-240 V
AC input frequency	50 - 60 Hz
Output voltage	19 V

Specification	Value
Cables included	AC, LAN (RJ-45)
Quick start guide	Yes

Specification	Value
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	0 - 80%
Storage relative humidity (H-H)	0 - 95%
Storage temperature (T-T)	-40 - 65 °C

Specification	Value
Digital Living Network Alliance (DLNA) certified	Yes
