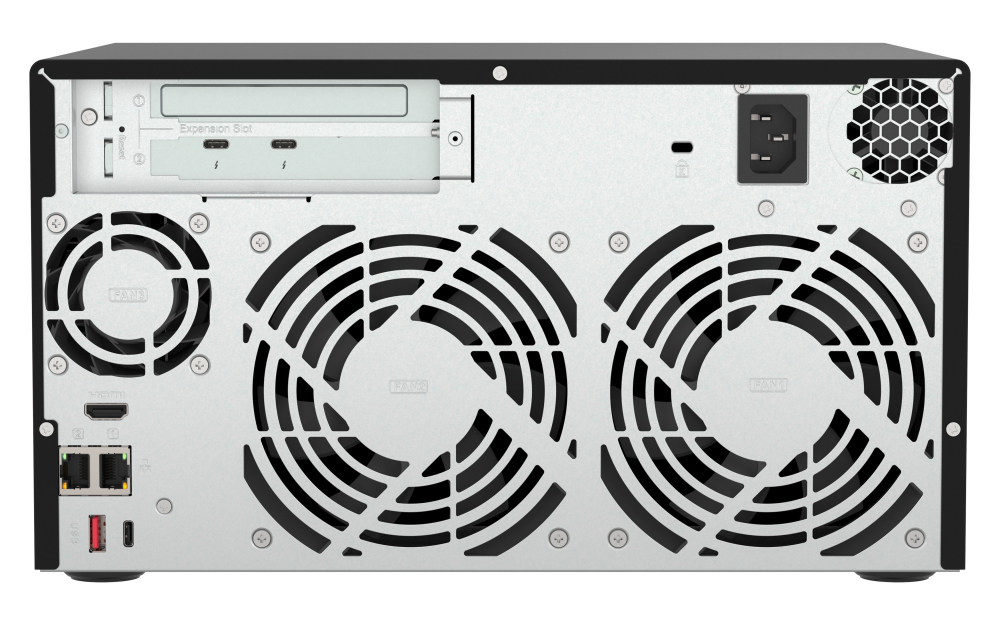

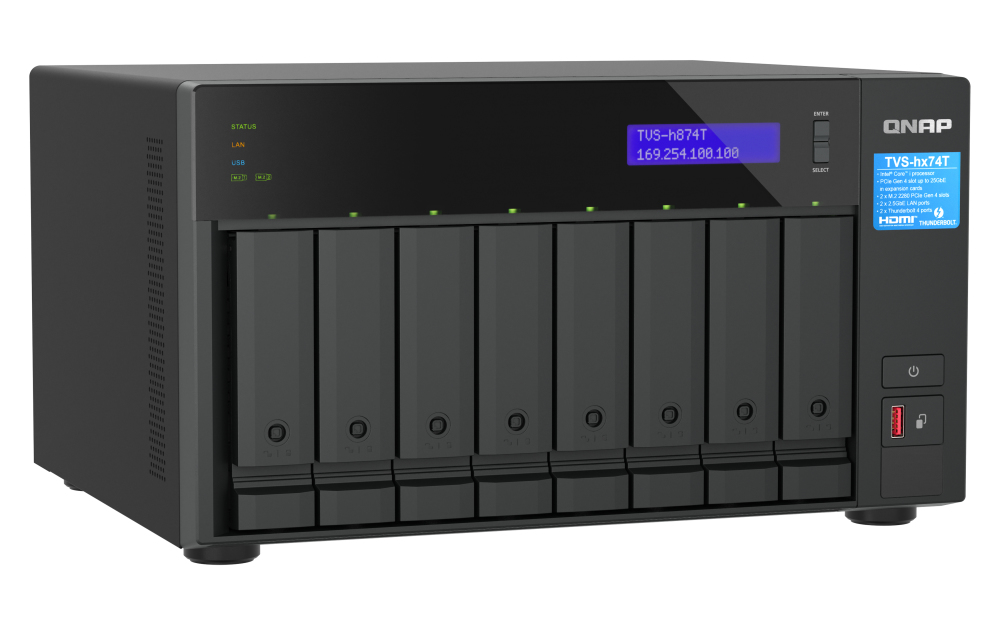

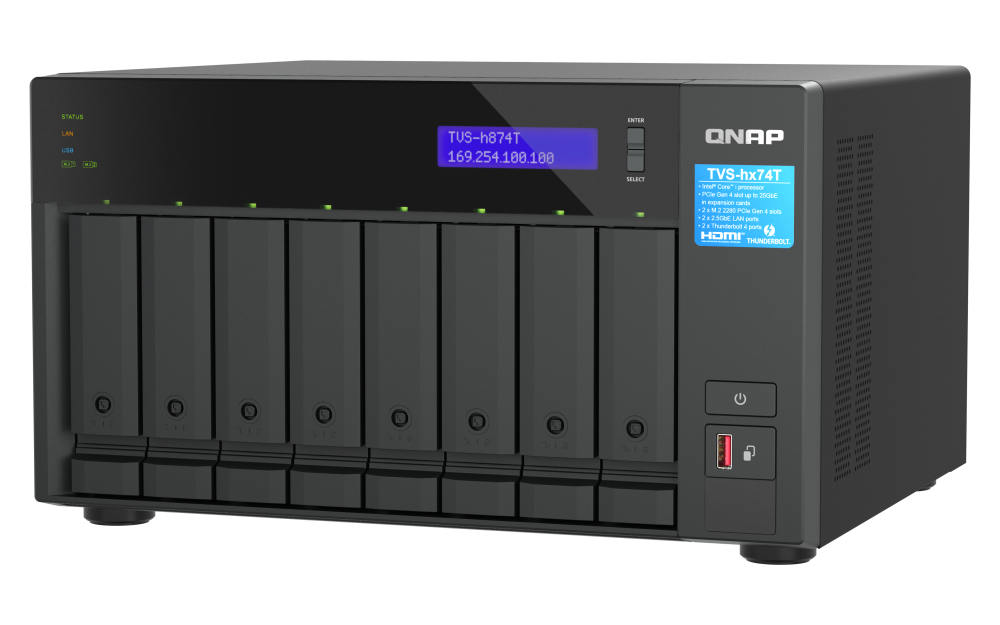

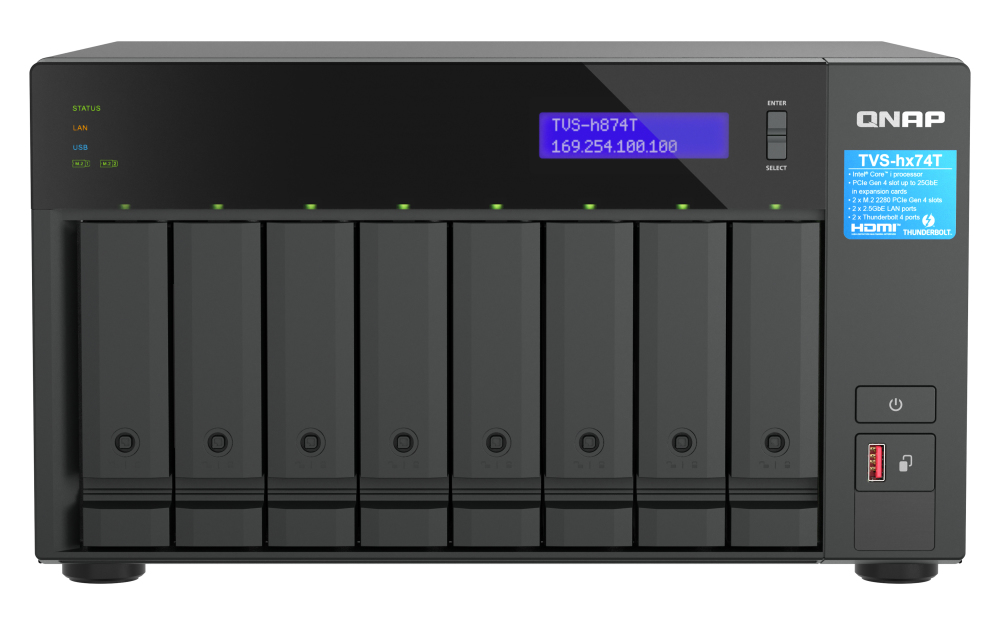

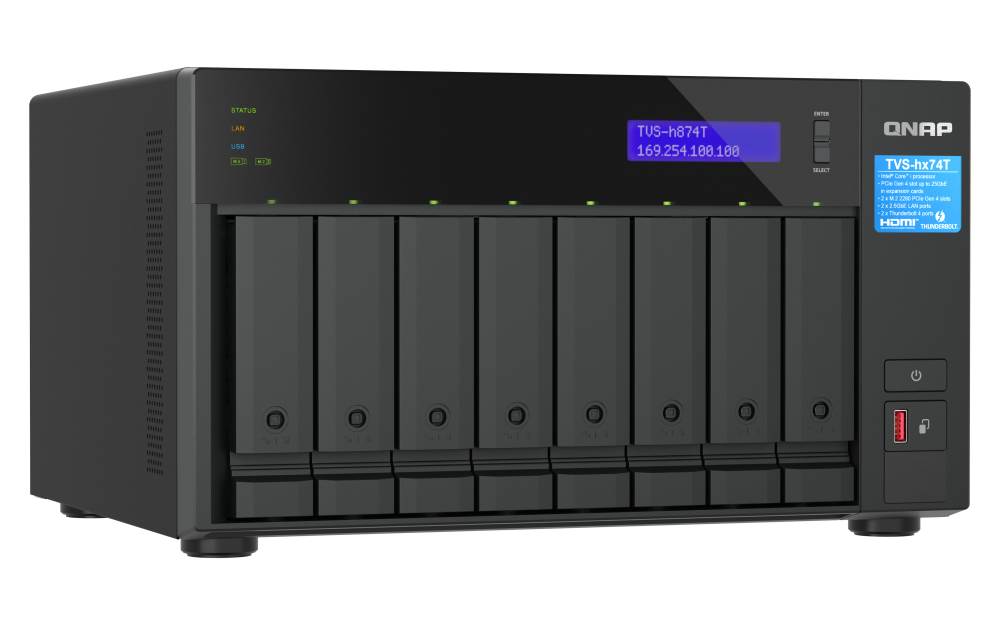

QNAP TVS-h874T NAS Tower Intel® Core™ i7

TVS-h874T NAS Tower Intel® Core™ i7

32 GB DDR4 0 TB QuTS hero Black

Model TVS-h874TPart no. TVS-H874T-I7-32G/144TB-EXOSEAN 5050914247058

98 specifications

ProcessorIntel® Core™ i7
Memory32 GB
TypeNAS
OSQuTS hero
ColourBlack
Storage drives installedNo

See all specifications

Overview

Processor: Intel® Core™ i7
Memory: 32 GB
Type: NAS
OS: QuTS hero
Colour: Black
Storage drives installed: No

Brand: QNAP
Category: NAS & Storage Servers
Model: TVS-h874T
Part numbers: TVS-H874T-I7-32G/144TB-EXOS, TVS-H874T-I7-32G-US, TVS-H874T-I9-64G-US, TVS-H874T-I7-32G-AR3, TVS-H874T-I9-64G-160W-AR5, TVS-H874T-I7-32G-AR5 +34 more
EAN / UPC: 5050914247058, 5050914246501, 5050914246419, 5050914247157 +48 more
Also known as: QNAP TVS-h874T NAS Tower Intel® Core™ i7 32 GB DDR4 0 TB QuTS hero Black

Specifications

98 specifications in 12 groups

Storage

Specification	Value
Storage drives installed	No
Total installed storage capacity	0 TB
Number of storage drives installed	0
Number of storage drives supported	8
Installed storage drive type	No
Supported storage drive types	HDD & SSD
Storage drive capacity	0 GB
Supported storage drive interfaces	Serial ATA II, Serial ATA III
Storage drive sizes supported	2.5,3.5,M.2
Number of M.2 (M & B) slots	2
RAID support	Yes
RAID levels	0, 1, 5, 6, 10, 50, 60, JBOD
Online RAID expansion	Yes
RAID rebuild	Yes
Hot-swap drive bays	Yes
Supported file systems	FAT32, HFS+, NTFS, ZFS, exFAT, ext3, ext4
Disk roaming	Yes

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Core™ i7
Processor cores	12
Processor threads	20
On-board graphics card model	Intel UHD Graphics 770

Memory

Specification	Value
Internal memory	32 GB
Internal memory type	DDR4
Maximum RAM supported	64 GB
Memory form factor	SO-DIMM
Memory slots	2
Flash memory	5000 MB

Network

Specification	Value
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000,2500 Mbit/s
DHCP server	Yes
Jumbo frames support	Yes
iSCSI support	Yes
Wake-on-LAN ready	Yes
Dynamic DNS (DDNS)	Yes
Supported network protocols	IPv4, IPv6

Ports & interfaces

Specification	Value
Ethernet LAN (RJ-45) ports	2
USB port	Yes
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	2
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	1
HDMI ports quantity	1
HDMI version	1.4b
Concurrent connections	3500
Thunderbolt ports quantity	2
PCI Express x16 (Gen 4.x) slots	1

Design

Specification	Value
Chassis type	Tower
Cooling type	Active
Product colour	Black
Number of fans	3 fan(s)
Fan diameter	12 cm
Fan diameter 2	6 cm
LED indicators	HDD, LAN, M.2, Status, USB
Built-in display	Yes
Display type	LCD
Cable lock slot	Yes
Cable lock slot type	Kensington

Performance

Specification	Value
Type	NAS
Device class	Home & Home Office
Backup function	Yes
Backup features	Cloud, iSCSI LUN
Buzzer	Yes
Snapshot	Yes
Management protocols	SNMP V2, V3
Access Control List (ACL)	Yes
Browser supported	Apple Safari, Google Chrome, Microsoft Edge, Mozilla Firefox
Built-in FTP server	Yes
Disk scan	Yes
Hot spare	Yes
On/off switch	Yes
Reset button	Yes
S.M.A.R.T. support	Yes
Security algorithms	256-bit AES, FIPS 140-2, SSH, TLS
Share folder	Thick, Thin
System log	Yes
USB copy function	Yes

Software

Specification	Value
Operating system installed	QuTS hero
Operating system version	h5.1.7
Windows operating systems supported	Windows 10, Windows 11, Windows 7, Windows 8
Linux operating systems supported	CentOS 7.0, SuSE Linux 12.0, SuSE Linux 12.3, SuSE Linux 15, Ubuntu 14.04
Mac operating systems supported	Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.15.3 Catalina, Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey, Mac OS X 13.0 Ventura
Server operating systems supported	Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016, Windows Server 2019
Other operating systems supported	IBM AIX 7.1, IBM AIX 7.2, Solaris 10

Power

Specification	Value
Power supply location	Built-in
Power supply unit (PSU) capacity	350 W
Number of power supply units	1
Power consumption (typical)	104.35 W
Power consumption (sleep)	62.668 W
AC input voltage	100 - 240 V
Fan voltage	12 V

Weight & dimensions

Specification	Value
Width	329.3 mm
Depth	279.6 mm
Height	180.2 mm

Packaging content

Specification	Value
Cables included	AC, LAN (RJ-45)
Power cables quantity	1
Number of screws	56

Operational conditions

Specification	Value
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	5 - 95%
Storage temperature (T-T)	-20 - 70 °C
