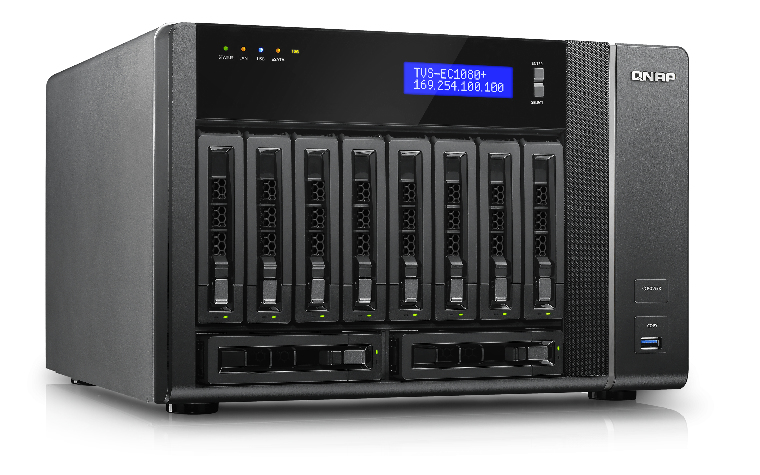

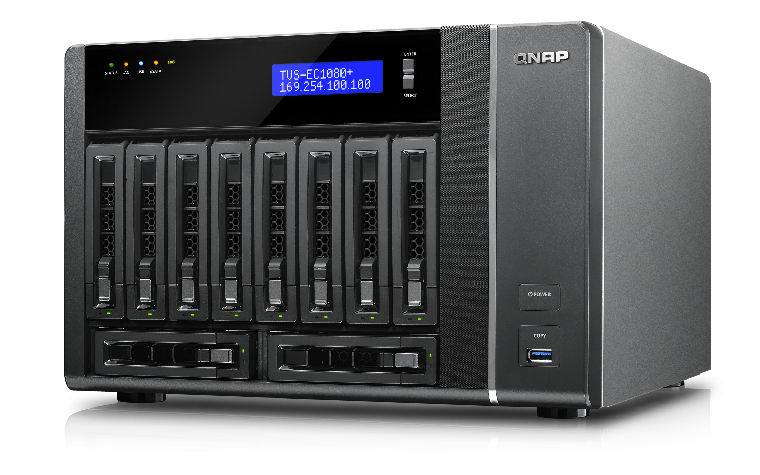

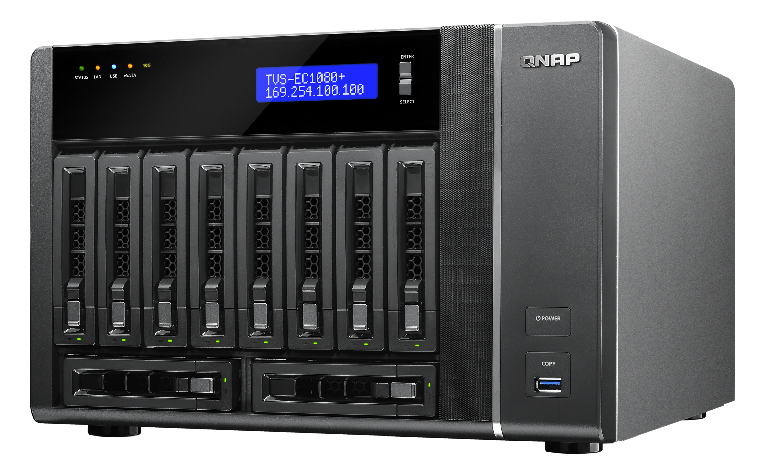

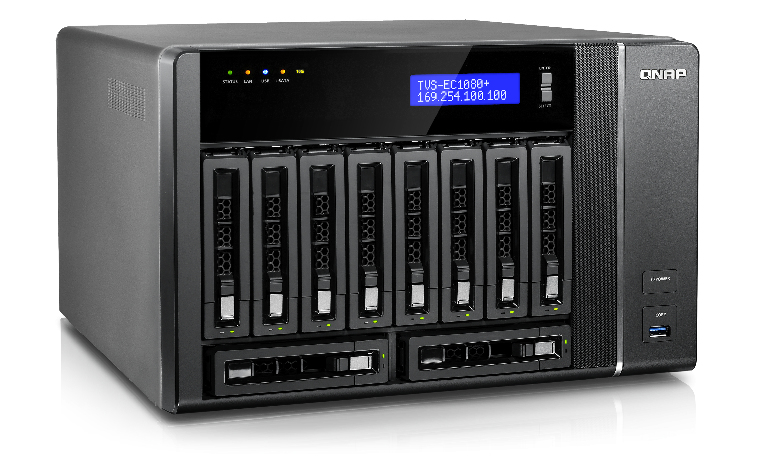

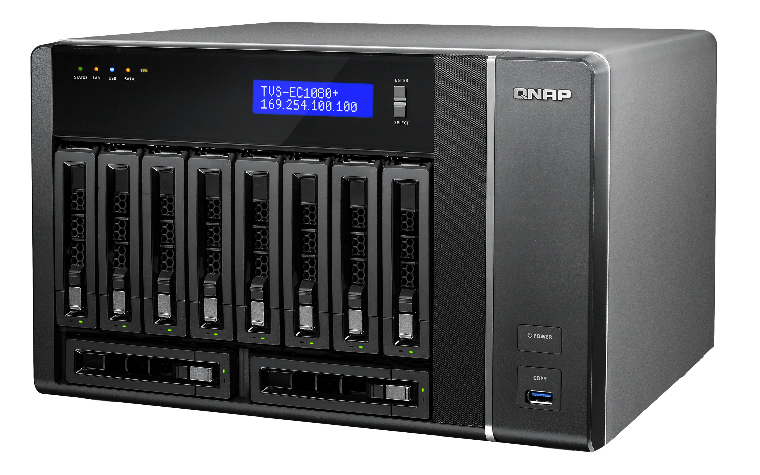

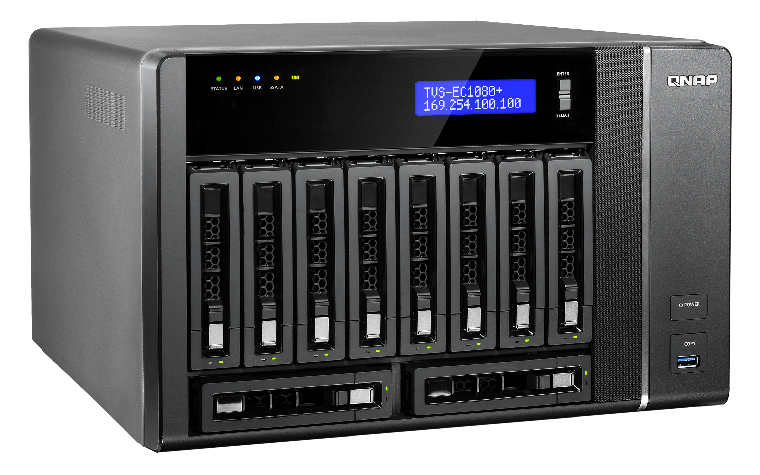

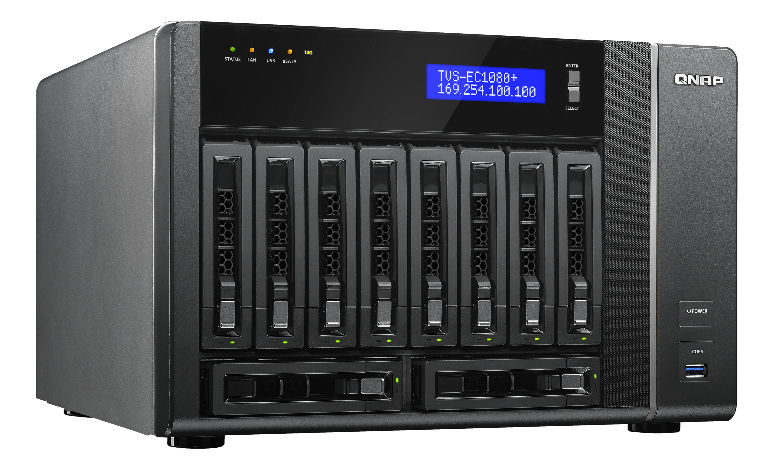

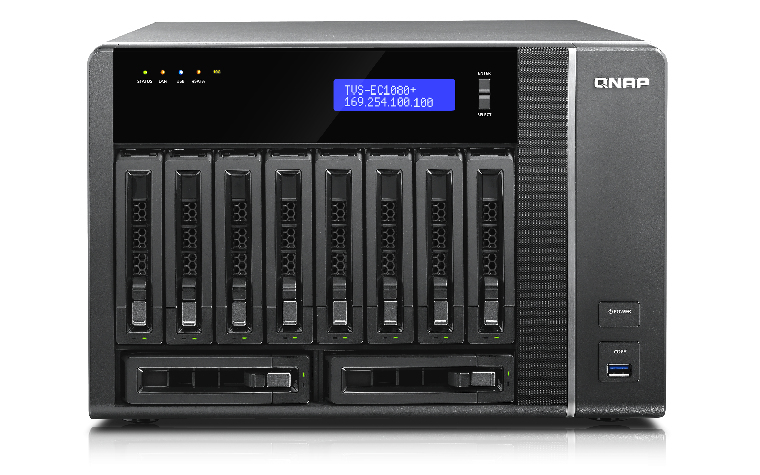

QNAP TVS-EC1080+ NAS Tower Intel® Xeon® E3 V3 Family E3-1245V3

32 GB DDR3 0 TB QNAP Turbo System Black

Model TVS-EC1080+Part no. TVS-EC1080+-E3-32G + 5X 0S03899EAN 885022008032

139 specifications

Overview

Brand: QNAP
Category: NAS & Storage Servers
Model: TVS-EC1080+
Part numbers: TVS-EC1080+-E3-32G + 5X 0S03899, TVS-EC1080+-E3-32G + 5X 0S03903, TVS-EC1080+-E3-32G + 5X 0S03907, TVS-EC1080+-E3-32G + 5X 0S03911, TVS-EC1080+-E3-32G + 10X ST2000NC000, TVS-EC1080+-E3-32G + 10X ST4000NC000 +21 more
EAN / UPC: 885022008032, 4053162698864, 4712511126846
Also known as: QNAP TVS-EC1080+ NAS Tower Intel® Xeon® E3 V3 Family E3-1245V3 32 GB DDR3 0 TB QNAP Turbo System Black

139 specifications in 15 groups

Specification	Value
Storage drives installed	No
Total installed storage capacity	0 TB
Number of storage drives installed	0
Number of storage drives supported	10
Supported storage drive types	HDD & SSD
Storage drive interface	Serial ATA III
Storage drive size	2.5/3.5"
RAID support	Yes
RAID levels	0, 1, 5, 6, 10, JBOD
Hot-swap drive bays	Yes
Supported file systems	ext3, ext4, FAT32, HFS+, NTFS

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Xeon® E3 V3 Family
Processor model	E3-1245V3
Processor frequency	3.4 GHz
Processor boost frequency	3.8 GHz
Processor cores	4
Processor threads	8
Processor cache	8 MB
L3 cache	8 MB
Bus type	QPI
CPU configuration (max)	1
ECC supported by processor	Yes
PCI Express configurations	1x16, 2x8, 1x8+2x4
PCI Express slots version	3.0
Processor cache type	Smart Cache
Processor code	SR14T
Processor codename	Haswell
Processor lithography	22 nm
Processor operating modes	64-bit
Processor package size	37.5 x 37.5 mm
Processor series	Intel Xeon E3-1200 v3
Processor socket	LGA 1150 (Socket H3)
Scalability	1S
Stepping	C0
Thermal Design Power (TDP)	84 W
On-board graphics card model	Intel® HD Graphics P4600
Maximum internal memory supported by processor	32 GB
Memory bandwidth supported by processor (max)	25.6 GB/s
Conflict-Free processor	No

Specification	Value
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000,10000 Mbit/s
Wi-Fi	No
DHCP client	Yes
DHCP server	Yes
Jumbo frames support	Yes
iSCSI support	Yes
Wake-on-LAN ready	Yes
Supported network protocols	CIFS/SMB, AFP (v3.3), NFS (v3), FTP, FTPS, SFTP, TFTP, HTTP(S), Telnet, SSH, iSCSI, SNMP, SMTP, and SMSC

Specification	Value
Ethernet LAN (RJ-45) ports	6
USB 2.0 ports quantity	6
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	3
Fiber ports quantity	0
eSATA ports quantity	2
HDMI ports quantity	1

Specification	Value
On-board graphics card base frequency	350 MHz
On-board graphics card dynamic frequency (max)	1200 MHz
Number of displays supported (on-board graphics)	3

Specification	Value
Operating system installed	QNAP Turbo System
Operating system version	4.1
Windows operating systems supported	Yes
Linux operating systems supported	Yes
Mac operating systems supported	Yes

Specification	Value
Power supply location	Built-in
Power supply unit (PSU) capacity	350 W
Number of power supply units	1
AC input voltage	100-240 V
AC input frequency	50 - 60 Hz

Specification	Value
Cables included	AC, LAN (RJ-45)

Specification	Value
Embedded options available	No
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Graphics & IMC lithography	22 nm
Idle States	Yes
Intel 64	Yes
Intel Dual Display Capable Technology	Yes
Intel Enhanced Halt State	Yes
Intel FDI Technology	Yes
Intel Fast Memory Access	Yes
Intel Flex Memory Access	Yes
Intel Identity Protection Technology version	1.00
Intel Secure Key Technology version	1.00
Intel Stable Image Platform Program (SIPP)	Yes
Intel Stable Image Platform Program (SIPP) version	1.00
Intel TSX-NI	Yes
Intel TSX-NI version	1.00
Intel Trusted Execution Technology	Yes
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel® AES New Instructions (Intel® AES-NI)	Yes
Intel® Anti-Theft Technology (Intel® AT)	Yes
Intel® Clear Video HD Technology (Intel® CVT HD)	Yes
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel® Identity Protection Technology (Intel® IPT)	Yes
Intel® InTru™ 3D Technology	Yes
Intel® OS Guard	Yes
Intel® Quick Sync Video Technology	Yes
Intel® Secure Key	Yes
Intel® Smart Cache	Yes
Intel® Turbo Boost Technology	2.0
Maximum number of PCI Express lanes	16
Number of QPI links	1
Thermal Monitoring Technologies	Yes
Thermal solution specification	PCG 2013D
Memory channels supported by processor	Dual
Memory types supported by processor	DDR3-SDRAM

Specification	Value
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	5 - 95%

Specification	Value
Processor ARK ID	75462
