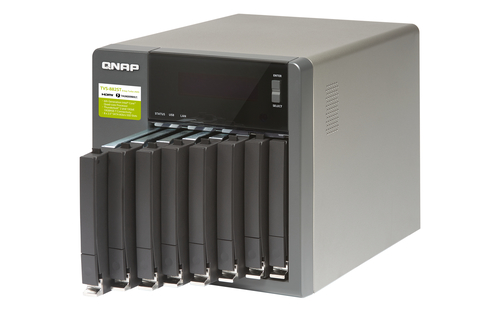

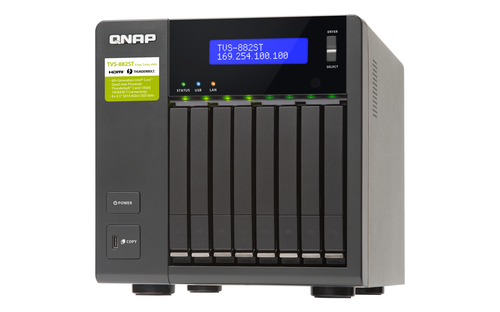

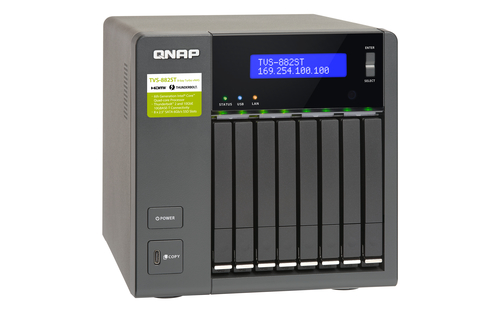

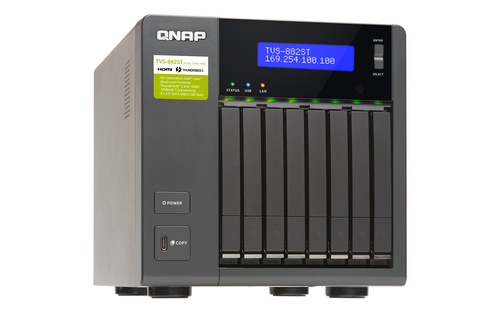

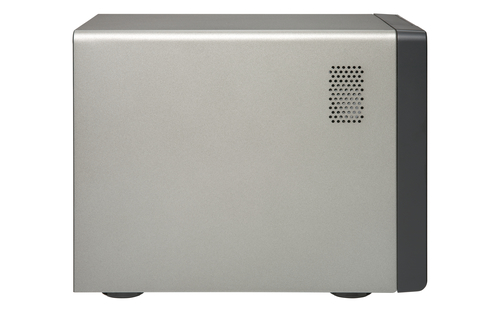

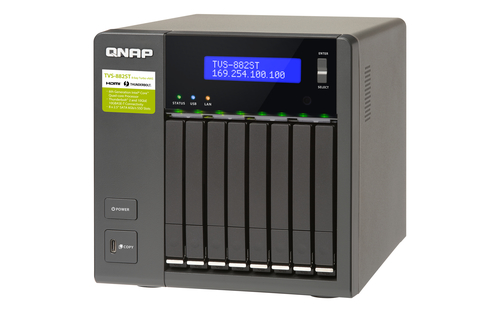

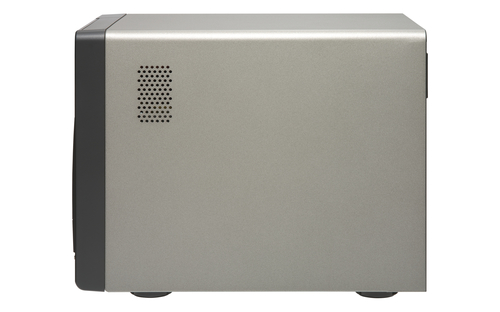

QNAP TVS-882ST2 NAS Tower Intel® Core™ i5 i5-6442EQ

8 GB DDR4 0 TB QNAP Turbo System Black

Model TVS-882ST2Part no. TVS-882ST2-I5-8G/36TB-HGSTEAN 4058154169865

170 specifications

ProcessorIntel® Core™ i5
Memory8 GB
Noise15.2 dB
TypeNAS
OSQNAP Turbo System
Weight3.97 kg

See all specifications

Overview

Processor: Intel® Core™ i5
Memory: 8 GB
Noise: 15.2 dB
Type: NAS
OS: QNAP Turbo System
Weight: 3.97 kg

Brand: QNAP
Category: NAS & Storage Servers
Model: TVS-882ST2
Part numbers: TVS-882ST2-I5-8G/36TB-HGST, TVS-882ST2-I5-8G/48TB-HGST, TVS-882ST2-I5-8G/60TB-HGST, TVS-882ST2-I5-8G+8TB-S-IW, TVS-882ST2-I5-8G+8TB-S-IWSRS, TVS-882ST2-I5-8G/16TB-IW +15 more
EAN / UPC: 4058154169865, 4713213510797, 885022012718, 5055628441358
Also known as: QNAP TVS-882ST2 NAS Tower Intel® Core™ i5 i5-6442EQ 8 GB DDR4 0 TB QNAP Turbo System Black

Specifications

170 specifications in 16 groups

Storage

Specification	Value
Storage drives installed	No
Total installed storage capacity	0 TB
Number of storage drives installed	0
Number of storage drives supported	8
Installed storage drive type	No
Supported storage drive types	HDD & SSD
Storage drive capacity	0 GB
Supported storage drive interfaces	Serial ATA III
Storage drive sizes supported	2.5"
RAID support	Yes
RAID levels	1, 2, 3, 4, 5, 6, JBOD
Online RAID migration	Yes
Online RAID expansion	Yes
Hot-swap drive bays	Yes
Supported file systems	FAT32, HFS+, NTFS, ext3, ext4

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Core™ i5
Processor generation	6th gen Intel® Core™ i5
Processor model	i5-6442EQ
Processor frequency	1.9 GHz
Processor boost frequency	2.7 GHz
Processor cores	4
Processor threads	4
Processor cache	6 MB
Bus type	DMI3
CPU configuration (max)	1
ECC supported by processor	No
PCI Express configurations	1x16, 1x8+2x4, 2x8
PCI Express slots version	3.0
Processor cache type	Smart Cache
Processor code	SR2DY
Processor codename	Skylake
Processor lithography	14 nm
Processor operating modes	64-bit
Processor package size	42 x 28 mm
Processor series	Intel Core i5-6400 Mobile series
Processor socket	BGA 1440
Stepping	R0
System bus rate	8 GT/s
Tcase	100 °C
Thermal Design Power (TDP)	25 W
Tjunction	100 °C
On-board graphics card model	Intel® HD Graphics 530
Maximum internal memory supported by processor	64 GB
Memory bandwidth supported by processor (max)	34.1 GB/s
Conflict-Free processor	Yes

Memory

Specification	Value
Internal memory	8 GB
Internal memory type	DDR4
Memory clock speed	2133 MHz
Maximum RAM supported	32 GB
Memory slots	2
Flash memory	512 MB

Network

Specification	Value
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000,10000 Mbit/s
Ethernet LAN data rate supported (max)	10000 Mbit/s
Wi-Fi	No
DHCP client	Yes
DHCP server	Yes
Jumbo frames support	Yes
iSCSI support	Yes
Wake-on-LAN ready	Yes
Supported network protocols	CIFS, AFP, NFS, FTP, WebDAV, CalDAV, iSCSI, Telnet, SSH, SNMP, VPN (PPTP, OpenVPN)

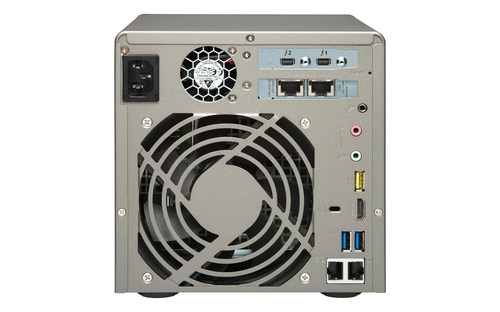

Ports & interfaces

Specification	Value
Ethernet LAN (RJ-45) ports	4
USB port	Yes
USB 2.0 ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
Fiber ports quantity	0
HDMI ports quantity	1
3.5 mm (1/8-inch) out	Yes
Microphone in	Yes
Thunderbolt 2 ports quantity	2
PCI Express x4 (Gen 3.x) slots	1
PCI Express x8 (Gen 3.x) slots	1

Graphics

Specification	Value
On-board graphics card DirectX version	12.0
On-board graphics card ID	0x191B
On-board graphics card OpenGL version	4.4
On-board graphics card base frequency	350 MHz
On-board graphics card dynamic frequency (max)	1000 MHz
Maximum on-board graphics card memory	64 GB
Number of displays supported (on-board graphics)	3

Design

Specification	Value
Chassis type	Tower
Cooling type	Active
Product colour	Black
Number of fans	1 fan(s)
Fan diameter	12 cm
LED indicators	HDD, Power, Status, USB
Built-in display	Yes
Display type	LCD
Cable lock slot	Yes
Cable lock slot type	Kensington

Performance

Specification	Value
Type	NAS
Device class	Small & Medium Business
Backup function	Yes
Backup features	Cloud, iSCSI LUN
Multilingual support	Yes
Noise level	15.2 dB
Web-based management	Yes
Access Control List (ACL)	Yes
Backup button	Yes
Browser supported	Internet Explorer 10+, Firefox 8+, Safari 4+, Chrome
Built-in FTP server	Yes
Built-in iTunes server	Yes
On/off switch	Yes
Reset button	Yes
S.M.A.R.T. support	Yes
Security algorithms	256-bit AES, FIPS 140-2, HTTPS, SNMP, SSH, SSL/TLS
Share folder	CIFS/SMB
System log	Yes

Software

Specification	Value
Operating system installed	QNAP Turbo System
Operating system version	4.3
Windows operating systems supported	Windows 10, Windows 7, Windows 8
Linux operating systems supported	Yes
Mac compatibility	Yes
Mac operating systems supported	Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks
Server operating systems supported	Windows Server 2003, Windows Server 2008 R2, Windows Server 2012, Windows Server 2016

Power

Specification	Value
Power supply location	Built-in
Power supply unit (PSU) capacity	240 W
Number of power supply units	1
Power consumption (typical)	42.7 W
AC input voltage	100-240 V
AC input frequency	50 - 60 Hz
Fan voltage	12 V

Weight & dimensions

Specification	Value
Width	180 mm
Depth	235 mm
Height	177 mm
Weight	3.97 kg

Packaging content

Specification	Value
Cables included	AC, LAN (RJ-45)
Quick installation guide	Yes
Number of screws	32
Remote control included	Yes

Processor special features

Specification	Value
Embedded options available	Yes
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Graphics & IMC lithography	14 nm
Idle States	Yes
Intel 64	Yes
Intel Clear Video Technology	Yes
Intel Enhanced Halt State	Yes
Intel HD Graphics	Yes
Intel Identity Protection Technology version	1.00
Intel Secure Key Technology version	1.00
Intel TSX-NI	Yes
Intel TSX-NI version	1.00
Intel Trusted Execution Technology	Yes
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel® AES New Instructions (Intel® AES-NI)	Yes
Intel® Clear Video HD Technology (Intel® CVT HD)	Yes
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	Yes
Intel® Hyper Threading Technology (Intel® HT Technology)	No
Intel® Identity Protection Technology (Intel® IPT)	Yes
Intel® InTru™ 3D Technology	Yes
Intel® Insider™	Yes
Intel® OS Guard	Yes
Intel® Quick Sync Video Technology	Yes
Intel® Secure Key	Yes
Intel® Turbo Boost Technology	2.0
Intel® Wireless Display (Intel® WiDi)	Yes
Maximum number of PCI Express lanes	16
Thermal Monitoring Technologies	Yes
Memory channels supported by processor	Dual
Memory types supported by processor	DDR3L-SDRAM, DDR4-SDRAM, LPDDR3-SDRAM

Operational conditions

Specification	Value
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	5 - 95%

Logistics data

Specification	Value
Harmonized System (HS) code	84714100

Other features

Specification	Value
Digital Living Network Alliance (DLNA) certified	Yes
Power management	Yes
Processor ARK ID	90617
