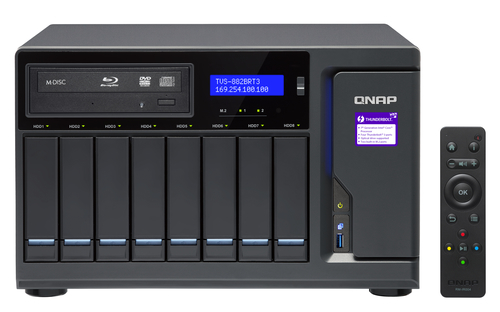

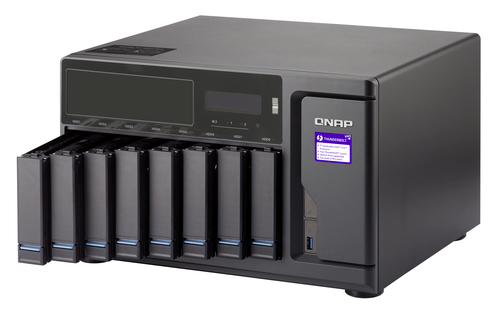

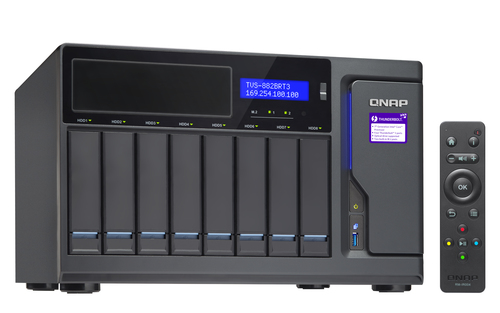

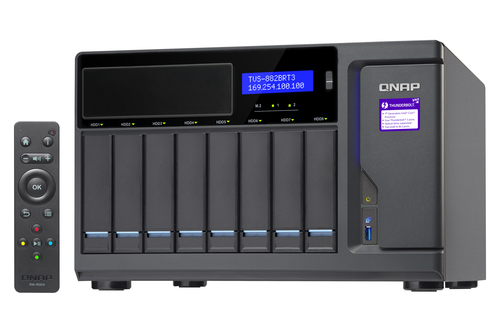

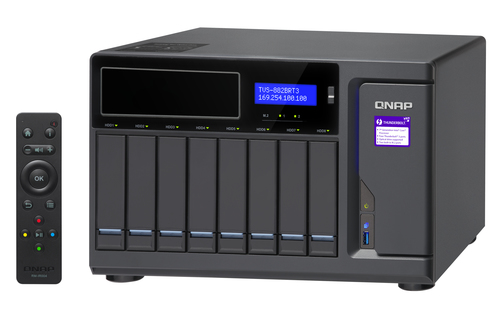

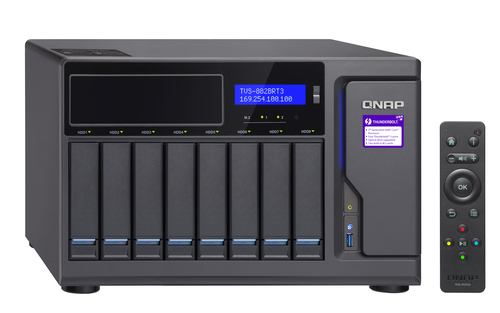

QNAP TVS-882BRT3 NAS Tower Intel® Core™ i7 i7-7700

32 GB DDR4 0 TB QNAP Turbo System Black

Model TVS-882BRT3Part no. TVS-882BRT3-ODD-I7-32G + 8X ST12000NE000EAN 885022013678

166 specifications

Overview

Brand: QNAP
Category: NAS & Storage Servers
Model: TVS-882BRT3
Part numbers: TVS-882BRT3-ODD-I7-32G + 8X ST12000NE000, TVS-882BRT3-I7-32G, TVS-882BRT3-I5-16G, TVS-882BRT3-ODD-I7-32G, TVS-882BRT3-ODD-I5-16G, TVS-882BRT3-I7-32G + 8X ST1000VN002 +34 more
EAN / UPC: 885022013678, 4058154235850, 4713213511749, 4058154258118 +56 more
Also known as: QNAP TVS-882BRT3 NAS Tower Intel® Core™ i7 i7-7700 32 GB DDR4 0 TB QNAP Turbo System Black

166 specifications in 14 groups

Specification	Value
Storage drives installed	No
Total installed storage capacity	0 TB
Number of storage drives installed	0
Number of storage drives supported	12
Installed storage drive type	No
Supported storage drive types	HDD & SSD
Storage drive capacity	0 GB
Supported storage drive interfaces	M.2, Serial ATA II, Serial ATA III
Storage drive sizes supported	2.5,3.5"
Number of M.2 (M & B) slots	2
RAID support	Yes
RAID levels	0, 1, 5, 6, 10, JBOD
Online RAID migration	Yes
Online RAID expansion	Yes
Hot-swap drive bays	Yes
Supported file systems	FAT32, HFS+, NTFS, exFAT, ext3, ext4
Bad block scan	Yes

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Core™ i7
Processor generation	7th gen Intel® Core™ i7
Processor model	i7-7700
Processor frequency	3.6 GHz
Processor boost frequency	4.2 GHz
Processor cores	4
Processor threads	8
Processor cache	8 MB
Bus type	DMI3
CPU configuration (max)	1
ECC supported by processor	No
PCI Express configurations	1x16, 1x8+2x4, 2x8
PCI Express slots version	3.0
Processor cache type	Smart Cache
Processor code	SR338
Processor codename	Kaby Lake
Processor lithography	14 nm
Processor operating modes	64-bit
Processor package size	37.5 x 37.5 mm
Processor socket	LGA 1151 (Socket H4)
Scalability	1S
Stepping	B0
System bus rate	8 GT/s
Thermal Design Power (TDP)	65 W
Tjunction	100 °C
On-board graphics card model	Intel® HD Graphics 630
Maximum internal memory supported by processor	64 GB
Conflict-Free processor	Yes

Specification	Value
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Wi-Fi	No
DHCP client	Yes
DHCP server	Yes
Jumbo frames support	Yes
iSCSI support	Yes
Wake-on-LAN ready	Yes
Dynamic DNS (DDNS)	Yes
Supported network protocols	CIFS/SMB, AFP (v3.3), NFS(v3), FTP, FTPS, SFTP, TFTP, HTTP(S), Telnet, SSH, iSCSI, SNMP, SMTP, SMSC

Specification	Value
Ethernet LAN (RJ-45) ports	4
USB port	Yes
USB 2.0 ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	5
Fiber ports quantity	0
HDMI ports quantity	3
HDMI version	1.4b
Thunderbolt 3 ports quantity	4
3.5 mm (1/8-inch) out	Yes
Microphone in	Yes
PCI Express x4 (Gen 3.x) slots	2
PCI Express x8 (Gen 3.x) slots	1

Specification	Value
On-board graphics card DirectX version	12.0
On-board graphics card ID	0x5912
On-board graphics card OpenGL version	4.4
On-board graphics card base frequency	350 MHz
On-board graphics card dynamic frequency (max)	1150 MHz
Maximum on-board graphics card memory	64 GB
Number of displays supported (on-board graphics)	3

Specification	Value
Type	NAS
Device class	Small & Medium Business
Backup function	Yes
Backup features	Cloud, iSCSI LUN
Multilingual support	Yes
Noise level	21.6 dB
Web-based management	Yes
Access Control List (ACL)	Yes
Browser supported	Microsoft Internet Explorer 10+, Google Chrome, Apple Safari 7+, Mozilla Firefox
Built-in FTP server	Yes
Built-in iTunes server	Yes
Hot spare	Yes
On/off switch	Yes
Reset button	Yes
S.M.A.R.T. support	Yes
Security algorithms	256-bit AES, FIPS 140-2, HTTPS, SNMP, SNMPv3, SSH, SSL/TLS
Share folder	CIFS/SMB
System log	Yes
Universal Plug and Play (UPnP)	Yes

Specification	Value
Operating system installed	QNAP Turbo System
Operating system version	4.3
Windows operating systems supported	Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64,
Linux operating systems supported	Yes
Mac compatibility	Yes
Mac operating systems supported	Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks
Server operating systems supported	Windows Server 2003, Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2

Specification	Value
Power supply location	Built-in
Power supply unit (PSU) capacity	250 W
Number of power supply units	1
AC input voltage	100-240 V
Output current	3 A

Specification	Value
Embedded options available	Yes
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Idle States	Yes
Intel 64	Yes
Intel Clear Video Technology	Yes
Intel Enhanced Halt State	Yes
Intel Identity Protection Technology version	1.00
Intel Secure Key Technology version	1.00
Intel Stable Image Platform Program (SIPP)	Yes
Intel Stable Image Platform Program (SIPP) version	1.00
Intel TSX-NI	Yes
Intel TSX-NI version	1.00
Intel Trusted Execution Technology	Yes
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel® AES New Instructions (Intel® AES-NI)	Yes
Intel® Clear Video HD Technology (Intel® CVT HD)	Yes
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	Yes
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel® Identity Protection Technology (Intel® IPT)	Yes
Intel® InTru™ 3D Technology	Yes
Intel® OS Guard	Yes
Intel® Quick Sync Video Technology	Yes
Intel® Secure Key	Yes
Intel® Turbo Boost Technology	2.0
Maximum number of PCI Express lanes	16
Thermal Monitoring Technologies	Yes
Thermal solution specification	PCG 2015C
Memory channels supported by processor	Dual
Memory types supported by processor	DDR3L, DDR4-SDRAM
Memory voltage supported by processor	1.35 V

Specification	Value
Digital Living Network Alliance (DLNA) certified	Yes
Power management	Yes
Processor ARK ID	97128
