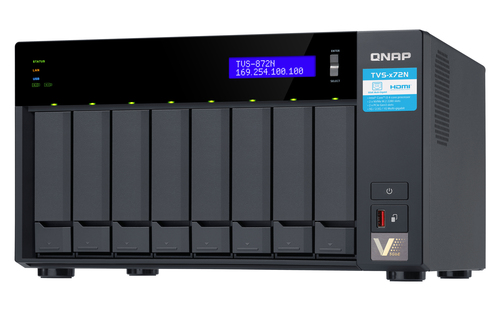

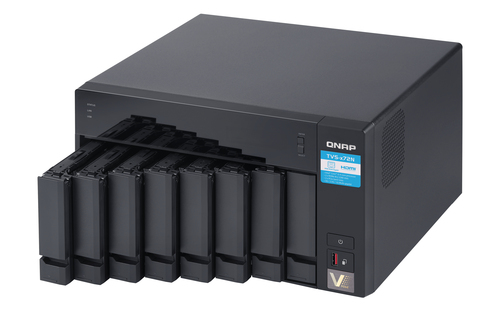

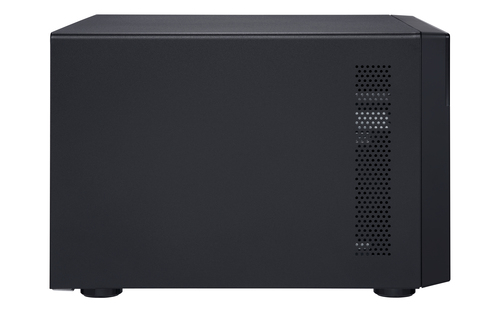

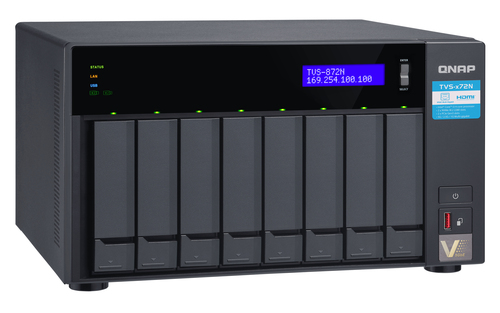

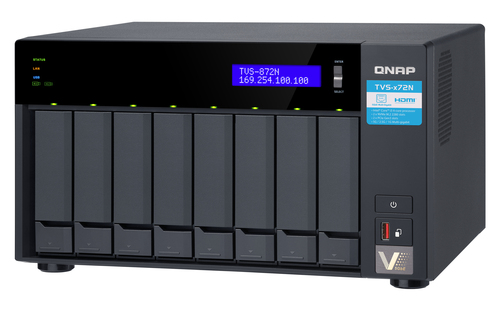

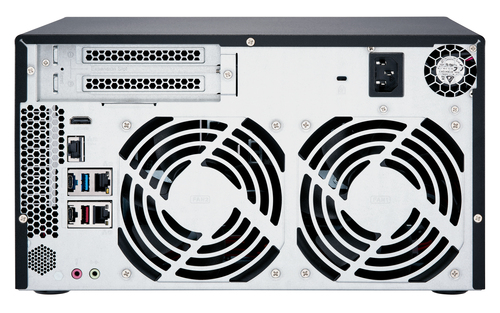

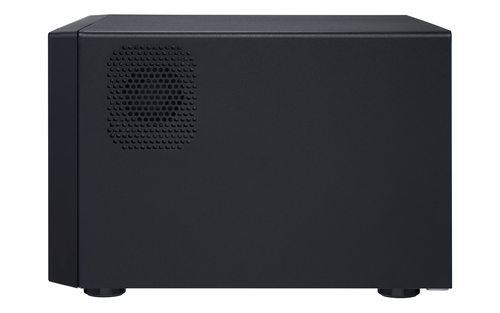

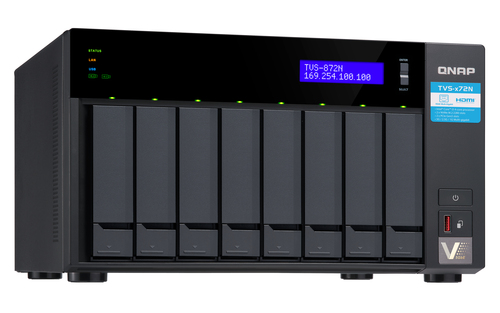

QNAP TVS-872N NAS Tower Intel® Core™ i3 i3-8100T
QNAP

TVS-872N NAS Tower Intel® Core™ i3 i3-8100T

8 GB DDR4 0 TB QNAP Turbo System Black

Model TVS-872NPart no. TVS-872N-I3-8G/112TB-TOSHEAN 5050914122348

168 specifications
  • ProcessorIntel® Core™ i3
  • Memory8 GB
  • Noise24.2 dB
  • TypeNAS
  • OSQNAP Turbo System
  • Weight7.06 kg
See all specifications

Overview

Processor
Intel® Core™ i3
Memory
8 GB
Noise
24.2 dB
Type
NAS
OS
QNAP Turbo System
Weight
7.06 kg
Brand
QNAP
Model
TVS-872N
Part numbers
TVS-872N-I3-8G/112TB-TOSH, TVS-872N-I3-8G, TVS-872N-I3-8G/32TB-EXOS, TVS-872N-I3-8G/32TB-RED, TVS-872N-I3-8G/32TB-IWP, TVS-872N-I3-8G/48TB-IWP +34 more
EAN / UPC
5050914122348, 885022018055, 4713213516058, 5050914122225 +52 more
Also known as
QNAP TVS-872N NAS Tower Intel® Core™ i3 i3-8100T 8 GB DDR4 0 TB QNAP Turbo System Black

Specifications

168 specifications in 16 groups

Storage

Storage drives installedNo
Total installed storage capacity0 TB
Number of storage drives installed0
Number of storage drives supported8
Installed storage drive typeNo
Supported storage drive typesHDD & SSD
Storage drive capacity0 GB
Supported storage drive interfacesSerial ATA II, Serial ATA III
Storage drive sizes supported2.5,3.5"
Number of M.2 (M & B) slots2
RAID supportYes
RAID levels0, 1, 5, 6, 10, 50, 60, JBOD
Hot-swap drive baysYes
Supported file systemsFAT32, HFS+, NTFS, ext3, ext4

Processor

Processor manufacturerIntel
Processor familyIntel® Core™ i3
Processor generation8th gen Intel® Core™ i3
Processor modeli3-8100T
Processor frequency3.1 GHz
Processor cores4
Processor threads4
Processor cache6 MB
Bus typeDMI3
CPU configuration (max)1
Configurable TDP-down frequency2.4 GHz
PCI Express configurations1x16, 1x8+2x4, 2x8
PCI Express slots version3.0
Processor cache typeSmart Cache
Processor codeSR3Y8
Processor codenameCoffee Lake
Processor lithography14 nm
Processor operating modes64-bit
Processor package size37.5 x 37.5 mm
Processor socketLGA 1151 (Socket H4)
Scalability1S
SteppingB0
System bus rate8 GT/s
Thermal Design Power (TDP)35 W
Tjunction82 °C
On-board graphics card modelIntel® UHD Graphics 630
Maximum internal memory supported by processor64 GB
Memory bandwidth supported by processor (max)37.5 GB/s

Memory

Internal memory8 GB
Internal memory typeDDR4
Maximum RAM supported32 GB
Memory form factorSO-DIMM
Memory slots2
Flash memory5000 MB

Network

Ethernet LANYes
Ethernet LAN data rates100,1000,2500,5000 Mbit/s
Wi-FiNo
DHCP clientYes
DHCP serverYes
Jumbo frames supportYes
iSCSI supportYes
Wake-on-LAN readyYes
Dynamic DNS (DDNS)Yes
Link aggregationYes
Supported network protocolsTCP/IP, IPv4, IPv6
WLAN adapter supportedYes

Ports & interfaces

Ethernet LAN (RJ-45) ports3
USB portYes
USB 2.0 ports quantity0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity2
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity2
Fiber ports quantity0
HDMI ports quantity1
HDMI version2.0
3.5 mm (1/8-inch) outYes
Microphone inYes
PCI Express x4 (Gen 3.x) slots1

Graphics

On-board graphics card DirectX version12.0
On-board graphics card ID0x3E91
On-board graphics card OpenGL version4.5
On-board graphics card base frequency350 MHz
On-board graphics card dynamic frequency (max)1100 MHz
Maximum on-board graphics card memory64 GB
Number of displays supported (on-board graphics)3

Design

Chassis typeTower
Cooling typeActive
Product colourBlack
Number of fans4 fan(s)
Fan diameter12 cm
Fan diameter 26 cm
LED indicatorsHDD, LAN, Status, USB
Built-in displayYes
Display typeLCD
Cable lock slotYes
Cable lock slot typeKensington
Built-in speaker(s)Yes
Number of built-in speakers1

Performance

TypeNAS
Device classSmall & Medium Business
Backup functionYes
Backup featuresCloud, iSCSI LUN
BuzzerYes
Multilingual supportYes
Noise level24.2 dB
SnapshotYes
Web-based managementYes
Access Control List (ACL)Yes
Browser supportedApple Safari 7+, Google Chrome, Microsoft Internet Explorer 10+, Mozilla Firefox
Built-in FTP serverYes
Built-in iTunes serverYes
Hot spareYes
On/off switchYes
Password authenticationYes
Reset buttonYes
S.M.A.R.T. supportYes
Security algorithms256-bit AES, HTTPS, SSH, SSL/TLS
System logYes
USB copy functionYes

Software

Operating system installedQNAP Turbo System
Operating system version4.4.0
Windows operating systems supportedWindows 10, Windows 7, Windows 8
Linux operating systems supportedYes
Mac operating systems supportedMac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks

Power

Power supply locationBuilt-in
Power supply unit (PSU) capacity250 W
Number of power supply units1
Power consumption (typical)65.03 W
Power consumption (sleep)41.47 W
AC input voltage100 - 240 V
Fan voltage12 V

Weight & dimensions

Width329.3 mm
Depth279.6 mm
Height188.2 mm
Weight7.06 kg
Package weight9.19 kg

Packaging content

Cables includedAC, LAN (RJ-45)
Quick installation guideYes

Processor special features

Embedded options availableYes
Enhanced Intel SpeedStep TechnologyYes
Execute Disable BitYes
Idle StatesYes
Intel 64Yes
Intel Clear Video TechnologyYes
Intel Enhanced Halt StateYes
Intel Identity Protection Technology version1.00
Intel Secure Key Technology version1.00
Intel Stable Image Platform Program (SIPP)No
Intel Stable Image Platform Program (SIPP) version0.00
Intel TSX-NINo
Intel TSX-NI version0.00
Intel Trusted Execution TechnologyNo
Intel VT-x with Extended Page Tables (EPT)Yes
Intel Virtualization Technology (VT-x)Yes
Intel Virtualization Technology for Directed I/O (VT-d)Yes
Intel® AES New Instructions (Intel® AES-NI)Yes
Intel® Clear Video HD Technology (Intel® CVT HD)Yes
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)Yes
Intel® Hyper Threading Technology (Intel® HT Technology)No
Intel® Identity Protection Technology (Intel® IPT)Yes
Intel® InTru™ 3D TechnologyYes
Intel® OS GuardYes
Intel® Quick Sync Video TechnologyYes
Intel® Secure KeyYes
Intel® Smart CacheYes
Intel® Turbo Boost TechnologyNo
Maximum number of PCI Express lanes16
Thermal Monitoring TechnologiesYes
Thermal solution specificationPCG 2015A
Memory types supported by processorDDR4-SDRAM

Operational conditions

Operating temperature (T-T)0 - 40 °C
Operating relative humidity (H-H)5 - 95%

Logistics data

Harmonized System (HS) code84714100

Other features

Processor ARK ID129944
