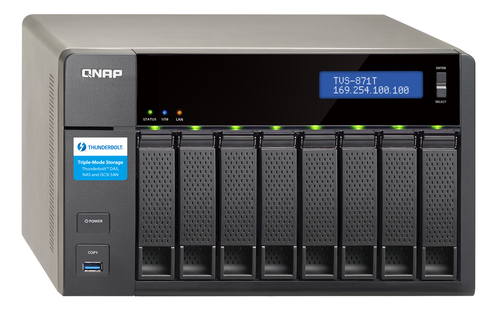

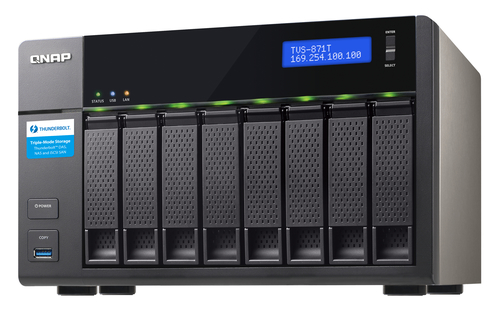

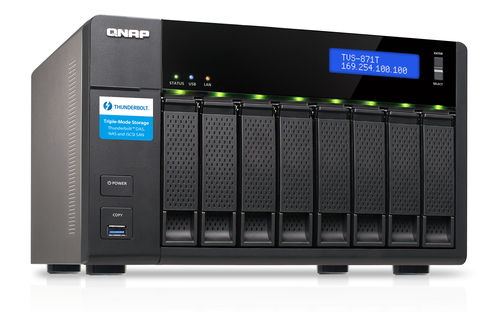

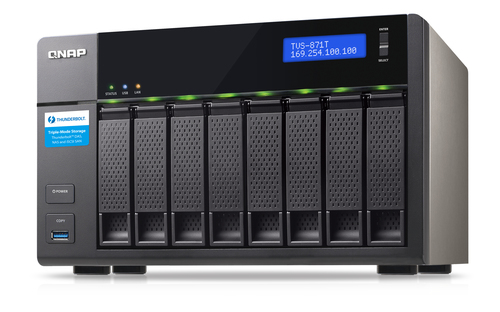

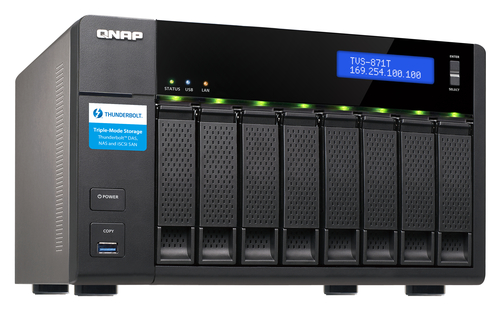

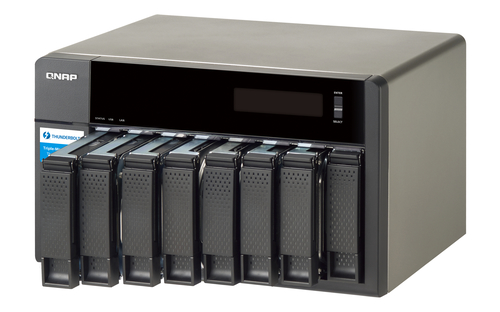

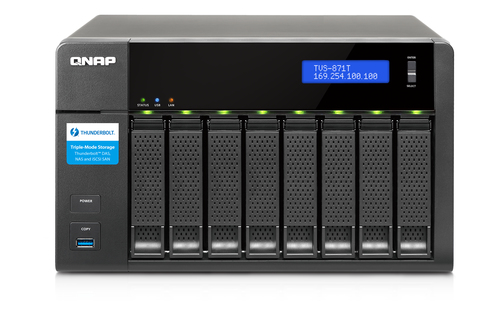

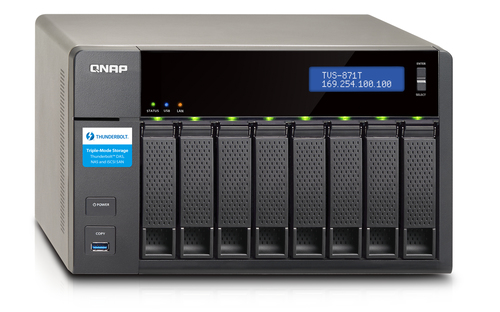

QNAP TVS-871T NAS Tower Intel® Core™ i5 i5-4590S

16 GB DDR3 Linux Grey

Model TVS-871TPart no. TVS-871T-I5-16G/24TBEAN 885022008643

132 specifications

Overview

Brand: QNAP
Category: NAS & Storage Servers
Model: TVS-871T
Part numbers: TVS-871T-I5-16G/24TB, TVS-871T-I5-16G/32TB, TVS-871T-I7-16G/16TB, TVS-871T-I7-16G/24TB, TVS-871T-I7-16G/32TB, TVS-871T-I7-16G/8X4,0TB +34 more
EAN / UPC: 885022008643, 885022008650, 5050914917050, 4053162969018 +3 more
Also known as: QNAP TVS-871T NAS Tower Intel® Core™ i5 i5-4590S 16 GB DDR3 Linux Grey

132 specifications in 15 groups

Specification	Value
Number of storage drives supported	8
Supported storage drive types	HDD & SSD
Storage drive interface	Serial ATA
Storage drive size	2.5/3.5"
RAID support	Yes
RAID levels	0, 1, 5, 6, 10
Supported file systems	FAT32, HFS+, NTFS, ext3, ext4

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Core™ i5
Processor generation	4th gen Intel® Core™ i5
Processor model	i5-4590S
Processor frequency	3 GHz
Processor boost frequency	3.7 GHz
Processor cores	4
Processor threads	4
Processor cache	6 MB
Bus type	DMI
CPU configuration (max)	1
ECC supported by processor	No
PCI Express configurations	1x16, 2x8, 1x8+2x4
PCI Express slots version	3.0
Processor cache type	Smart Cache
Processor code	SR1QN
Processor codename	Haswell
Processor lithography	22 nm
Processor operating modes	64-bit
Processor package size	37.5 x 37.5 mm
Processor socket	LGA 1150 (Socket H3)
Scalability	1S
Stepping	C0
System bus rate	5 GT/s
Tcase	71.35 °C
Thermal Design Power (TDP)	65 W
On-board graphics card model	Intel® HD Graphics 4600
Maximum internal memory supported by processor	32 GB
Memory bandwidth supported by processor (max)	25.6 GB/s
Conflict-Free processor	Yes

Specification	Value
Ethernet LAN	Yes
Ethernet LAN data rates	1000,10000 Mbit/s
Wi-Fi	No
DHCP client	Yes
DHCP server	Yes
Wake-on-LAN ready	Yes
Supported network protocols	CIFS/SMB, AFP (v3.3), NFS(v3), FTP, FTPS, SFTP, TFTP, HTTP(S), Telnet, SSH, iSCSI, SNMP, SMTP, and SMSC

Specification	Value
Ethernet LAN (RJ-45) ports	6
USB 2.0 ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	3
HDMI ports quantity	1
Thunderbolt ports quantity	2

Specification	Value
On-board graphics card DirectX version	11.1
On-board graphics card ID	0x412
On-board graphics card base frequency	350 MHz
On-board graphics card dynamic frequency (max)	1150 MHz
Maximum on-board graphics card memory	1.024 GB
Number of displays supported (on-board graphics)	3

Specification	Value
Operating system installed	Linux
Operating system version	QTS 4.1.4
Windows operating systems supported	Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windo
Linux operating systems supported	Yes
Mac operating systems supported	Yes
Server operating systems supported	Windows Server 2003, Windows Server 2008 R2, Windows Server 2012

Specification	Value
Cables included	AC, LAN (RJ-45)
Quick installation guide	Yes

Specification	Value
Embedded options available	Yes
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Graphics & IMC lithography	22 nm
Idle States	Yes
Intel 64	Yes
Intel Enhanced Halt State	Yes
Intel FDI Technology	Yes
Intel Identity Protection Technology version	1.00
Intel Secure Key Technology version	1.00
Intel Small Business Advantage (SBA) version	1.00
Intel Stable Image Platform Program (SIPP)	Yes
Intel Stable Image Platform Program (SIPP) version	1.00
Intel TSX-NI	No
Intel TSX-NI version	0.00
Intel Trusted Execution Technology	Yes
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel® AES New Instructions (Intel® AES-NI)	Yes
Intel® Anti-Theft Technology (Intel® AT)	Yes
Intel® Clear Video HD Technology (Intel® CVT HD)	Yes
Intel® Hyper Threading Technology (Intel® HT Technology)	No
Intel® Identity Protection Technology (Intel® IPT)	Yes
Intel® InTru™ 3D Technology	Yes
Intel® Insider™	Yes
Intel® My WiFi Technology (Intel® MWT)	Yes
Intel® OS Guard	Yes
Intel® Quick Sync Video Technology	Yes
Intel® Secure Key	Yes
Intel® Smart Cache	Yes
Intel® Turbo Boost Technology	2.0
Intel® Wireless Display (Intel® WiDi)	Yes
Maximum number of PCI Express lanes	16
Number of QPI links	0
Thermal Monitoring Technologies	Yes
Thermal solution specification	PCG 2013C
Memory channels supported by processor	Dual
Memory types supported by processor	DDR3-SDRAM

Specification	Value
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	5 - 95%

Specification	Value
Power management	Yes
Processor ARK ID	80816
