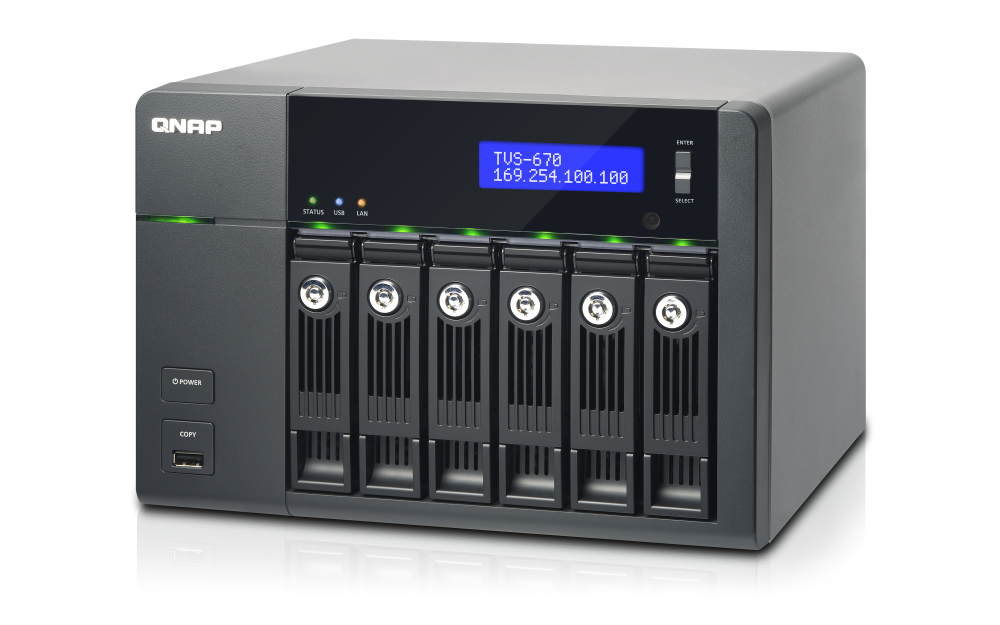

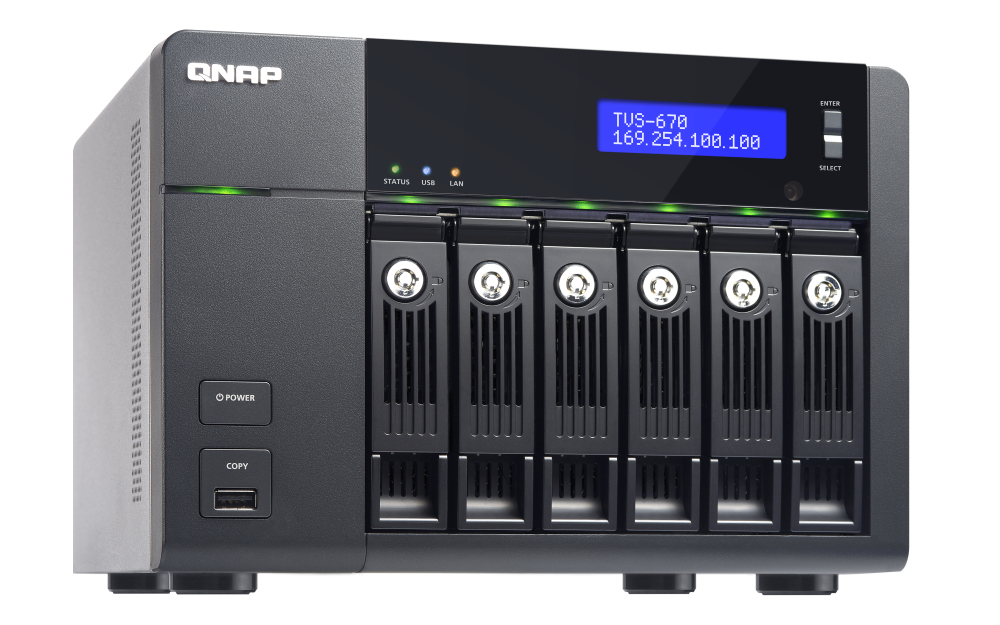

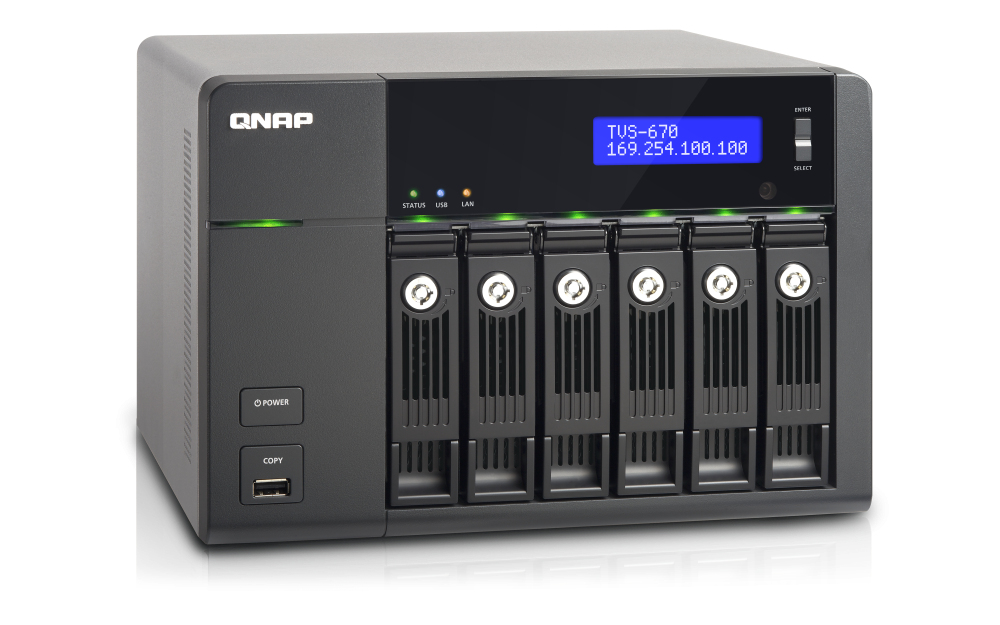

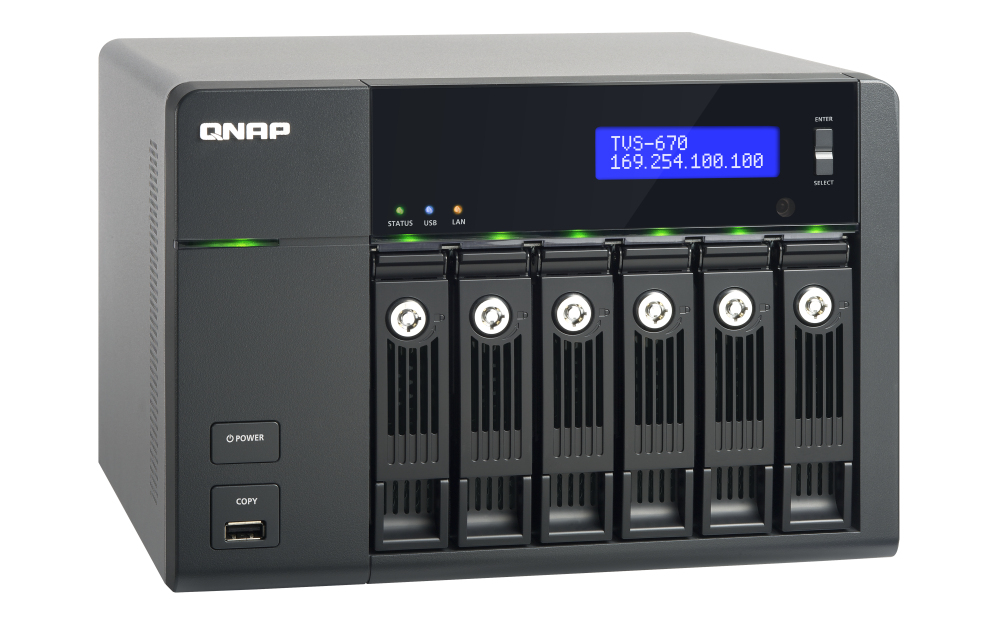

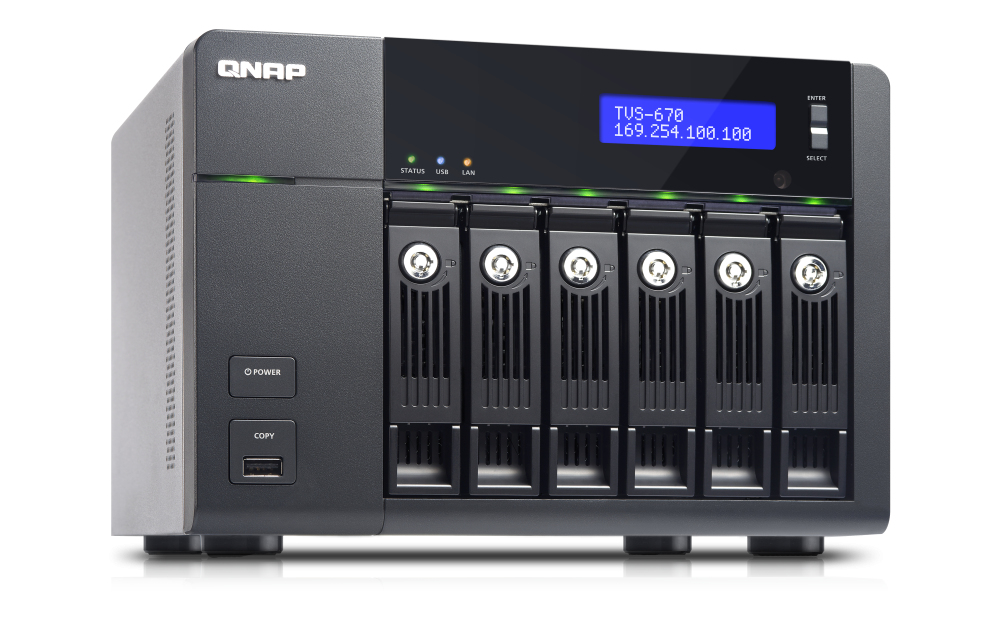

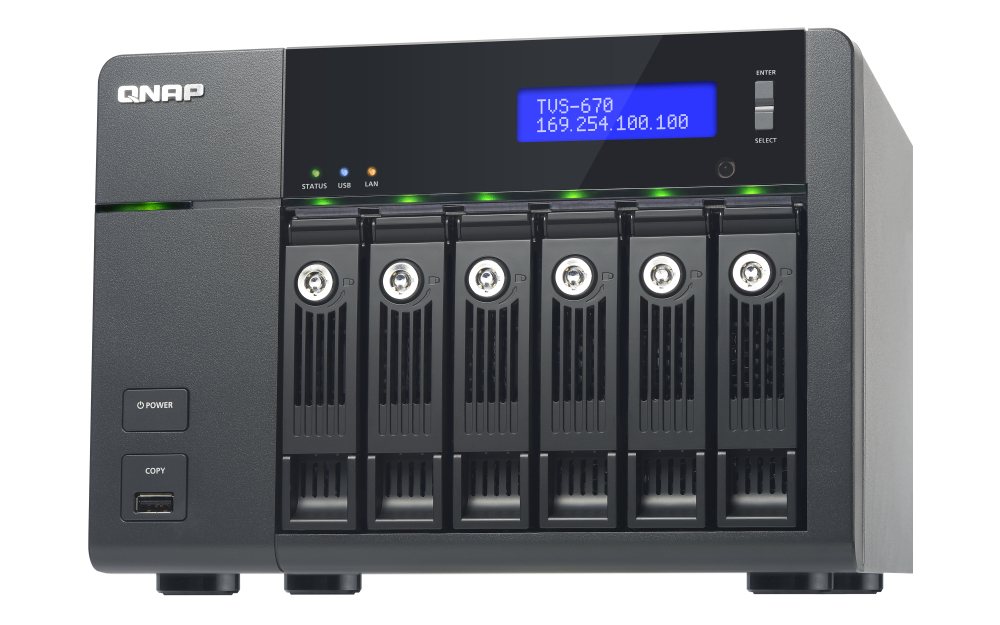

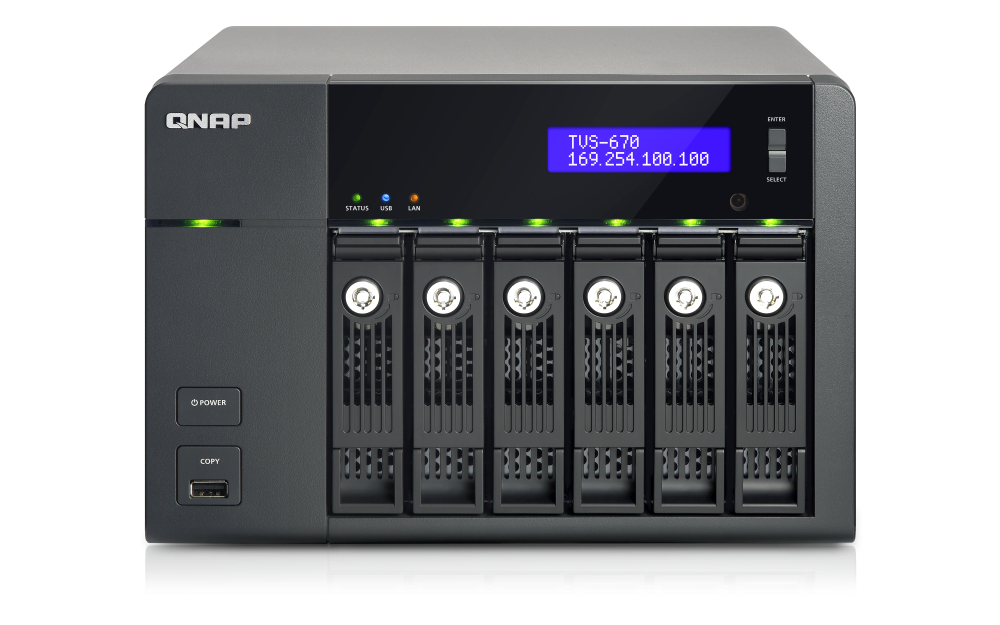

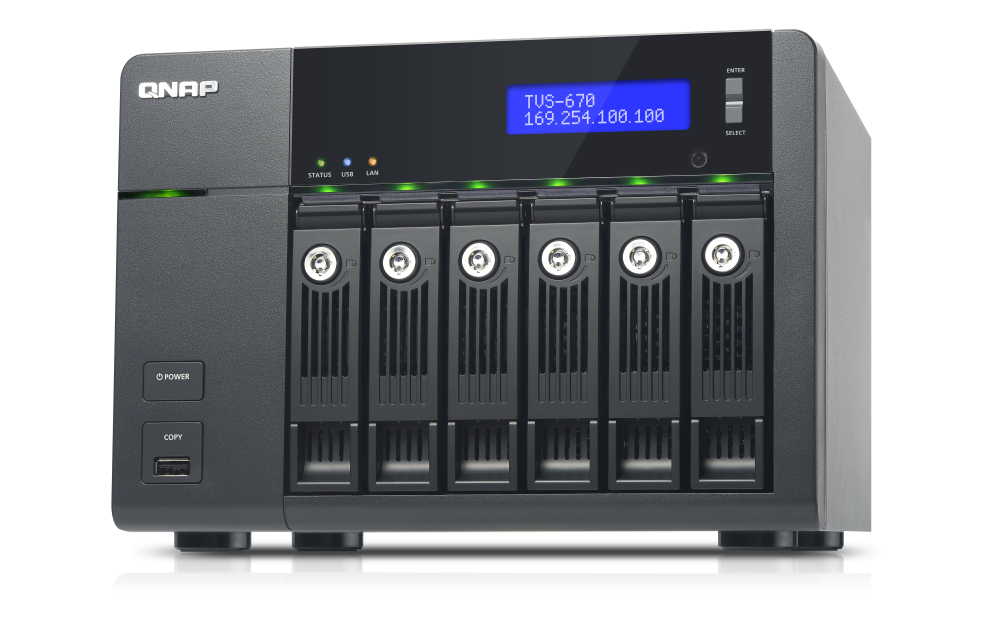

TVS-670 NAS Desktop Intel® Core™ i5

16 GB 6 TB HDD QNAP QTS Black

Model TVS-670Part no. TVS-670-6X4000/NS

87 specifications

Overview

Brand: QNAP
Category: NAS & Storage Servers
Model: TVS-670
Part numbers: TVS-670-6X4000/NS, TVS-670-6X1000-EC, TVS-670-6X1000-RE, TVS-670-6X1000-TS, TVS-670-6X1000/NS, TVS-670-6X2000-EC +13 more
Also known as: QNAP TVS-670 NAS Desktop Intel® Core™ i5 16 GB 6 TB HDD QNAP QTS Black

87 specifications in 12 groups

Specification	Value
Storage drives installed	Yes
Total installed storage capacity	6 TB
Number of storage drives installed	6
Number of storage drives supported	6
Installed storage drive type	HDD
Supported storage drive types	HDD & SSD
Storage drive capacity	1 TB
Storage drive interface	Serial ATA III
Supported storage drive interfaces	Serial ATA, Serial ATA II, Serial ATA III
Storage drive sizes supported	2.5,3.5"
Total installed system drives capacity	1 GB
RAID support	Yes
RAID levels	0, 1, 5, 6, 10, JBOD
Online RAID migration	Yes
Online RAID expansion	Yes
RAID rebuild	Yes
Hot-swap drive bays	Yes
Supported file systems	FAT32, HFS+, NTFS, ext3, ext4
Auto-rebuild	Yes
Bad block scan	Yes
Disk roaming	Yes

Specification	Value
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
DHCP client	Yes
DHCP server	Yes
Jumbo frames support	Yes
iSCSI support	Yes
Wake-on-LAN ready	Yes
Dynamic DNS (DDNS)	Yes
Supported network protocols	CIFS/SMB, SMB2.1, SMB3.0 (Encryption only), AFP (v3.3), NFS(v3), FTP, FTPS, SFTP, TFTP, HTTP(S), Telnet, SSH, iSCSI, SNMP, SMTP, SMSC

Specification	Value
Ethernet LAN (RJ-45) ports	4
USB port	Yes
USB 2.0 ports quantity	3
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
eSATA ports quantity	2
HDMI ports quantity	1
Audio in/out	Yes

Specification	Value
Type	NAS
Device class	Home & Home Office
Backup function	Yes
Backup features	Cloud, USB drive, iSCSI LUN
Buzzer	Yes
Multilingual support	Yes
Backup button	Yes
Browser supported	Chrome, Internet Explorer 10+, Firefox, Safari
Built-in FTP server	Yes
Built-in UPnP AV media server	Yes
Disk scan	Yes
On/off switch	Yes
Password authentication	Yes
Remotely operated	Yes
Reset button	Yes
Security algorithms	256-bit AES, FIPS 140-2, SNMPv2, SNMPv3
USB copy function	Yes

Specification	Value
Operating system installed	QNAP QTS
Operating system version	4.1

Specification	Value
Power supply location	Built-in
Power supply unit (PSU) capacity	250 W
Power consumption (typical)	49.8 W
Power consumption (sleep)	26.3 W
Power consumption (off)	1 W
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
