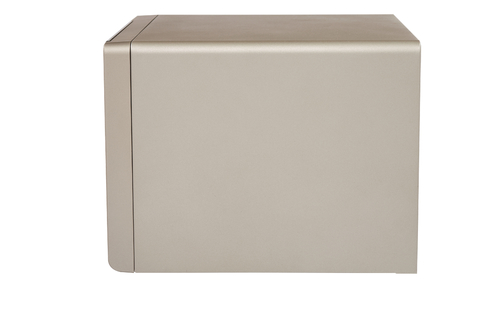

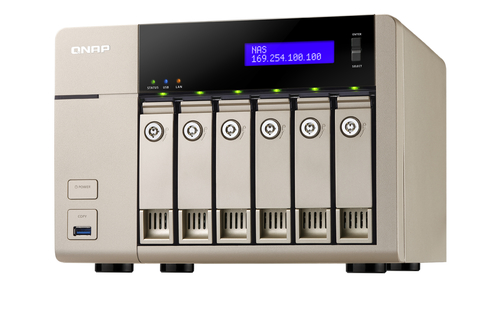

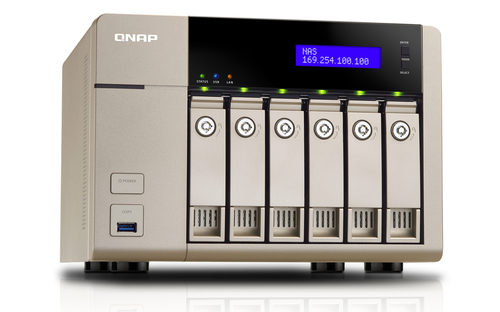

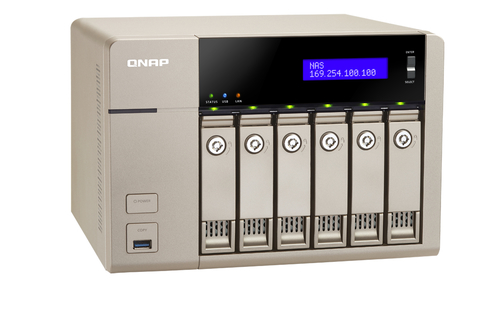

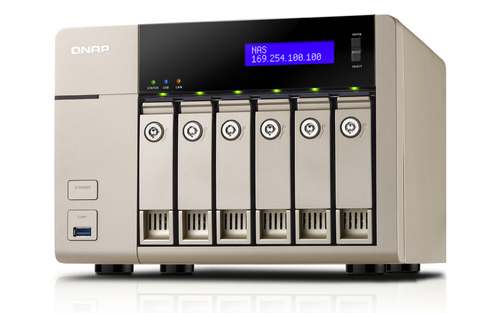

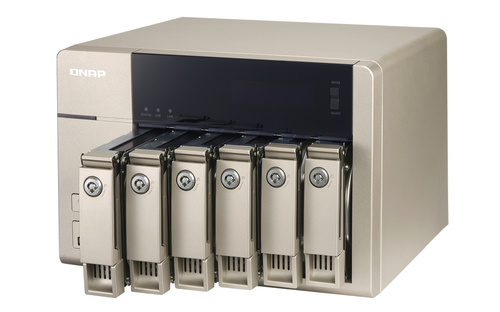

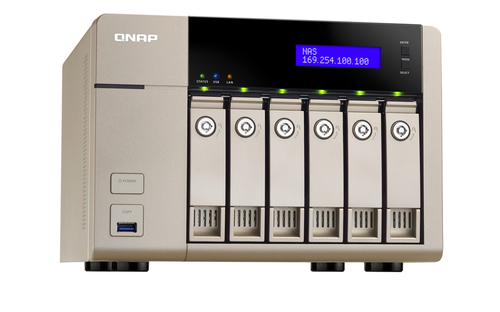

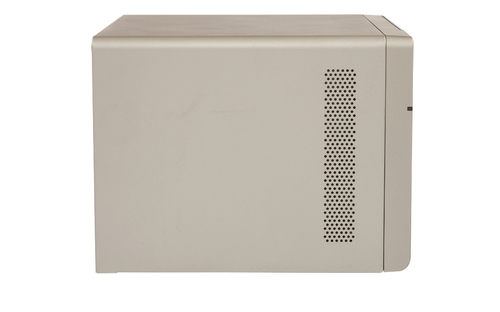

QNAP TVS-663 NAS Tower

4 GB DDR3L 0 TB QNAP Turbo System Gold

Model TVS-663Part no. TVS-663-4G/18TB-HGSTEAN 5050914863326

96 specifications

Overview

Brand: QNAP
Category: NAS & Storage Servers
Model: TVS-663
Part numbers: TVS-663-4G/18TB-HGST, TVS-663-4G, TVS-663-8G, TVS-663-US, TVS-663-8G-US, TVS-663-4G-US +34 more
EAN / UPC: 5050914863326, 4053162674653, 4053162674660, 4712511127041 +36 more
Also known as: QNAP TVS-663 NAS Tower 4 GB DDR3L 0 TB QNAP Turbo System Gold

96 specifications in 13 groups

Specification	Value
Storage drives installed	No
Total installed storage capacity	0 TB
Number of storage drives installed	0
Number of storage drives supported	6
Installed storage drive type	No
Supported storage drive types	HDD & SSD
Storage drive capacity	0 GB
Supported storage drive interfaces	Serial ATA, Serial ATA II, Serial ATA III
Storage drive sizes supported	2.5,3.5"
RAID support	Yes
RAID levels	0, 1, 5, 6, 10
Hot-swap drive bays	Yes
Supported file systems	ext3, ext4, FAT32, HFS+, NTFS

Specification	Value
Processor frequency	2.4 GHz
Processor cores	4

Specification	Value
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Wi-Fi	No
DHCP client	Yes
DHCP server	Yes
Jumbo frames support	Yes
iSCSI support	Yes
Wake-on-LAN ready	Yes
Link aggregation	Yes
Supported network protocols	CIFS/SMB, AFP (v3.3), NFS(v3), FTP, FTPS, SFTP, TFTP, HTTP(S), Telnet, SSH, iSCSI, SNMP, SMTP, and SMSC

Specification	Value
Ethernet LAN (RJ-45) ports	2
USB port	Yes
USB 2.0 ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	5
HDMI ports quantity	2

Specification	Value
Type	NAS
Device class	Small & Medium Business
Backup function	Yes
Backup features	Cloud, iSCSI LUN
Buzzer	Yes
Multilingual support	Yes
Noise level	20.7 dB
Share folder access right management	Yes
Web-based management	Yes
Access Control List (ACL)	Yes
Browser supported	Microsoft Internet Explorer 10+, Mozilla Firefox 8+, Apple Safari 4+, Google Chrome
Built-in FTP server	Yes
Built-in UPnP AV media server	Yes
Hot spare	Yes
On/off switch	Yes
Password authentication	Yes
Reset button	Yes
S.M.A.R.T. support	Yes
Security algorithms	256-bit AES, HTTPS, SSH, SSL/TLS
Share folder	CIFS/SMB
System log	Yes

Specification	Value
Operating system installed	QNAP Turbo System
Operating system version	4.1
Windows operating systems supported	Yes
Linux operating systems supported	Yes
Mac operating systems supported	Yes
Server operating systems supported	Windows Server 2003, Windows Server 2003 R2, Windows Server 2008, Windows Server 2008 R2

Specification	Value
Power supply location	Built-in
Power supply unit (PSU) capacity	250 W
Number of power supply units	1
Redundant power supply (RPS) support	No
Power consumption (typical)	58.81 W
Power consumption (sleep)	41.56 W
Power consumption (off)	2.19 W
AC input voltage	110-240 V
AC input frequency	50 - 60 Hz
Fan voltage	12 V
Output current	5 A

Specification	Value
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	5 - 95%

Specification	Value
Power management	Yes
