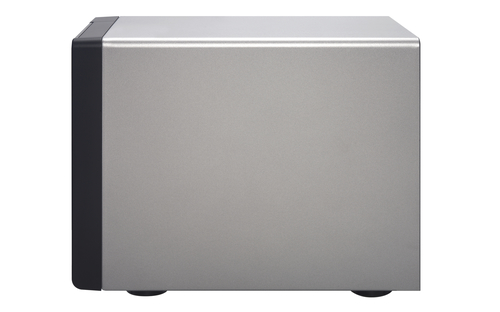

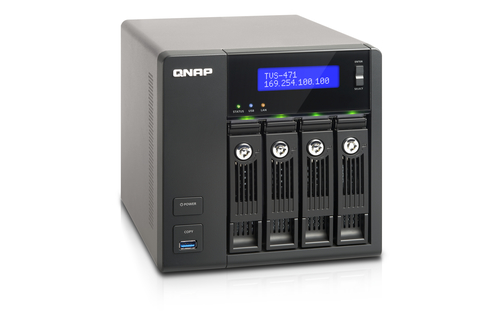

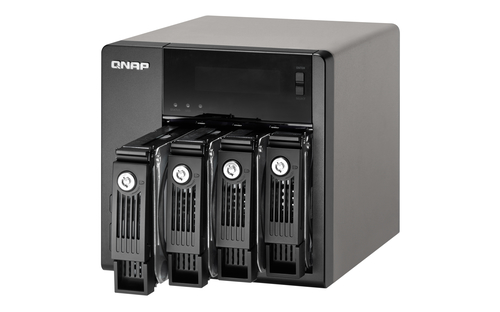

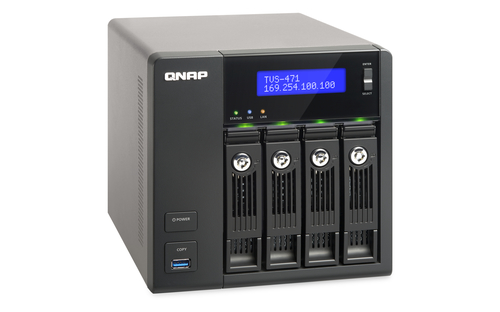

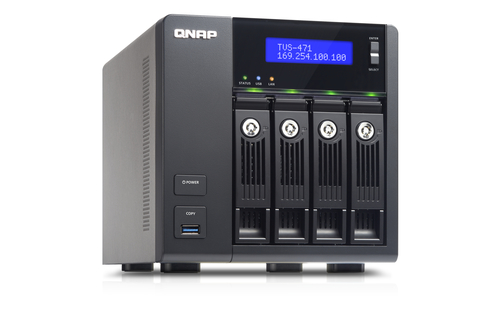

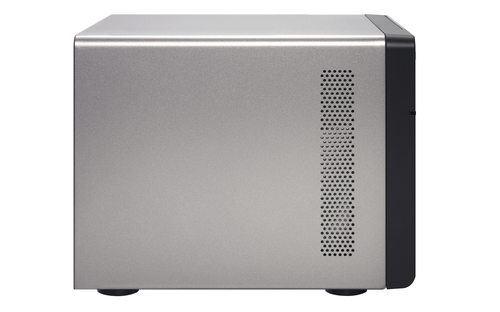

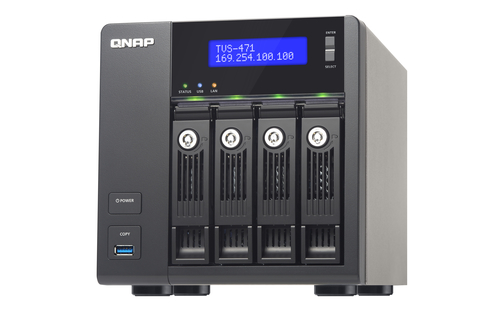

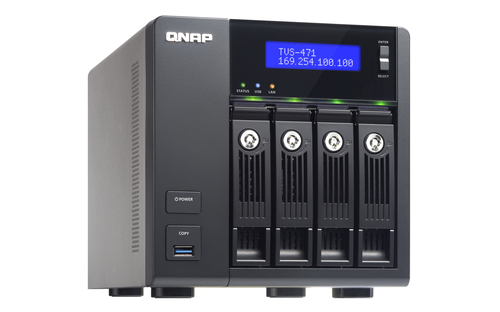

QNAP TVS-471 NAS Tower Intel® Core™ i3 i3-4150

4 GB DDR3 0 TB QNAP Turbo System Black

Model TVS-471Part no. TVS-471-I3-4G/2X4,0TBEAN 5051868147142

152 specifications

Overview

Brand: QNAP
Category: NAS & Storage Servers
Model: TVS-471
Part numbers: TVS-471-I3-4G/2X4,0TB, TVS-471-I3-4G/4X3,0TB, TVS-471-I3-4G/4X2,0TB, TVS-471-I3-4G/4X4,0TB, TVS-471-I3-4G/2X3,0TB, TVS-471-I3-4G/2X1,0TB +34 more
EAN / UPC: 5051868147142, 4712511126594, 5050914862091, 5050914862169 +31 more
Also known as: QNAP TVS-471 NAS Tower Intel® Core™ i3 i3-4150 4 GB DDR3 0 TB QNAP Turbo System Black

152 specifications in 15 groups

Specification	Value
Storage drives installed	No
Total installed storage capacity	0 TB
Number of storage drives installed	0
Number of storage drives supported	4
Installed storage drive type	No
Supported storage drive types	HDD & SSD
Storage drive capacity	0 GB
Storage drive interface	Serial ATA II, Serial ATA III
Storage drive size	2.5/3.5"
RAID support	Yes
RAID levels	0, 1, 5, 6, 10, JBOD
Hot-swap drive bays	Yes
Supported file systems	FAT32, HFS+, NTFS, ext3, ext4

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Core™ i3
Processor generation	4th gen Intel® Core™ i3
Processor model	i3-4150
Processor frequency	3.5 GHz
Processor cores	2
Processor threads	4
Processor cache	3 MB
Bus type	DMI
CPU configuration (max)	1
ECC supported by processor	Yes
PCI Express configurations	1x16, 2x8, 1x8+2x4
PCI Express slots version	3.0
Processor cache type	Smart Cache
Processor code	SR1PJ
Processor codename	Haswell
Processor lithography	22 nm
Processor operating modes	32-bit, 64-bit
Processor package size	37.5 x 37.5 mm
Processor series	Intel Core i3-4100 Desktop series
Processor socket	LGA 1150 (Socket H3)
Scalability	1S
Stepping	C0
System bus rate	5 GT/s
Tcase	72 °C
Thermal Design Power (TDP)	54 W
On-board graphics card model	Intel® HD Graphics 4400
Maximum internal memory supported by processor	32 GB
Memory bandwidth supported by processor (max)	25.6 GB/s
Conflict-Free processor	Yes

Specification	Value
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Wi-Fi	No
DHCP client	Yes
DHCP server	Yes
Jumbo frames support	Yes
iSCSI support	Yes
Wake-on-LAN ready	Yes
Link aggregation	Yes
Supported network protocols	CIFS/SMB, AFP (v3.3), NFS(v3), FTP, FTPS, SFTP, TFTP, HTTP(S), Telnet, SSH, iSCSI, SNMP, SMTP, SMSC

Specification	Value
Ethernet LAN (RJ-45) ports	4
USB 2.0 ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	3
Fiber ports quantity	0
HDMI ports quantity	1

Specification	Value
On-board graphics card DirectX version	11.1
On-board graphics card ID	0x41E
On-board graphics card base frequency	350 MHz
On-board graphics card dynamic frequency (max)	1150 MHz
Maximum on-board graphics card memory	1.024 GB
Number of displays supported (on-board graphics)	3

Specification	Value
Type	NAS
Device class	Small & Medium Business
Backup function	Yes
Backup features	Cloud, iSCSI LUN
Buzzer	Yes
Multilingual support	Yes
Noise level	17.3 dB
Share folder access right management	Yes
Web-based management	Yes
Access Control List (ACL)	Yes
Built-in FTP server	Yes
Built-in UPnP AV media server	Yes
Built-in iTunes server	Yes
Network Time Protocol (NTP) client	Yes
On/off switch	Yes
Reset button	Yes
S.M.A.R.T. support	Yes
Security algorithms	256-bit AES, FIPS 140-2, HTTPS, SSH
System log	Yes

Specification	Value
Operating system installed	QNAP Turbo System
Windows operating systems supported	Windows 7 Enterprise
Linux operating systems supported	Yes
Mac operating systems supported	Yes
Server operating systems supported	Windows Server 2003

Specification	Value
Power supply location	Built-in
Power supply unit (PSU) capacity	250 W
Number of power supply units	1
Power consumption (typical)	50.52 W
Power consumption (sleep)	28.19 W
AC input voltage	100-240 V
AC input frequency	50 - 60 Hz

Specification	Value
Cables included	AC, LAN (RJ-45)
Quick installation guide	Yes

Specification	Value
Embedded options available	No
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Graphics & IMC lithography	22 nm
Idle States	Yes
Intel 64	Yes
Intel Enhanced Halt State	Yes
Intel Small Business Advantage (SBA) version	1.00
Intel Stable Image Platform Program (SIPP)	No
Intel Stable Image Platform Program (SIPP) version	0.00
Intel TSX-NI	No
Intel TSX-NI version	0.00
Intel Trusted Execution Technology	No
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	No
Intel® AES New Instructions (Intel® AES-NI)	Yes
Intel® Clear Video HD Technology (Intel® CVT HD)	Yes
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel® InTru™ 3D Technology	Yes
Intel® Quick Sync Video Technology	Yes
Intel® Smart Cache	Yes
Intel® Turbo Boost Technology	No
Intel® Wireless Display (Intel® WiDi)	Yes
Maximum number of PCI Express lanes	16
Number of QPI links	0
Thermal Monitoring Technologies	Yes
Thermal solution specification	PCG 2013C
Memory channels supported by processor	Dual
Memory types supported by processor	DDR3-SDRAM

Specification	Value
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	5 - 95%

Specification	Value
Power management	Yes
Processor ARK ID	77486
