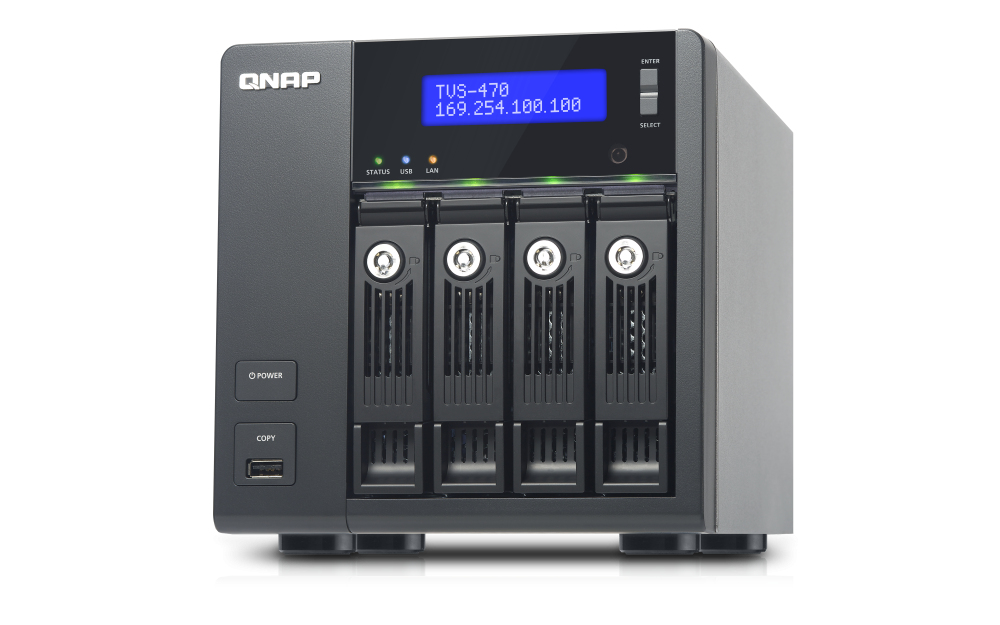

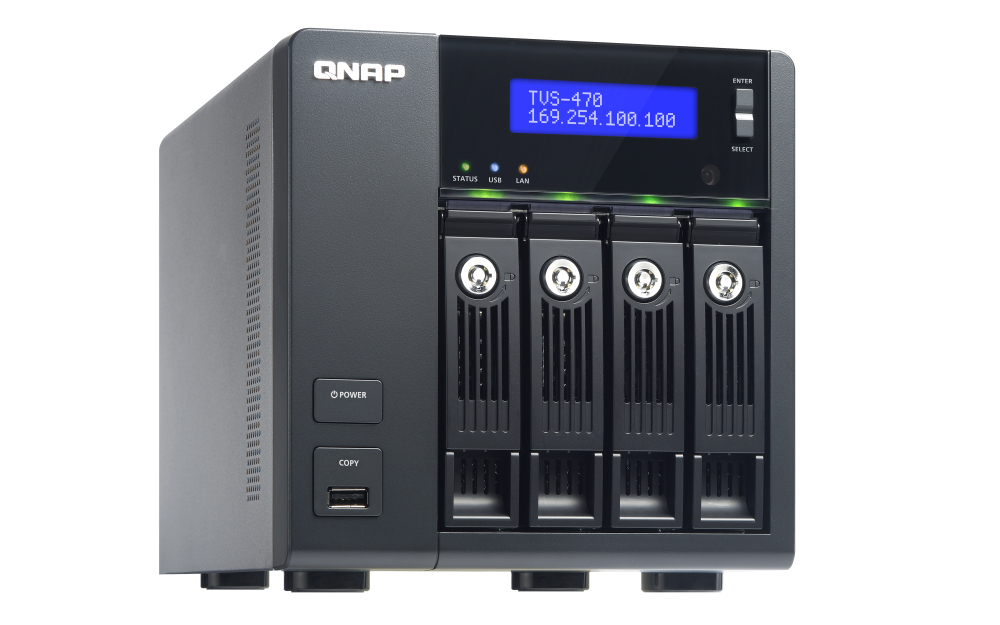

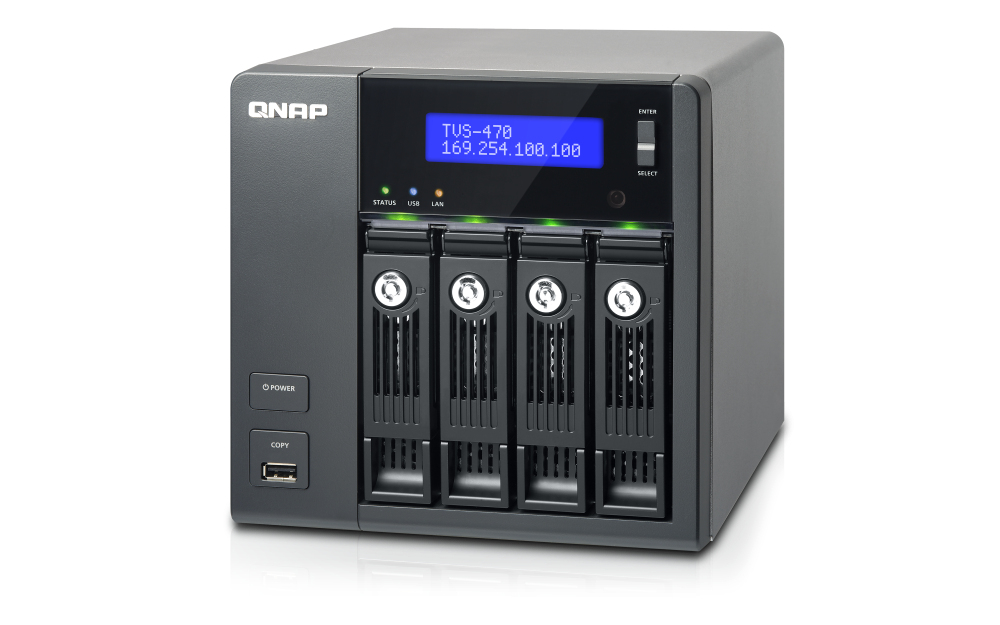

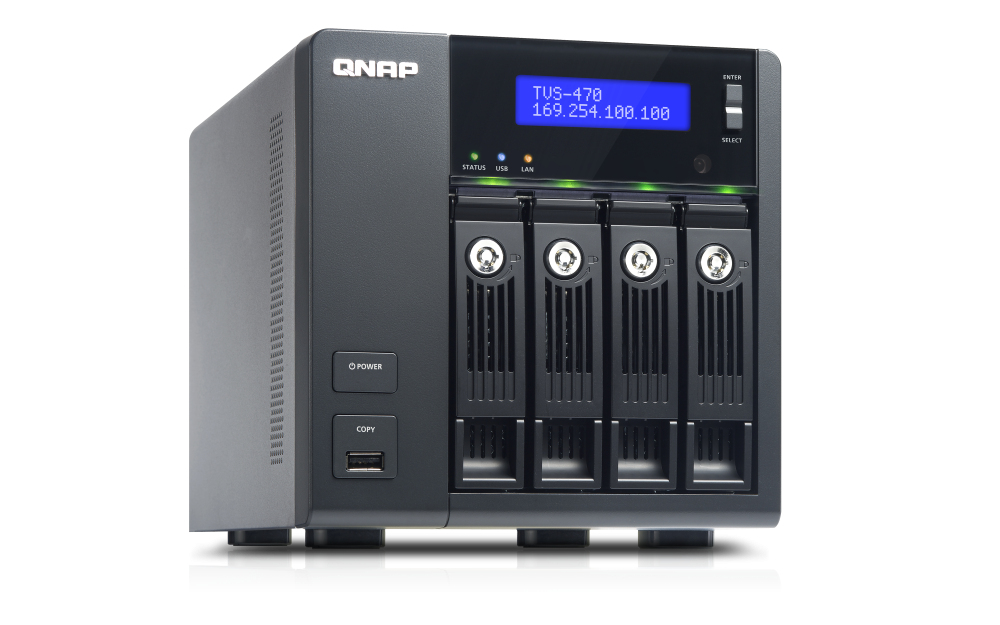

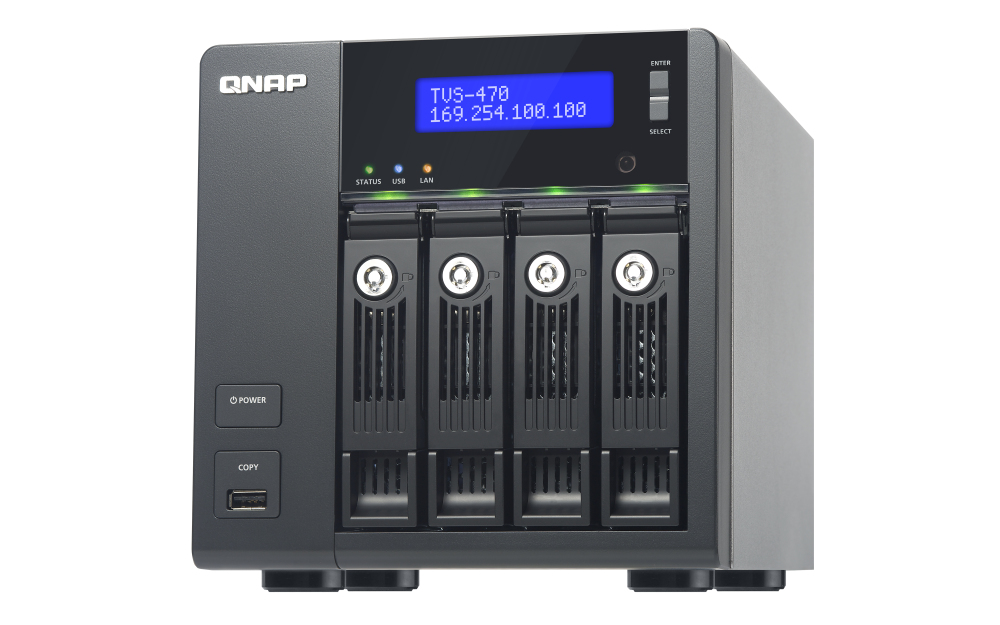

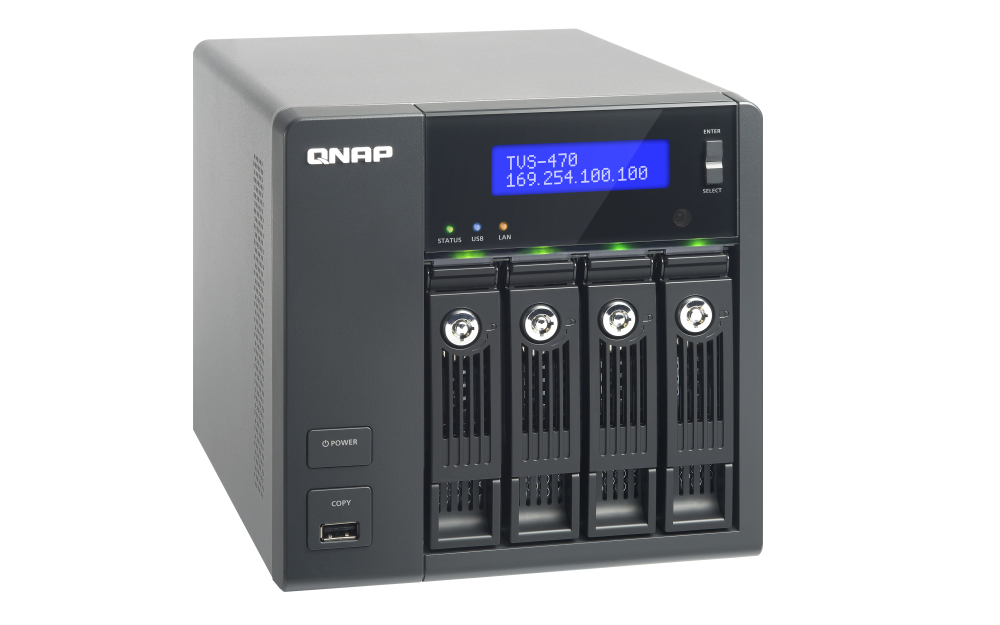

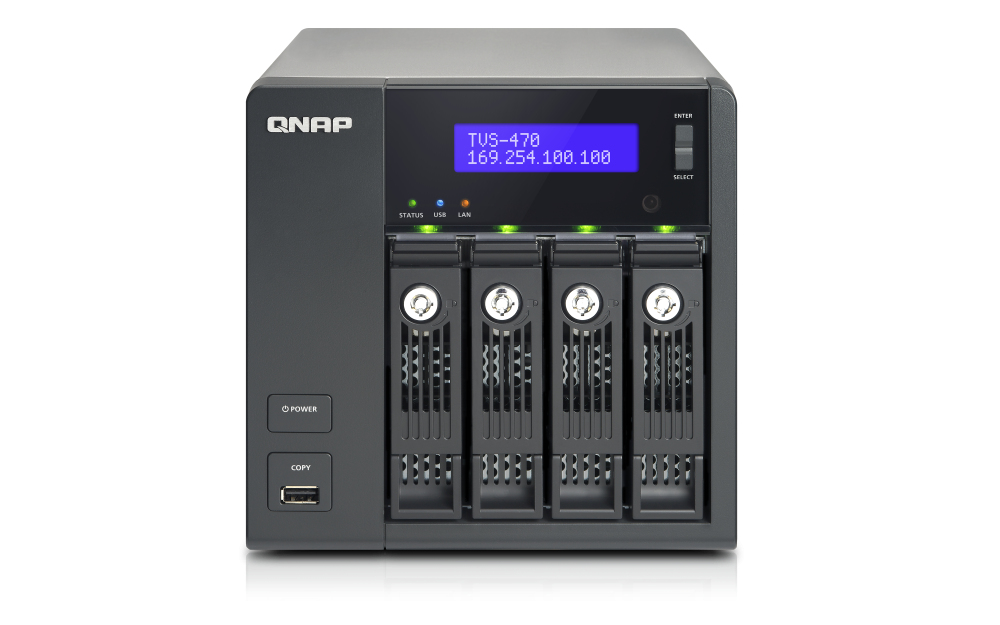

TVS-470 NAS Desktop Intel® Core™ i5
16 GB 4 TB HDD QNAP QTS Black
Model TVS-470Part no. TVS-470-4X4000-TS
85 specifications
- ProcessorIntel® Core™ i5
- Memory16 GB
- TypeNAS
- OSQNAP QTS
- ColourBlack
- Storage drives installedYes
Overview
- Processor
- Intel® Core™ i5
- Memory
- 16 GB
- Type
- NAS
- OS
- QNAP QTS
- Colour
- Black
- Storage drives installed
- Yes
- Brand
- QNAP
- Category
- NAS & Storage Servers
- Model
- TVS-470
- Part numbers
- TVS-470-4X4000-TS, TVS-470-4X1000-EC, TVS-470-4X3000-EC, TVS-470-4X1000-RE, TVS-470-4X3000/NS, TVS-470-4X1000-TS +13 more
- Also known as
- QNAP TVS-470 NAS Desktop Intel® Core™ i5 16 GB 4 TB HDD QNAP QTS Black
Specifications
85 specifications in 12 groups
Storage
| Specification | Value |
|---|---|
| Storage drives installed | Yes |
| Total installed storage capacity | 4 TB |
| Number of storage drives installed | 4 |
| Number of storage drives supported | 4 |
| Installed storage drive type | HDD |
| Supported storage drive types | HDD & SSD |
| Storage drive capacity | 1 TB |
| Storage drive interface | Serial ATA III |
| Supported storage drive interfaces | Serial ATA, Serial ATA II, Serial ATA III |
| Storage drive sizes supported | 2.5,3.5" |
| Total installed system drives capacity | 1 GB |
| RAID support | Yes |
| RAID levels | 0, 1, 5, 6, 10, JBOD |
| Online RAID migration | Yes |
| Online RAID expansion | Yes |
| RAID rebuild | Yes |
| Hot-swap drive bays | Yes |
| Supported file systems | FAT32, HFS+, NTFS, ext3, ext4 |
| Auto-rebuild | Yes |
| Bad block scan | Yes |
| Disk roaming | Yes |
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel® Core™ i5 |
| Processor cores | 4 |
Memory
| Specification | Value |
|---|---|
| Internal memory | 16 GB |
| Memory form factor | SO-DIMM |
| Memory slots | 2 |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| DHCP client | Yes |
| DHCP server | Yes |
| Jumbo frames support | Yes |
| iSCSI support | Yes |
| Wake-on-LAN ready | Yes |
| Dynamic DNS (DDNS) | Yes |
| Supported network protocols | CIFS/SMB, SMB2.1, SMB3.0 (Encryption only), AFP (v3.3), NFS(v3), FTP, FTPS, SFTP, TFTP, HTTP(S), Telnet, SSH, iSCSI, SNMP, SMTP, SMSC |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 4 |
| USB port | Yes |
| USB 2.0 ports quantity | 3 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| eSATA ports quantity | 2 |
| HDMI ports quantity | 1 |
| Audio in/out | Yes |
Design
| Specification | Value |
|---|---|
| Chassis type | Desktop |
| Cooling type | Active |
| Product colour | Black |
| Number of fans | 1 fan(s) |
| Fan diameter | 9 cm |
| Drive bay locking | Yes |
| LED indicators | Yes |
| Built-in display | Yes |
| Display type | LCD |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
Performance
| Specification | Value |
|---|---|
| Type | NAS |
| Device class | Home & Home Office |
| Backup function | Yes |
| Backup features | Cloud, USB drive, iSCSI LUN |
| Backup button | Yes |
| Browser supported | Chrome, Internet Explorer 10+, Firefox, Safari |
| Built-in FTP server | Yes |
| Built-in UPnP AV media server | Yes |
| Disk scan | Yes |
| On/off switch | Yes |
| Password authentication | Yes |
| Remotely operated | Yes |
| Reset button | Yes |
| Security algorithms | 256-bit AES, FIPS 140-2, SNMPv2, SNMPv3 |
| USB copy function | Yes |
Software
| Specification | Value |
|---|---|
| Operating system installed | QNAP QTS |
| Operating system version | 4.1 |
Power
| Specification | Value |
|---|---|
| Power supply location | Built-in |
| Power supply unit (PSU) capacity | 250 W |
| Power consumption (typical) | 38.4 W |
| Power consumption (sleep) | 23.9 W |
| Power consumption (off) | 1 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 180 mm |
| Depth | 235 mm |
| Height | 177 mm |
Packaging content
| Specification | Value |
|---|---|
| Cables included | AC |
| Power cables quantity | 1 |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 5 - 95% |
