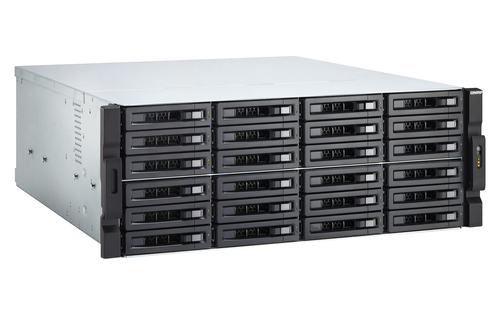

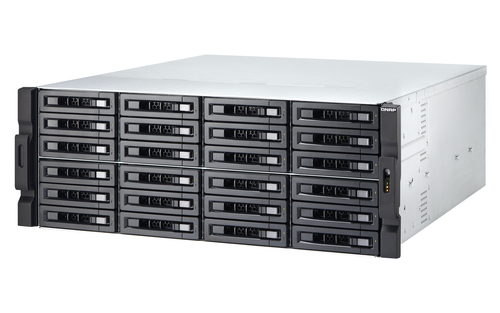

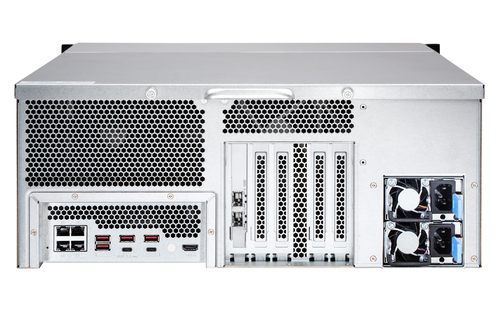

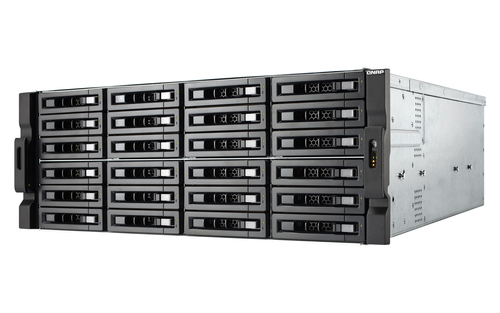

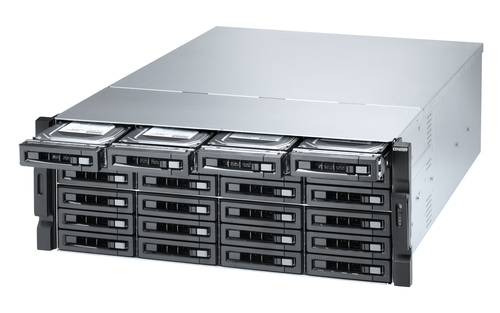

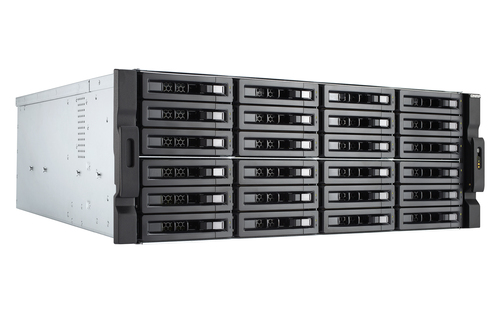

TVS-2472XU-RP NAS Rack (4U) Intel® Core™ i5 i5-8500

8 GB DDR4 0 TB QNAP Turbo System Black

Model TVS-2472XU-RPPart no. TVS-2472XU-RP-I5-8G/48TB-EXOSEAN 5050914084202

169 specifications

Overview

Brand: QNAP
Category: NAS & Storage Servers
Model: TVS-2472XU-RP
Part numbers: TVS-2472XU-RP-I5-8G/48TB-EXOS, TVS-2472XU-RP-I5-8G, TVS-2472XU-RP-I5-8G-US, TVS-2472XU-RP-I5-8G-144TB-EXOS, TVS-2472XU-RP-I5-8G-192TB-EXOS, TVS-2472XU-RP-I5-8G/144TB-IWPRO +34 more
EAN / UPC: 5050914084202, 4713213514689, 885022016631, 5050914084035 +56 more
Also known as: QNAP TVS-2472XU-RP NAS Rack (4U) Intel® Core™ i5 i5-8500 8 GB DDR4 0 TB QNAP Turbo System Black

169 specifications in 16 groups

Specification	Value
Storage drives installed	No
Total installed storage capacity	0 TB
Number of storage drives installed	0
Number of storage drives supported	24
Installed storage drive type	No
Supported storage drive types	HDD & SSD
Storage drive capacity	0 GB
Supported storage drive interfaces	Serial ATA III
Storage drive sizes supported	2.5,3.5"
RAID support	Yes
RAID levels	0, 1, 5, 6, 10, 50, 60, JBOD
Online RAID migration	Yes
Online RAID expansion	Yes
RAID rebuild	Yes
Hot-swap drive bays	Yes
Supported file systems	FAT32, NTFS, exFAT, ext3, ext4
Bad block scan	Yes
Disk roaming	Yes

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Core™ i5
Processor generation	8th gen Intel® Core™ i5
Processor model	i5-8500
Processor frequency	3 GHz
Processor boost frequency	4.1 GHz
Processor cores	6
Processor threads	6
Processor cache	9 MB
Bus type	DMI3
CPU configuration (max)	1
ECC supported by processor	No
PCI Express configurations	1x16, 1x8+2x4, 2x8
PCI Express slots version	3.0
Processor cache type	Smart Cache
Processor codename	Coffee Lake
Processor lithography	14 nm
Processor operating modes	64-bit
Processor package size	37.5 x 37.5 mm
Processor socket	LGA 1151 (Socket H4)
Scalability	1S
System bus rate	8 GT/s
Thermal Design Power (TDP)	65 W
Tjunction	100 °C
On-board graphics card model	Intel® UHD Graphics 630
Maximum internal memory supported by processor	64 GB
Memory bandwidth supported by processor (max)	41.6 GB/s
Conflict-Free processor	Yes

Specification	Value
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Wi-Fi	No
DHCP client	Yes
DHCP server	Yes
Jumbo frames support	Yes
iSCSI support	Yes
Wake-on-LAN ready	Yes
Dynamic DNS (DDNS)	Yes
Fault tolerance	Yes
Link aggregation	Yes
Load balancing system	Yes
Supported network protocols	TCP/IP, IPv4, IPv6
WLAN adapter supported	Yes

Specification	Value
Ethernet LAN (RJ-45) ports	4
USB port	Yes
USB 2.0 ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	4
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	2
Fiber ports quantity	2
Fiber optic connector	SFP+
HDMI ports quantity	1
HDMI version	2.0

Specification	Value
On-board graphics card DirectX version	12.0
On-board graphics card ID	0x3E92
On-board graphics card OpenGL version	4.5
On-board graphics card base frequency	350 MHz
On-board graphics card dynamic frequency (max)	1100 MHz
Maximum on-board graphics card memory	64 GB
Number of displays supported (on-board graphics)	3

Specification	Value
Type	NAS
Backup function	Yes
Backup features	iSCSI LUN
Multilingual support	Yes
Noise level	36.3 dB
Snapshot	Yes
Management protocols	SNMP 2/3
Share folder access right management	Yes
Web-based management	Yes
Access Control List (ACL)	Yes
Browser supported	Apple Safari 7, Google Chrome, Microsoft Internet Explorer 10, Mozilla Firefox
Built-in FTP server	Yes
Built-in iTunes server	Yes
Hot spare	Yes
On/off switch	Yes
Reset button	Yes
S.M.A.R.T. support	Yes
Security algorithms	256-bit AES, FIPS 140-2, HTTPS, SSH, SSL/TLS
Share folder	CIFS/SMB
System log	Yes
Universal Plug and Play (UPnP)	Yes

Specification	Value
Operating system installed	QNAP Turbo System
Windows operating systems supported	Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home
Linux operating systems supported	Yes
Mac operating systems supported	Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks
Server operating systems supported	Windows Server 2003, Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016

Specification	Value
Power supply unit (PSU) capacity	800 W
Number of power supply units	2
Redundant power supply (RPS) support	Yes
Power consumption (typical)	171.29 W
AC input voltage	100 - 240 V
Fan voltage	12 V

Specification	Value
Embedded options available	Yes
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Idle States	Yes
Intel 64	Yes
Intel Clear Video Technology	Yes
Intel Enhanced Halt State	Yes
Intel Identity Protection Technology version	1.00
Intel Secure Key Technology version	1.00
Intel Stable Image Platform Program (SIPP)	Yes
Intel Stable Image Platform Program (SIPP) version	1.00
Intel TSX-NI	Yes
Intel TSX-NI version	1.00
Intel Trusted Execution Technology	Yes
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel® AES New Instructions (Intel® AES-NI)	Yes
Intel® Clear Video HD Technology (Intel® CVT HD)	Yes
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	Yes
Intel® Hyper Threading Technology (Intel® HT Technology)	No
Intel® Identity Protection Technology (Intel® IPT)	Yes
Intel® InTru™ 3D Technology	Yes
Intel® OS Guard	Yes
Intel® Quick Sync Video Technology	Yes
Intel® Secure Key	Yes
Intel® Turbo Boost Technology	2.0
Maximum number of PCI Express lanes	16
Thermal Monitoring Technologies	Yes
Thermal solution specification	PCG 2015C
Memory channels supported by processor	Dual
Memory types supported by processor	DDR4-SDRAM
