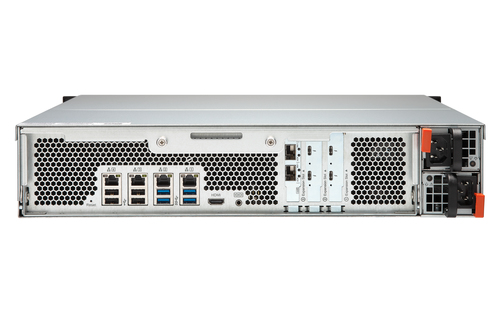

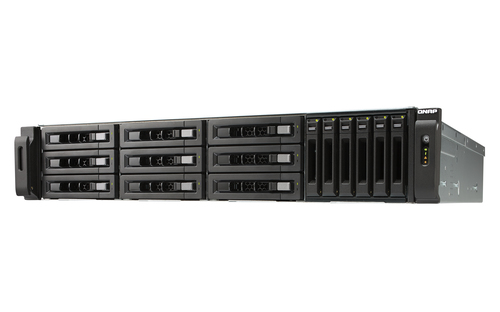

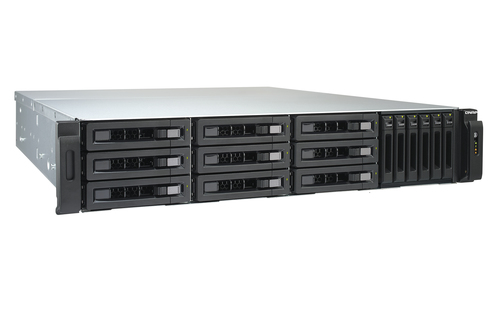

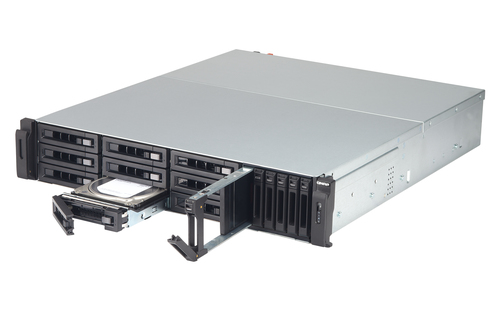

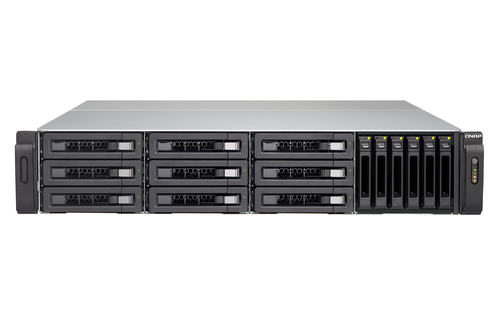

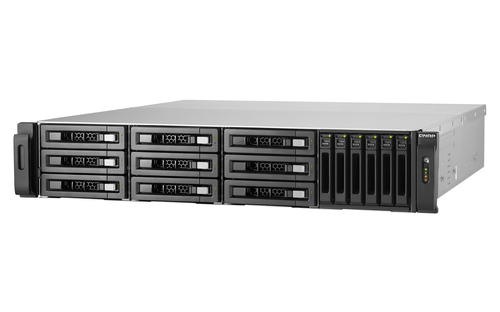

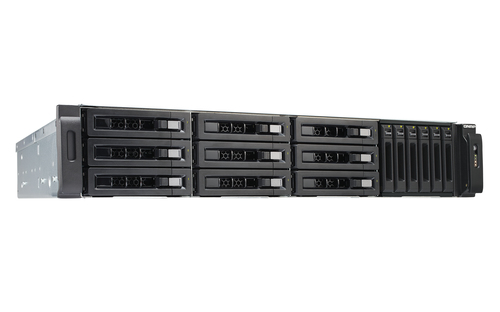

QNAP TVS-1582TU-I7 NAS Rack (2U)
QNAP

TVS-1582TU-I7 NAS Rack (2U)

32 GB DDR4 54 TB HDD Black

Model TVS-1582TU-I7Part no. TVS-1582TU-I7-32G/54TB-IWPROEAN 5051868042096

136 specifications
  • Memory32 GB
  • Noise53.9 dB
  • TypeNAS
  • ColourBlack
  • Storage drives installedYes
  • Processor frequency3.6 GHz
See all specifications

Overview

Memory
32 GB
Noise
53.9 dB
Type
NAS
Colour
Black
Storage drives installed
Yes
Processor frequency
3.6 GHz
Brand
QNAP
Model
TVS-1582TU-I7
Part number
TVS-1582TU-I7-32G/54TB-IWPRO
EAN / UPC
5051868042096
Also known as
QNAP TVS-1582TU-I7 NAS Rack (2U) 32 GB DDR4 54 TB HDD Black

Specifications

136 specifications in 14 groups

Storage

Storage drives installedYes
Total installed storage capacity54 TB
Number of storage drives supported15
Installed storage drive typeHDD
Supported storage drive typesHDD & SSD
Supported storage drive interfacesSerial ATA II, Serial ATA III
Storage drive sizes supported2.5,3.5"
RAID supportYes
RAID levels0, 1, 5, 6, 10, JBOD
Online RAID migrationYes
Online RAID expansionYes
Hot-swap drive baysYes
Supported file systemsFAT32, HFS+, NTFS, ext3, ext4
Bad block scanYes

Processor

Processor frequency3.6 GHz
Processor boost frequency4.2 GHz
Processor cache8 MB
Bus typeDMI3
CPU configuration (max)1
ECC supported by processorNo
PCI Express configurations1x16, 1x8+2x4, 2x8
PCI Express slots version3.0
Processor cache typeSmart Cache
Processor codeSR338
Processor lithography14 nm
Processor operating modes64-bit
Processor package size37.5 x 37.5 mm
Scalability1S
SteppingB0
System bus rate8 GT/s
Thermal Design Power (TDP)65 W
Tjunction100 °C
Maximum internal memory supported by processor64 GB
Conflict-Free processorYes

Memory

Internal memory32 GB
Internal memory typeDDR4
Maximum RAM supported64 GB
Memory slots4
Flash memory512 MB

Network

Ethernet LANYes
Ethernet LAN data rates10,100,1000,10000 Mbit/s
Ethernet LAN data rate supported (max)10000 Mbit/s
Wi-FiNo
DHCP clientYes
DHCP serverYes
Jumbo frames supportYes
iSCSI supportYes
Wake-on-LAN readyYes
Dynamic DNS (DDNS)Yes
Supported network protocolsTCP/IP, IPv4, IPv6
WLAN adapter supportedYes

Ports & interfaces

Ethernet LAN (RJ-45) ports4
USB portYes
USB 2.0 ports quantity4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity4
Fiber ports quantity2
Fiber optic connectorSFP+
HDMI ports quantity1
Thunderbolt 3 ports quantity4

Graphics

On-board graphics card ID0x5912
On-board graphics card base frequency350 MHz
On-board graphics card dynamic frequency (max)1150 MHz
Maximum on-board graphics card memory64 GB
Number of displays supported (on-board graphics)3

Design

Chassis typeRack (2U)
Cooling typeActive
Product colourBlack
Number of fans4 fan(s)
Fan diameter6 cm
LED indicatorsHDD, SSD, Status

Performance

TypeNAS
Device classSmall & Medium Business
Backup functionYes
Backup featuresCloud, iSCSI LUN
BuzzerYes
Multilingual supportYes
Noise level53.9 dB
Share folder access right managementYes
Web-based managementYes
Access Control List (ACL)Yes
Browser supportedInternet Explorer 10+, Chrome, Safari 7+, Firefox
Built-in FTP serverYes
Built-in iTunes serverYes
Hot spareYes
On/off switchYes
Reset buttonYes
S.M.A.R.T. supportYes
Security algorithms256-bit AES, FIPS 140-2, HTTPS, SSH, SSL/TLS
Share folderCIFS/SMB
System logYes

Software

Operating system version4.3
Windows operating systems supportedWindows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 H
Linux operating systems supportedYes
Mac operating systems supportedMac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks
Server operating systems supportedWindows Server 2003, Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2

Power

Power supply locationBuilt-in
Power supply unit (PSU) capacity450 W
Number of power supply units2
Redundant power supply (RPS) supportYes
AC input voltage90-264 V

Weight & dimensions

Width442.5 mm
Depth530.5 mm
Height88 mm

Packaging content

Cables includedAC, LAN (RJ-45)
Quick installation guideYes

Processor special features

Embedded options availableNo
Enhanced Intel SpeedStep TechnologyYes
Execute Disable BitYes
Idle StatesYes
Intel 64Yes
Intel Clear Video TechnologyYes
Intel Enhanced Halt StateYes
Intel Stable Image Platform Program (SIPP)Yes
Intel TSX-NIYes
Intel Trusted Execution TechnologyYes
Intel VT-x with Extended Page Tables (EPT)Yes
Intel Virtualization Technology (VT-x)Yes
Intel Virtualization Technology for Directed I/O (VT-d)Yes
Intel® AES New Instructions (Intel® AES-NI)Yes
Intel® Clear Video HD Technology (Intel® CVT HD)Yes
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)Yes
Intel® Hyper Threading Technology (Intel® HT Technology)Yes
Intel® Identity Protection Technology (Intel® IPT)Yes
Intel® InTru™ 3D TechnologyYes
Intel® OS GuardYes
Intel® Quick Sync Video TechnologyYes
Intel® Secure KeyYes
Intel® Turbo Boost Technology2.0
Maximum number of PCI Express lanes16
Thermal Monitoring TechnologiesYes
Thermal solution specificationPCG 2015C
Memory channels supported by processorDual
Memory types supported by processorDDR3L, DDR4-SDRAM
Memory voltage supported by processor1.35 V

Operational conditions

Operating temperature (T-T)0 - 40 °C
Operating relative humidity (H-H)5 - 95%
