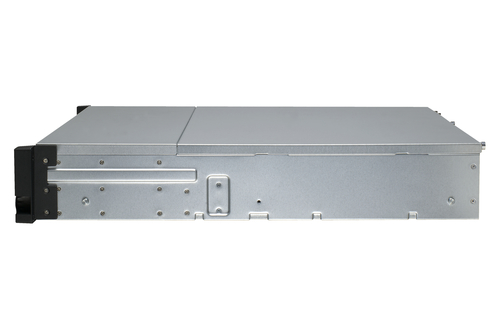

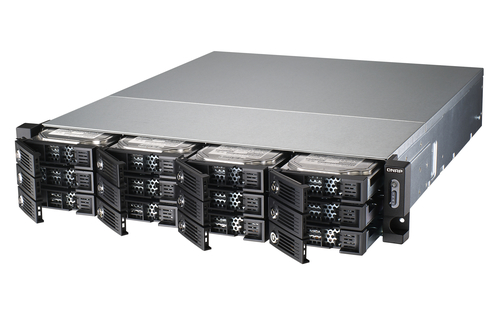

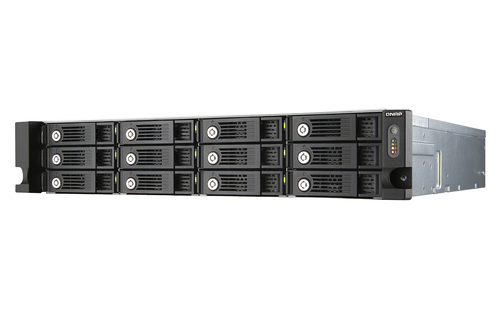

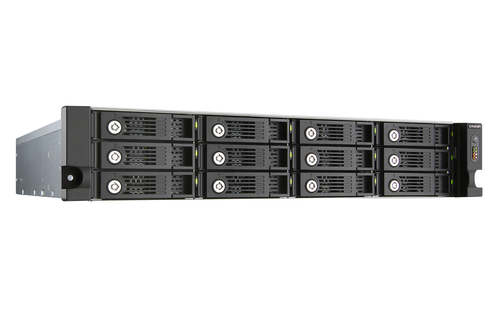

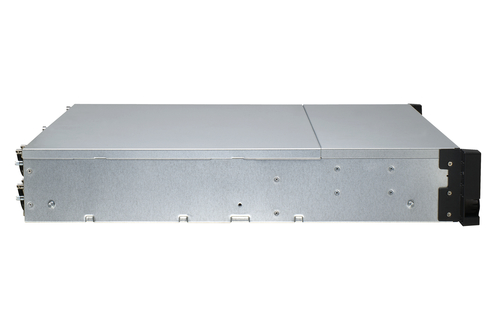

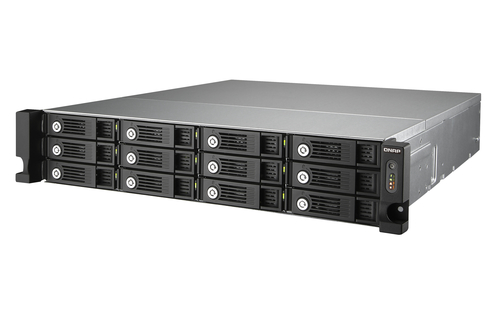

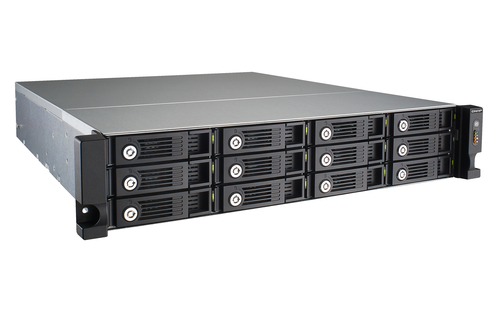

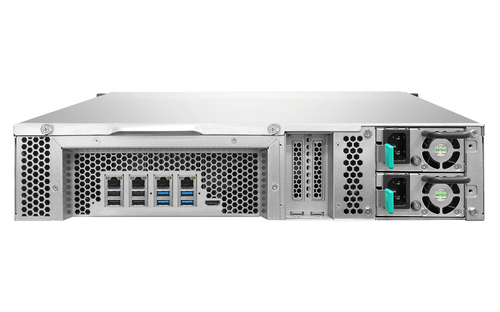

QNAP TVS-1271U-RP NAS Rack (2U) Intel® Core™ i3 i3-4150

QNAP TVS-1271U-RP NAS Rack (2U) Intel® Core™ i3 i3-4150

8 GB DDR3 0 TB QNAP Turbo System Black, Grey

Model TVS-1271U-RPPart no. TVS-1271U-RP-I7-32G + 12X WD2000F9YZEAN 4053162674608

155 specifications
  • ProcessorIntel® Core™ i3
  • Memory8 GB
  • Noise45 dB
  • TypeNAS
  • OSQNAP Turbo System
  • Weight16.1 kg
See all specifications

Overview

Processor
Intel® Core™ i3
Memory
8 GB
Noise
45 dB
Type
NAS
OS
QNAP Turbo System
Weight
16.1 kg
Brand
QNAP
Model
TVS-1271U-RP
Part numbers
TVS-1271U-RP-I7-32G + 12X WD2000F9YZ, TVS-1271U-RP-I7-32G + 12X WD3000F9YZ, TVS-1271U-RP-I7-32G + 12X WD4000F9YZ, TVS-1271U-RP-I3-8G, TVS-1271U-RP-I5-16G, TVS-1271U-RP-I7-32G +34 more
EAN / UPC
4053162674608, 4712511126686, 5050914861667, 4053162789685 +34 more
Also known as
QNAP TVS-1271U-RP NAS Rack (2U) Intel® Core™ i3 i3-4150 8 GB DDR3 0 TB QNAP Turbo System Black, Grey

Specifications

155 specifications in 15 groups

Storage

Storage drives installedNo
Total installed storage capacity0 TB
Number of storage drives installed0
Number of storage drives supported12
Installed storage drive typeNo
Supported storage drive typesHDD & SSD
Storage drive capacity0 GB
Supported storage drive interfacesSerial ATA, Serial ATA II, Serial ATA III
Storage drive sizes supported2.5,3.5"
RAID supportYes
RAID levels0, 1, 5, 6, 10, JBOD
Hot-swap drive baysYes
Supported file systemsext3, ext4, FAT32, HFS+, NTFS

Processor

Processor manufacturerIntel
Processor familyIntel® Core™ i3
Processor generation4th gen Intel® Core™ i3
Processor modeli3-4150
Processor frequency3.5 GHz
Processor cores2
Processor threads4
Processor cache3 MB
L3 cache3 MB
Bus typeDMI
CPU configuration (max)1
ECC supported by processorYes
PCI Express configurations1x16, 2x8, 1x8+2x4
PCI Express slots version3.0
Processor cache typeSmart Cache
Processor codeSR1PJ
Processor codenameHaswell
Processor lithography22 nm
Processor operating modes32-bit, 64-bit
Processor package size37.5 x 37.5 mm
Processor seriesIntel Core i3-4100 Desktop series
Processor socketLGA 1150 (Socket H3)
Scalability1S
SteppingC0
System bus rate5 GT/s
Tcase72 °C
Thermal Design Power (TDP)54 W
On-board graphics card modelIntel® HD Graphics 4400
Maximum internal memory supported by processor32 GB
Memory bandwidth supported by processor (max)25.6 GB/s
Conflict-Free processorYes

Memory

Internal memory8 GB
Internal memory typeDDR3
Maximum RAM supported32 GB
Memory slots4
Flash memory512 MB

Network

Ethernet LANYes
Ethernet LAN data rates10,100,1000,10000 Mbit/s
Wi-FiNo
DHCP clientYes
DHCP serverYes
Jumbo frames supportYes
iSCSI supportYes
Wake-on-LAN readyYes
Link aggregationYes
Supported network protocolsCIFS/SMB, SMB2.1, SMB3.0, AFP (v3.3), NFS(v3), FTP, FTPS, SFTP, TFTP, HTTP(S), Telnet, SSH, iSCSI, SNMP, SMTP, SMSC

Ports & interfaces

Ethernet LAN (RJ-45) ports4
USB portYes
USB 2.0 ports quantity4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity4
Fiber ports quantity0
HDMI ports quantity1

Graphics

On-board graphics card DirectX version11.1
On-board graphics card ID0x41E
On-board graphics card base frequency350 MHz
On-board graphics card dynamic frequency (max)1150 MHz
Maximum on-board graphics card memory1.024 GB
Number of displays supported (on-board graphics)3

Design

Chassis typeRack (2U)
Cooling typeActive
Product colourBlack, Grey
Number of fans3 fan(s)
Fan diameter7 cm
Drive bay lockingYes
LED indicatorsYes

Performance

TypeNAS
Device classSmall & Medium Business
Backup functionYes
Backup featuresCloud, iSCSI LUN
BuzzerYes
Multilingual supportYes
Number of users30 user(s)
Noise level45 dB
Share folder access right managementYes
Web-based managementYes
Access Control List (ACL)Yes
Browser supportedMicrosoft Internet Explorer 10+, Mozilla Firefox 8+, Apple Safari 4+, Google Chrome
Built-in FTP serverYes
Built-in UPnP AV media serverYes
Hot spareYes
On/off switchYes
Reset buttonYes
S.M.A.R.T. supportYes
Security algorithms256-bit AES, FIPS 140-2, HTTPS, SSH, SSL/TLS
Share folderCIFS/SMB
System logYes

Software

Operating system installedQNAP Turbo System
Operating system version4.1
Windows operating systems supportedWindows XP Professional
Linux operating systems supportedYes
Mac operating systems supportedYes
Server operating systems supportedWindows Server 2003

Power

Power supply locationBuilt-in
Power supply unit (PSU) capacity500 W
Number of power supply units1
Power consumption (typical)176.27 W
Power consumption (sleep)87.89 W
AC input voltage100-240 V
AC input frequency50 - 60 Hz
Output current7 A

Weight & dimensions

Width482 mm
Depth534 mm
Height89 mm
Weight16.1 kg
Package weight19 kg

Packaging content

Cables includedAC, LAN (RJ-45)
Quick installation guideYes
Number of screws84

Processor special features

Embedded options availableNo
Enhanced Intel SpeedStep TechnologyYes
Execute Disable BitYes
Graphics & IMC lithography22 nm
Idle StatesYes
Intel 64Yes
Intel Enhanced Halt StateYes
Intel Small Business Advantage (SBA) version1.00
Intel Stable Image Platform Program (SIPP)No
Intel Stable Image Platform Program (SIPP) version0.00
Intel TSX-NINo
Intel TSX-NI version0.00
Intel Trusted Execution TechnologyNo
Intel VT-x with Extended Page Tables (EPT)Yes
Intel Virtualization Technology (VT-x)Yes
Intel Virtualization Technology for Directed I/O (VT-d)No
Intel® AES New Instructions (Intel® AES-NI)Yes
Intel® Clear Video HD Technology (Intel® CVT HD)Yes
Intel® Hyper Threading Technology (Intel® HT Technology)Yes
Intel® InTru™ 3D TechnologyYes
Intel® Quick Sync Video TechnologyYes
Intel® Smart CacheYes
Intel® Turbo Boost TechnologyNo
Intel® Wireless Display (Intel® WiDi)Yes
Maximum number of PCI Express lanes16
Number of QPI links0
Thermal Monitoring TechnologiesYes
Thermal solution specificationPCG 2013C
Memory channels supported by processorDual
Memory types supported by processorDDR3-SDRAM

Operational conditions

Operating temperature (T-T)0 - 40 °C
Operating relative humidity (H-H)5 - 95%

Other features

Power managementYes
Processor ARK ID77486
