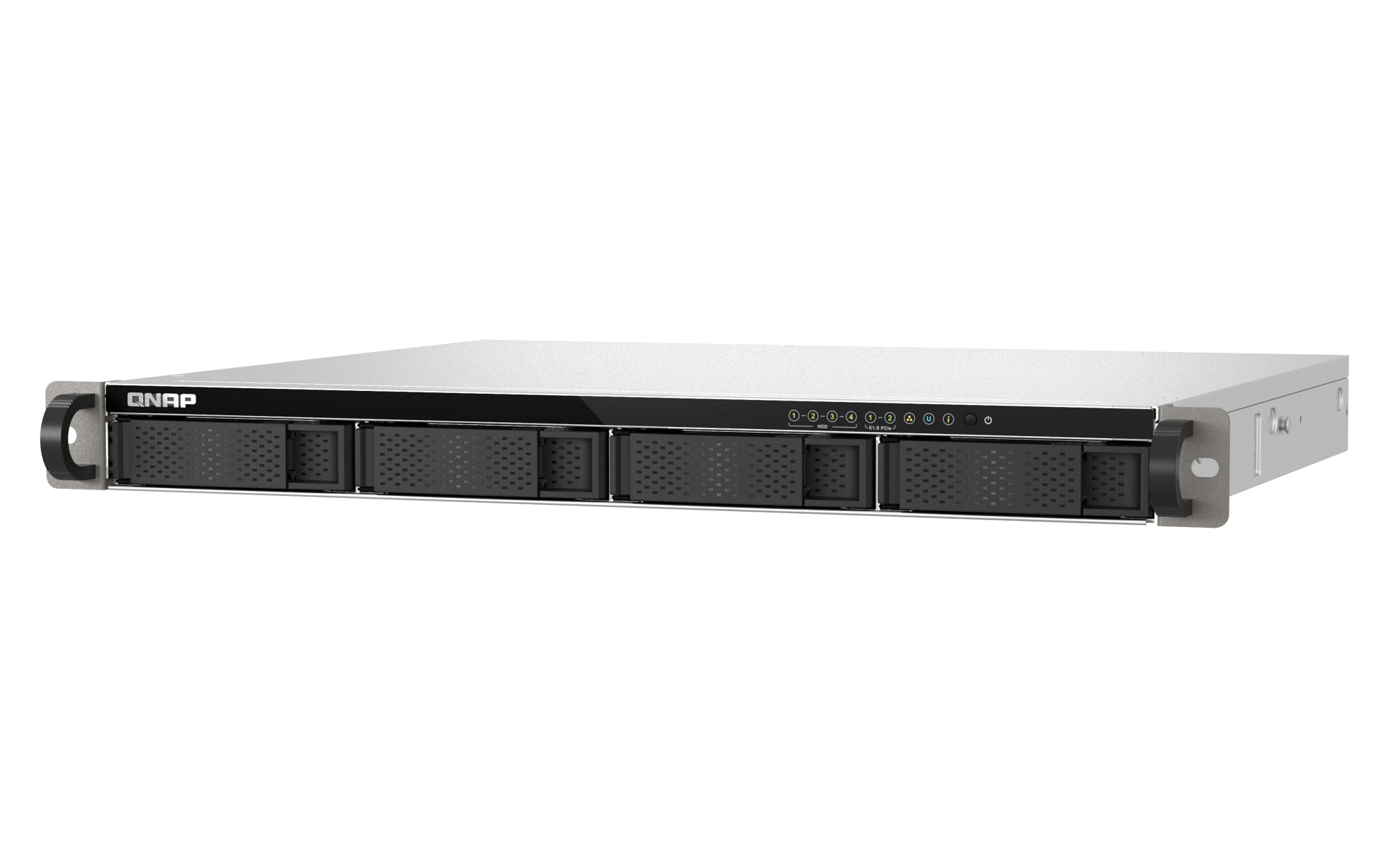

TS-H665U Storage server Rack (1U)
8 GB DDR5 0 TB QNAP QTS Black
Model TS-H665UPart no. TS-H665U-8GEAN 4711103091852
65 specifications
- Memory8 GB
- TypeStorage server
- OSQNAP QTS
- ColourBlack
- Storage drives installedNo
- Processor manufacturerIntel
Overview
- Memory
- 8 GB
- Type
- Storage server
- OS
- QNAP QTS
- Colour
- Black
- Storage drives installed
- No
- Processor manufacturer
- Intel
- Brand
- QNAP
- Category
- NAS & Storage Servers
- Model
- TS-H665U
- Part number
- TS-H665U-8G
- EAN / UPC
- 4711103091852
- Also known as
- QNAP TS-H665U Storage server Rack (1U) 8 GB DDR5 0 TB QNAP QTS Black
Specifications
65 specifications in 11 groups
Storage
| Specification | Value |
|---|---|
| Storage drives installed | No |
| Total installed storage capacity | 0 TB |
| Number of storage drives installed | 0 |
| Number of storage drives supported | 4 |
| Installed storage drive type | No |
| Supported storage drive types | SSD |
| Storage drive capacity | 0 GB |
| Supported storage drive interfaces | Serial ATA III, M.2 |
| Storage drive sizes supported | 3.5,E1.S,M.2 |
| RAID support | Yes |
| RAID levels | 0, 1, 5, 6, 10, 50, JBOD |
| Online RAID migration | Yes |
| Online RAID expansion | Yes |
| RAID rebuild | Yes |
| Hot-swap drive bays | Yes |
| Supported file systems | ext4, ext3, HFS+, FAT32, exFAT |
| Auto-rebuild | Yes |
| Bad block scan | Yes |
| Disk roaming | Yes |
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor cores | 4 |
Memory
| Specification | Value |
|---|---|
| Internal memory | 8 GB |
| Internal memory type | DDR5 |
| Maximum RAM supported | 16 GB |
| Memory form factor | SO-DIMM |
| Memory slots | 1 |
| Flash memory | 4000 MB |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 2500,1000,100,10 Mbit/s |
| DHCP server | Yes |
| Jumbo frames support | Yes |
| Wake-on-LAN ready | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 2 |
| USB port | Yes |
| USB 2.0 ports quantity | 3 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 1 |
Design
| Specification | Value |
|---|---|
| Chassis type | Rack (1U) |
| Cooling type | Active |
| Product colour | Black |
| LED indicators | Yes |
Performance
| Specification | Value |
|---|---|
| Type | Storage server |
| Device class | Home & Home Office |
| Backup function | Yes |
| Buzzer | Yes |
| Disk scan | Yes |
| On/off switch | Yes |
| Reset button | Yes |
| S.M.A.R.T. support | Yes |
Software
| Specification | Value |
|---|---|
| Operating system installed | QNAP QTS |
| Operating system version | 5.2.9 |
Power
| Specification | Value |
|---|---|
| Power supply location | Built-in |
| Power supply unit (PSU) capacity | 250 W |
| Number of power supply units | 1 |
| AC input voltage | 100 - 240 V |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 430 mm |
| Depth | 374.9 mm |
| Height | 43.3 mm |
| Package width | 550 mm |
| Package depth | 170 mm |
| Package height | 582 mm |
| Package weight | 6.94 kg |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Storage relative humidity (H-H) | 5 - 95% |
| Storage temperature (T-T) | -20 - 70 °C |
