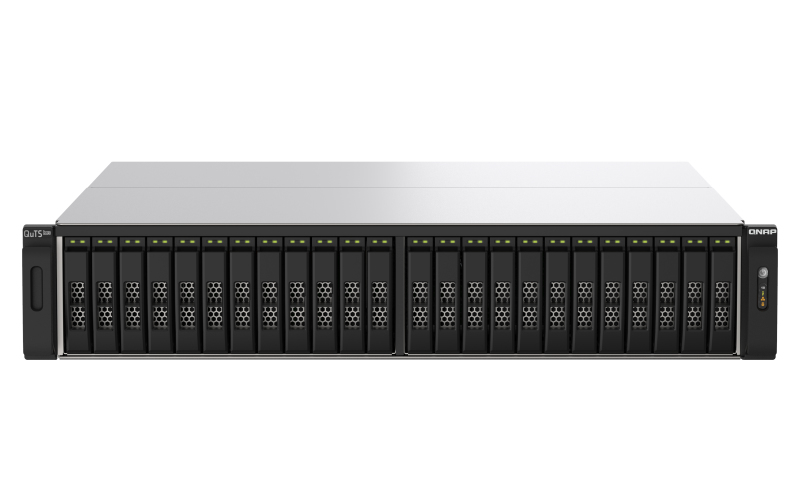

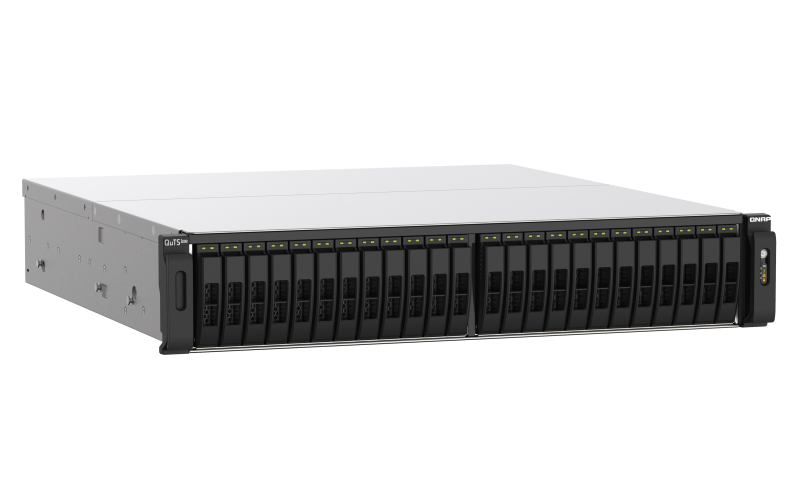

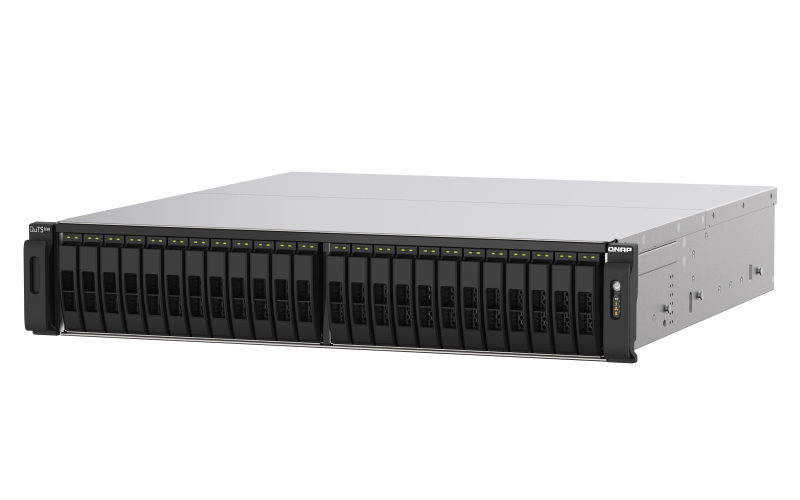

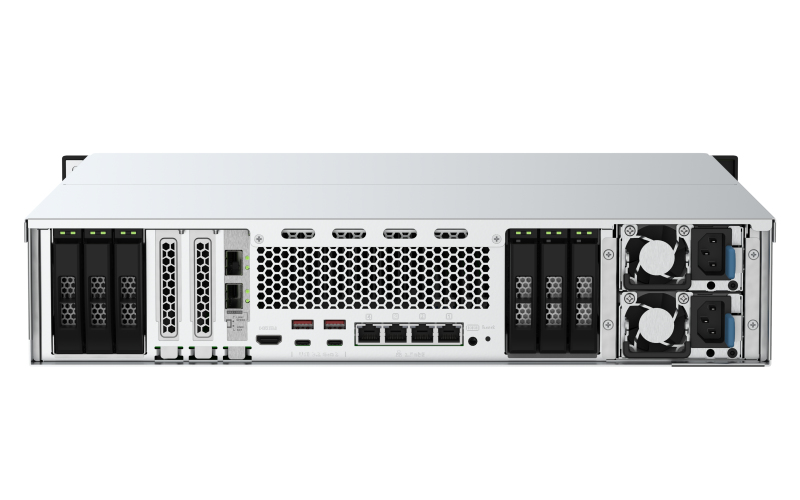

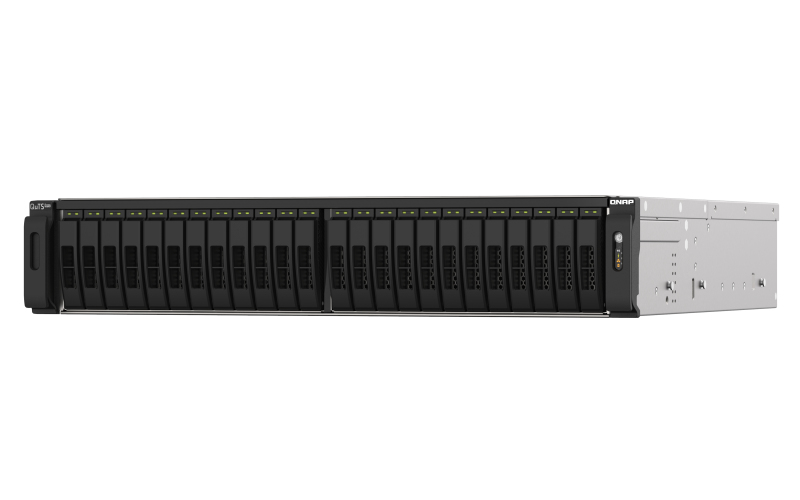

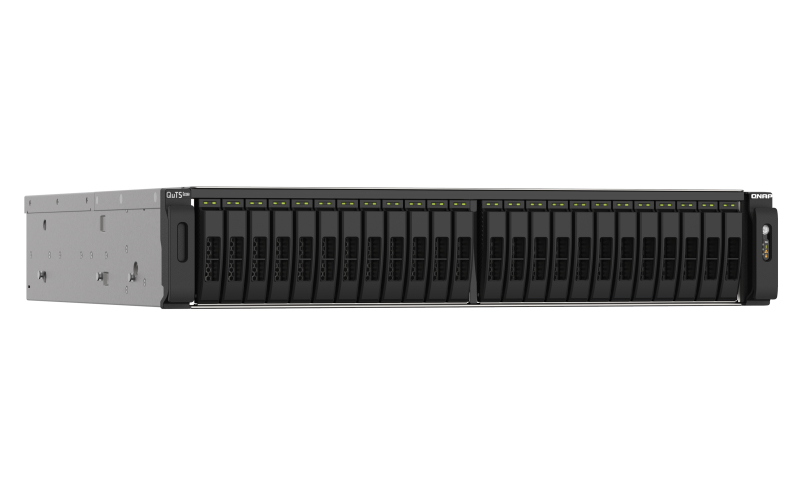

TS-H3088XU-RP NAS Rack (2U) Intel® Xeon® W-1250

32 GB DDR4 0 TB QuTS hero Black, Grey

Model TS-H3088XU-RPPart no. TS-H3088XU-RP-W1250-32GEAN 4713213518717

118 specifications

Overview

Brand: QNAP
Category: NAS & Storage Servers
Model: TS-H3088XU-RP
Part numbers: TS-H3088XU-RP-W1250-32G, TS-H3088XU-RP-W1270-64G
EAN / UPC: 4713213518717, 4713213518700
Also known as: QNAP TS-H3088XU-RP NAS Rack (2U) Intel® Xeon® W-1250 32 GB DDR4 0 TB QuTS hero Black, Grey

118 specifications in 15 groups

Specification	Value
Storage drives installed	No
Total installed storage capacity	0 TB
Number of storage drives installed	0
Number of storage drives supported	30
Installed storage drive type	No
Supported storage drive types	HDD & SSD
Storage drive capacity	0 GB
Supported storage drive interfaces	Serial ATA II, Serial ATA III
Storage drive sizes supported	2.5"
RAID support	Yes
RAID levels	0, 1, 5, 6, 10, 50, 60, JBOD
Online RAID expansion	Yes
RAID rebuild	Yes
Hot-swap drive bays	Yes
Supported file systems	FAT32, HFS+, NTFS, ZFS, ext3, ext4
Disk roaming	Yes

Specification	Value
Ethernet LAN	Yes
Ethernet LAN data rates	100,1000,2500,25000 Mbit/s
DHCP client	Yes
DHCP server	Yes
Jumbo frames support	Yes
iSCSI support	Yes
Wake-on-LAN ready	Yes
Dynamic DNS (DDNS)	Yes
Link aggregation	Yes
Load balancing system	Yes
Supported network protocols	IPv4, IPv6
WLAN adapter supported	Yes

Specification	Value
Ethernet LAN (RJ-45) ports	4
USB port	Yes
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	2
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	2
HDMI ports quantity	1
HDMI version	1.4b
Concurrent connections	10000
PCI Express x4 (Gen 3.x) slots	2
PCI Express x8 (Gen 3.x) slots	1

Specification	Value
Type	NAS
Device class	Large Enterprise Business
Backup function	Yes
Backup features	Cloud, iSCSI LUN
Buzzer	Yes
Multilingual support	Yes
Noise level	53 dB
Snapshot	Yes
Web-based management	Yes
Access Control List (ACL)	Yes
Browser supported	Apple Safari, Google Chrome, Microsoft Internet Explorer, Mozilla Firefox
Built-in FTP server	Yes
Hot spare	Yes
On/off switch	Yes
Password authentication	Yes
Reset button	Yes
S.M.A.R.T. support	Yes
Security algorithms	256-bit AES, AES, FIPS 140-2, HTTPS, SNMPv2, SNMPv3, SSH, SSL/TLS
System log	Yes
Universal Plug and Play (UPnP)	Yes

Specification	Value
Operating system installed	QuTS hero
Operating system version	h5.0.0
Windows operating systems supported	Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterpri
Linux operating systems supported	CentOS 7.0, SuSE Linux 12.0, SuSE Linux 12.3, SuSE Linux 15, Ubuntu 14.04, Ubuntu 14.10, Ubuntu 15.04, Ubuntu 15.10, Ubuntu 16.04, Ubuntu 16.10, Ubuntu 17.10, Ubuntu 18.04 LTS, Ubuntu 20.04 LTS
Mac operating systems supported	Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.15.3 Catalina, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks, Mac OS X 11.0 Big Sur
Server operating systems supported	Windows Server 2003, Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016, Windows Server 2019
Other operating systems supported	IBM AIX 7.1, IBM AIX 7.2, Solaris 10, Solaris 11

Specification	Value
Power supply location	Built-in
Power supply unit (PSU) capacity	550 W
Number of power supply units	2
Power consumption (typical)	261.81 W
Power consumption (sleep)	129.57 W
AC input voltage	100 - 240 V
Fan voltage	12 V

Specification	Value
Embedded options available	No
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Idle States	Yes
Intel 64	Yes
Intel Clear Video Technology	Yes
Intel Trusted Execution Technology	Yes
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes

Specification	Value
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	5 - 95%
Storage relative humidity (H-H)	5 - 95%
Storage temperature (T-T)	-20 - 70 °C
