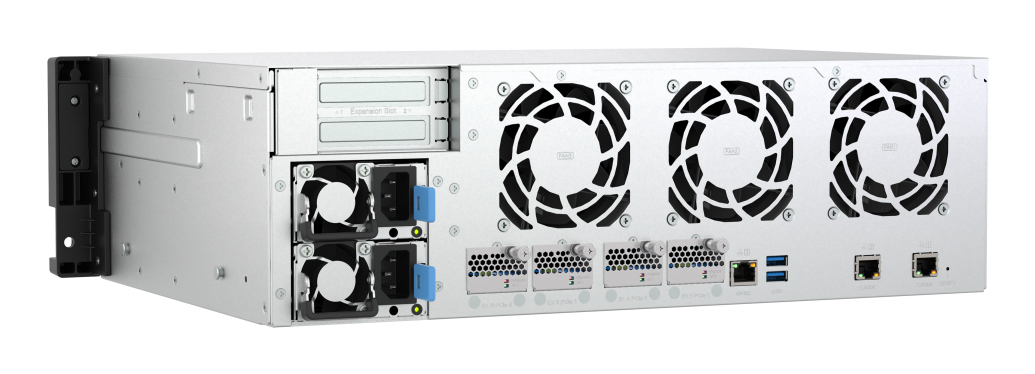

TS-H1655XEU-RP
Model TS-H1655XEU-RPPart no. TS-H1655XEU-RP-8GEAN 885022031986
86 specifications
- ProcessorIntel Atom®
- Memory8 GB
- TypeStorage server
- OSQuTS hero
- ColourBlack, Grey
- Storage drives installedNo
Overview
- Processor
- Intel Atom®
- Memory
- 8 GB
- Type
- Storage server
- OS
- QuTS hero
- Colour
- Black, Grey
- Storage drives installed
- No
- Brand
- QNAP
- Category
- NAS & Storage Servers
- Model
- TS-H1655XEU-RP
- Part number
- TS-H1655XEU-RP-8G
- EAN / UPC
- 885022031986, 4711103089675
- Also known as
- QNAP TS-h1655XeU-RP-8G
Specifications
86 specifications in 13 groups
Storage
| Specification | Value |
|---|---|
| Storage drives installed | No |
| Total installed storage capacity | 0 TB |
| Number of storage drives installed | 0 |
| Number of storage drives supported | 16 |
| Installed storage drive type | No |
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | M.2, Serial ATA III |
| Storage drive sizes supported | 2.5,3.5,E1.S,M.2 |
| RAID support | Yes |
| RAID levels | 0, 1, 1+0, 5, 6, 10, 50, 60, JBOD |
| Online RAID migration | Yes |
| Online RAID expansion | Yes |
| RAID rebuild | Yes |
| Hot-swap drive bays | Yes |
| Supported file systems | FAT32, HFS+, NTFS, exFAT, ext3, ext4 |
| Bad block scan | Yes |
| Disk roaming | Yes |
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel Atom® |
| Processor model | C5125 |
| Processor frequency | 2.8 GHz |
| Processor cores | 8 |
| Processor threads | 8 |
| Processor cache | 9 MB |
| Number of processors supported | 1 |
Memory
| Specification | Value |
|---|---|
| Internal memory | 8 GB |
| Internal memory type | DDR4 |
| Maximum RAM supported | 64 GB |
| Memory form factor | SO-DIMM |
| Memory slots | 2 |
| Flash memory | 4096 MB |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000,2500,10000 Mbit/s |
| DHCP server | Yes |
| iSCSI support | Yes |
| Dynamic DNS (DDNS) | Yes |
| Link aggregation | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 3 |
| USB port | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| PCI Express x4 (Gen 3.x) slots | 2 |
Design
| Specification | Value |
|---|---|
| Chassis type | Rack (3U) |
| Cooling type | Active |
| Product colour | Black, Grey |
| Number of fans | 3 fan(s) |
| Fan diameter | 8 cm |
| LED indicators | Yes |
Performance
| Specification | Value |
|---|---|
| Type | Storage server |
| Device class | Small & Medium Business |
| Backup function | Yes |
| Backup features | Cloud, USB drive, iSCSI LUN |
| Buzzer | Yes |
| Multilingual support | Yes |
| Web-based management | Yes |
| Disk scan | Yes |
| On/off switch | Yes |
| Password authentication | Yes |
| S.M.A.R.T. support | Yes |
| System log | Yes |
| Universal Plug and Play (UPnP) | Yes |
Software
| Specification | Value |
|---|---|
| Operating system installed | QuTS hero |
| Operating system version | h5.2.6 |
| Windows operating systems supported | Yes |
| Linux operating systems supported | Yes |
| Mac operating systems supported | Yes |
Power
| Specification | Value |
|---|---|
| Power supply location | Built-in |
| Power supply unit (PSU) capacity | 300 W |
| Number of power supply units | 2 |
| Redundant power supply (RPS) support | Yes |
| Power consumption (typical) | 121.7 W |
| Power consumption (HDD standby) | 112.42 W |
| AC input voltage | 100 - 240 V |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 432 mm |
| Depth | 296 mm |
| Height | 133 mm |
| Package width | 581 mm |
| Package depth | 293 mm |
| Package height | 595 mm |
| Package weight | 16 kg |
Packaging content
| Specification | Value |
|---|---|
| Cables included | AC, LAN (RJ-45) |
| Number of screws | 84 |
| Package type | Box |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Storage temperature (T-T) | -20 - 70 °C |
Other features
| Specification | Value |
|---|---|
| Warranty period | 3 year(s) |
