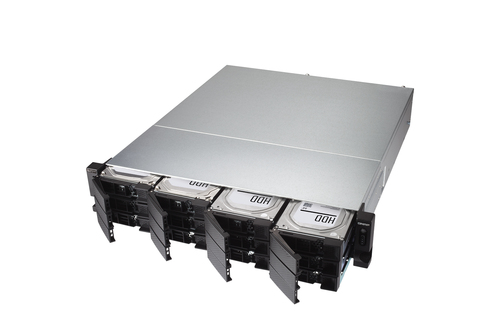

TS-h1283XU-RP NAS Rack (2U) Intel Xeon E E-2236

32 GB DDR4 0 TB QuTS hero Black, Grey

Model TS-h1283XU-RPPart no. TS-H1283XU-RP-E2236-128G/168TB-EEAN 5051868164354

137 specifications

Overview

Brand: QNAP
Category: NAS & Storage Servers
Model: TS-h1283XU-RP
Part numbers: TS-H1283XU-RP-E2236-128G/168TB-E, TS-H1283XU-RP-E2236-32G, TS-H1283XU-RP-E2236-128G, TS-H1283XU-RP-E2236-32G-US, TS-H1283XU-RP-E2236-32G/168TB-GOLD, TS-H1283XU-RP-E2236-128G/192TB-E +34 more
EAN / UPC: 5051868164354, 4713213516591, 5054444513638, 4713213516652 +56 more
Also known as: QNAP TS-h1283XU-RP NAS Rack (2U) Intel Xeon E E-2236 32 GB DDR4 0 TB QuTS hero Black, Grey

137 specifications in 15 groups

Specification	Value
Storage drives installed	No
Total installed storage capacity	0 TB
Number of storage drives installed	0
Number of storage drives supported	12
Installed storage drive type	No
Supported storage drive types	HDD & SSD
Storage drive capacity	0 GB
Supported storage drive interfaces	Serial ATA II, Serial ATA III
Storage drive sizes supported	2.5,3.5"
RAID support	Yes
RAID levels	0, 1, 5, 6, 10, 50, 60, JBOD
Online RAID migration	Yes
Online RAID expansion	Yes
RAID rebuild	Yes
Hot-swap drive bays	Yes
Supported file systems	FAT32, HFS+, NTFS, ZFS, exFAT, ext3, ext4
Disk roaming	Yes

Specification	Value
Processor manufacturer	Intel
Processor family	Intel Xeon E
Processor model	E-2236
Processor frequency	3.4 GHz
Processor boost frequency	4.8 GHz
Processor cores	6
Processor threads	12
Processor cache	12 MB
CPU configuration (max)	1
PCI Express configurations	1x16, 2x8, 1x8+2x4
PCI Express slots version	3.0
Processor codename	Coffee Lake
Processor lithography	14 nm
Processor operating modes	64-bit
Processor package size	37.5 x 37.5 mm
Processor socket	LGA 1151 (Socket H4)
Scalability	1S
Tcase	73 °C
Thermal Design Power (TDP)	80 W
Tjunction	100 °C
Maximum internal memory supported by processor	128 GB

Specification	Value
Ethernet LAN	Yes
Ethernet LAN data rates	1000,10000 Mbit/s
Ethernet LAN data rate supported (max)	10000 Mbit/s
Wi-Fi	No
DHCP client	Yes
DHCP server	Yes
Jumbo frames support	Yes
iSCSI support	Yes
Wake-on-LAN ready	Yes
Dynamic DNS (DDNS)	Yes

Specification	Value
Ethernet LAN (RJ-45) ports	6
USB port	Yes
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	4
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	2
Fiber ports quantity	2
Fiber optic connector	SFP+
PCI Express x4 (Gen 3.x) slots	2
PCI Express x8 (Gen 3.x) slots	1

Specification	Value
Type	NAS
Device class	Small & Medium Business
Backup function	Yes
Backup features	Cloud, iSCSI LUN
Buzzer	Yes
Multilingual support	Yes
Snapshot	Yes
Web-based management	Yes
Access Control List (ACL)	Yes
Browser supported	Apple Safari, Google Chrome, Microsoft Edge, Mozilla Firefox
Built-in FTP server	Yes
Disk scan	Yes
Hot spare	Yes
On/off switch	Yes
Reset button	Yes
S.M.A.R.T. support	Yes
Security algorithms	256-bit AES, FIPS 140-2, TLS
Share folder	CIFS/SMB
System log	Yes

Specification	Value
Operating system installed	QuTS hero
Operating system version	5.0.0
Windows operating systems supported	Windows 10, Windows 7, Windows 8
Linux operating systems supported	Yes
Mac operating systems supported	Yes
Server operating systems supported	Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016, Windows Server 2019

Specification	Value
Power supply location	Built-in
Power supply unit (PSU) capacity	300 W
Number of power supply units	2
Redundant power supply (RPS) support	Yes
Power consumption (typical)	105.12 W
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Fan voltage	12 V

Specification	Value
Embedded options available	No
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Idle States	Yes
Intel 64	Yes
Intel Clear Video Technology	No
Intel TSX-NI	Yes
Intel Trusted Execution Technology	Yes
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel® AES New Instructions (Intel® AES-NI)	Yes
Intel® Clear Video HD Technology (Intel® CVT HD)	No
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel® InTru™ 3D Technology	No
Intel® OS Guard	Yes
Intel® Quick Sync Video Technology	No
Intel® Secure Key	Yes
Intel® Turbo Boost Technology	2.0
Maximum number of PCI Express lanes	16
Thermal Monitoring Technologies	Yes
Memory types supported by processor	DDR4-SDRAM
