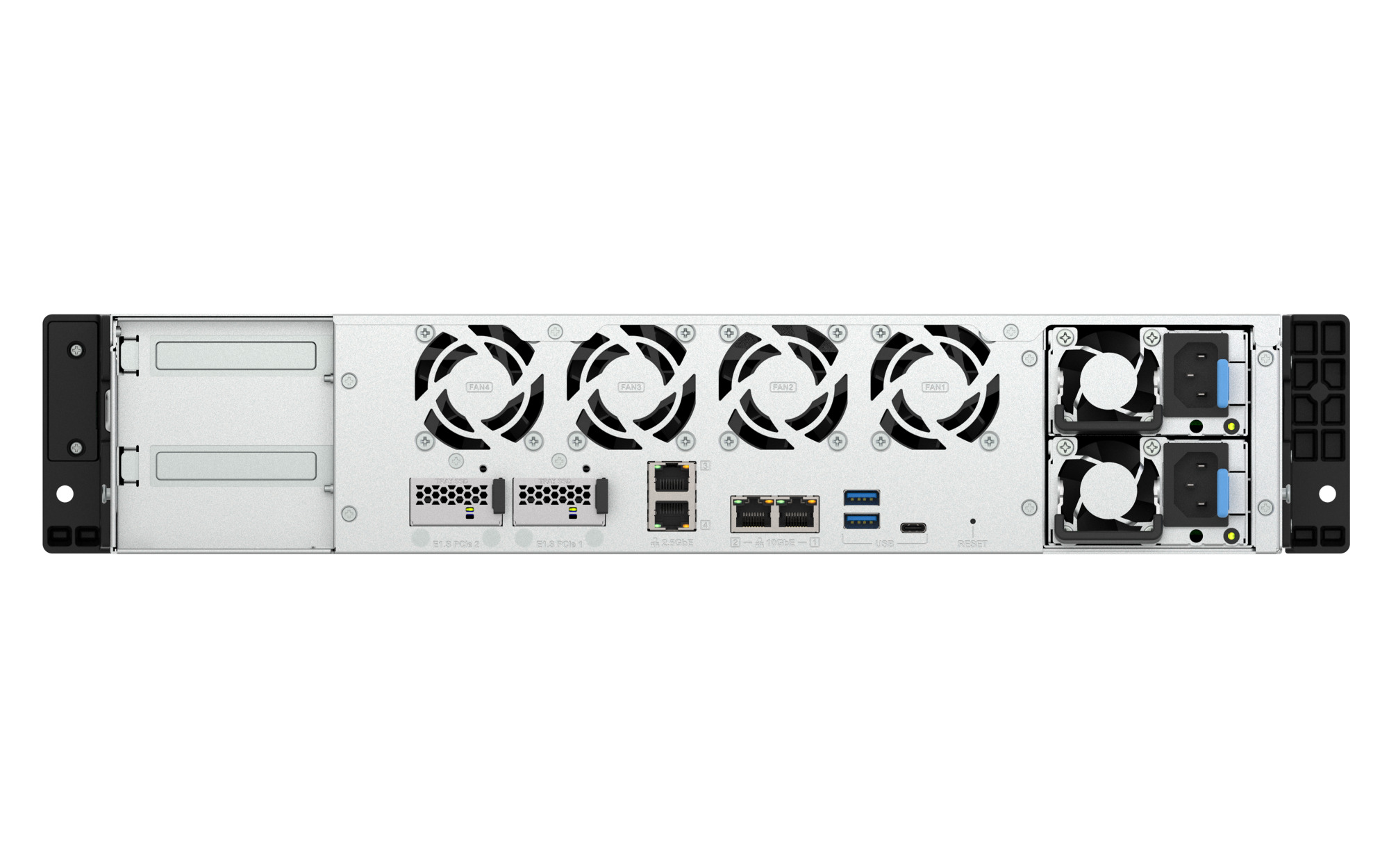

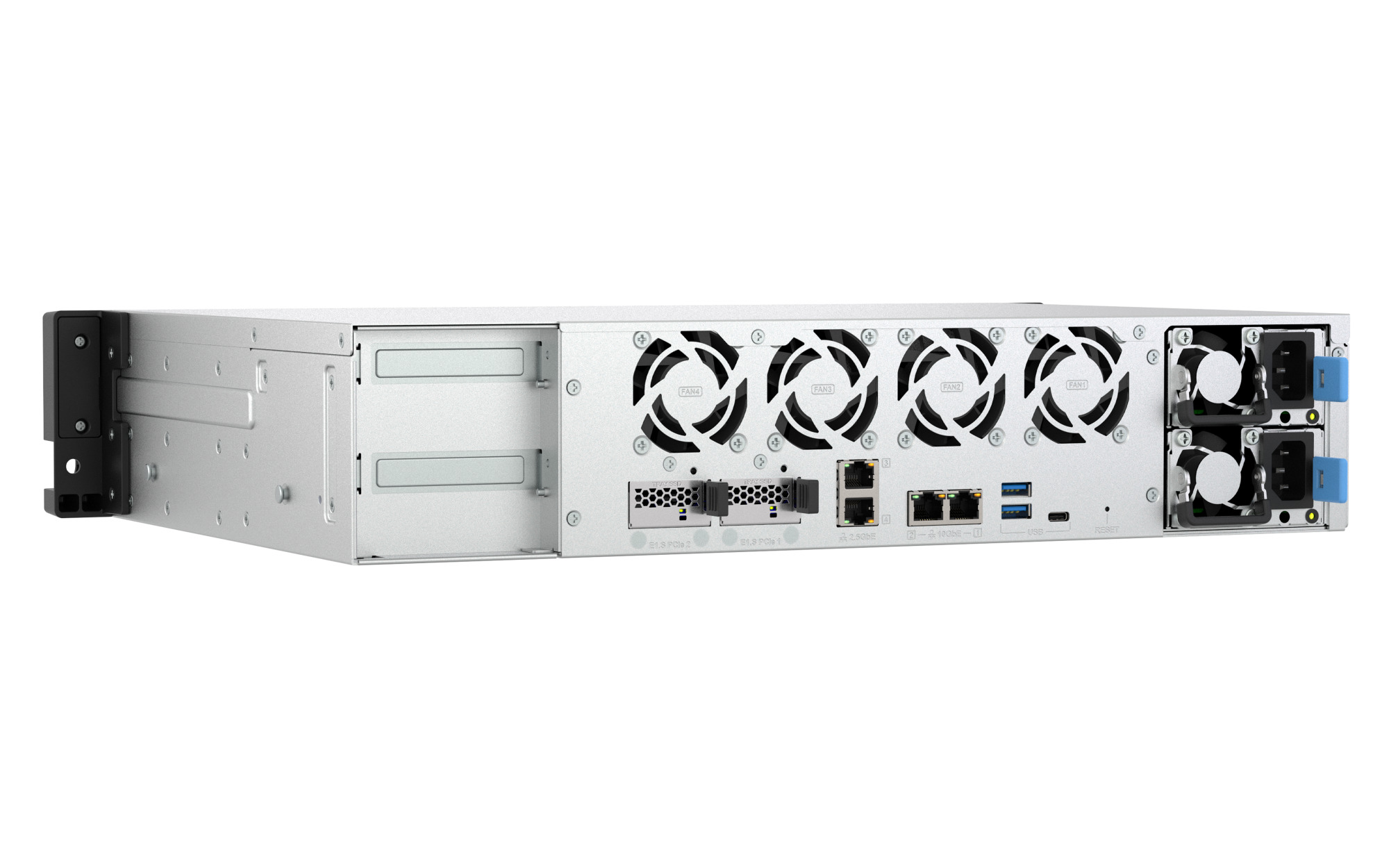

TS-H1073BXEU-RP NAS Rack (2U) Ryzen Embedded V1780B
8 GB DDR4 QNAP QTS Black
Model TS-H1073BXEU-RPPart no. TS-H1073BXEU-RP-8GEAN 885022036196
88 specifications
- ProcessorRyzen Embedded
- Memory8 GB
- TypeNAS
- OSQNAP QTS
- ColourBlack
- Storage drives installedNo
Overview
- Processor
- Ryzen Embedded
- Memory
- 8 GB
- Type
- NAS
- OS
- QNAP QTS
- Colour
- Black
- Storage drives installed
- No
- Brand
- QNAP
- Category
- NAS & Storage Servers
- Model
- TS-H1073BXEU-RP
- Part number
- TS-H1073BXEU-RP-8G
- EAN / UPC
- 885022036196, 4711103093887
- Also known as
- QNAP TS-H1073BXEU-RP NAS Rack (2U) Ryzen Embedded V1780B 8 GB DDR4 QNAP QTS Black
Specifications
88 specifications in 13 groups
Storage
| Specification | Value |
|---|---|
| Storage drives installed | No |
| Number of storage drives supported | 8 |
| Installed storage drive type | No |
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | Serial ATA II, Serial ATA III |
| Storage drive sizes supported | 2.5,3.5,E1.S |
| RAID support | Yes |
| RAID levels | 0, 1, 5, 6, 10, 50, 60, JBOD |
| Supported file systems | ext3, ext4, NTFS, FAT32, HFS+, exFAT |
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | AMD |
| Processor family | Ryzen Embedded |
| Processor model | V1780B |
| Processor frequency | 3.35 GHz |
| Processor cores | 4 |
| Processor threads | 8 |
Memory
| Specification | Value |
|---|---|
| Internal memory | 8 GB |
| Internal memory type | DDR4 |
| Maximum RAM supported | 64 GB |
| Memory form factor | SO-DIMM |
| Memory slots | 2 |
| Flash memory | 5000 MB |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 1000,2500,10000 Mbit/s |
| Ethernet LAN data rate supported (max) | 10000 Mbit/s |
| DHCP server | Yes |
| iSCSI support | Yes |
| Wake-on-LAN ready | Yes |
| Dynamic DNS (DDNS) | Yes |
| Link aggregation | Yes |
| Supported network protocols | IPv4, IPv6 |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 4 |
| USB port | Yes |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| Fiber ports quantity | 2 |
| PCI Express x4 (Gen 3.x) slots | 1 |
Design
| Specification | Value |
|---|---|
| Chassis type | Rack (2U) |
| Cooling type | Active |
| Product colour | Black |
| Number of fans | 4 fan(s) |
| Fan diameter | 5 cm |
| LED indicators | HDD, LAN, Power, SFP+, Status, USB |
Performance
| Specification | Value |
|---|---|
| Type | NAS |
| Device class | Small & Medium Business |
| Backup function | Yes |
| Backup features | Cloud, USB drive |
| Buzzer | Yes |
| Multilingual support | Yes |
| Number of users | 4096 user(s) |
| Snapshot | Yes |
| Management protocols | SNMP V2, V3 |
| Share folder access right management | Yes |
| Access Control List (ACL) | Yes |
| Browser supported | Apple Safari, Google Chrome, Microsoft Edge, Mozilla Firefox |
| Built-in FTP server | Yes |
| Disk scan | Yes |
| Hot spare | Yes |
| On/off switch | Yes |
| Reset button | Yes |
| S.M.A.R.T. support | Yes |
| Share folder | 250 TB |
| System log | Yes |
| USB copy function | Yes |
Software
| Specification | Value |
|---|---|
| Operating system installed | QNAP QTS |
| Operating system version | 5.2.9 |
| Windows operating systems supported | Windows 7, Windows 8, Windows 10, Windows 11 |
| Linux operating systems supported | Ubuntu 14.04, CentOS 7.0, Yes |
| Mac operating systems supported | MacOS |
| Other operating systems supported | Linux, Solaris 10 |
Power
| Specification | Value |
|---|---|
| Power supply location | Built-in |
| Power supply unit (PSU) capacity | 350 W |
| Number of power supply units | 2 |
| Redundant power supply (RPS) support | Yes |
| Power consumption (typical) | 212.12 W |
| AC input voltage | 100 - 240 V |
| Fan voltage | 12 V |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 432 mm |
| Depth | 294.9 mm |
| Height | 88.6 mm |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Storage temperature (T-T) | -20 - 70 °C |
Logistics data
| Specification | Value |
|---|---|
| Master (outer) case width | 530 mm |
| Master (outer) case length | 210 mm |
| Master (outer) case height | 592 mm |
| Master (outer) case gross weight | 9.47 kg |
| Products per master (outer) case | 1 pc(s) |
Other features
| Specification | Value |
|---|---|
| Warranty period | 3 year(s) |
