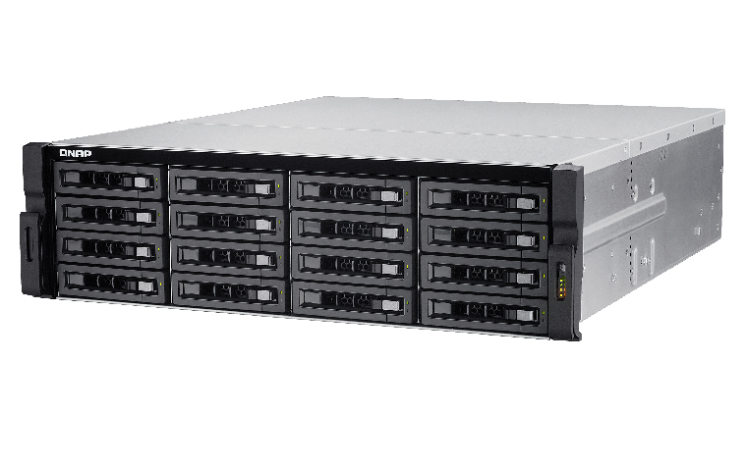

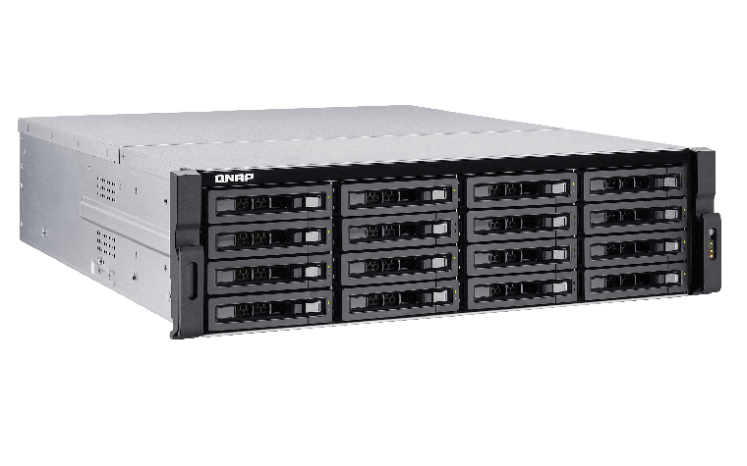

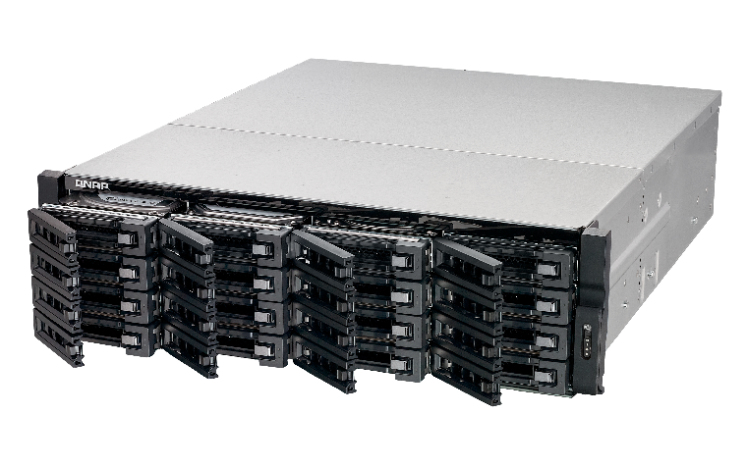

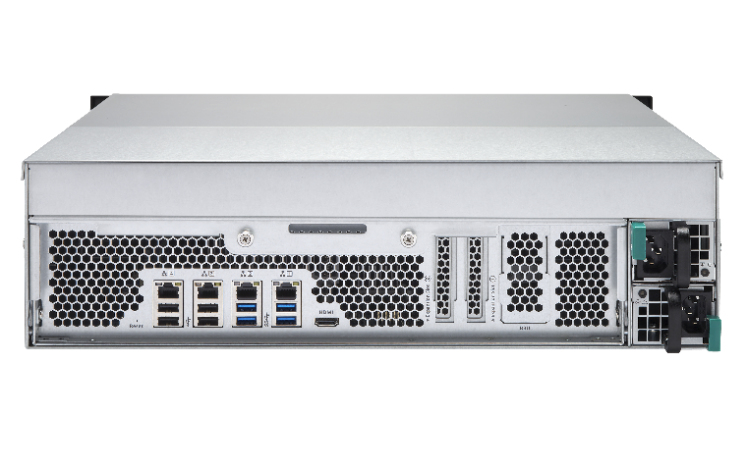

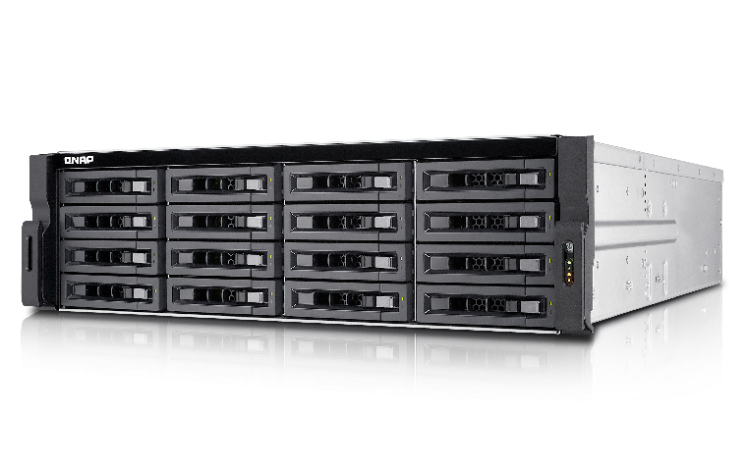

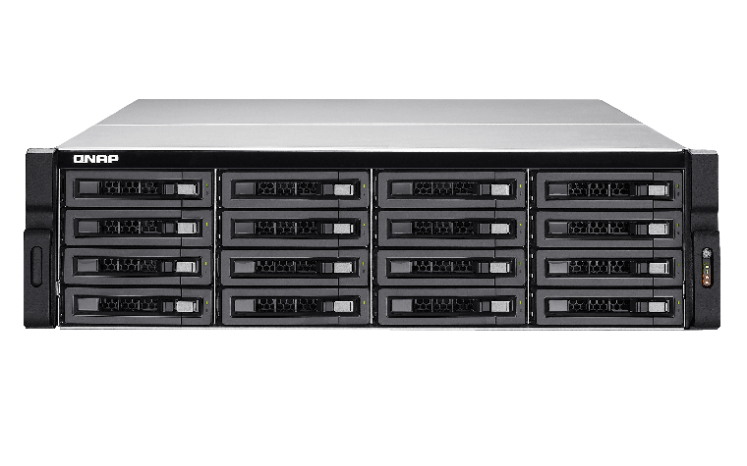

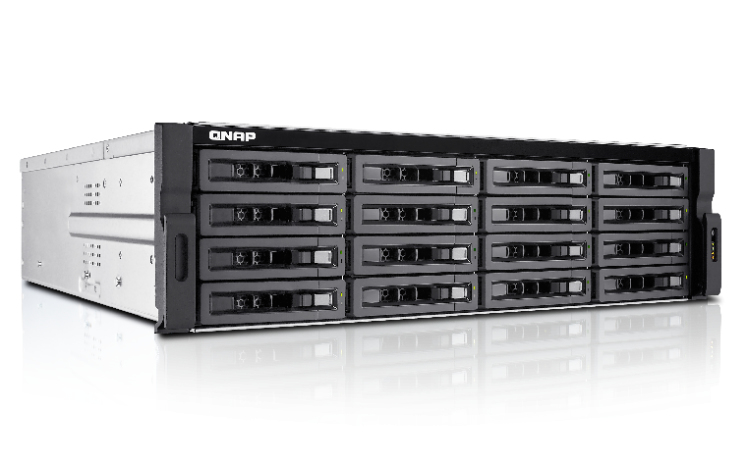

QNAP TS-EC1680U-RP NAS/storage server Rack (3U) Intel® Xeon® E3 V3 Family

QNAP TS-EC1680U-RP NAS/storage server Rack (3U) Intel® Xeon® E3 V3 Family

4 GB DDR3 0 TB QNAP Turbo System Grey

Model TS-EC1680U-RPPart no. TS-EC1680U-RP + 16X ST2000VN0001EAN 5051868951794

66 specifications
  • ProcessorIntel® Xeon® E3 V3 Family
  • Memory4 GB
  • TypeNAS
  • OSQNAP Turbo System
  • Weight18.3 kg
  • ColourGrey
See all specifications

Overview

Processor
Intel® Xeon® E3 V3 Family
Memory
4 GB
Type
NAS
OS
QNAP Turbo System
Weight
18.3 kg
Colour
Grey
Brand
QNAP
Model
TS-EC1680U-RP
Part numbers
TS-EC1680U-RP + 16X ST2000VN0001, TS-EC1680U-RP + 16X ST3000VN0001, TS-EC1680U-RP + 16X ST4000VN0001, TS-EC1680U-RP + 16X ST5000VN0001, TS-EC1680U-RP + 16X ST6000VN0001, TS-EC1680U-RP-64TB-S +34 more
EAN / UPC
5051868951794, 5051868982767, 5050914846039, 5051868951770 +12 more
Also known as
QNAP TS-EC1680U-RP NAS/storage server Rack (3U) Intel® Xeon® E3 V3 Family 4 GB DDR3 0 TB QNAP Turbo System Grey

Specifications

66 specifications in 11 groups

Storage

Storage drives installedNo
Total installed storage capacity0 TB
Number of storage drives installed0
Number of storage drives supported16
Supported storage drive typesHDD & SSD
Storage drive interfaceSerial ATA II, Serial ATA III
Storage drive size2.5/3.5"
RAID supportYes
RAID levels0, 1, 5, 6, 10, JBOD
Hot-swap drive baysYes
Supported file systemsext3, ext4, FAT32, HFS+, NTFS

Processor

Processor familyIntel® Xeon® E3 V3 Family
Processor frequency3.4 GHz
Processor cores4

Memory

Internal memory4 GB
Internal memory typeDDR3
Maximum RAM supported32 GB
Memory slots4
Flash memory512 MB

Network

Ethernet LANYes
Ethernet LAN data rates10,100,1000 Mbit/s
DHCP clientYes
DHCP serverYes
Jumbo frames supportYes
iSCSI supportYes
Wake-on-LAN readyYes
Supported network protocolsCIFS/SMB, AFP (v3.3), NFS (v3), FTP, FTPS, SFTP, TFTP, HTTP(S), Telnet, SSH, iSCSI, SNMP, SMTP, SMSC

Ports & interfaces

Ethernet LAN (RJ-45) ports4
USB 2.0 ports quantity4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity4
Fiber ports quantity0

Design

Chassis typeRack (3U)
Cooling typeActive
Product colourGrey
Number of fans4 fan(s)
Fan diameter8 cm
LED indicatorsYes
Built-in displayNo

Performance

TypeNAS
Device classHome & Home Office
Backup functionYes
BuzzerYes
Multilingual supportYes
Built-in optical driveNo
Card reader integratedNo
Management protocolsSNMP, Telnet
Web-based managementYes
Access Control List (ACL)Yes
Reset buttonYes

Software

Operating system installedQNAP Turbo System
Operating system version4.1
Windows operating systems supportedYes
Linux operating systems supportedYes
Mac operating systems supportedYes

Power

Power supply unit (PSU) capacity650 W
Power consumption (typical)166.58 W
Power consumption (sleep)82.4 W
AC input voltage100-240 V
AC input frequency50 - 60 Hz

Weight & dimensions

Width442.5 mm
Depth530.5 mm
Height130 mm
Weight18.3 kg
Package weight24.2 kg

Operational conditions

Operating temperature (T-T)0 - 40 °C
Operating relative humidity (H-H)5 - 95%
