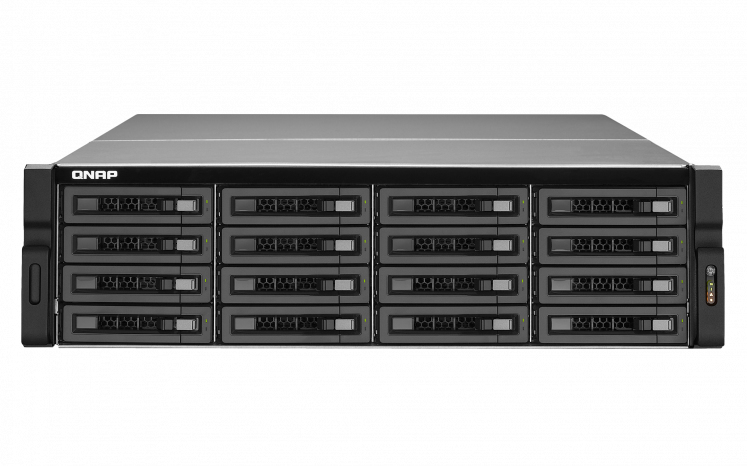

QNAP TS-EC1679U-RP-UK NAS/storage server Rack (3U) Intel® Xeon® E3 Family E3-1225

4 GB DDR3 0 TB QNAP Turbo NAS System Black

Model TS-EC1679U-RP-UK

125 specifications

Overview

Brand: QNAP
Category: NAS & Storage Servers
Model: TS-EC1679U-RP-UK
Part number: TS-EC1679U-RP-UK
Also known as: QNAP TS-EC1679U-RP-UK NAS/storage server Rack (3U) Intel® Xeon® E3 Family E3-1225 4 GB DDR3 0 TB QNAP Turbo NAS System Black

125 specifications in 14 groups

Specification	Value
Total installed storage capacity	0 TB
Number of storage drives installed	0
Number of storage drives supported	16
Storage drive capacity	0 GB
Storage drive interface	Serial ATA II, Serial ATA III
Storage drive size	2.5/3.5"
Maximum supported storage capacity	64 TB
RAID levels	0, 1, 5, 6, 10, JBOD
Hot-swap drive bays	Yes
Supported file systems	ext3, ext4, FAT32, HFS+, NTFS

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Xeon® E3 Family
Processor model	E3-1225
Processor frequency	3.1 GHz
Processor boost frequency	3.4 GHz
Processor cores	4
Processor threads	4
Processor cache	6 MB
L3 cache	6 MB
Bus type	DMI
CPU configuration (max)	1
CPU multiplier (bus/core ratio)	31
ECC supported by processor	Yes
Number of processors installed	1
PCI Express slots version	2.0
Processor cache type	Smart Cache
Processor code	SR00G
Processor codename	Sandy Bridge
Processor lithography	32 nm
Processor operating modes	64-bit
Processor package size	37.5 x 37.5 mm
Processor socket	LGA 1155 (Socket H2)
Stepping	D2
System bus rate	5 GT/s
Tcase	72.6 °C
Thermal Design Power (TDP)	95 W
On-board graphics card model	Intel® HD Graphics P3000
Maximum internal memory supported by processor	32 GB
Memory bandwidth supported by processor (max)	21 GB/s

Specification	Value
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Wi-Fi	No
DHCP client	Yes
DHCP server	Yes
Jumbo frames support	Yes
iSCSI support	Yes
Wake-on-LAN ready	Yes
Compliance industry standards	IEEE 802.3ad
Cabling technology	10/100/1000Base-T(X)
Supported network protocols	CIFS/SMB, AFP (v3.3), NFS(v3), FTP, FTPS, SFTP, TFTP, HTTP(S), Telnet, SSH, iSCSI, SNMP, SMTP, SMSC

Specification	Value
Ethernet LAN (RJ-45) ports	4
USB 2.0 ports quantity	4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
eSATA ports quantity	2
WAN connection	Ethernet (RJ-45)
eSATA	Yes

Specification	Value
On-board graphics card base frequency	850 MHz
On-board graphics card dynamic frequency (max)	1350 MHz
Number of displays supported (on-board graphics)	2

Specification	Value
Operating system installed	QNAP Turbo NAS System
Operating system version	3.7

Specification	Value
Power supply unit (PSU) capacity	600 W
Number of power supply units	2
Redundant power supply (RPS) support	Yes
Power consumption (typical)	229 W
Power consumption (sleep)	89.1 W

Specification	Value
Embedded options available	Yes
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Idle States	Yes
Intel 64	Yes
Intel Demand Based Switching	Yes
Intel Dual Display Capable Technology	Yes
Intel Enhanced Halt State	Yes
Intel FDI Technology	Yes
Intel Fast Memory Access	Yes
Intel Flex Memory Access	Yes
Intel Identity Protection Technology version	1.00
Intel Trusted Execution Technology	Yes
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel® AES New Instructions (Intel® AES-NI)	Yes
Intel® Clear Video HD Technology (Intel® CVT HD)	Yes
Intel® Hyper Threading Technology (Intel® HT Technology)	No
Intel® Identity Protection Technology (Intel® IPT)	Yes
Intel® InTru™ 3D Technology	Yes
Intel® Quick Sync Video Technology	Yes
Intel® Smart Cache	Yes
Intel® Turbo Boost Technology	2.0
Intel® Wireless Display (Intel® WiDi)	No
Maximum number of PCI Express lanes	20
Thermal Monitoring Technologies	Yes
Memory channels supported by processor	Dual
Memory types supported by processor	DDR3-SDRAM

Specification	Value
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	0 - 90%

Specification	Value
Compatible operating systems	Windows XP, Vista, 7, Server 2003/2008 R2 Apple Mac OS X Linux & UNIX
Data transfer rate	6 Gbit/s
Fan	60mm
Networking features	Gigabit Ethernet
Power requirements	100-240V
Processor ARK ID	52270
