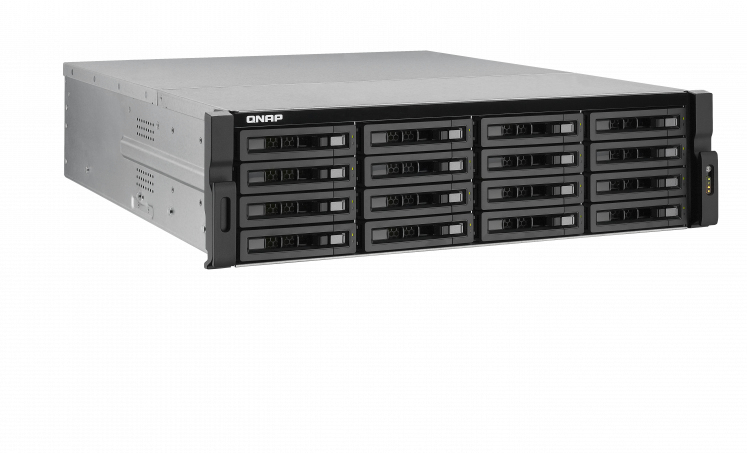

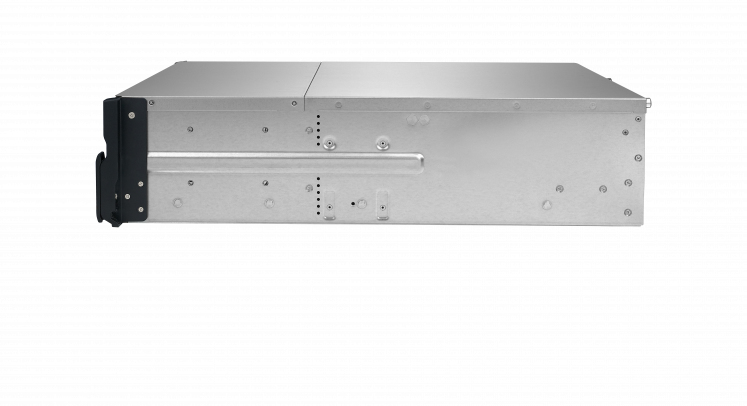

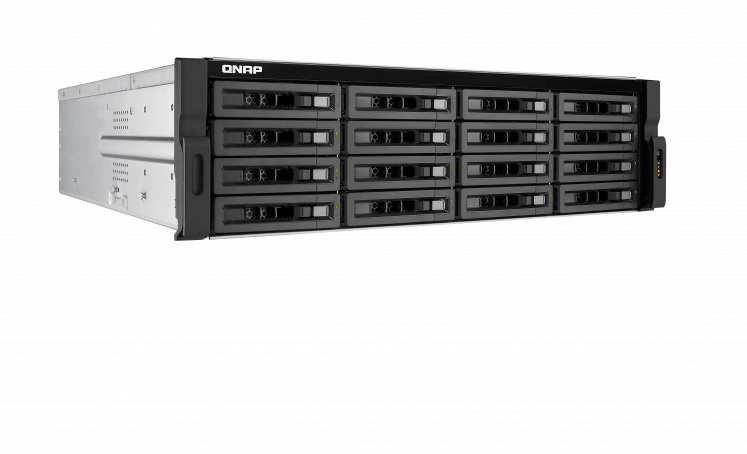

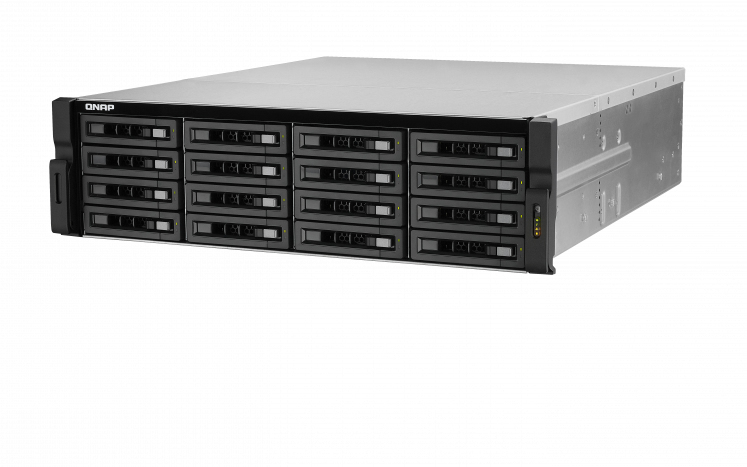

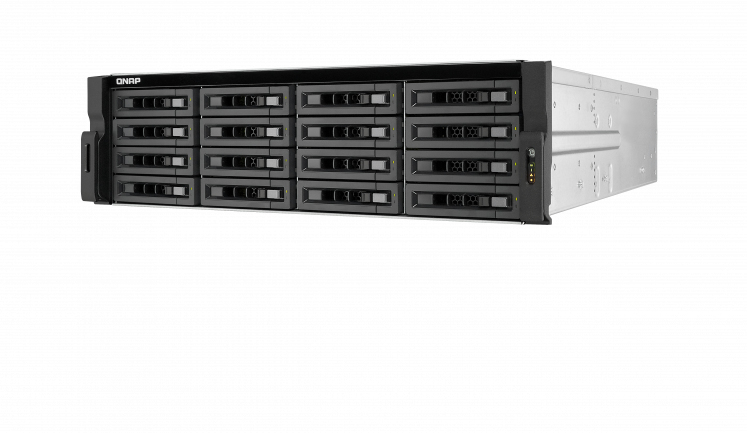

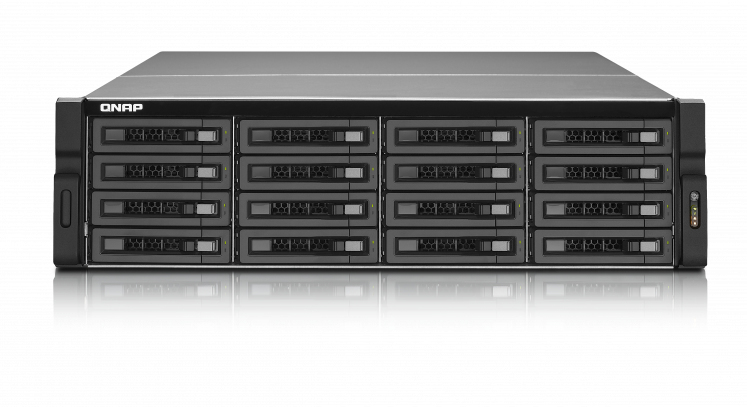

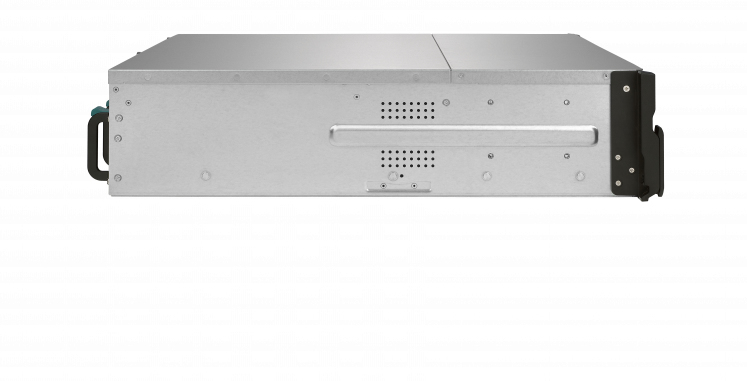

QNAP TS-EC1679U-RP-E10G 64TB

Model TS-EC1679U-RP-E10G 64TBPart no. TS-EC1679U-RP-E10G/64TB

130 specifications

Overview

Brand: QNAP
Category: NAS & Storage Servers
Model: TS-EC1679U-RP-E10G 64TB
Part number: TS-EC1679U-RP-E10G/64TB
Also known as: QNAP TS-EC1679U-RP-E10G 64TB Rack (3U) Intel® Xeon® E3 Family E3-1225 4 GB DDR3 Black, Silver

130 specifications in 13 groups

Specification	Value
Total installed storage capacity	64 TB
Number of storage drives installed	16
Number of storage drives supported	16
Storage drive capacity	4 TB
Storage drive interface	Serial ATA, Serial ATA II, Serial ATA III
Storage drive size	2.5/3.5"
Maximum supported storage capacity	64 TB
RAID levels	0, 1, 5, 6, 10, JBOD

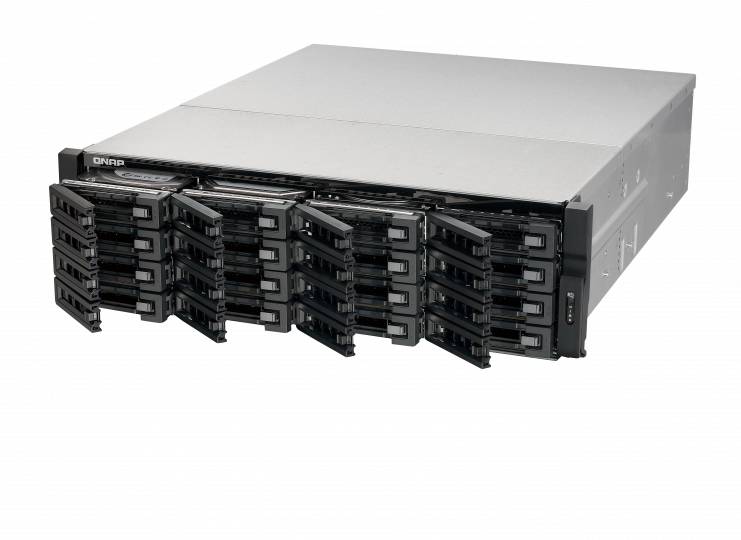

Hot-swap drive bays	Yes
Supported file systems	ext3, ext4, FAT32, HFS+, NTFS

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Xeon® E3 Family
Processor model	E3-1225
Processor frequency	3.1 GHz
Processor boost frequency	3.4 GHz
Processor cores	4
Processor threads	4
Processor cache	6 MB
Bus type	DMI
CPU configuration (max)	1
CPU multiplier (bus/core ratio)	31
Compatible processor series	Intel® Xeon®
ECC supported by processor	Yes
Number of processors installed	1
PCI Express slots version	2.0
Processor cache type	Smart Cache
Processor code	SR00G
Processor codename	Sandy Bridge
Processor lithography	32 nm
Processor operating modes	64-bit
Processor package size	37.5 x 37.5 mm
Processor socket	LGA 1155 (Socket H2)
Stepping	D2
System bus rate	5 GT/s
Tcase	72.6 °C
Thermal Design Power (TDP)	95 W
On-board graphics card model	Intel® HD Graphics P3000
Maximum internal memory supported by processor	32 GB
Memory bandwidth supported by processor (max)	21 GB/s

Specification	Value
Ethernet LAN	Yes
Wi-Fi	No
DHCP client	Yes
DHCP server	Yes
Jumbo frames support	Yes
iSCSI support	Yes
Wake-on-LAN ready	Yes
Maximum data transfer rate	10000 Mbit/s
Supported network protocols	TCP/IP (IPv4, IPv6), CIFS/SMB, AFP (v3.3), NFS(v3), FTP, FTPS, SFTP, TFTP, HTTP(S), Telnet, SSH, iSCSI, SNMP, SMTP, SMSC, UPnP

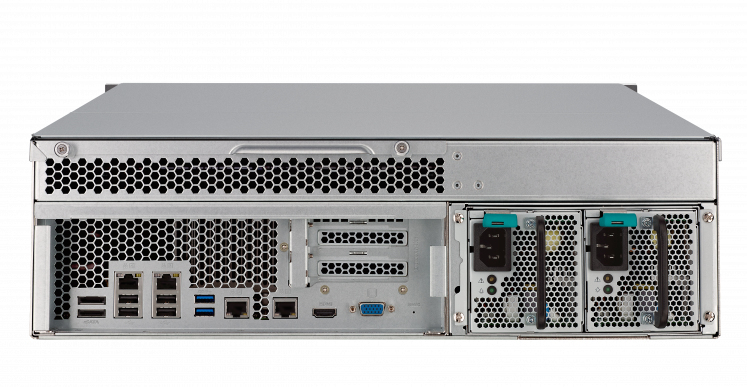

Specification	Value
Ethernet LAN (RJ-45) ports	4
USB 2.0 ports quantity	4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
Fiber ports quantity	0
VGA (D-Sub) ports quantity	1
eSATA ports quantity	2
HDMI ports quantity	0
Serial ports quantity	0
RS-232 ports	0
External mini-SAS ports	0
FireWire 400	No
FireWire 800	No
PS/2 ports quantity	0
eSATA	Yes
USB 1.1 ports quantity	0

Specification	Value
On-board graphics card base frequency	850 MHz
On-board graphics card dynamic frequency (max)	1350 MHz
Number of displays supported (on-board graphics)	2

Specification	Value
Buzzer	Yes
Multilingual support	Yes
Number of users	4096 user(s)
Noise level	55.13 dB
Management protocols	SNMP
Web-based management	Yes
Access Control List (ACL)	Yes
On/off switch	Yes
Reset button	Yes
Security algorithms	256-bit AES, 802.1x RADIUS, HTTPS, SSH, SSL/TLS

Specification	Value
Redundant power supply (RPS) support	Yes
Power consumption (typical)	229 W
Power consumption (sleep)	89 W
Output power	600 W

Specification	Value
Embedded options available	Yes
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Idle States	Yes
Intel 64	Yes
Intel Demand Based Switching	Yes
Intel Dual Display Capable Technology	Yes
Intel Enhanced Halt State	Yes
Intel FDI Technology	Yes
Intel Fast Memory Access	Yes
Intel Flex Memory Access	Yes
Intel Identity Protection Technology version	1.00
Intel Trusted Execution Technology	Yes
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel® AES New Instructions (Intel® AES-NI)	Yes
Intel® Clear Video HD Technology (Intel® CVT HD)	Yes
Intel® Hyper Threading Technology (Intel® HT Technology)	No
Intel® Identity Protection Technology (Intel® IPT)	Yes
Intel® InTru™ 3D Technology	Yes
Intel® Quick Sync Video Technology	Yes
Intel® Smart Cache	Yes
Intel® Turbo Boost Technology	2.0
Intel® Wireless Display (Intel® WiDi)	No
Maximum number of PCI Express lanes	20
Thermal Monitoring Technologies	Yes
Memory channels supported by processor	Dual
Memory types supported by processor	DDR3-SDRAM

Specification	Value
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	0 - 90%

Specification	Value
Compatible operating systems	Windows XP, Vista, Windows 7 (32/64-bit), Windows Server 2003/2008 R2, Apple Mac OS X, Linux, UNIX
Fan	60 mm
Networking features	10GbE
Power LED	Yes
Power requirements	AC 100-240V, 50/60Hz
Processor ARK ID	52270
