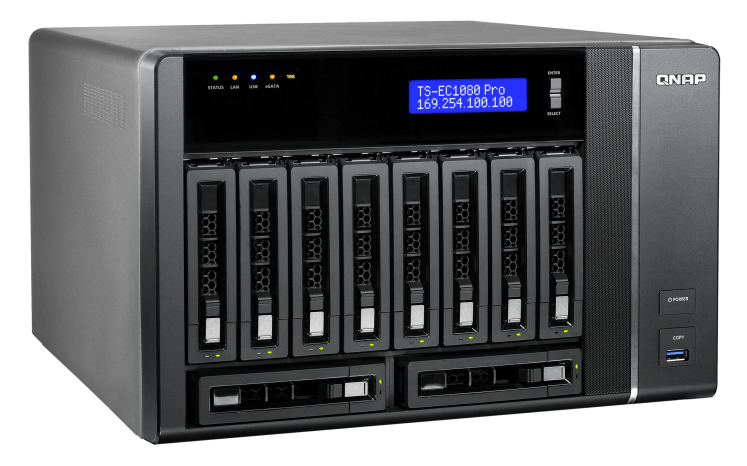

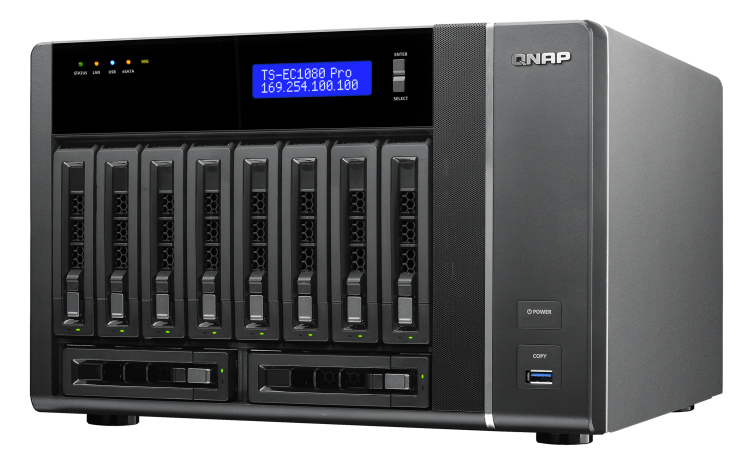

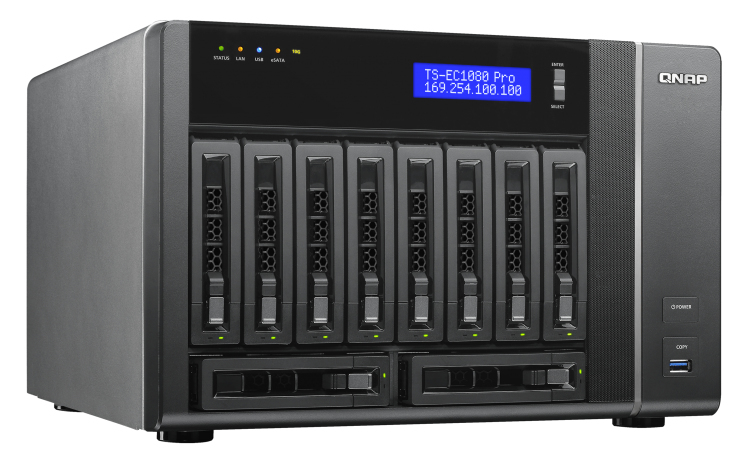

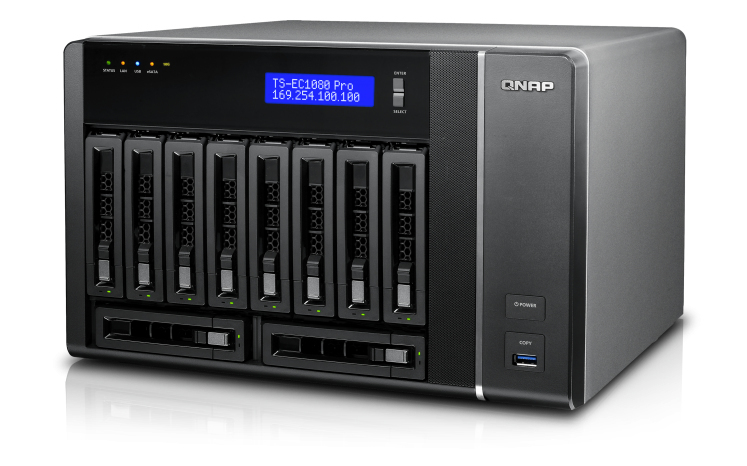

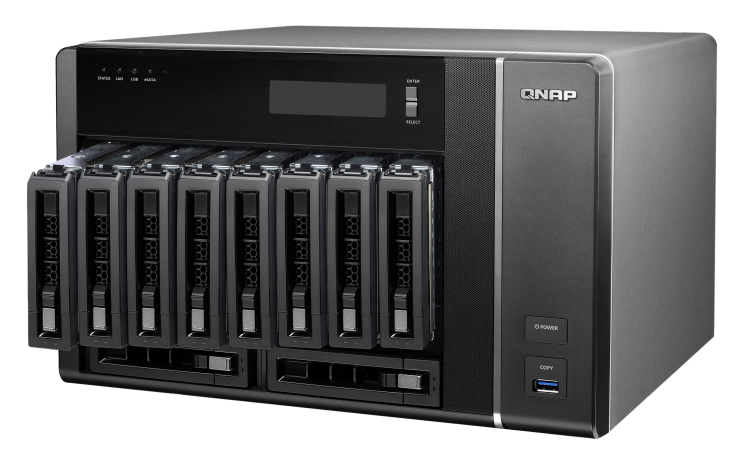

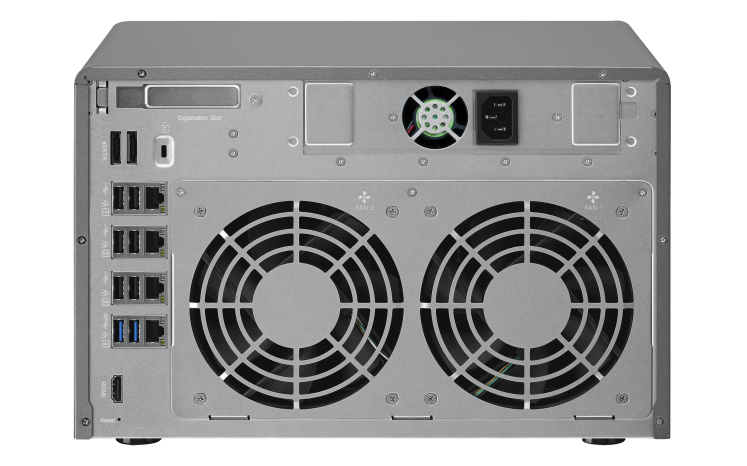

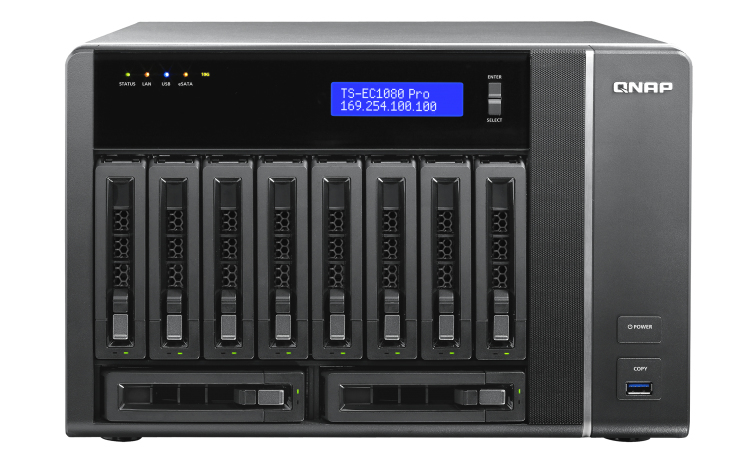

QNAP TS-EC1080 Pro

QNAP TS-EC1080 Pro

Model TS-EC1080 ProPart no. TS-EC1080 PRO + 5X 0S03899EAN 5051868951541

74 specifications
  • ProcessorIntel® Xeon® E3 V3 Family
  • Memory2 GB
  • Noise54.6 dB
  • TypeNAS
  • OSQNAP Turbo System
  • Weight12.5 kg
See all specifications

Overview

Processor
Intel® Xeon® E3 V3 Family
Memory
2 GB
Noise
54.6 dB
Type
NAS
OS
QNAP Turbo System
Weight
12.5 kg
Brand
QNAP
Model
TS-EC1080 Pro
Part numbers
TS-EC1080 PRO + 5X 0S03899, TS-EC1080 PRO + 5X 0S03903, TS-EC1080 PRO + 5X 0S03907, TS-EC1080 PRO + 5X 0S03911, TS-EC1080 PRO + 10X ST2000VN0001, TS-EC1080 PRO + 10X ST3000VN0001 +34 more
EAN / UPC
5051868951541, 4053162674509, 4712511125153, 5050914868154 +6 more
Also known as
QNAP TS-EC1080 Pro NAS Tower Intel® Xeon® E3 V3 Family E3-1200V3 2 GB DDR3 0 TB QNAP Turbo System Black

Specifications

74 specifications in 12 groups

Storage

Storage drives installedNo
Total installed storage capacity0 TB
Number of storage drives installed0
Number of storage drives supported10
Supported storage drive typesHDD & SSD
Storage drive interfaceSerial ATA II, Serial ATA III
Storage drive size2.5/3.5"
RAID supportYes
RAID levels0, 1, 5, 6, 10, JBOD
Hot-swap drive baysYes
Supported file systemsext3, ext4, FAT32, HFS+, NTFS

Processor

Processor familyIntel® Xeon® E3 V3 Family
Processor modelE3-1200V3
Processor frequency3.4 GHz
Processor cores4

Memory

Internal memory2 GB
Internal memory typeDDR3
Maximum RAM supported32 GB
Memory slots4
Flash memory512 MB

Network

Ethernet LANNo
Ethernet LAN data rates10,100,1000 Mbit/s
DHCP clientYes
DHCP serverYes
Jumbo frames supportYes
iSCSI supportYes
Wake-on-LAN readyYes
Supported network protocolsCIFS/SMB, AFP (v3.3), NFS (v3), FTP, FTPS, SFTP, TFTP, HTTP(S), Telnet, SSH, iSCSI, SNMP, SMTP, SMSC

Ports & interfaces

Ethernet LAN (RJ-45) ports4
USB 2.0 ports quantity6
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity3
Fiber ports quantity0
eSATA ports quantity2

Design

Chassis typeTower
Cooling typeActive
Product colourBlack
Number of fans2 fan(s)
Fan diameter12 cm
LED indicatorsYes
Built-in displayYes
Cable lock slotYes
Cable lock slot typeKensington

Performance

TypeNAS
Device classHome & Home Office
Backup functionYes
BuzzerYes
Multilingual supportYes
Noise level54.6 dB
Noise level (idle)54.57 dB
Built-in optical driveNo
Card reader integratedNo
Management protocolsSNMP, Telnet
Web-based managementYes
Access Control List (ACL)Yes
Reset buttonYes
Security algorithms256-bit AES, FIPS 140-2, HTTPS, SSH, SSL/TLS

Software

Operating system installedQNAP Turbo System
Operating system version4.1
Windows operating systems supportedYes
Linux operating systems supportedYes
Mac operating systems supportedYes

Power

Power supply unit (PSU) capacity350 W
Power consumption (typical)130 W
Power consumption (sleep)68 W
AC input voltage100-240 V
AC input frequency50 - 60 Hz

Weight & dimensions

Width327 mm
Depth321.2 mm
Height217.5 mm
Weight12.5 kg
Package weight19.8 kg

Operational conditions

Operating temperature (T-T)0 - 40 °C
Operating relative humidity (H-H)5 - 95%

Other features

Digital Living Network Alliance (DLNA) certifiedYes
