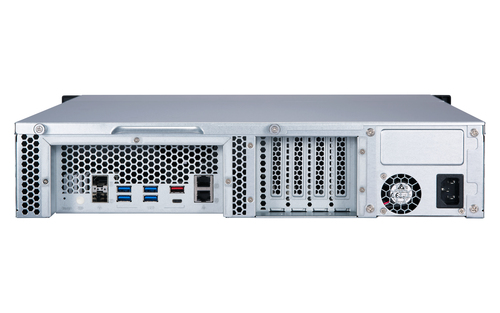

QNAP TS-877XU NAS Rack (2U) AMD Ryzen™ 3 1200

4 GB DDR4 0 TB QNAP Turbo System Black

Model TS-877XUPart no. TS-877XU-1200-4G/32TB-TEEAN 5050914107925

110 specifications

Overview

Brand: QNAP
Category: NAS & Storage Servers
Model: TS-877XU
Part numbers: TS-877XU-1200-4G/32TB-TE, TS-877XU-1200-4G, TS-877XU-1200-4G/112TB-IWP, TS-877XU-1200-4G/16TB-IWP, TS-877XU-1200-4G/32TB-IWP, TS-877XU-1200-4G/48TB-IWP +34 more
EAN / UPC: 5050914107925, 4713213513590, 5055628441549, 5055628439928 +41 more
Also known as: QNAP TS-877XU NAS Rack (2U) AMD Ryzen™ 3 1200 4 GB DDR4 0 TB QNAP Turbo System Black

110 specifications in 14 groups

Specification	Value
Storage drives installed	No
Total installed storage capacity	0 TB
Number of storage drives installed	0
Number of storage drives supported	8
Installed storage drive type	No
Supported storage drive types	HDD & SSD
Supported storage drive interfaces	Serial ATA III
Storage drive sizes supported	2.5,3.5"
RAID support	Yes
RAID levels	0, 1, 5, 6, 10, 50, JBOD
Online RAID migration	Yes
Online RAID expansion	Yes
RAID rebuild	Yes
Hot-swap drive bays	Yes
Supported file systems	FAT32, HFS+, NTFS, exFAT, ext3, ext4
Bad block scan	Yes
Disk roaming	Yes

Specification	Value
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000,10000 Mbit/s
Ethernet LAN data rate supported (max)	10000 Mbit/s
Wi-Fi	No
DHCP client	Yes
DHCP server	Yes
Jumbo frames support	Yes
iSCSI support	Yes
Wake-on-LAN ready	Yes
Dynamic DNS (DDNS)	Yes
Supported network protocols	TCP/IP, IPv4, IPv6, NAT, STP, SSH, Telnet, HTTP(S), FTP, CIFS/SMB, AFP

Specification	Value
Ethernet LAN (RJ-45) ports	2
USB port	Yes
USB 2.0 ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	4
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	1
Fiber ports quantity	2
Fiber optic connector	SFP+
PCI Express x4 (Gen 3.x) slots	2
PCI Express x8 (Gen 3.x) slots	2

Specification	Value
Type	NAS
Device class	Small & Medium Business
Backup function	Yes
Backup features	Cloud, iSCSI LUN
Multilingual support	Yes
Noise level	35.2 dB
Third-party support	Yes
Built-in optical drive	No
Card reader integrated	No
Snapshot	Yes
Management protocols	SNMP
Share folder access right management	Yes
Web-based management	Yes
Access Control List (ACL)	Yes
Browser supported	Microsoft Internet Exploer 10, Mozilla Firefox, Google Chrome, Apple Safari 7+
Built-in BitTorrent client	Yes
Built-in FTP server	Yes
Built-in iTunes server	Yes
Disk scan	Yes
Hot spare	Yes
Password authentication	Yes
S.M.A.R.T. support	Yes
Security algorithms	256-bit AES, FIPS 140-2
Share folder	CIFS/SMB
System log	Yes
Universal Plug and Play (UPnP)	Yes

Specification	Value
Operating system installed	QNAP Turbo System
Operating system version	4.3.4
Windows operating systems supported	Windows 10, Windows 7, Windows 8
Linux operating systems supported	Yes
Mac operating systems supported	Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks
Server operating systems supported	Windows Server 2003, Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016

Specification	Value
Power supply location	Built-in
Power supply unit (PSU) capacity	350 W
Number of power supply units	1
Power consumption (typical)	73.1 W
AC input voltage	100-240 V
AC input frequency	50 - 60 Hz
Fan voltage	12 V

Specification	Value
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	5 - 95%

Specification	Value
Harmonized System (HS) code	84714100

Specification	Value
Compliance certificates	RoHS
Digital Living Network Alliance (DLNA) certified	Yes
