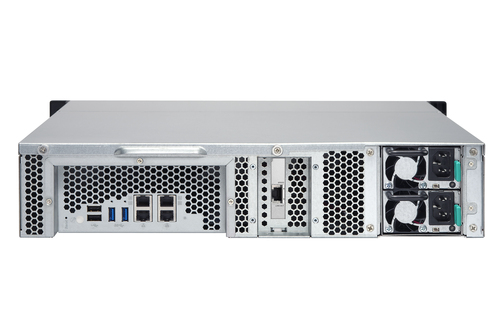

QNAP TS-863XU-RP NAS Rack (2U) AMD G GX-420MC

4 GB DDR3L 0 TB QNAP Turbo System Black

Model TS-863XU-RPPart no. TS-863XU-RP-4G-80TB-GLDEAN 5050914075828

91 specifications

Overview

Brand: QNAP
Category: NAS & Storage Servers
Model: TS-863XU-RP
Part numbers: TS-863XU-RP-4G-80TB-GLD, TS-863XU-RP-4G, TS-863XU-RP-4G-US, TS-863XU-RP-4G/16TB-GOLD, TS-863XU-RP-4G/32TB-GOLD, TS-863XU-RP-4G-80TB-IW +34 more
EAN / UPC: 5050914075828, 4713213512777, 885022014705, 5051868071409 +56 more
Also known as: QNAP TS-863XU-RP NAS Rack (2U) AMD G GX-420MC 4 GB DDR3L 0 TB QNAP Turbo System Black

91 specifications in 12 groups

Specification	Value
Storage drives installed	No
Total installed storage capacity	0 TB
Number of storage drives installed	0
Number of storage drives supported	8
Installed storage drive type	No
Supported storage drive types	HDD & SSD
Storage drive capacity	0 GB
Supported storage drive interfaces	Serial ATA III
Storage drive sizes supported	2.5,3.5"
RAID support	Yes
RAID levels	0, 1, 5, 6, 10, 50, 60, JBOD
Online RAID migration	Yes
Online RAID expansion	Yes
Hot-swap drive bays	Yes
Supported file systems	FAT32, HFS+, NTFS, ext3, ext4
Bad block scan	Yes

Specification	Value
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000,10000 Mbit/s
Ethernet LAN data rate supported (max)	10000 Mbit/s
Copper ethernet cabling technology	10GBASE-T, 1000BASE-T
Wi-Fi	No
DHCP server	Yes
Jumbo frames support	Yes
iSCSI support	Yes
Wake-on-LAN ready	Yes
Supported network protocols	PPTP, L2TP/IPSec, OpenVPN VPN

Specification	Value
Ethernet LAN (RJ-45) ports	5
USB port	Yes
USB 2.0 ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
Fiber ports quantity	0

Specification	Value
Type	NAS
Device class	Small & Medium Business
Backup function	Yes
Backup features	Cloud, iSCSI LUN
Buzzer	Yes
Multilingual support	Yes
Noise level	36.4 dB
Share folder access right management	Yes
Web-based management	Yes
Access Control List (ACL)	Yes
Browser supported	Safari 7+, Chrome, Internet Explorer 10+, Firefox
Hot spare	Yes
On/off switch	Yes
Reset button	Yes
S.M.A.R.T. support	Yes
Security algorithms	256-bit AES, FIPS 140-2, HTTPS, SSH, SSL/TLS
Share folder	CIFS/SMB
System log	Yes
Universal Plug and Play (UPnP)	Yes

Specification	Value
Operating system installed	QNAP Turbo System
Operating system version	4.3.4
Windows operating systems supported	Windows 10, Windows 7, Windows 8
Linux operating systems supported	Yes
Mac compatibility	Yes
Mac operating systems supported	Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks
Server operating systems supported	Windows Server 2003, Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016

Specification	Value
Power supply location	Built-in
Power supply unit (PSU) capacity	250 W
Number of power supply units	2
Power consumption (typical)	107.3 W
Power consumption (HDD standby)	51.29 W
AC input voltage	100 - 240 V
Fan voltage	12 V

Specification	Value
Cables included	AC, LAN (RJ-45)
Quick installation guide	Yes

Specification	Value
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	5 - 95%
