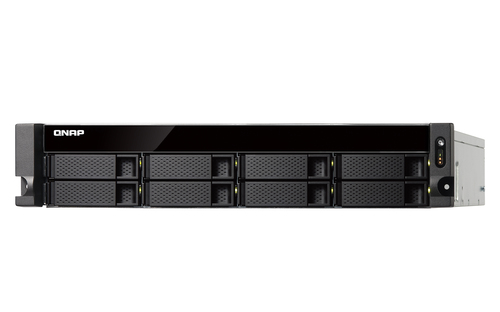

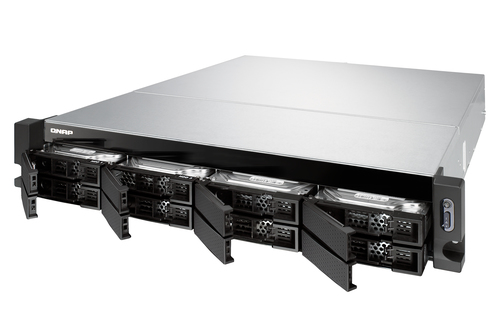

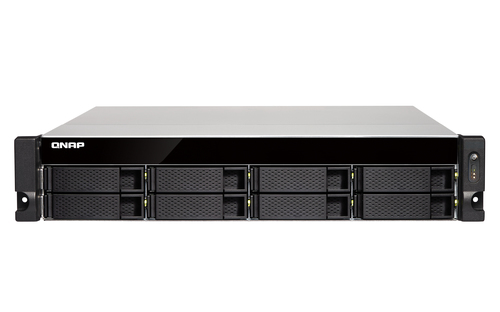

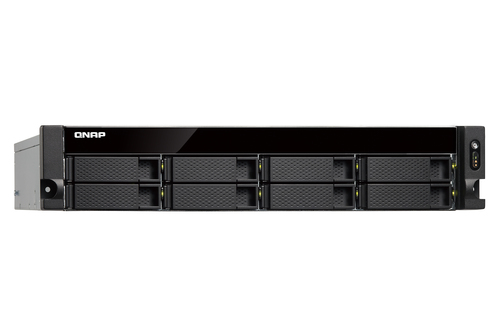

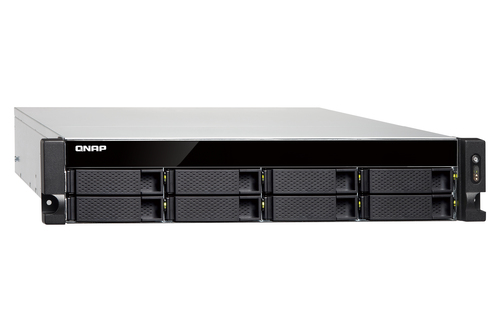

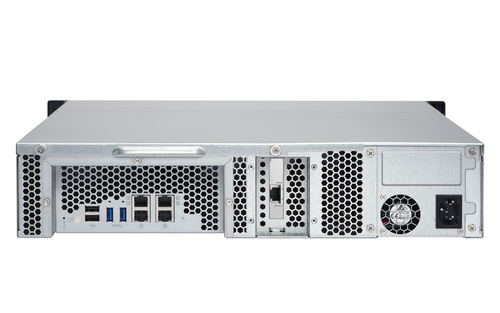

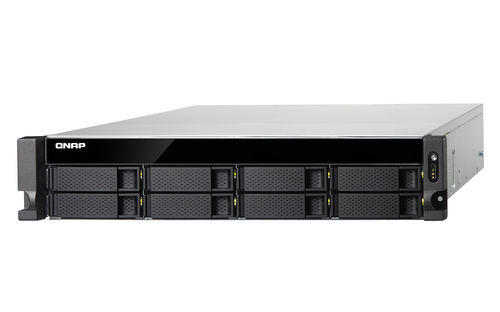

TS-863XU-4G/80TB-TE NAS/storage server Rack (2U)
4 GB DDR3L HDD Black
Model TS-863XU-4G/80TB-TEEAN 5051868103667
81 specifications
- Memory4 GB
- Noise35 dB
- TypeNAS
- ColourBlack
- Storage drives installedYes
- Processor frequency2 GHz
Overview
- Memory
- 4 GB
- Noise
- 35 dB
- Type
- NAS
- Colour
- Black
- Storage drives installed
- Yes
- Processor frequency
- 2 GHz
- Brand
- QNAP
- Category
- NAS & Storage Servers
- Model
- TS-863XU-4G/80TB-TE
- Part number
- TS-863XU-4G/80TB-TE
- EAN / UPC
- 5051868103667
- Also known as
- QNAP TS-863XU-4G/80TB-TE NAS/storage server Rack (2U) 4 GB DDR3L HDD Black
Specifications
81 specifications in 12 groups
Storage
| Specification | Value |
|---|---|
| Storage drives installed | Yes |
| Number of storage drives supported | 8 |
| Installed storage drive type | HDD |
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | Serial ATA III |
| Storage drive sizes supported | 2.5,3.5" |
| RAID support | Yes |
| RAID levels | 0, 1, 5, 6, 10, 50, 60, JBOD |
| Online RAID migration | Yes |
| Online RAID expansion | Yes |
| Hot-swap drive bays | Yes |
| Supported file systems | FAT32, HFS+, NTFS, ext3, ext4 |
| Bad block scan | Yes |
Processor
| Specification | Value |
|---|---|
| Processor frequency | 2 GHz |
Memory
| Specification | Value |
|---|---|
| Internal memory | 4 GB |
| Internal memory type | DDR3L |
| Maximum RAM supported | 16 GB |
| Memory form factor | SO-DIMM |
| Memory slots | 2 |
| Flash memory | 512 MB |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000,10000 Mbit/s |
| Ethernet LAN data rate supported (max) | 10000 Mbit/s |
| Copper ethernet cabling technology | 10GBASE-T, 1000BASE-T |
| Wi-Fi | No |
| DHCP server | Yes |
| Jumbo frames support | Yes |
| iSCSI support | Yes |
| Wake-on-LAN ready | Yes |
| Supported network protocols | PPTP, L2TP/IPSec, OpenVPN VPN |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 5 |
| USB port | Yes |
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| Fiber ports quantity | 0 |
Design
| Specification | Value |
|---|---|
| Chassis type | Rack (2U) |
| Cooling type | Active |
| Product colour | Black |
| Number of fans | 2 fan(s) |
| Fan diameter | 7 cm |
| LED indicators | HDD, LAN, USB |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
Performance
| Specification | Value |
|---|---|
| Type | NAS |
| Device class | Small & Medium Business |
| Backup function | Yes |
| Backup features | Cloud, iSCSI LUN |
| Buzzer | Yes |
| Multilingual support | Yes |
| Noise level | 35 dB |
| Share folder access right management | Yes |
| Web-based management | Yes |
| Access Control List (ACL) | Yes |
| Browser supported | Safari 7+, Chrome, Internet Explorer 10+, Firefox |
| Built-in FTP server | Yes |
| Built-in iTunes server | Yes |
| Hot spare | Yes |
| On/off switch | Yes |
| Reset button | Yes |
| S.M.A.R.T. support | Yes |
| Security algorithms | 256-bit AES, FIPS 140-2, HTTPS, SSH, SSL/TLS |
| Share folder | CIFS/SMB |
| System log | Yes |
| Universal Plug and Play (UPnP) | Yes |
Software
| Specification | Value |
|---|---|
| Operating system version | 4.3.4 |
| Windows operating systems supported | Windows 10, Windows 7, Windows 8 |
| Linux operating systems supported | Yes |
| Mac operating systems supported | Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks |
| Server operating systems supported | Windows Server 2003, Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016 |
Power
| Specification | Value |
|---|---|
| Power supply location | Built-in |
| Power supply unit (PSU) capacity | 250 W |
| Number of power supply units | 1 |
| AC input voltage | 100 - 240 V |
| Fan voltage | 12 V |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 482 mm |
| Depth | 534 mm |
| Height | 89 mm |
Packaging content
| Specification | Value |
|---|---|
| Cables included | AC, LAN (RJ-45) |
| Quick installation guide | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 5 - 95% |
