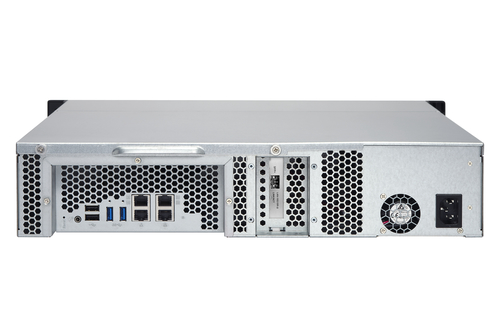

QNAP TS-863U NAS Rack (2U)

4 GB DDR3L 0 TB QNAP Turbo System Black

Model TS-863UPart no. TS-863U-4G + 8X WD2001FFSXEAN 5051868012068

93 specifications

Overview

Brand: QNAP
Category: NAS & Storage Servers
Model: TS-863U
Part numbers: TS-863U-4G + 8X WD2001FFSX, TS-863U-4G/16TB-RED, TS-863U-4G/16TB-SEA, TS-863U-4G/24TB-RED, TS-863U-4G/32TB-RED, TS-863U-4G/32TB-SEA +34 more
EAN / UPC: 5051868012068, 5051868022807, 5051868043024, 5051868022777 +19 more
Also known as: QNAP TS-863U NAS Rack (2U) 4 GB DDR3L 0 TB QNAP Turbo System Black

93 specifications in 14 groups

Specification	Value
Storage drives installed	No
Total installed storage capacity	0 TB
Number of storage drives installed	0
Number of storage drives supported	8
Installed storage drive type	No
Supported storage drive types	HDD
Storage drive interface	Serial ATA II, Serial ATA III
Storage drive size	2.5/3.5"
RAID support	Yes
RAID levels	0, 1, 5, 6, 10
Hot-swap drive bays	Yes
Supported file systems	FAT32, HFS+, NTFS, ext3, ext4

Specification	Value
Processor frequency	2 GHz
Processor cores	4

Specification	Value
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000,10000 Mbit/s
Wi-Fi	No
DHCP client	Yes
DHCP server	Yes
Jumbo frames support	Yes
iSCSI support	Yes
Wake-on-LAN ready	Yes
Link aggregation	Yes
Supported network protocols	CIFS/SMB, AFP (v3.3), NFS (v3), FTP, FTPS, SFTP, TFTP, HTTP(S), Telnet, SSH, iSCSI, SNMP, SMTP, SMSC

Specification	Value
Ethernet LAN (RJ-45) ports	4
USB 2.0 ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
Fiber ports quantity	1
Fiber optic connector	SFP+

Specification	Value
Type	NAS
Device class	Small & Medium Business
Backup function	Yes
Backup features	Cloud, iSCSI LUN
Buzzer	Yes
Multilingual support	Yes
Number of users	4096 user(s)
Noise level	35 dB
Built-in optical drive	No
Card reader integrated	No
Share folder access right management	Yes
Web-based management	Yes
Access Control List (ACL)	Yes
Browser supported	Microsoft Internet Explorer 10+, Mozilla Firefox 8+, Apple Safari 4+, Google Chrome
Built-in FTP server	Yes
Built-in UPnP AV media server	Yes
Built-in iTunes server	Yes
Hot spare	Yes
On/off switch	Yes
Reset button	Yes
S.M.A.R.T. support	Yes
Security algorithms	256-bit AES, FIPS 140-2, HTTPS, SSH, SSL/TLS
Share folder	CIFS/SMB
System log	Yes

Specification	Value
Operating system installed	QNAP Turbo System
Operating system version	4.2
Windows operating systems supported	Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 8, Windows 8 x64
Linux operating systems supported	Yes
Mac operating systems supported	Yes
Server operating systems supported	Windows Server 2003, Windows Server 2003 R2, Windows Server 2008, Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2

Specification	Value
Power supply location	Built-in
Power supply unit (PSU) capacity	250 W
Number of power supply units	1
Power consumption (typical)	94.4 W
Power consumption (sleep)	40.28 W
AC input voltage	100-240 V
AC input frequency	50 - 60 Hz
Fan voltage	12 V
Output current	5 A

Specification	Value
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	5 - 95%

Specification	Value
Harmonized System (HS) code	84714100

Specification	Value
Digital Living Network Alliance (DLNA) certified	Yes
Power management	Yes
