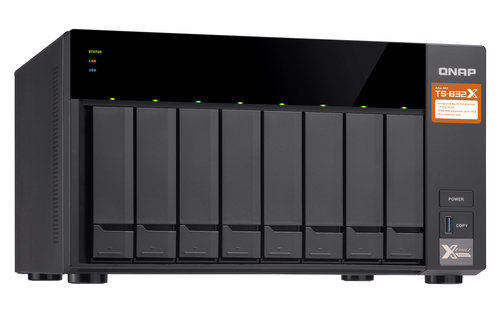

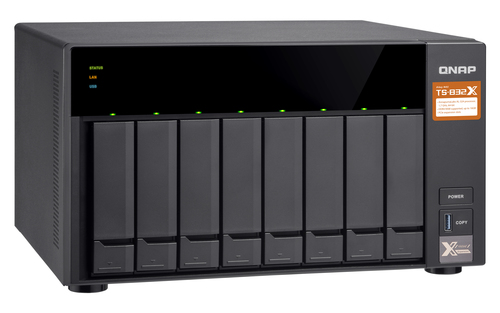

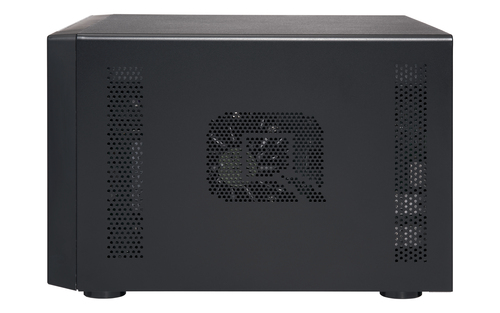

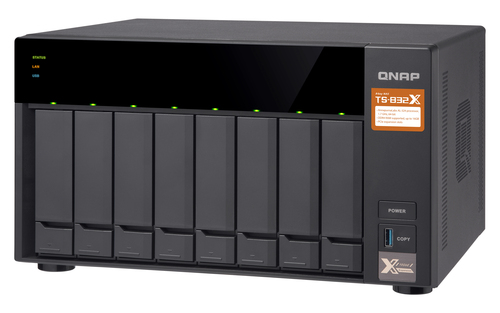

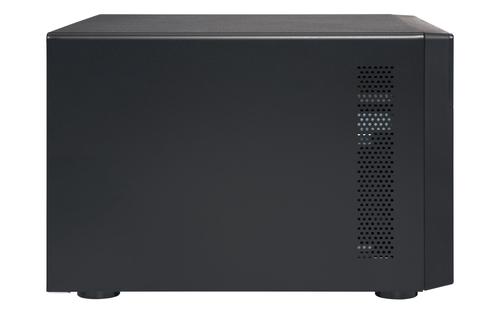

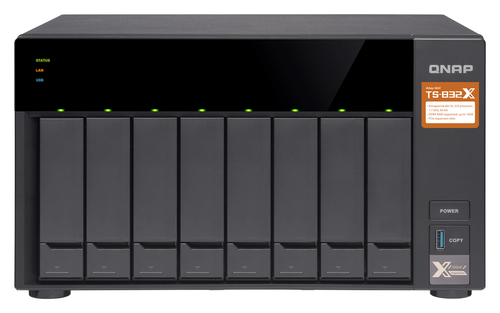

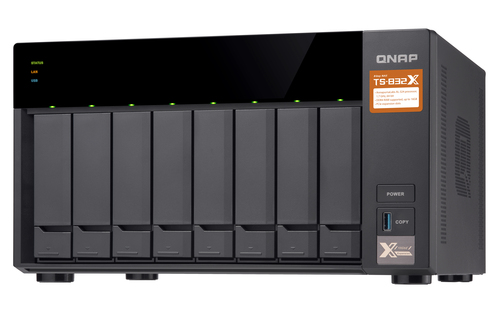

TS-832X-2G NAS Tower Annapurna Labs Alpine AL-324
2 GB DDR4 112 TB HDD Black
Model TS-832X-2GPart no. TS-832X-2G/112TB-EXOSEAN 5051868152481
78 specifications
- ProcessorAnnapurna Labs
- Memory2 GB
- TypeNAS
- ColourBlack
- Storage drives installedYes
- Ethernet LAN (RJ-45) ports2
Overview
- Processor
- Annapurna Labs
- Memory
- 2 GB
- Type
- NAS
- Colour
- Black
- Storage drives installed
- Yes
- Ethernet LAN (RJ-45) ports
- 2
- Brand
- QNAP
- Category
- NAS & Storage Servers
- Model
- TS-832X-2G
- Part numbers
- TS-832X-2G/112TB-EXOS, TS-832X-2G/128TB-IW, TS-832X-2G/128TB-EXOS, TS-832X-2G/128TB-IWP
- EAN / UPC
- 5051868152481, 5051868152474
- Also known as
- QNAP TS-832X-2G NAS Tower Annapurna Labs Alpine AL-324 2 GB DDR4 112 TB HDD Black
Specifications
78 specifications in 11 groups
Storage
| Specification | Value |
|---|---|
| Storage drives installed | Yes |
| Total installed storage capacity | 112 TB |
| Number of storage drives supported | 8 |
| Installed storage drive type | HDD |
| Supported storage drive types | HDD & SSD |
| Storage drive sizes supported | 2.5,3.5" |
| RAID support | Yes |
| RAID levels | 0, 1, 5+HS, 5, 6, 6+HS, 10, 50, 60, JBOD |
| Online RAID migration | Yes |
| Online RAID expansion | Yes |
| RAID rebuild | Yes |

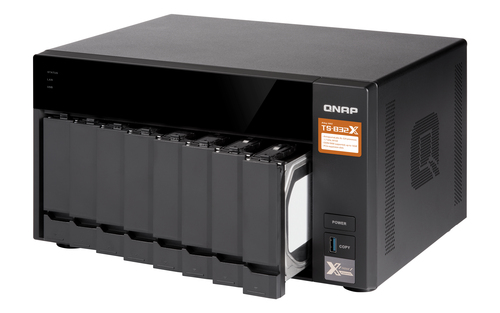

| Hot-swap drive bays | Yes |
| Supported file systems | FAT32, HFS+, NTFS, ext3, ext4 |
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Annapurna Labs |
| Processor family | Annapurna Labs |
| Processor model | Alpine AL-324 |
| Processor frequency | 1.7 GHz |
| Processor cores | 4 |
| Processor architecture | ARM Cortex-A57 |
Memory
| Specification | Value |
|---|---|
| Internal memory | 2 GB |
| Internal memory type | DDR4 |
| Memory clock speed | 2400 MHz |
| Maximum RAM supported | 16 GB |
| Memory form factor | SO-DIMM |
| Memory slots | 1 |
| Flash memory | 512 MB |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10000 Mbit/s |
| Ethernet LAN data rate supported (max) | 10000 Mbit/s |
| DHCP client | Yes |
| DHCP server | Yes |
| Wake-on-LAN ready | Yes |
| Dynamic DNS (DDNS) | Yes |
| Supported network protocols | CIFS/SMB, AFP (v3.3), NFS(v3), FTP, FTPS, SFTP, TFTP, HTTP(S), Telnet, SSH, iSCSI, SNMP, SMTP, and SMSC |

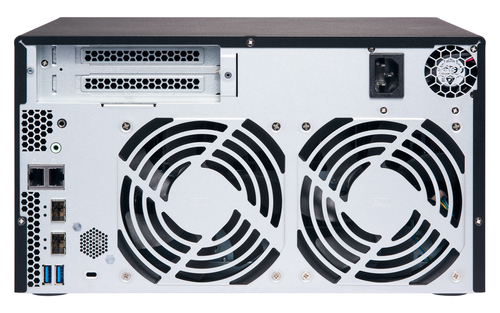

Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 2 |
| USB port | Yes |
| USB 2.0 ports quantity | 0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| Fiber ports quantity | 2 |
| Fiber optic connector | SFP+ |
| 3.5 mm (1/8-inch) out | Yes |
Design
| Specification | Value |
|---|---|
| Chassis type | Tower |
| Cooling type | Active |
| Product colour | Black |
| Number of fans | 3 fan(s) |
| Fan diameter | 12 cm |
| Fan diameter 2 | 6 cm |
| LED indicators | HDD, LAN, USB |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
Performance
| Specification | Value |
|---|---|
| Type | NAS |
| Device class | Small & Medium Business |
| Backup function | Yes |
| Backup features | Cloud |
| Buzzer | Yes |
| Snapshot | Yes |
| Browser supported | Apple Safari 7, Google Chrome, Microsoft Internet Explorer 10, Mozilla Firefox |
| Built-in FTP server | Yes |
| Built-in iTunes server | Yes |
| On/off switch | Yes |
| Reset button | Yes |
| Security algorithms | 256-bit AES |
Software
| Specification | Value |
|---|---|
| Operating system version | 4.3.4 |
| Windows operating systems supported | Yes |
| Linux operating systems supported | Yes |
| Mac operating systems supported | Yes |
| Server operating systems supported | Windows Server 2003, Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016 |
Power
| Specification | Value |
|---|---|
| Power supply location | Built-in |
| Power supply unit (PSU) capacity | 250 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Fan voltage | 12 V |
| Output current | 3.5 A |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 329.3 mm |
| Depth | 279.6 mm |
| Height | 188.2 mm |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 5 - 95% |
