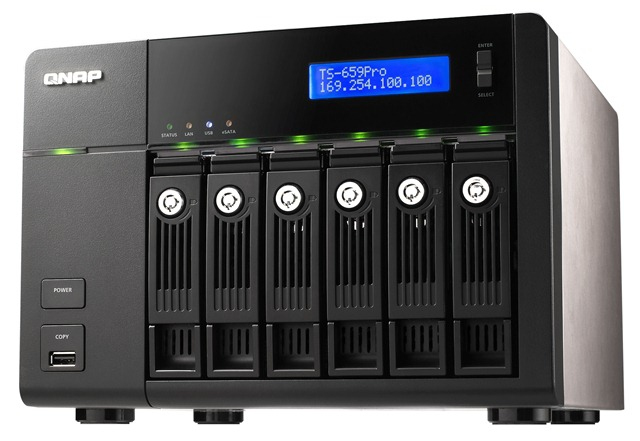

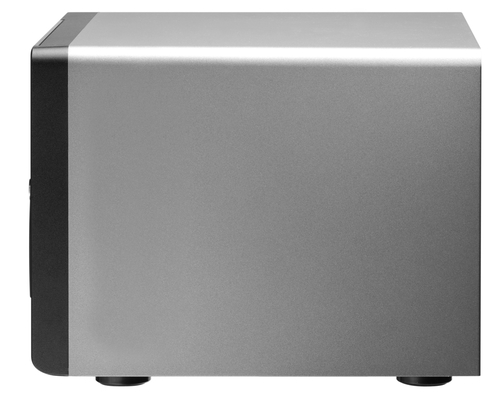

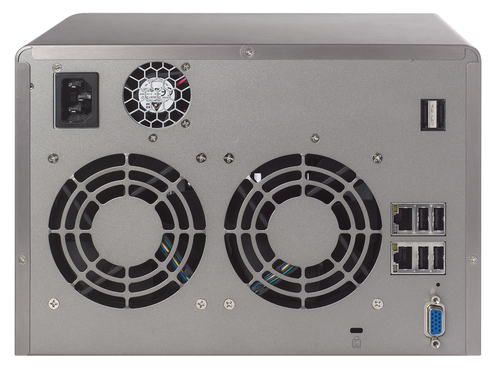

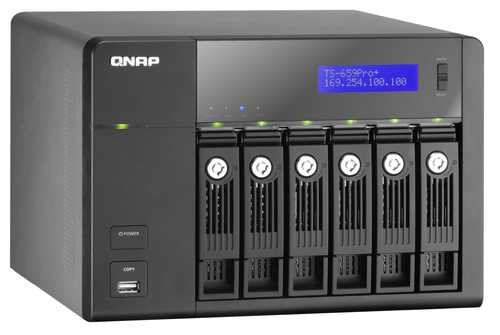

QNAP TS-659 PRO+

Model TS-659 PRO+Part no. TS-659 PRO+/12TBEAN 5051868514203

86 specifications

Overview

Brand: QNAP
Category: NAS & Storage Servers
Model: TS-659 PRO+
Part numbers: TS-659 PRO+/12TB, TS-659-PRO+-US, TS-659 PRO+/18TB, TS-659 PRO+, TS-659PRO+/12TB, TS-659PRO+/6TB +3 more
EAN / UPC: 5051868514203, 5051868514197, 5051868514180, 5051868532627 +3 more
Also known as: QNAP TS-659 PRO+ NAS/storage server Intel Atom® D525 1 GB 0 TB Linux

86 specifications in 13 groups

Specification	Value
Total installed storage capacity	0 TB
Number of storage drives installed	0
Number of storage drives supported	6
Storage drive interface	Serial ATA
Storage drive size	2.5/3.5"
Maximum supported storage capacity	18 TB
RAID levels	0, 1, 5
Hot-swap drive bays	Yes
Supported file systems	ext2, ext3, ext4, FAT32, HFS+, NTFS

Specification	Value
Processor manufacturer	Intel
Processor family	Intel Atom®
Processor model	D525
Processor frequency	1.8 GHz
Processor cores	2
Processor threads	4
Processor cache	1 MB
L2 cache	1 MB
Bus type	DMI
ECC supported by processor	No
Number of processors installed	1
Physical Address Extension (PAE)	32 bit
Processing Die size	87 mm²
Processor cache type	L2
Processor code	SLBXC
Processor codename	Pineview
Processor lithography	45 nm
Processor operating modes	64-bit
Processor package size	22 x 22 mm
Processor socket	BGA 559
Stepping	B0
Thermal Design Power (TDP)	13 W
Tjunction	100 °C
Maximum internal memory supported by processor	4 GB
Memory bandwidth supported by processor (max)	6.4 GB/s
Conflict-Free processor	No

Specification	Value
Internal memory	1 GB
Flash memory	512 MB

Specification	Value
DHCP client	Yes
DHCP server	Yes
Jumbo frames support	Yes
iSCSI support	Yes
Cabling technology	10/100/1000BASE-T(X)
Maximum data transfer rate	1000 Mbit/s
Supported network protocols	AFP, FTP, HTTP, HTTPS, Telnet, SMTP, TCP/IP, IPv4, IPv6

Specification	Value
Operating system installed	Linux

Specification	Value
Power consumption (typical)	43 W
Power consumption (sleep)	22 W

Specification	Value
Weight	5.2 kg

Specification	Value
Embedded options available	Yes
Enhanced Intel SpeedStep Technology	No
Execute Disable Bit	Yes
Idle States	No
Intel 64	Yes
Intel Demand Based Switching	No
Intel Enhanced Halt State	No
Intel Trusted Execution Technology	No
Intel Virtualization Technology (VT-x)	No
Intel Virtualization Technology for Directed I/O (VT-d)	No
Intel® AES New Instructions (Intel® AES-NI)	No
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel® Turbo Boost Technology	No
Number of Processing Die Transistors	176 M
Thermal Monitoring Technologies	No
Memory channels supported by processor	Single

Specification	Value
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	0 - 95%

Specification	Value
Compatible operating systems	Windows 2000/XP/Vista/7/Server 2003/2008 Apple Mac OS X Linux Unix
Dimensions (WxDxH)	257 x 235 x 175 mm
Fan	2x 90mm
Networking features	Gigabit Ethernet
Power requirements	100-240V AC, 50-60 Hz
Processor ARK ID	49490
